COX 2″ BULK DIESEL REEL, AIR RETRACT (LH SWIVEL)
$8,068.50

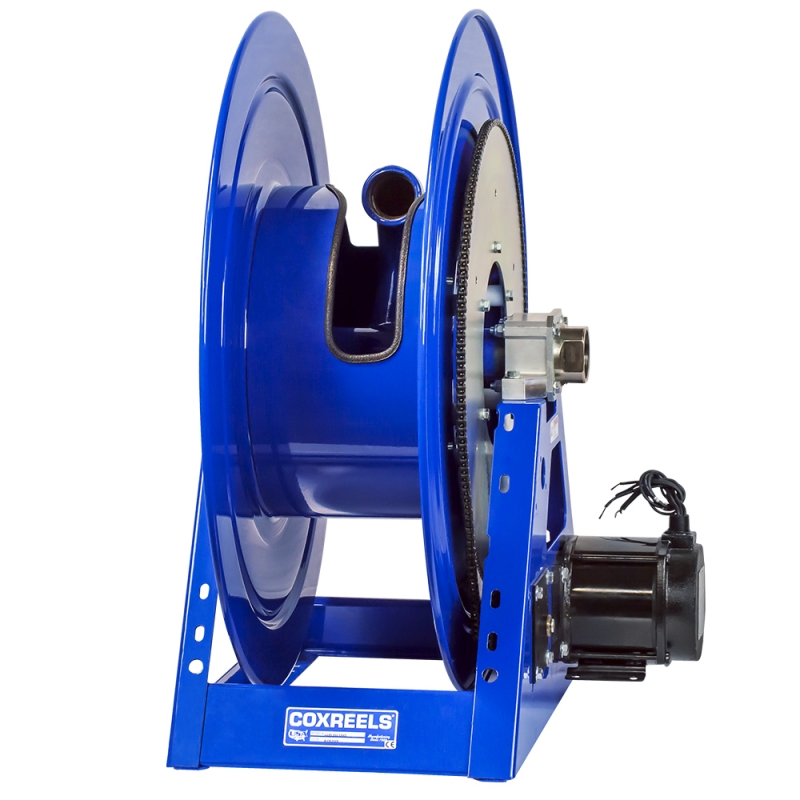

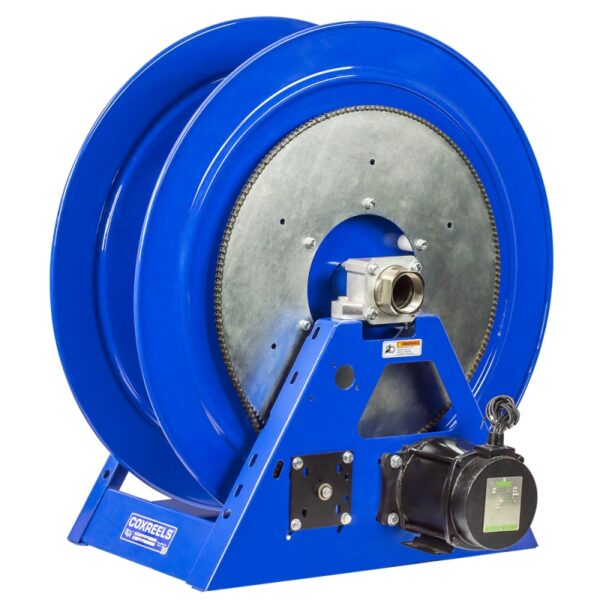

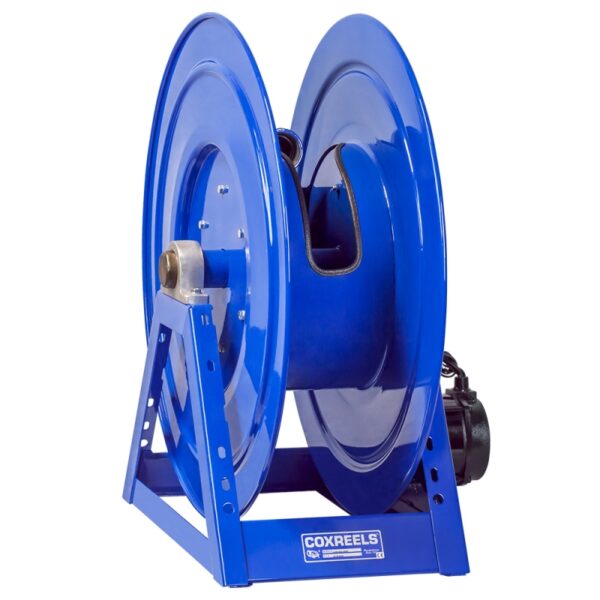

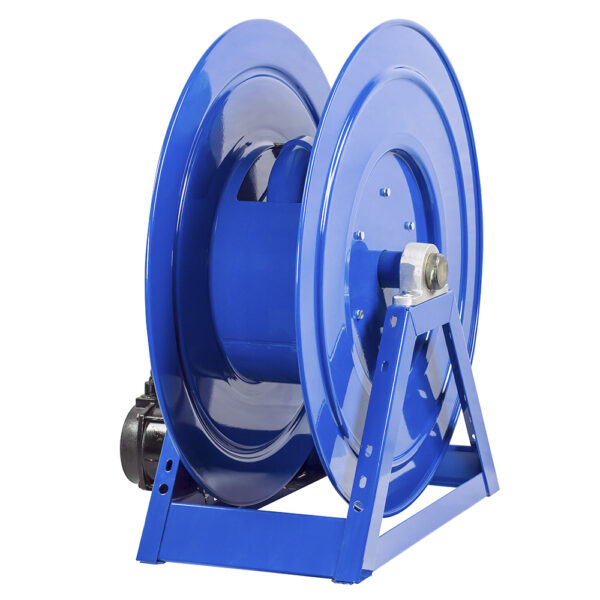

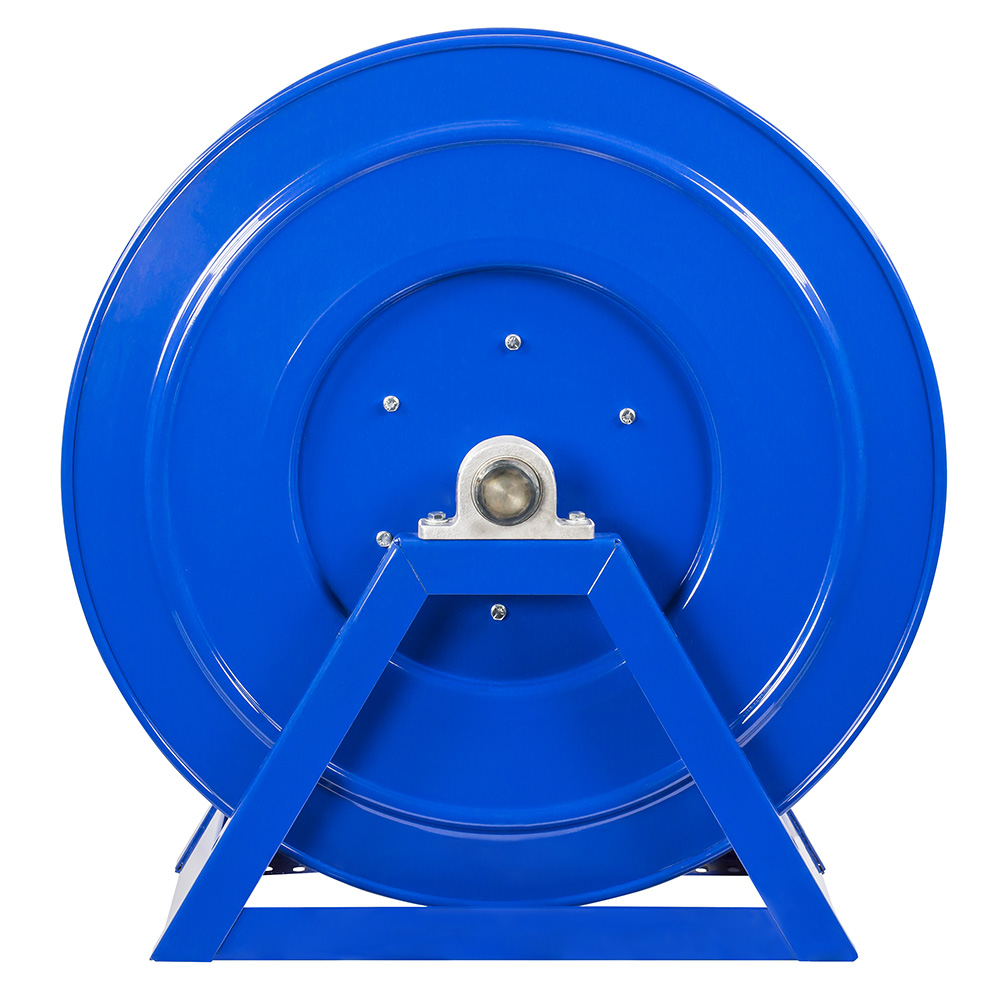

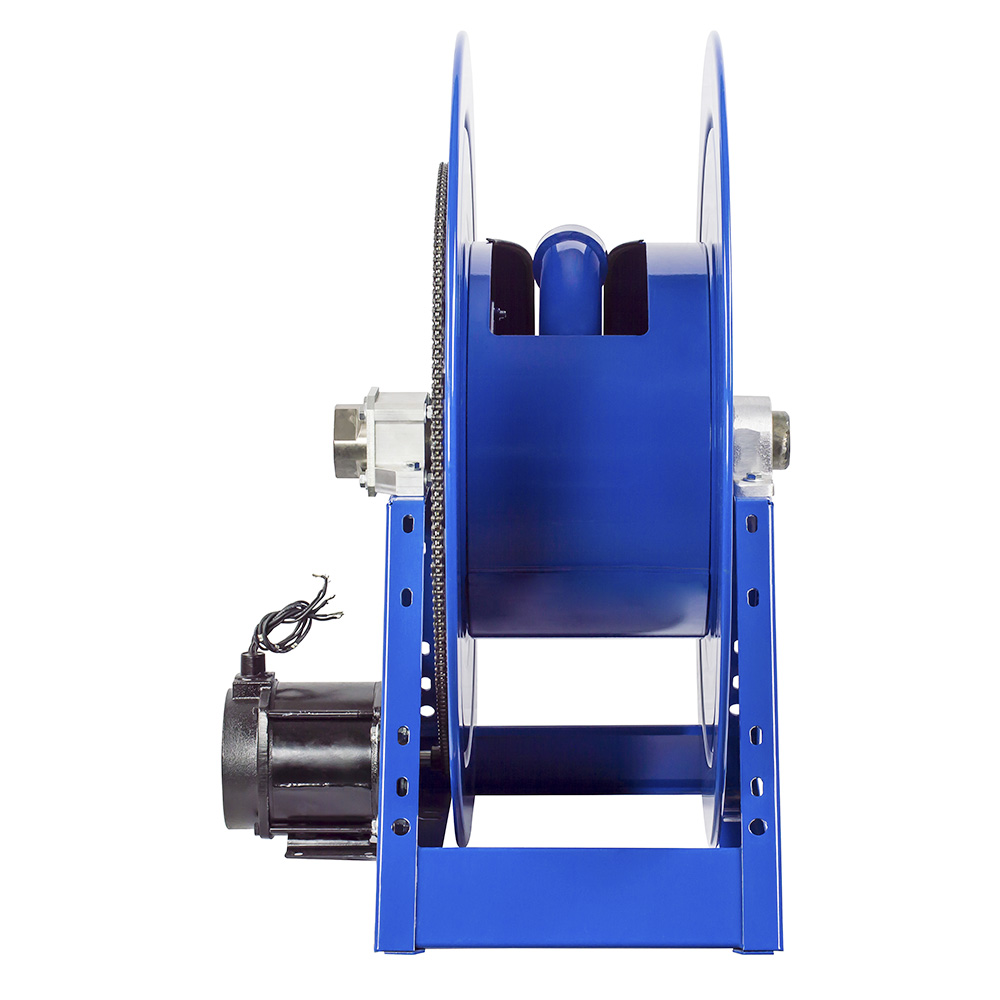

The COXREELS® 1195 Series motor-driven hose reel is engineered for applications requiring long lengths of large-diameter hose to achieve high-volume fluid or air delivery. Its exclusive low-profile outlet riser and open drum design ensure a smooth, flat hose wrap that eliminates crimping and improves hose longevity.
Built for durability and performance, the all-welded “A” frame base provides exceptional structural strength to support the added weight of larger hoses, maintaining stability and reliability even in demanding industrial or mobile environments.
Designed for efficiency and heavy-duty use, the COXREELS® 1195 Series delivers maximum flow, reduced wear, and superior hose management across a wide range of industrial, service, and mobile applications.
| Swivel |
- External fluid path with in-line electroless nickel plated steel full-flow NPT swivel inlet.
- Swivel Seals: NITRILE
|
| Design & Structure |
- All welded steel “A” frame construction for superior reel structure
- Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap
- Robust lubricated horizontal surface mount bearings for easy rotation
- Adaptor for Victaulic connections available, consult factory
- Adjustable tension brake to prevent “free-wheeling” during operation
|
| Retract |
- Reliable chain & sprocket drive on motor driven models.
- Idler gears to reduce drum speed and increase torque. Default ratio 1:3. Available in three sizes, consult factory.
|
| Signature Features |
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer’s limited warranty.
- Made in the U.S.A. – Sold & Supported Worldwide.
- SWIVEL – In-line electroless nickel plated steel full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- OUTLET RISER – Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- “A” FRAME – Sturdy one piece, all CNC robotically welded 12 gauge steel “A” frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- PERMANENT LUBRICATED BEARINGS – Robust lubricated horizontal surface mount bearings for easy rotation.
- OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish, and idler gear 1:3 ratio by default. Motor options available in air, electric, and hydraulic.
|
