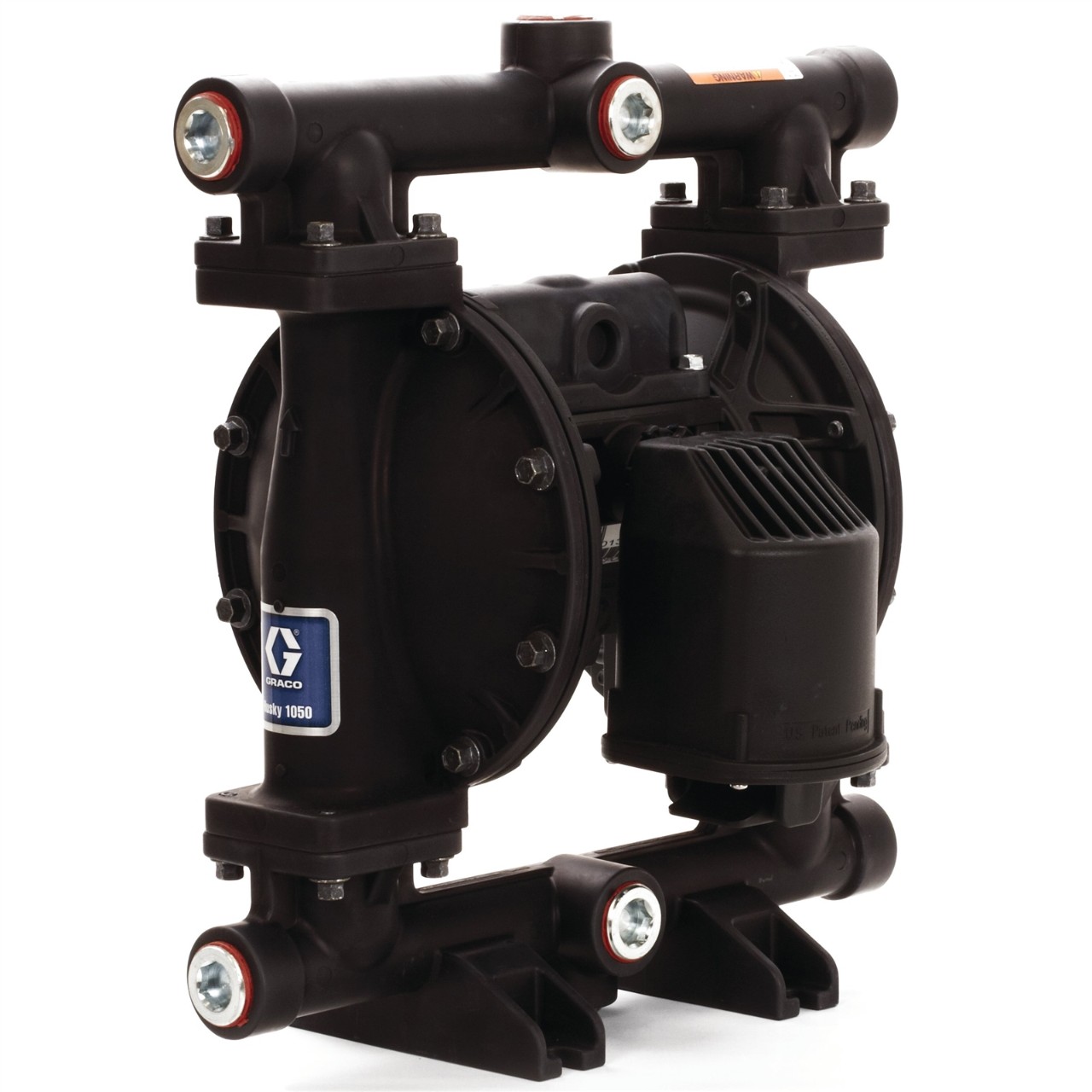

GRACO HUSKY 1050 1″ DIAPHRAGM PUMP
$2,728.00
The Husky 1050 Air-Operated Diaphragm Pump delivers exceptional performance, reliability, and efficiency for industrial fluid transfer applications. Engineered with a stall-free, low-pulsation air valve, it ensures smooth and rapid changeover, while the one-piece centre section eliminates air leaks and minimises maintenance downtime.
Designed by Graco, the Husky 1050 sets the benchmark for durability and efficiency, offering up to 30% greater energy efficiency and 20% higher fluid flow compared to the previous Husky 1040 model.
Product Information
- Technical Specifications
- Air Exhaust Port Size (in)
- 3/4
- Air Exhaust Port Thread Gender
- Female
- Air Exhaust Port Thread Type
- NPT
- Air Inlet Size (in)
- 1/2
- Air Inlet Thread Gender
- Female
- Air Inlet Thread Type
- NPT
- Application
- Industrial
- Ball Material
- G.E.T. (Graco Engineered Thermoplastic)
- Centre Section Material
- Aluminium
- Compatible Material
- Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Waste water Transfer
- Connection Type
- Threaded
- Diaphragm Compatible Material
- G.E.T. (Graco Engineered Thermoplastic)
- Diaphragm Material
- G.E.T. (Graco Engineered Thermoplastic)
- Fluid Inlet Size (cm)
- 2.54
- Fluid Inlet Size (in)
- 1
- Fluid Inlet Size (mm)
- 25.4
- Fluid Inlet Thread Gender
- Female
- Fluid Inlet Thread Type
- NPT
- Fluid Outlet Size (cm)
- 2.54
- Fluid Outlet Size (in)
- 1
- Fluid Outlet Size (mm)
- 25.4
- Fluid Outlet Thread Gender
- Female
- Fluid Outlet Thread Type
- Female
- Fluid Outlet Thread Type
- NPT
- Fluid Section Material
- Aluminium
- Manifold Configuration
- Centre Port, End Port
- Manifold O-Ring Material
- PTFE
- Material
- Aluminium
- Maximum Air Pressure (MPa)
- 0.86
- Maximum Air Pressure (bar)
- 8.6
- Maximum Air Pressure (kPa)
- 860
- Maximum Air Pressure (psi)
- 125
- Maximum Cycle Rate (cpm)
- 280
- Maximum Flow Rate (l/min)
- 189
- Maximum Fluid Pressure (MPa)
- 0.86
- Maximum Fluid Pressure (bar)
- 8.6
- Maximum Fluid Pressure (kPa)
- 860
- Maximum Fluid Pressure (psi)
- 125
- Maximum Operating Temperature (°C)
- 66
- Maximum Solid Size (cm)
- 0.3175
- Maximum Solid Size (mm)
- 3.175
- Model
- Husky
- Power Source
- Air
- Seat Material
- G.E.T. (Graco Engineered Thermoplastic)
- Series
- 1050
- Standards Met
- ATEX, CE
- Type
- Pneumatic Diaphragm Pump
- Wetted Material
- Aluminium, Geolast, PTFE
Key Features & Benefits
- Extended diaphragm life: Up to 5x longer lifespan, reducing maintenance and downtime.
- Modular air valve system: Provides stall-free, low-pulsation performance for smooth and consistent operation.
- One-piece centre section: Prevents air leaks and increases operational efficiency.
- Four-bolt joint design: Ensures even sealing pressure for leak-free reliability.
- Enhanced flexibility: Multiple inlet and outlet port options for diverse installation configurations.
- Optional advanced features:
- DataTrak™ system – Prevents pump run-away and tracks material usage.
- Pulse output – Enables cycle counting and performance monitoring.
- Externally serviceable pilot valves – Allow faster changeover and reduce pulsation.
Performance Advantages
- Up to 30% more efficient than leading competitors.
- 20% increase in flow capacity over the Husky 1040 model.
- Ideal for high-demand industrial applications requiring consistent, leak-free operation and extended service intervals.
With its robust construction, superior efficiency, and innovative air valve design, the Husky 1050 stands out as a market leader in air-operated double diaphragm (AODD) pumps, trusted for reliability in manufacturing, chemical transfer, lubrication, and heavy industrial operations.
