LINCOLN HIGH PRESSURE GREASE PUMP
$3,819.20

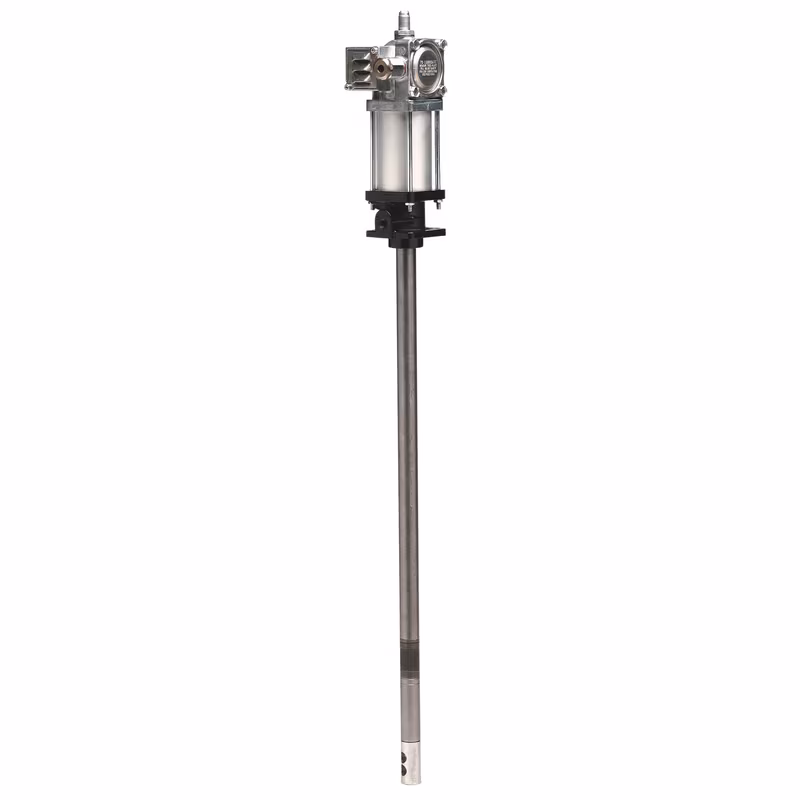

The Lubrigun Air-Operated Barrel Pump delivers reliable, high-pressure lubrication performance for demanding industrial environments. Designed for 120 lb (50 kg) and 400 lb (180 kg) drums, this pump is ideal for dual-line and progressive lubrication systems across mining, cement, and power plant applications.
Built with a durable displacement air motor featuring a 63.5 mm (2.5 in) stroke, the Lubrigun provides consistent, uniform delivery on both up and down strokes. Its double-acting design ensures smooth, continuous operation, even under heavy load conditions.
Trusted worldwide, the Lubrigun barrel pump combines proven performance, robust engineering, and low-maintenance operation to keep your lubrication systems running at peak efficiency.
Product Information
- Technical Data
- Function Principle
- Air operated piston pump for barrels
- Operating Temperature
- –34 to +93 °C -30 to +200 °F
- Operating Pressure
- Max. 515 bar 7500 psi
- Lubricant
- Grease: NLGI 1 and 2
- Cycles Per Minute
- Max. 120
- Metering Quantity
- 5,7 cm³/cycle 0.35 in³/min
- Pressure Ratio
- 50:1
- Lubricant Outlet Connection
- 1/4 NPTF
- Dimensions with Pump Lift
- 950 x 700 x 2800 mm 374 x 275 x 1102 in
- Mounting Position
- Vertical
- Corrosion-resistant design: Lightweight zinc head casting enhances durability in harsh environments.
- High-pressure capability: One-piece outlet body withstands extreme lubricant pressures for dependable operation.
- Smooth, quiet performance: Integrated patented muffler significantly reduces operating noise.
- Maintenance-free air motor: Pre-lubricated motor requires no external oiler, reducing service intervals.
- Positive priming: Pneumatically assisted mechanical air valve provides fast, reliable priming.
- Long service life: Hardened steel plunger and bushing resist wear, abrasion, and contamination.
- Complete system compatibility: Can be configured with pump hoist, return-line connection, low-level switch, maintenance unit, and connection hoses for dual-line lubrication setups.
Typical Applications
- Mining & construction equipment
- Power generation plants
- Cement production facilities
- Heavy industrial machinery
