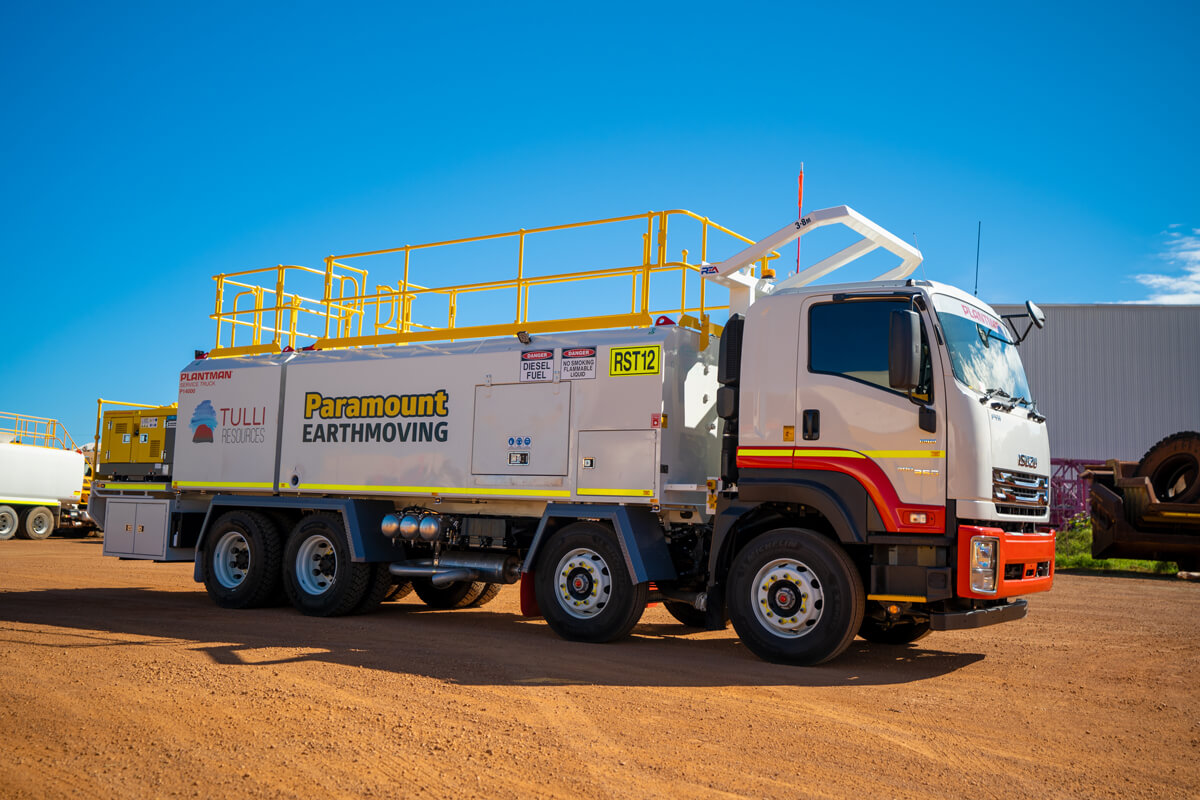

2023 ISUZU FYH 300-350 8×4 SERVICE TRUCK P14000

PARAMOUNT EARTMOVING

INDUSTRY: MINING

LOCATION: PILBARA

TYPE: SERVICE TRUCK

AVAILABILITY:    CHECK AVAILABILITY

CALL FOR AN IMMEDIATE QUOTE

Enquire Now
Product Summary
Download Specs

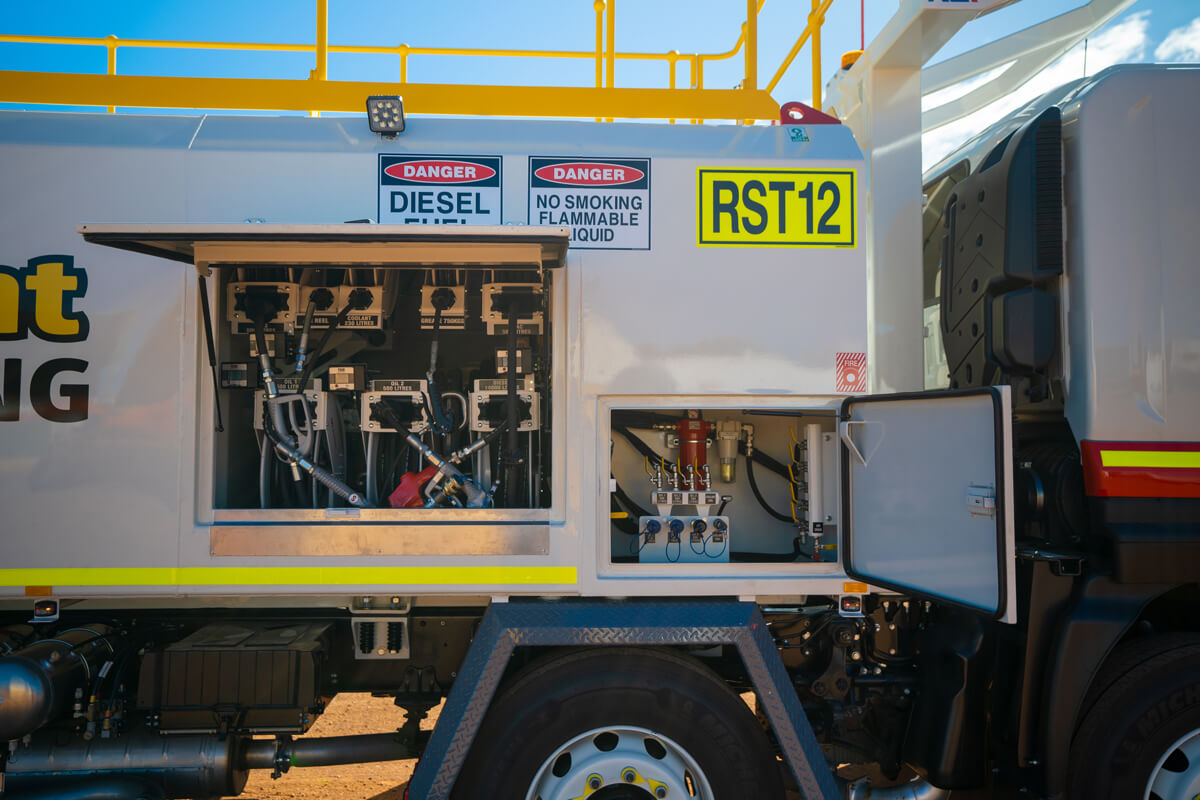

New Heavy-duty chassis-mounted steel, Plantman P14000 compartment service module:

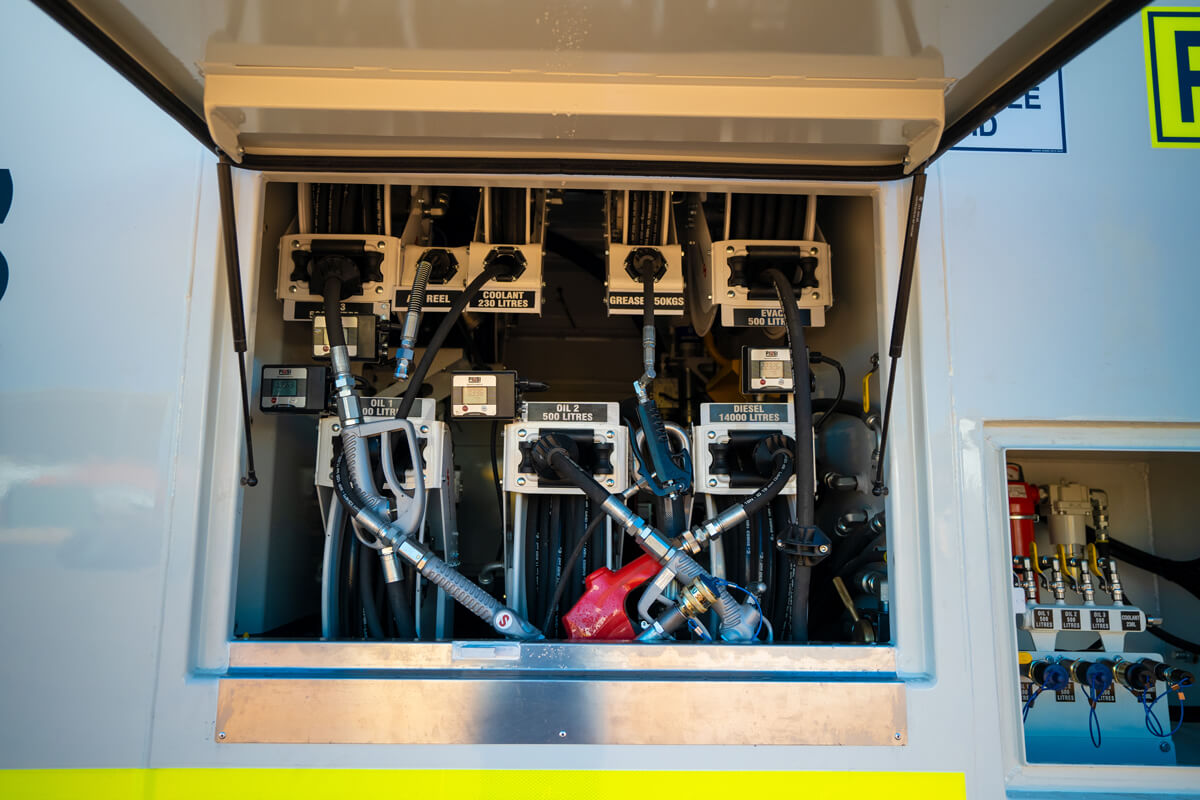

Tank#Tank TypeTank Capacity
No 1Bulk Diesel – Air Rewind Reel, hose, Wiggins FF Gun with digital dispensing display14,000 litre
L/V Diesel Spring Retractable Reel with Auto Shut-Off Nozzle
No 2Oil – Spring Retractable Samoa 3/4″ Reel, hose, manual hand piece with digital dispensing display500 litre
No 3Oil – Spring Retractable Samoa 3/4″ Reel, hose, manual handpiece with digital dispensing display500 litre
No 4Oil – Spring Retractable Samoa 3/4″ Reel, hose, manual handpiece with digital dispensing display200 litre
No 5Waste – Spring Retractable Samoa 3/4″ Reel, hose, manual handpiece, four-way valve to empty500 litre
No 6 Coolant – Spring Retractable Samoa 1/2″ Reel, hose, manual handpiece200 litre
No 7 HP Grease – Spring Retractable Reel, 3/8″ hose, manual handpiece800 kg

• All Air Operated Pumps
• Ground Level Central Fill Station, fitted with Banlaw quick fill receivers and Top Fill
• Rear tray with Ladder access to the roof with fold-down handrails

Atlas Copco U75 Air Compressor Specifications:

  • Extended exhaust stack and bracket
  • Air dryer and air lubricator
  • External air cleaner and filter
  • Safety decal kit
  • Lockable battery isolator
  • Emergency Stop

Plantman P14000 – ISUZU FYH 300-350 8×4 Service Truck P9000 Specifications:

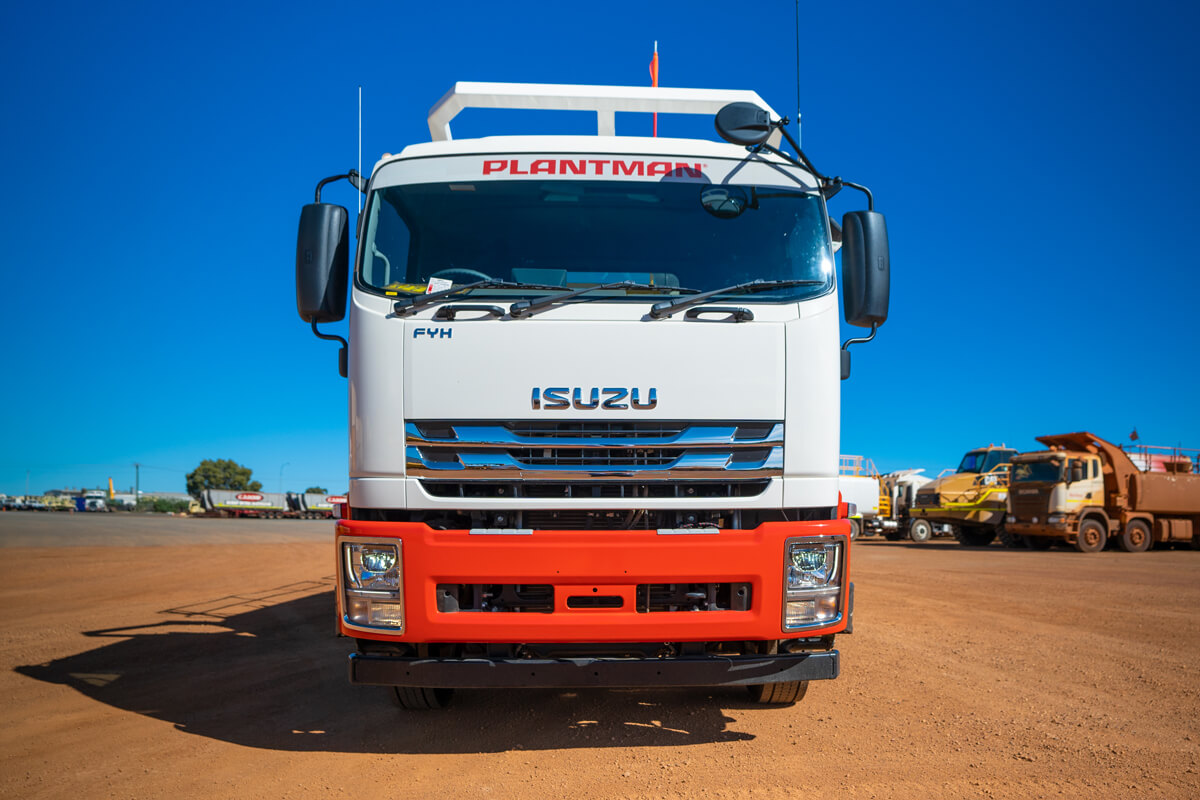

  • Isuzu FYH 300-350 8X4 Cab Chassis, fitted with ROPS
  • Allison Automatic Transmission
  • Air-conditioned Cabin with Canvas Seat covers and Rubber Floor Mats
  • 1 x Spare Wheel / Jack / Wheel Nut Indicators / Safety Triangle / Wheel Chocks
  • Tropical tinted rear and side windows
  • UHF Two-Way Radio and Aerial
  • Amber LED Beacon
  • Headlights on with Ignition
  • Lockable Battery Isolator
  • Lockable Starter Isolator
  • 24V Cat Style Jump Start Receptacle
  • High Mount Flag in Light on top
  • 1 x E-Stop in truck cabin, 1 x E-Stop at ground level on module
  • 5 x LED Work Lights on module, 2x internal strip lights inside cabinet
  • Rear Facing High Lights
  • Reverse Alarm & Reverse Camera
  • 2 x 9kg Fire Extinguishers
  • 1 x 1.5kg Fire extinguisher in cabin
  • 1 x 20L Handwash contianer and Soap underslung mounted
  • First Aid kit in cabin
  • Chassis Mounted ToolBox
  • Battery Isolator
  • E-Stop
  • Safety & Operating Decals
  • DG3 Tape on the sides of the module and cabin
  • Built to WA Mining Specifications
  • WA Roadworthy Passed (Ready for WA Licensing)
Read More
Product Specifications
Axles 8x4
Capacity 14000L
Make ISUZU
Type Service Truck
