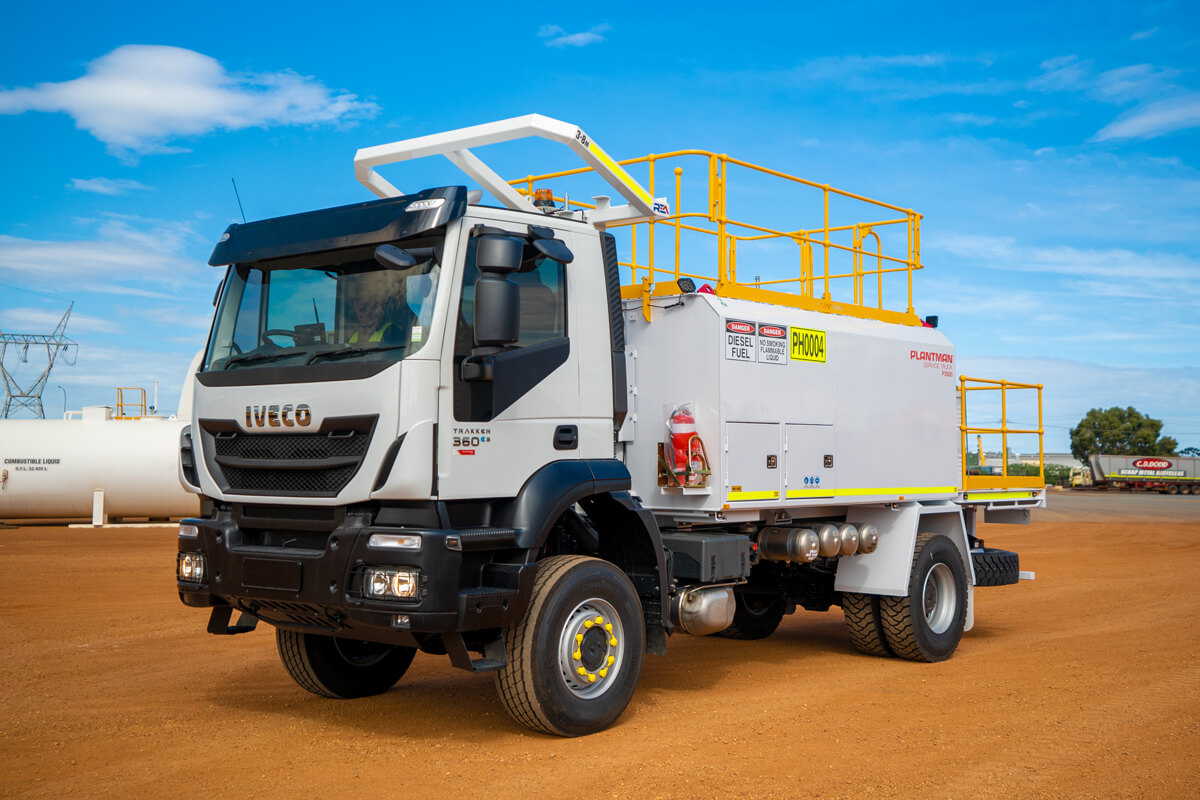

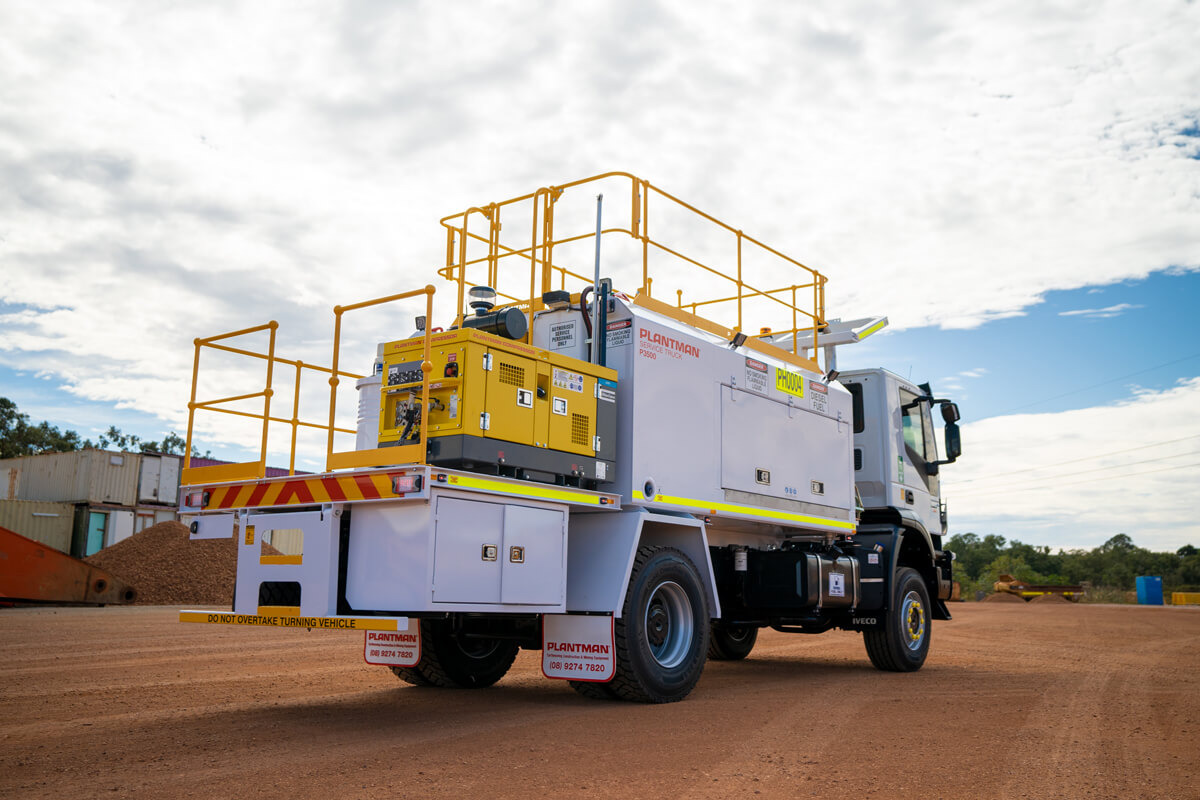

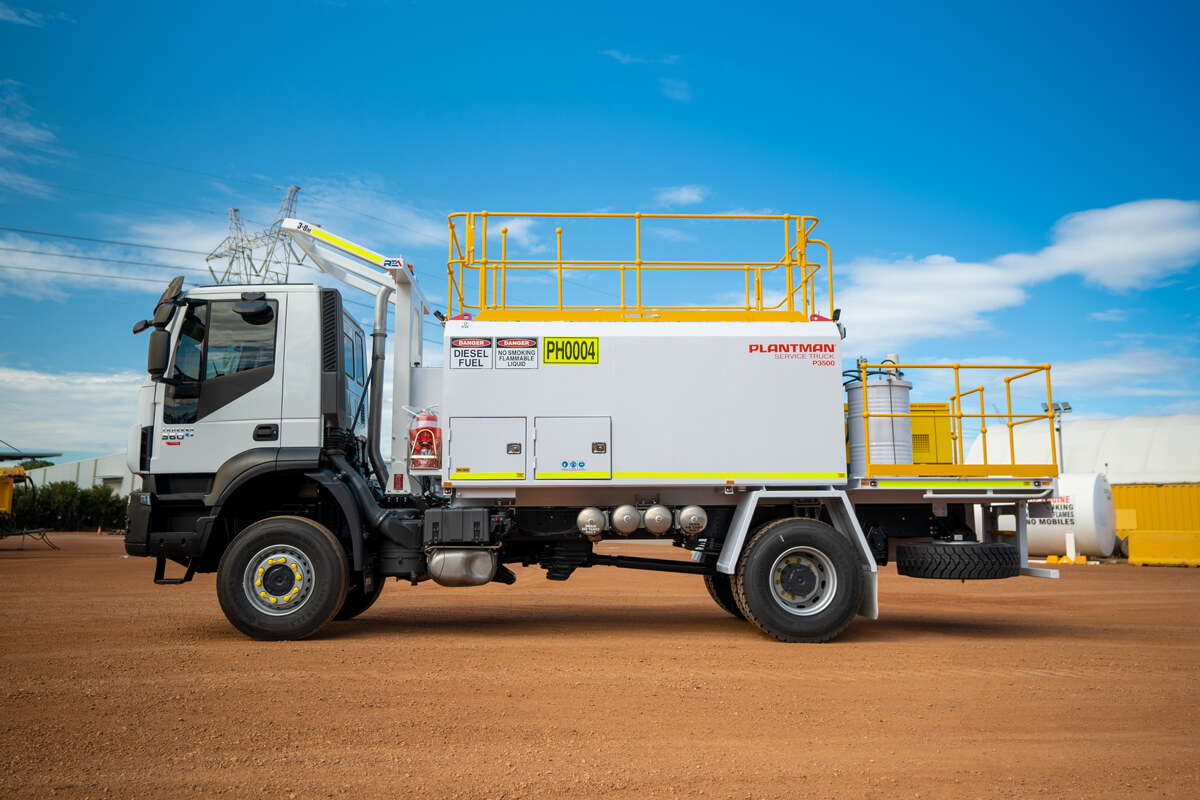

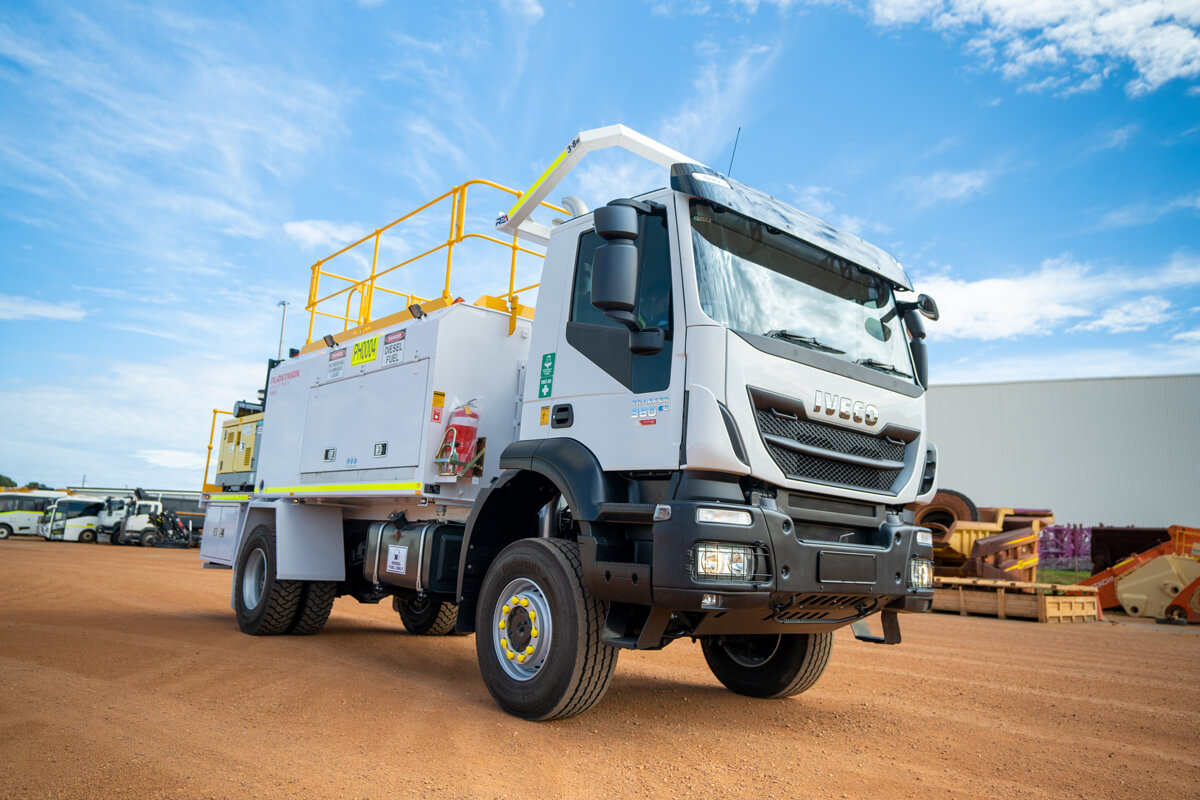

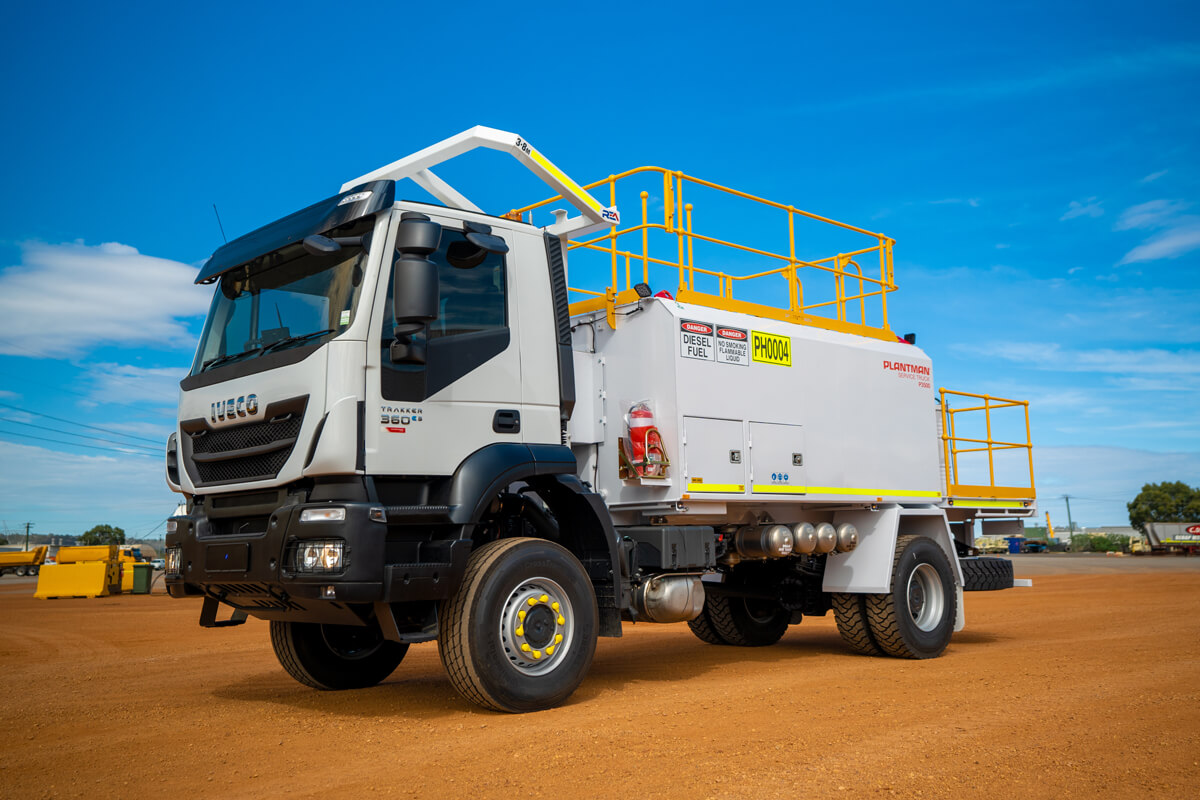

2023 IVECO TRAKKER 4×4 SERVICE TRUCK P3500

BLAKE MACHINERY GROUP

INDUSTRY: MINING

LOCATION: QUEENSLAND

TYPE: SERVICE TRUCK

AVAILABILITY:    CHECK AVAILABILITY

CALL FOR AN IMMEDIATE QUOTE

Enquire Now
Product Summary
Download Specs

New Heavy-duty chassis-mounted steel, Plantman P3500 compartment service module:

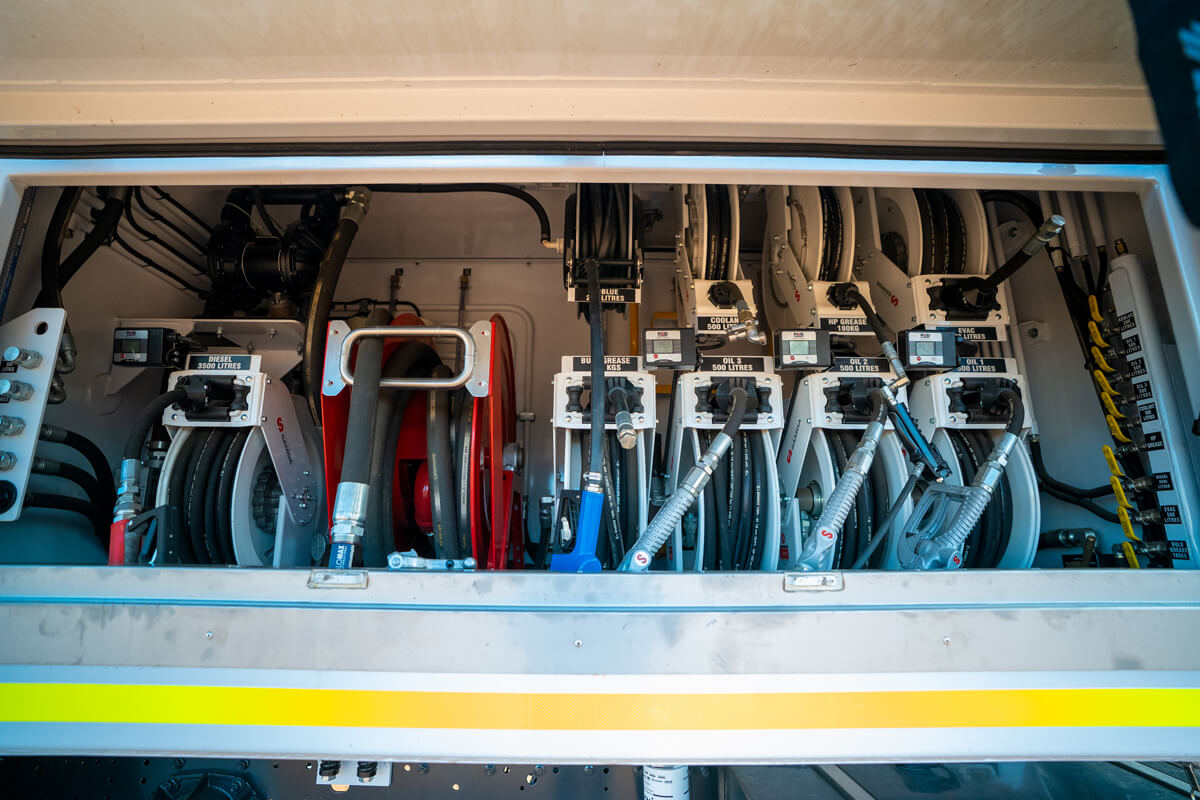

Tank#Tank TypeTank Capacity
No 1Bulk Diesel with Wiggins Fast Fill Gun, Hose and Auto Rewind Reel3,500 Litres
L/V Diesel auto shut off gun, hose, and spring retractable reel
No 2Oil with Spring Retractable Reel & 15m Hose with Dripless Dispenser500 Litres
No 3Oil with Spring Retractable Reel & 15m Hose with Dripless Dispenser500 Litres
No 4Oil with Spring Retractable Reel & 15m Hose with Dripless Dispenser –500 Litres
No 5Water or Coolant with Spring Retractable Reel & 15m Hose500 Litres
No 6Waste with Spring Retractable Reel & 15m Hose and with Four Way Valve for Evac500 Litres
  • 180kg Grease drum kit (replaceable drum) with HP pump, spring retractable reel & 15m hose
  • All Air Operated Pumps with Ground Level Central Fill Station & Top Fill
  • Diesel Flow meter with Digital Dispensing Display

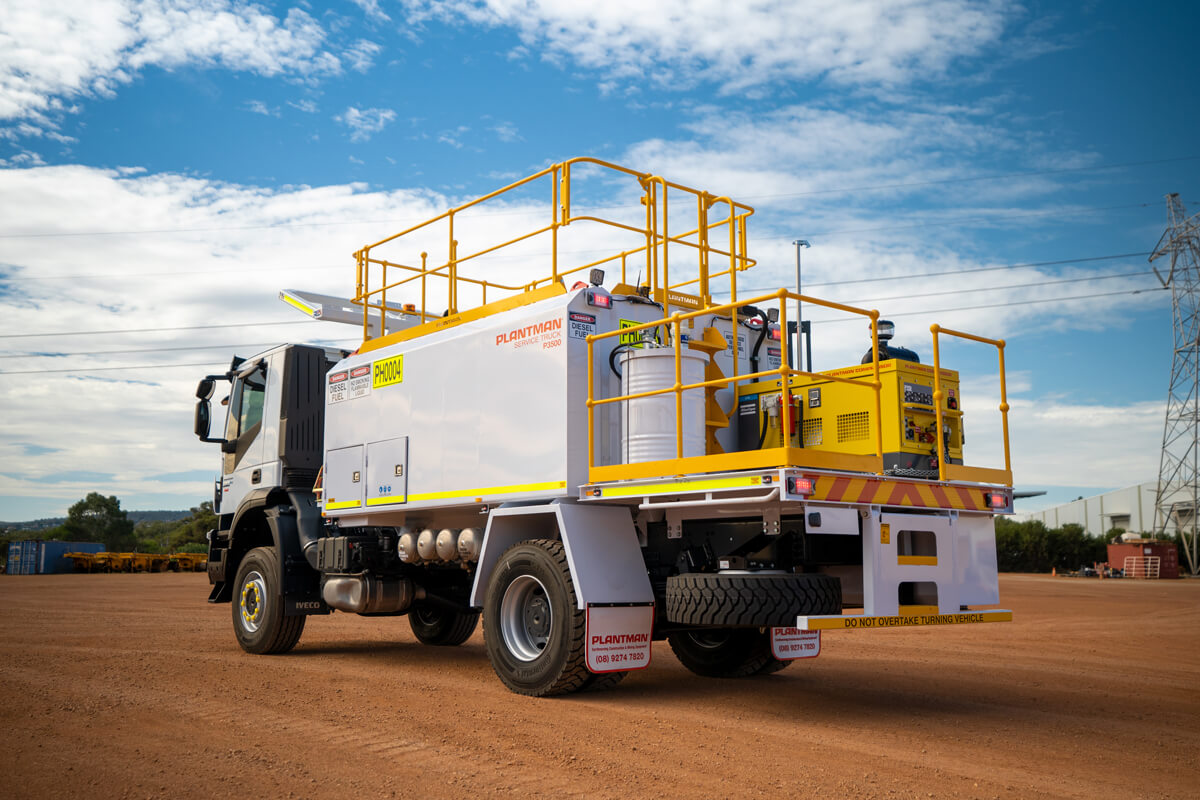

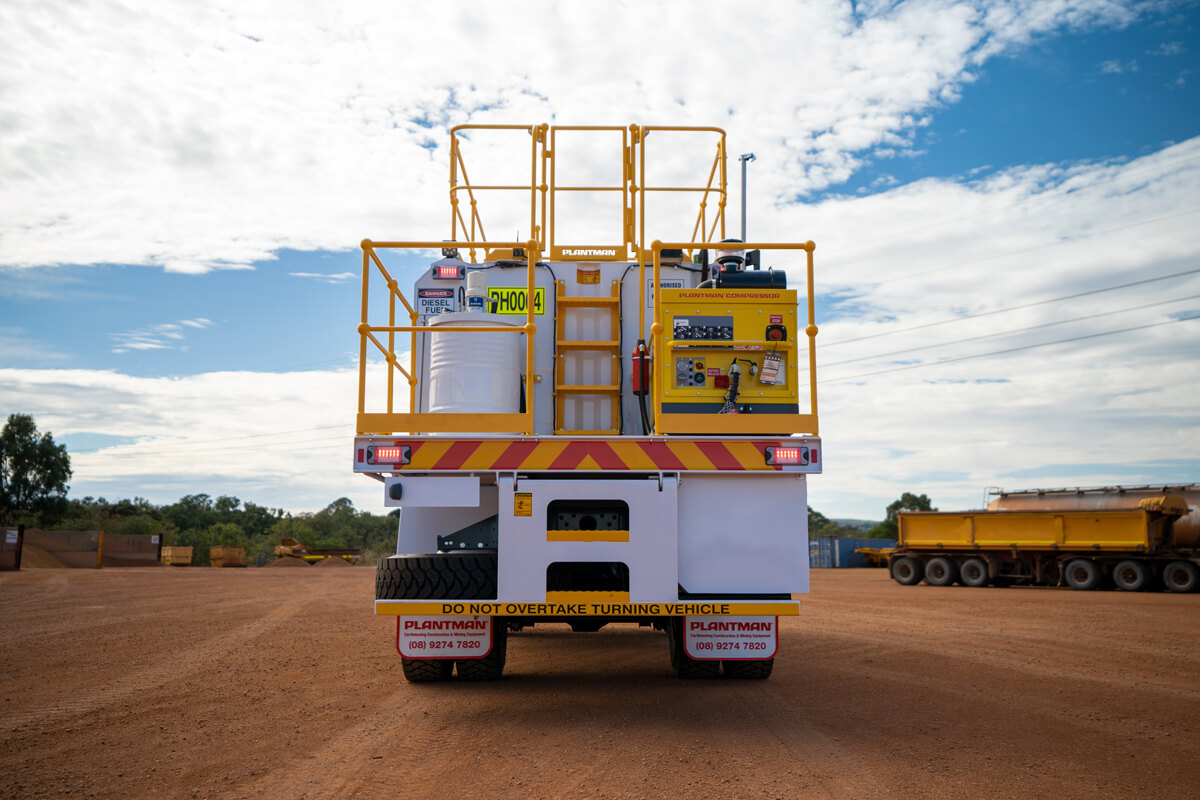

  • Rear tray with Ladder access to the roof with fold-down handrail

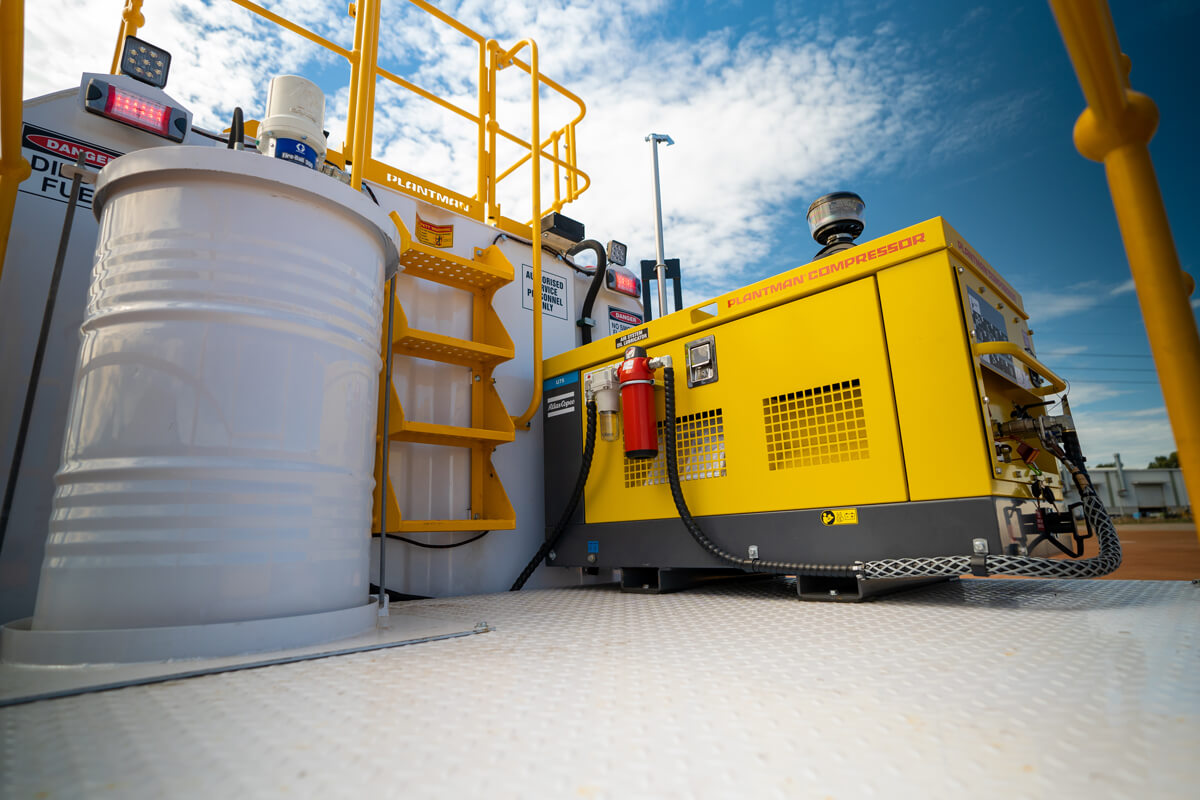

Atlas Copco Air Compressor U75 Specifications:

  • Extended exhaust stack and bracket
  • Air dryer and air lubricator
  • External air cleaner and filter
  • Safety decal kit
  • Lockable battery isolator
  • Emergency Stop

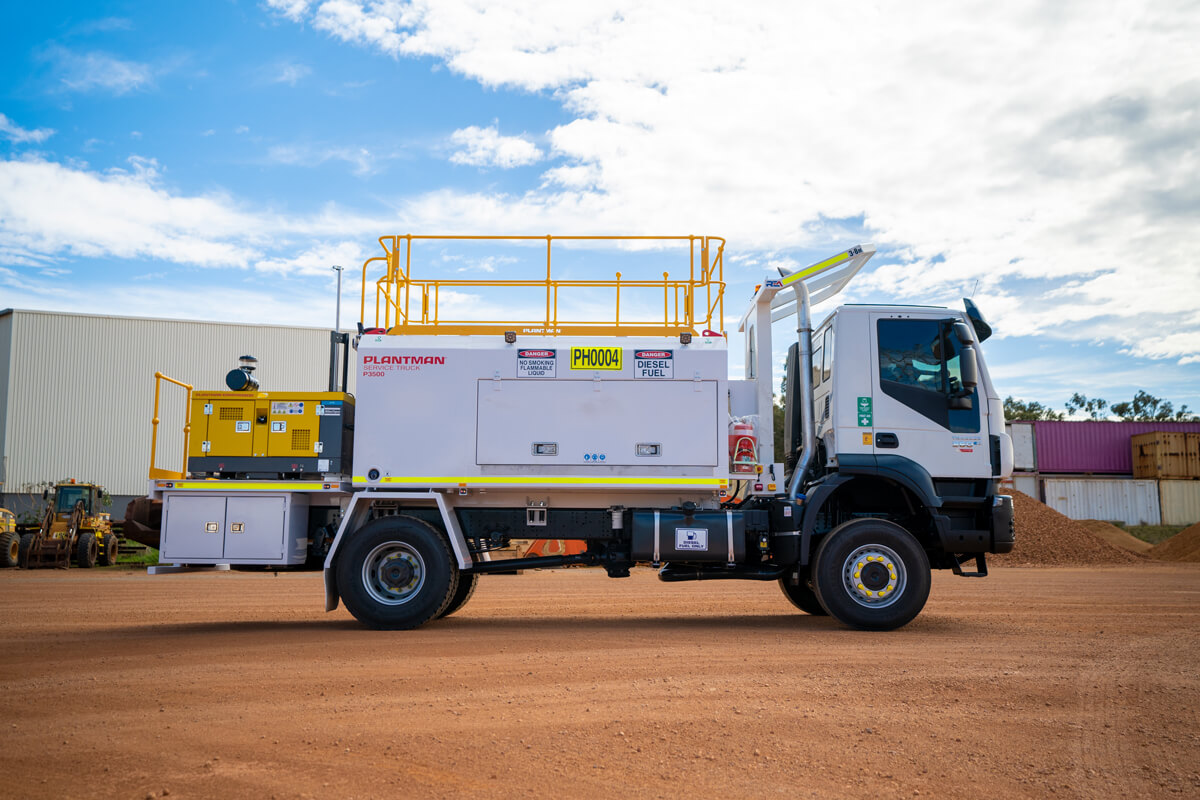

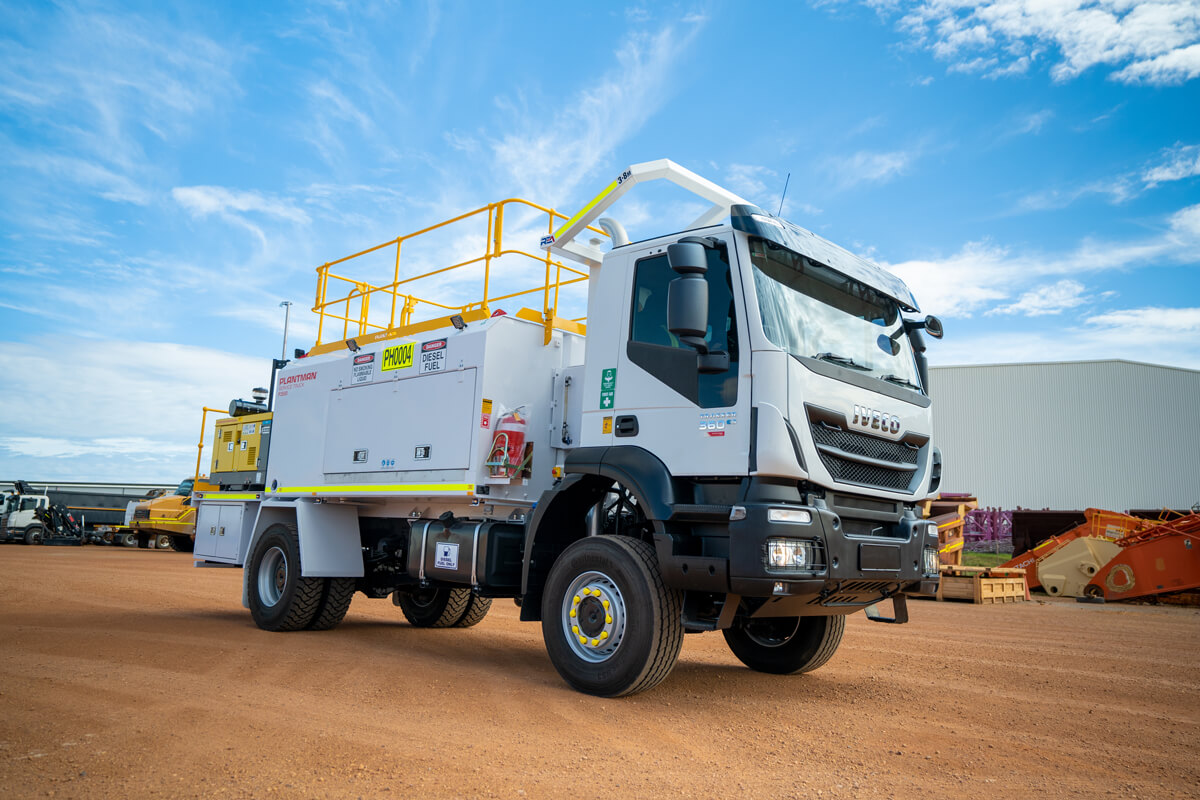

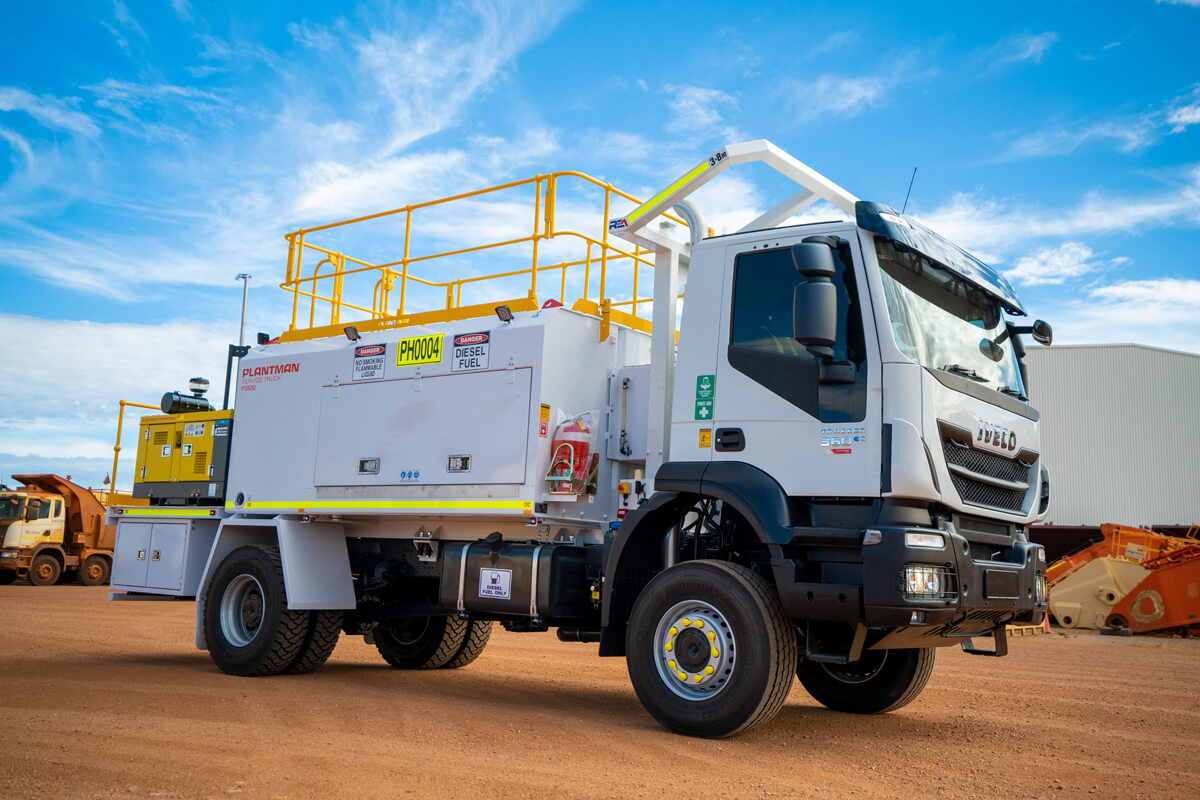

Plantman P3500 – IVECO TRAKKER 4×4 Service Truck P3500 Specifications:

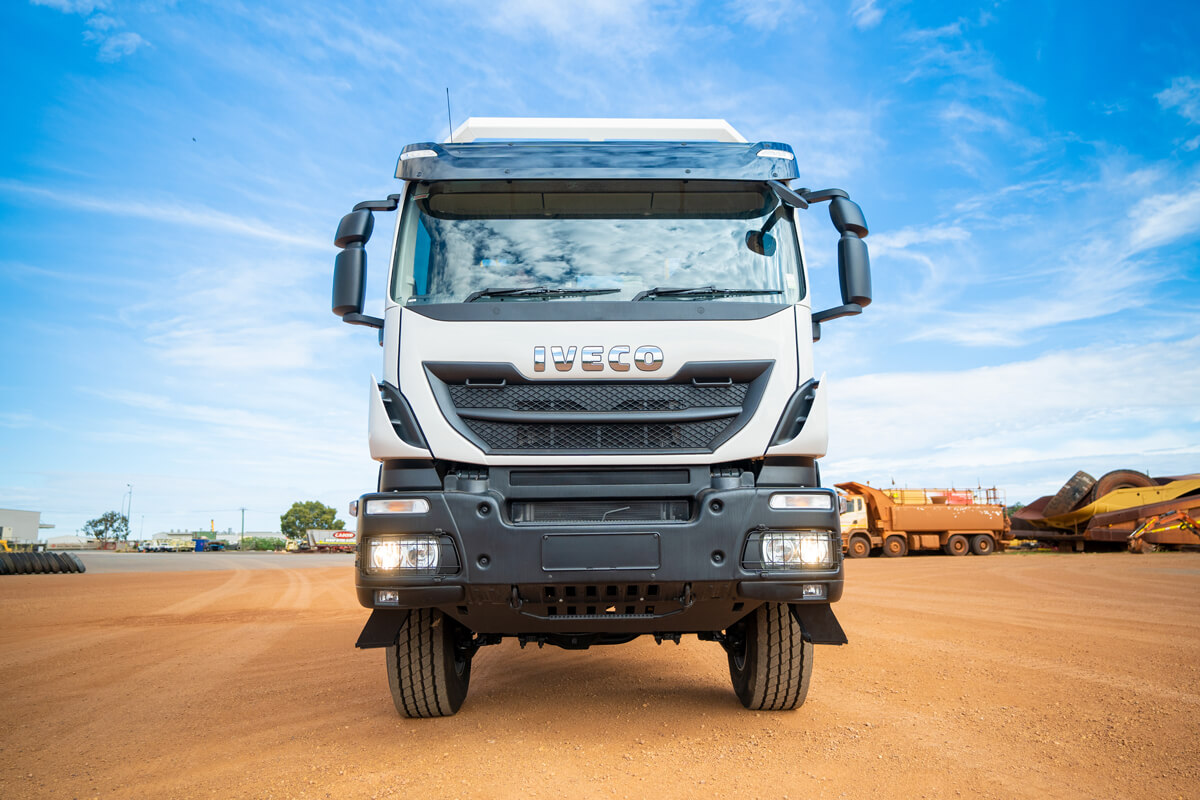

  • New 2022 IVECO T-WAY 4 x 4 Cab Chassis fitted with ROPS
  • 360hp Euro 6 Turbo Diesel engine with Ad-Blue
  • ZF Traxion transmission, spring suspension, 4500mm wheelbase, 19t Manufacturer GVM.
  • Canvas Seat Covers, North West Tropical Tinted side and rear windows
  • Spare Wheel Assembly, Wheel Chocks, wheel nut indicators, safety triangle kit, Jack and Brace
  • GME TX3500 2 Way Radio & Aerial
  • Headlights on with ignition – Rear High & Low Mount LED Lighting
  • Reverse Alarm with External Speaker – Reverse Camera & Screen
  • LED Beacon on ROPS – Internal LED Strip Lighting in Module – External Work Lights x 5
  • Lockable Battery Isolator – Lockable Starter isolator – Cat type Jump Start Receptacle
  • 2 x E- Stop (cabin and front of module)
  • 9kg Fire Extinguisher Mounting bracket on the front of module
Read More
Product Specifications
Axles 4x4
Capacity 3500L
Make IVECO
Type Service Truck
