2023 MAN TGM18.320 4×4 SERVICE TRUCK P3500

YOUNG'S EARTHMOVING

INDUSTRY: MINING

LOCATION: PILBARA

TYPE: SERVICE TRUCK

AVAILABILITY:    CHECK AVAILABILITY

CALL FOR AN IMMEDIATE QUOTE

Enquire Now
Product Summary
Download Specs


New Heavy-duty chassis-mounted steel, Plantman P3500 compartment service module:

Tank#Tank TypeTank Capacity
No 1Bulk Diesel with Wiggins Fast Fill Gun, Hose and Auto Rewind Reel14,000 litre
L/V Diesel Auto Shut Off Gun, Hose and Spring Retractable Reel
No 2Oil with Spring Retractable Reel & 15m Hose with Dripless Dispenser500 litre
No 3Oil with Spring Retractable Reel & 15m Hose with Dripless Dispenser500 litre
No 4Water or Coolant with Spring Retractable Reel & 15m Hose200 litre
No 5Waste with Spring Retractable Reel & 15m Hose and with Four Way Valve for Evac500 litre
  • 180kg Grease Kit (replaceable drum type) with HP Pump, Spring Retractable Reel & 15m Hose
  • Front Mounted Ad Blue tank with pump, 8m hose, Spring Retractable Reel, and Manual Nozzle – 200 Litres
  • Remote Mounted Digital Displays for oils and diesel
  • Wiggins Fast Fill Coupling for diesel tank fill
  • All pumps are fully enclosed inside the pump cabinet. All systems are air-operated

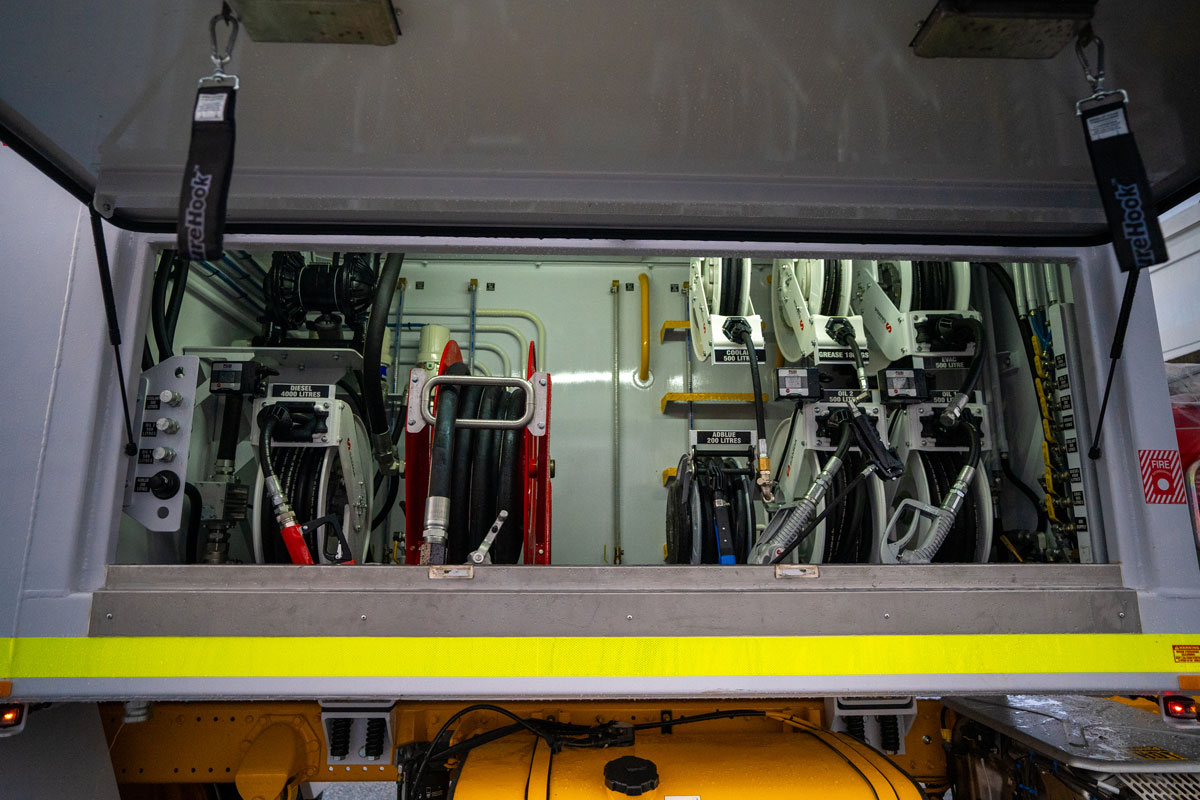

  • Reels are accessed from ground level at the RHS front of the service module

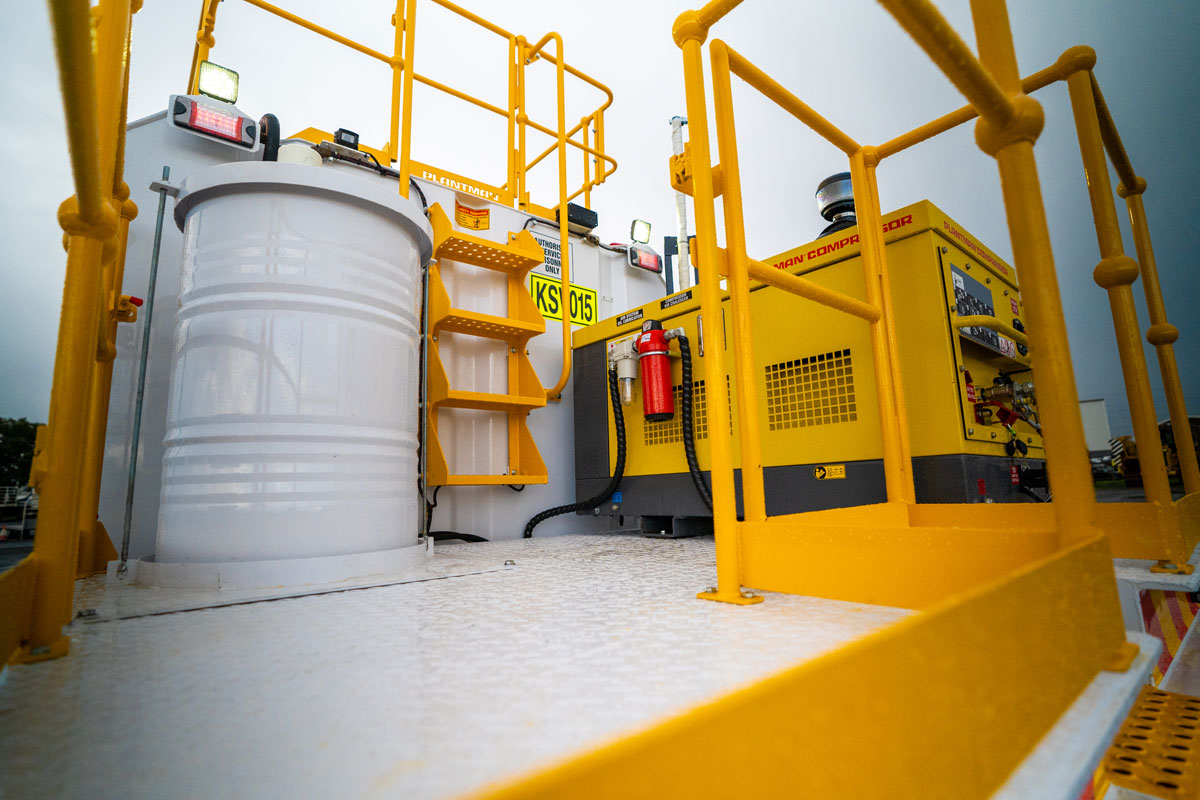

  • New Atlas Copco U110 Diesel Screw Compressor with whip sock and certified S/V & P/V
  • Rear Tray as per last build spec with fold-down handrails.
  • Storage Space in Module on LHS 1 x Toolbox, 1 x Dirty Filter Sump with Lockable Doors
  • 2 x Underslung spare tyre holders (subject to 2 x fitting on MAN chassis)
  • Underslung cage for storage
  • Denso tape electrical connections
  • Headlights on with ignition – Rear Facing High Lights
  • 5 x External Module roof-mounted LED Worklights – 2 x Internal LED Strip Lights
  • High Mount Flag with Light on Top
  • ROPS mounted amber rotating beacon
  • 2 x Lockable Battery Isolator – Truck and Compressor
  • Jump Start Receptacle (Cat type) – Truck
  • 3 x E-Stops: In Cabin, External on Front of module & Compressor
  • 2 x 9kg Fire extinguishers & Brackets & 2kg In Cabin High Vis Tape to the side of the service module
  • Safety Signage & Operating Decals
Read More
Product Specifications
Axles 4x4
Capacity 3500L
Make ISUZU
Type Service Truck
