Atlas Copco U75 Air Compressor

AVAILABILITY:    CHECK AVAILABILITY

CALL FOR AN IMMEDIATE QUOTE

Enquire Now
Product Summary
Download Specs

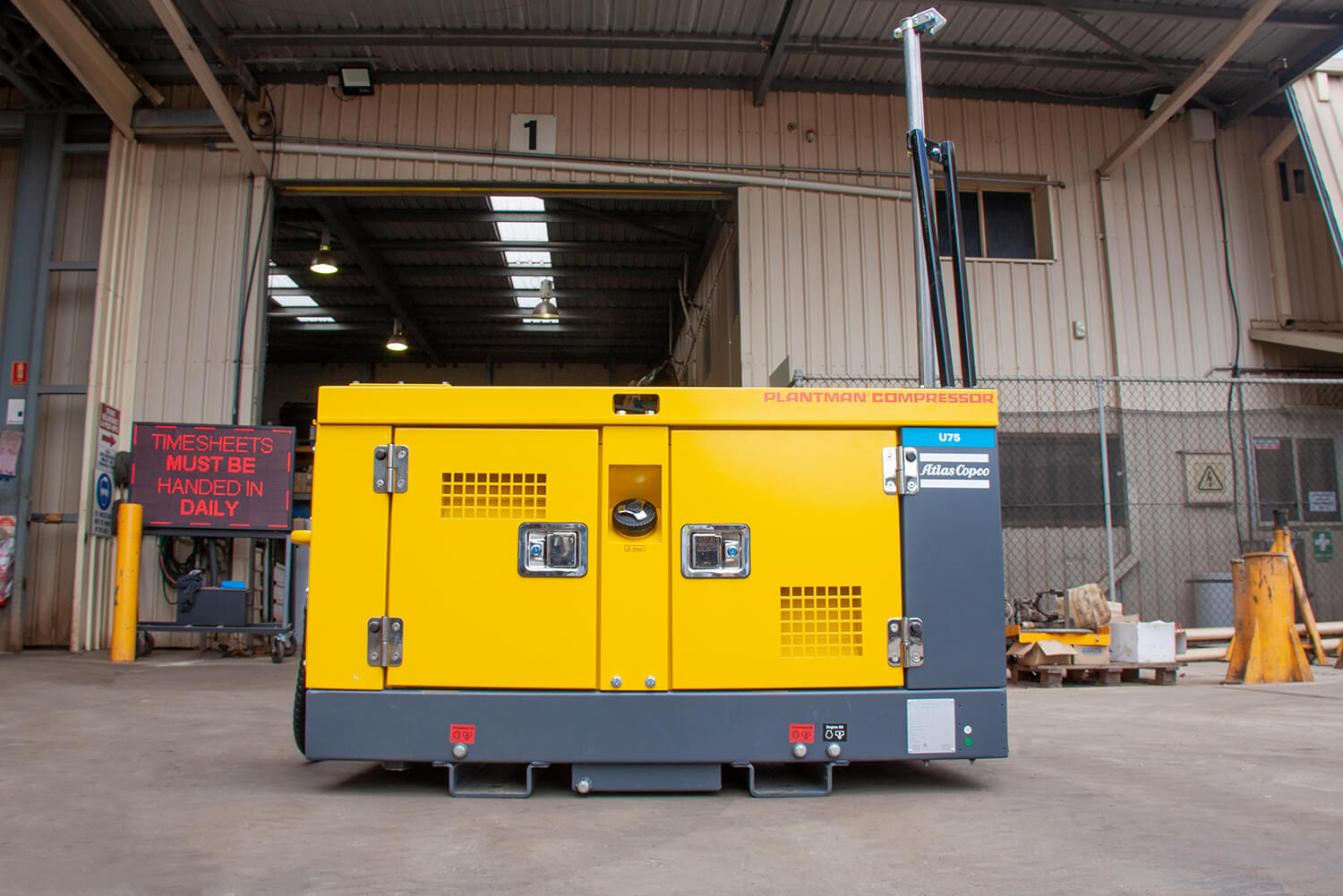

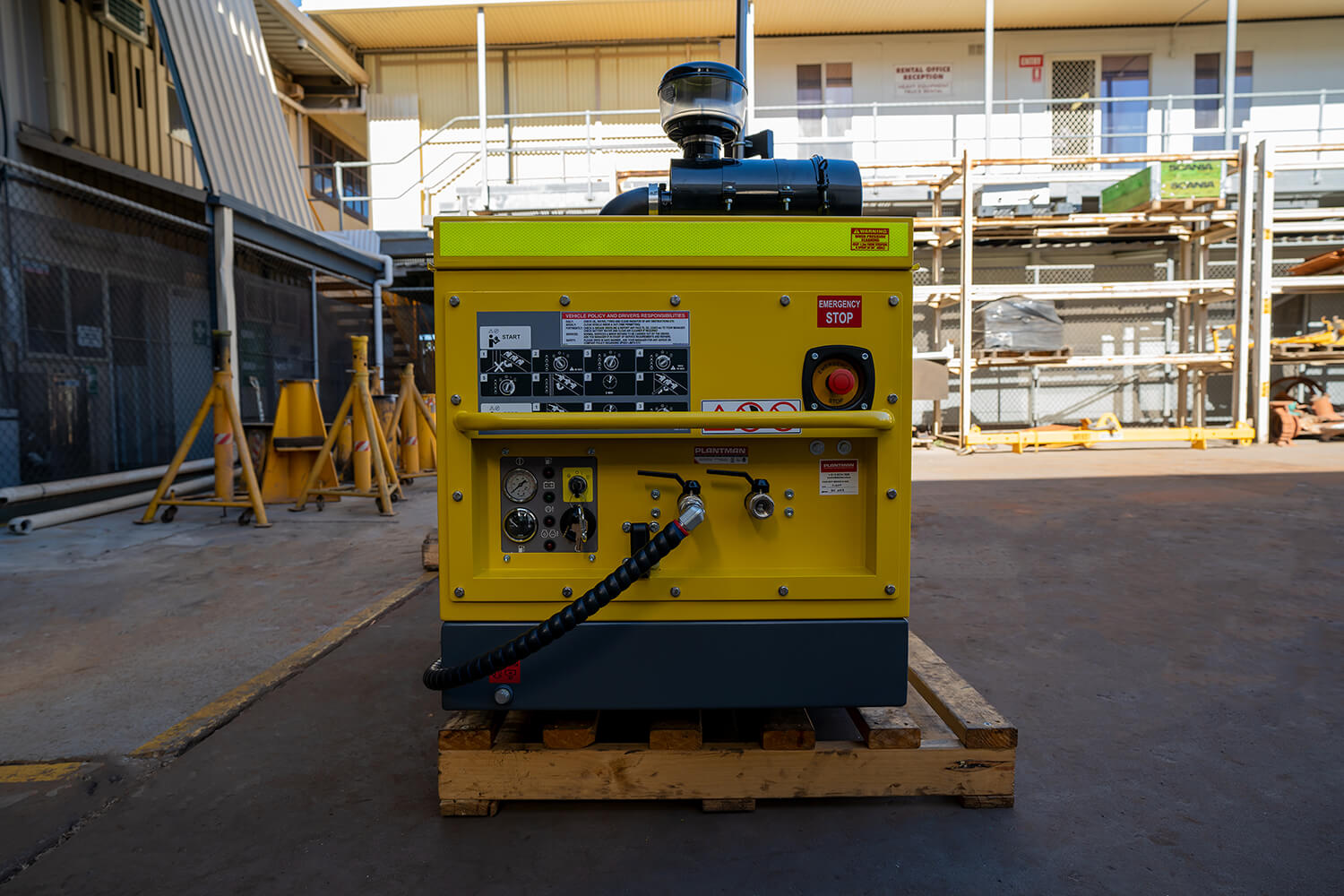

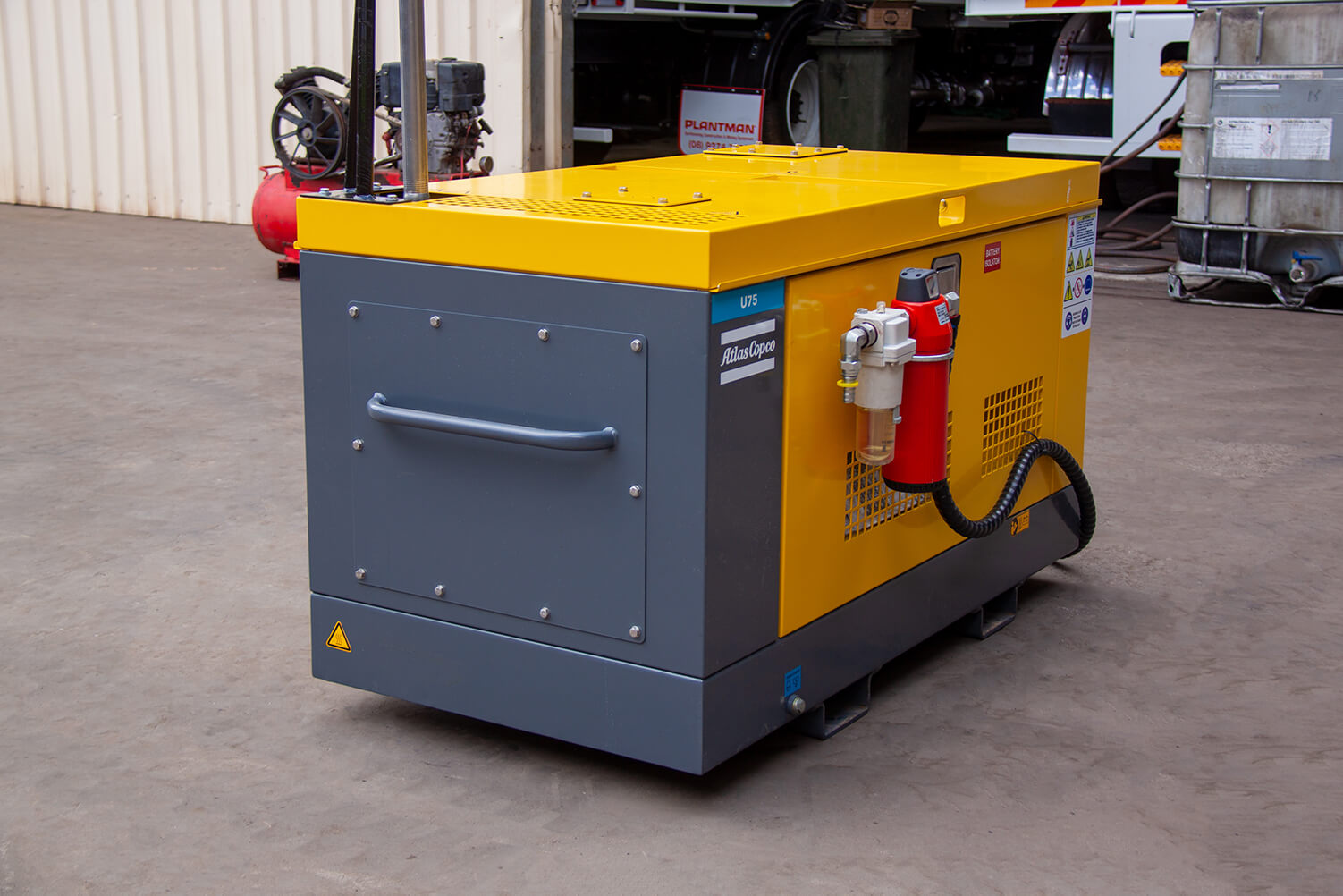

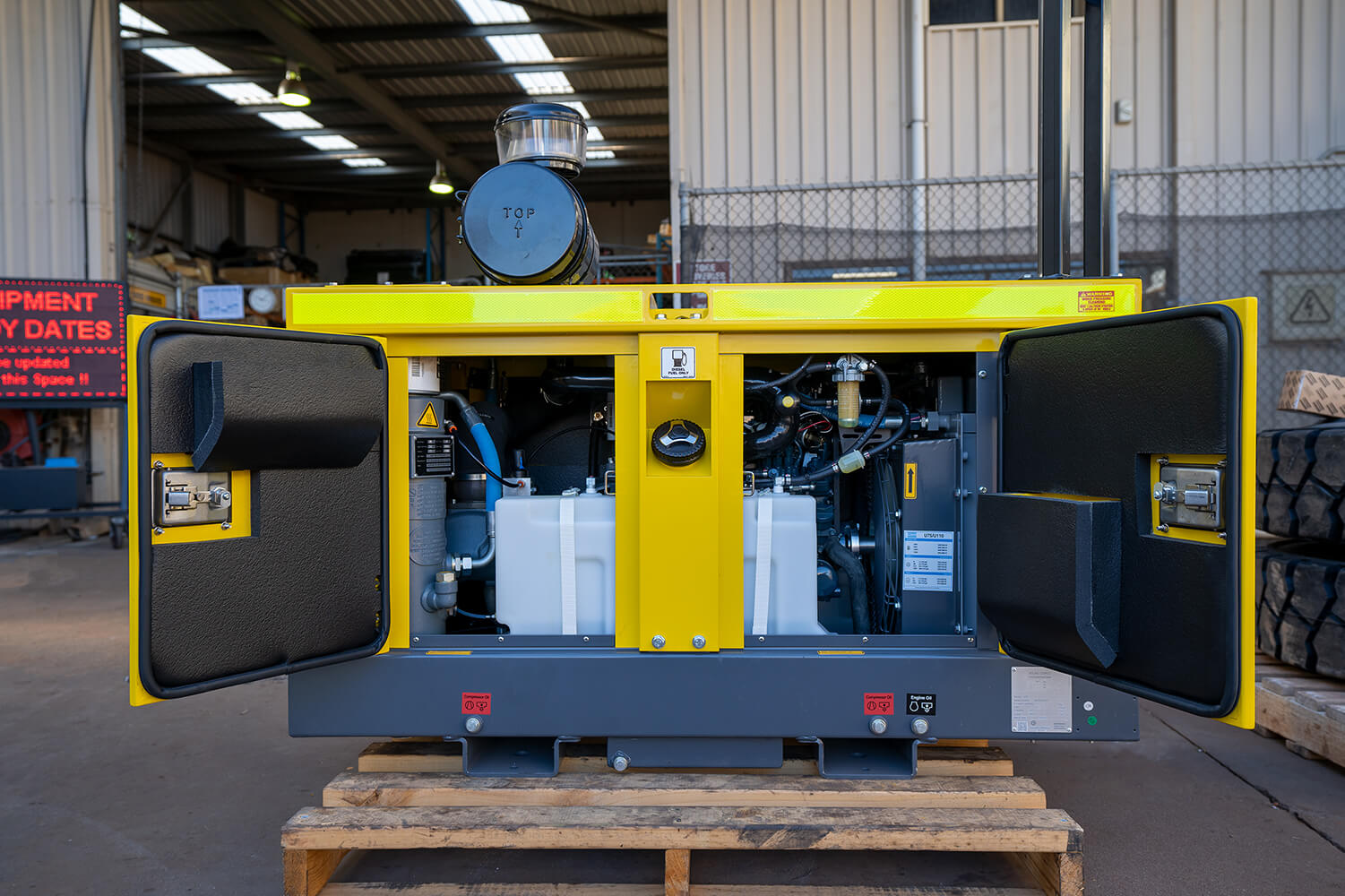

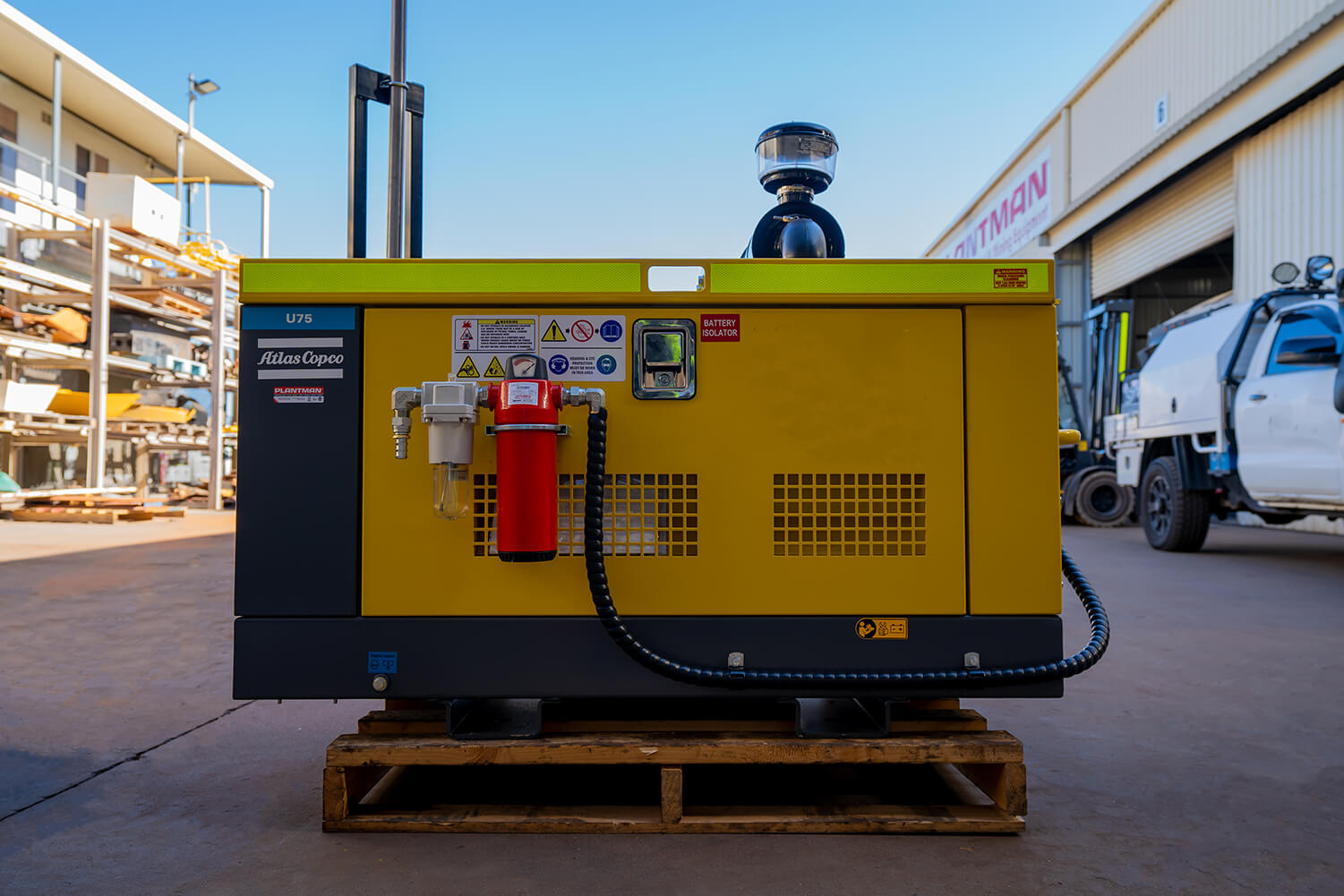

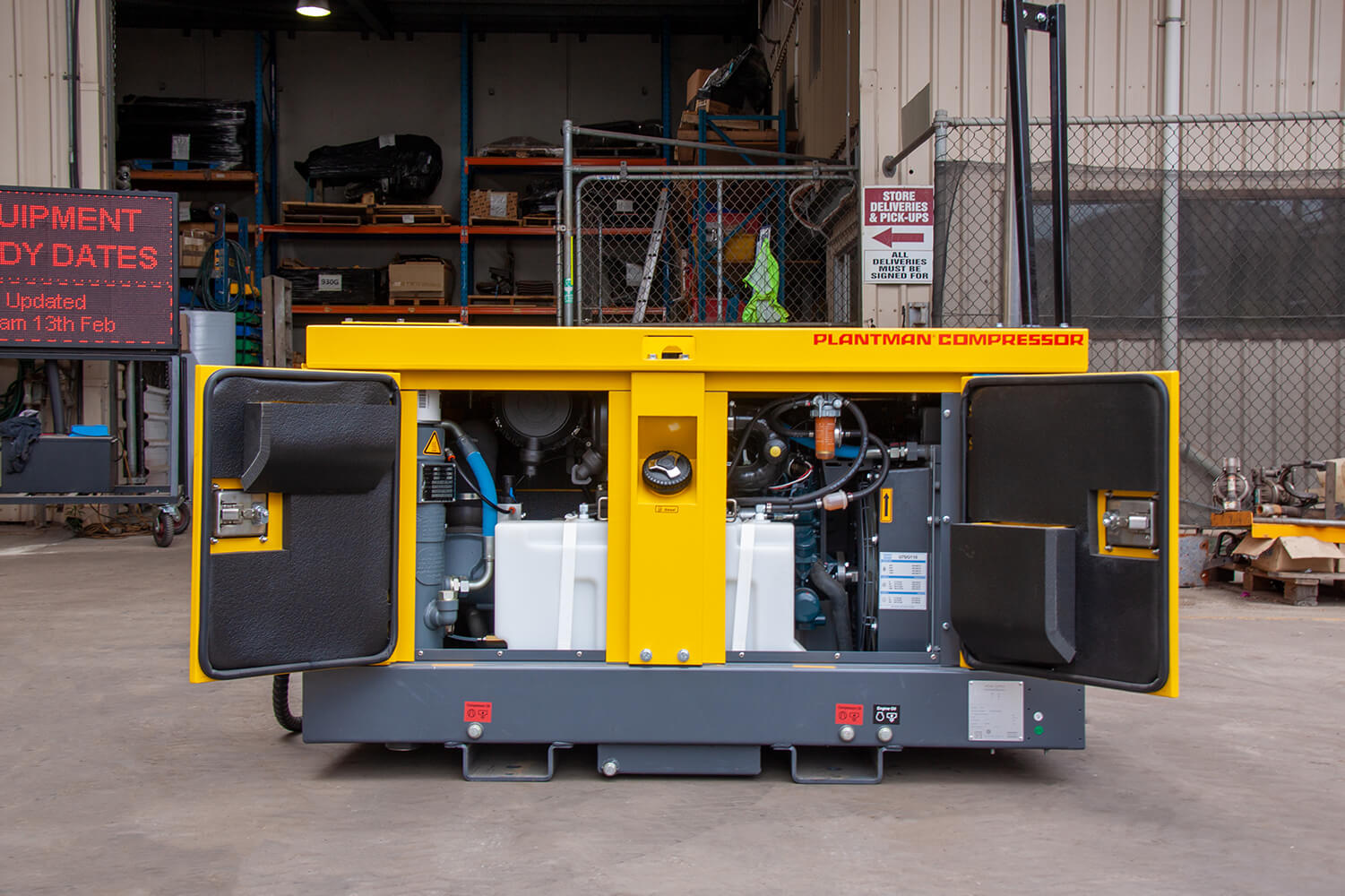

The portable Atlas Copco Air Compressor U75 provides 75CFM free air delivery and 100psi (g) normal effective working air pressure. This full mine spec, compact, lightweight package has all the integrated features needed on the job.

Performance

Normal effective working pressure 7 bar (g)
Free air delivery 75 cfm
Max. ambient temperature at sea level 50°C
Min. starting temperature / cold start kit -10 / -20°C

Engine

Model Kubota D722
Number of cylinders 3
Power output @ normal shaft speed 14,9kW
Full load RPM 3400rpm
Unload 1800rpm

Dimensions

Length (including – fixed tow bar) 1580mm
Width 750mm
Height 850mm
Weight 488kg

Mine Spec Includes

  • Extended exhaust stack and bracket
  • Air dryer and air lubricator

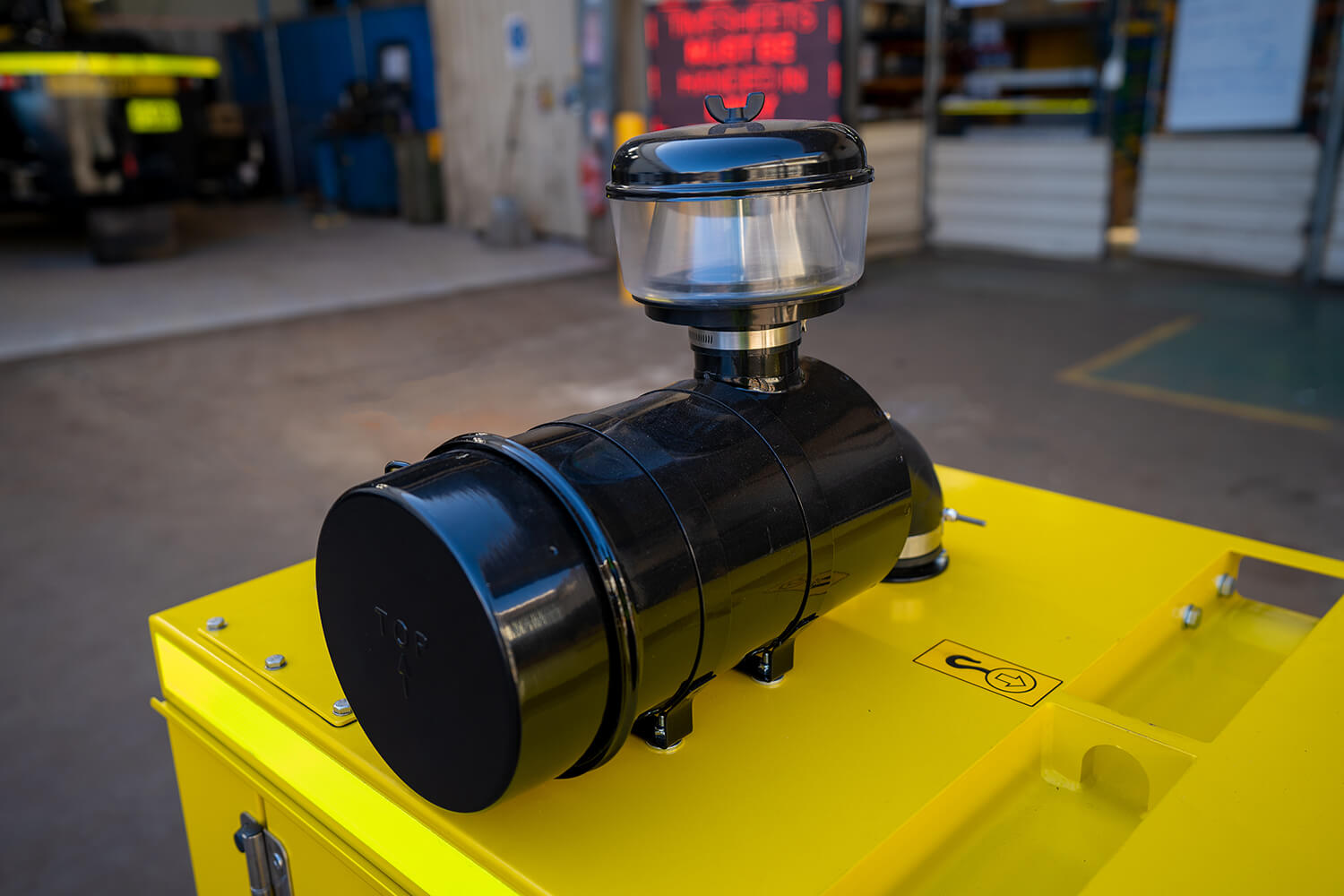

  • External air cleaner and filter
  • Safety decal kit
  • Lockable battery isolator
  • Emergency Stop
Read More
Product Specifications
Capacity 75CFM
Make Atlas Copco
Model U75
Type Air Compressor
