ISUZU FVZ1400 6×4 Service Truck P5000 | ST101

AVAILABILITY:    CHECK AVAILABILITY

CALL FOR AN IMMEDIATE QUOTE

Enquire Now
Product Summary
Download Specs

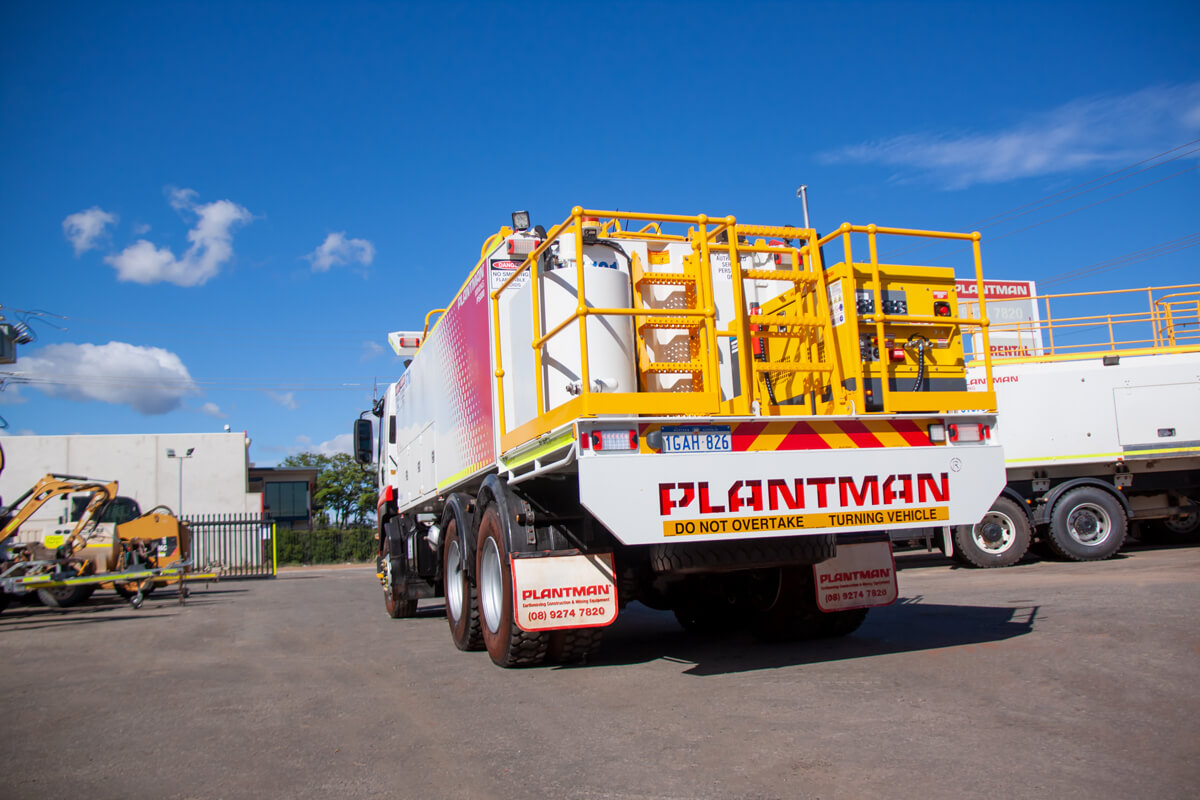

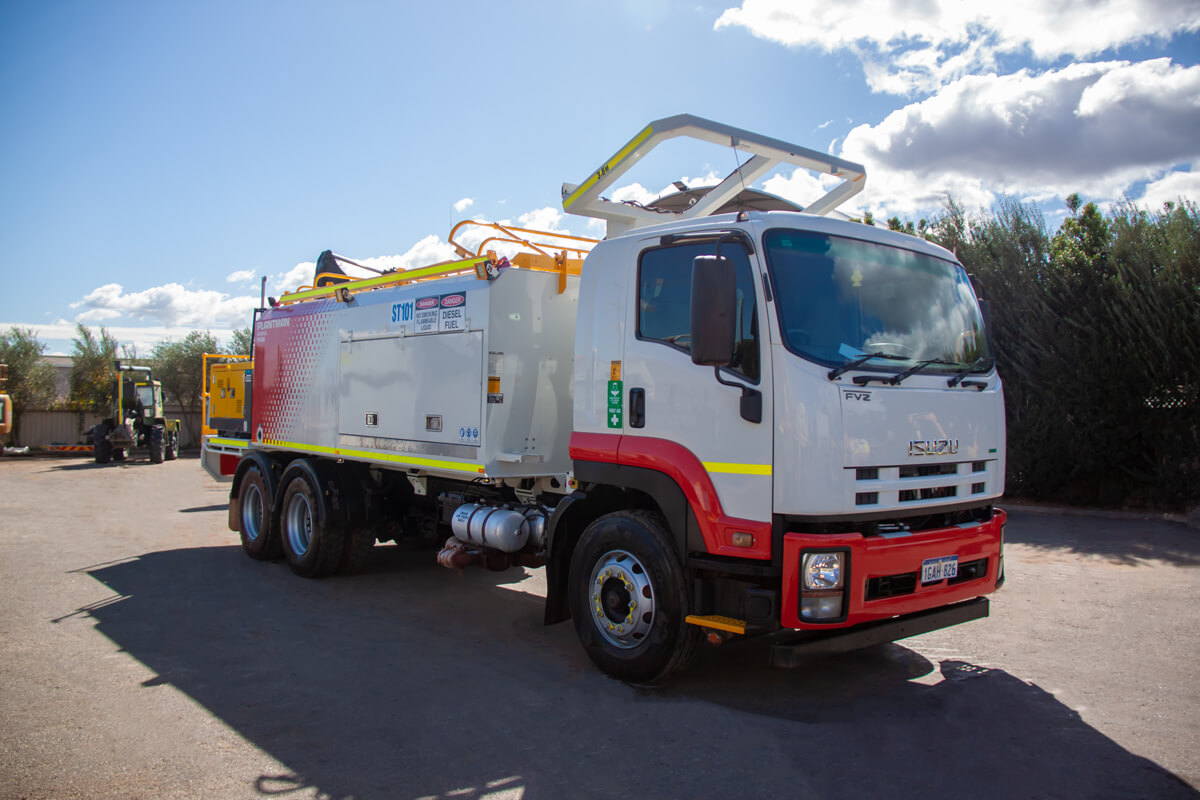

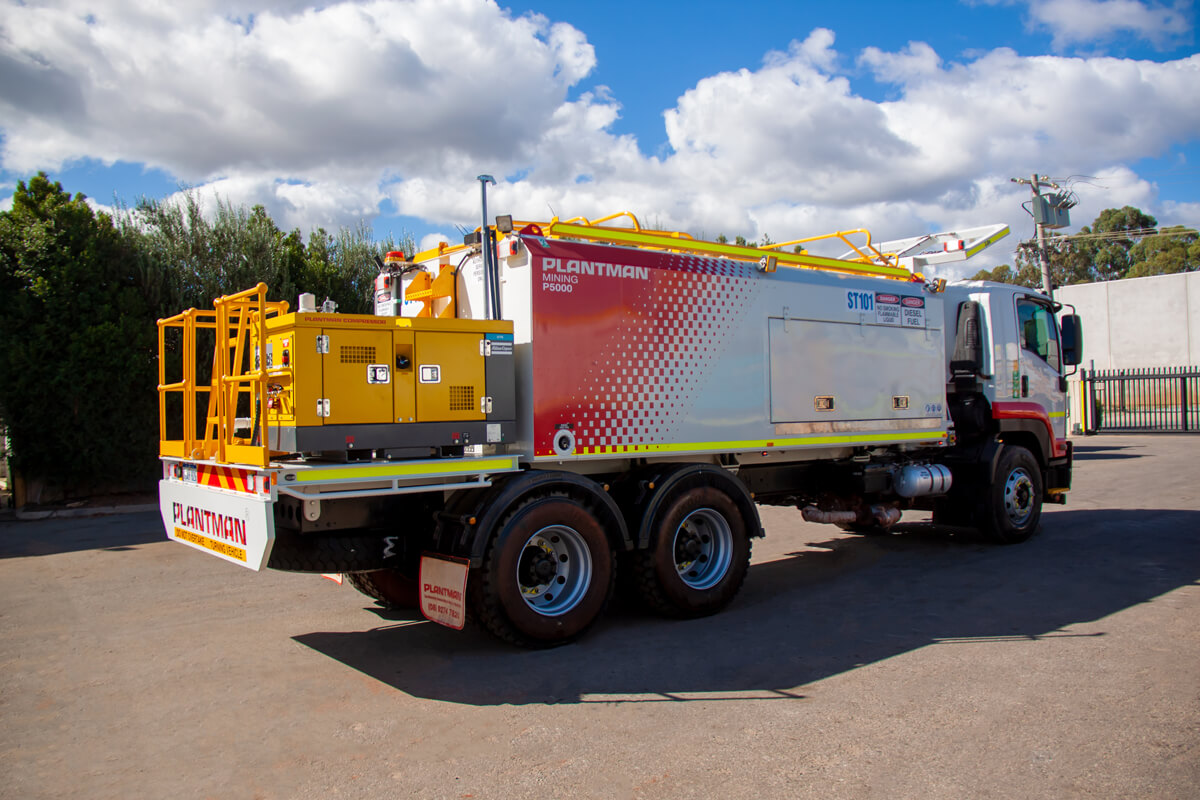

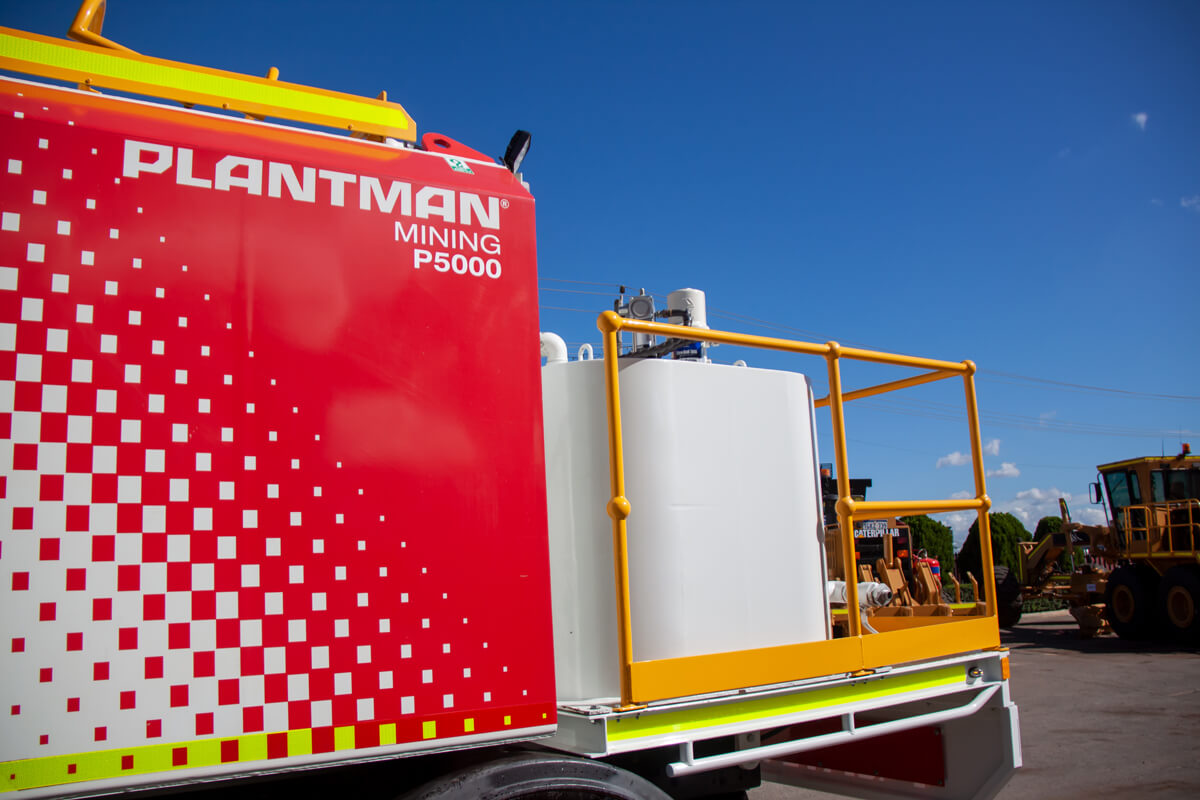

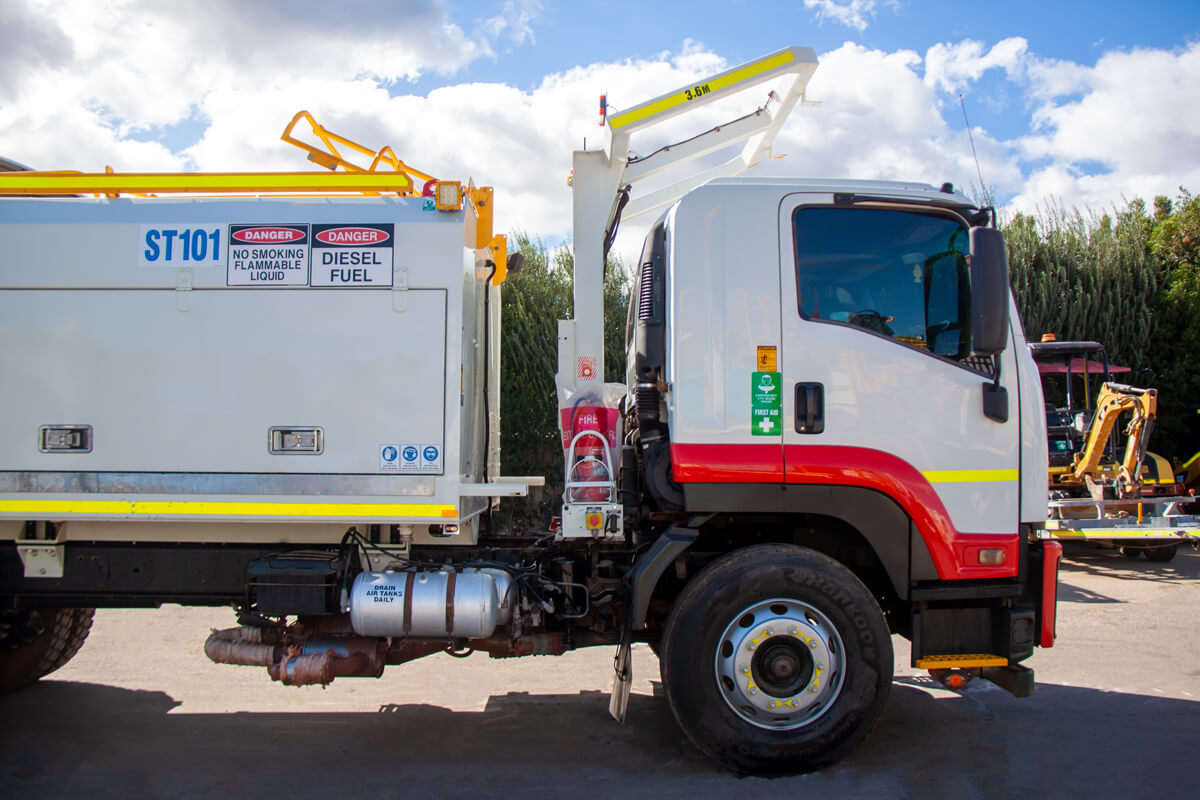

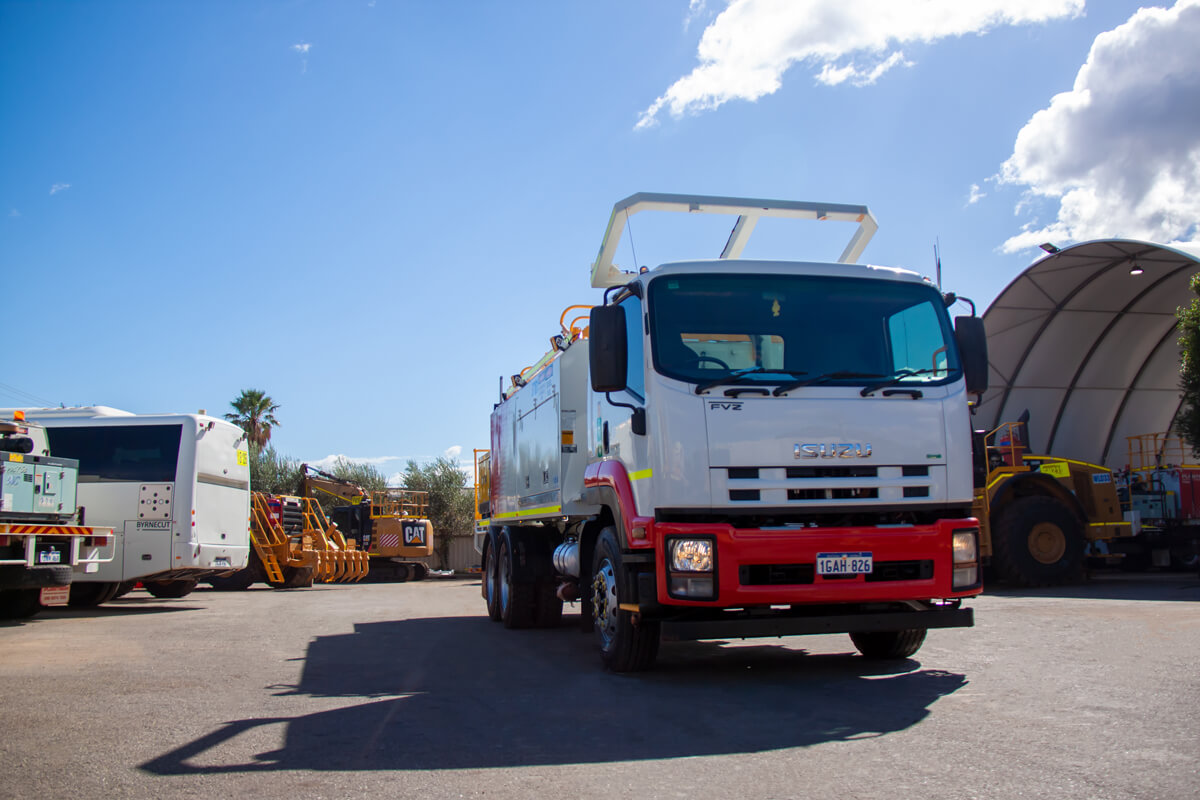

Plantman P5000 – Isuzu FVZ 1400 Service Truck

PLANTMAN P5000 SERVICE MODULE

Specifications:

  • Heavy duty chassis mounted – Steel compartment service module:
Tank #Tank TypeTank Capacity
No 1Diesel reel, hose, Wiggins hand piece, Diesel reel, hose, Light Vehicle hand piece5,000 litre
No 2Oil reel, hose, hand piece, fast and top fill750 litre
No 3Oil reel, hose, hand piece, fast and top fill750 litre
No 4Oil reel, hose, hand piece, fast and top fill750 litre
No 5Oil reel, hose, hand piece, fast and top fill750 litre
No 6Water reel, hose,hand piece, fast and top fill500 litre
No 7Waste reel, hose, hand piece, fast and gravity drain500 litre
No 8Coolant tank reel, hose, hand piece, fast and top fill500 litre
  • Bulk grease tank 2 pumps, reels, hoses, hand piece500 kg

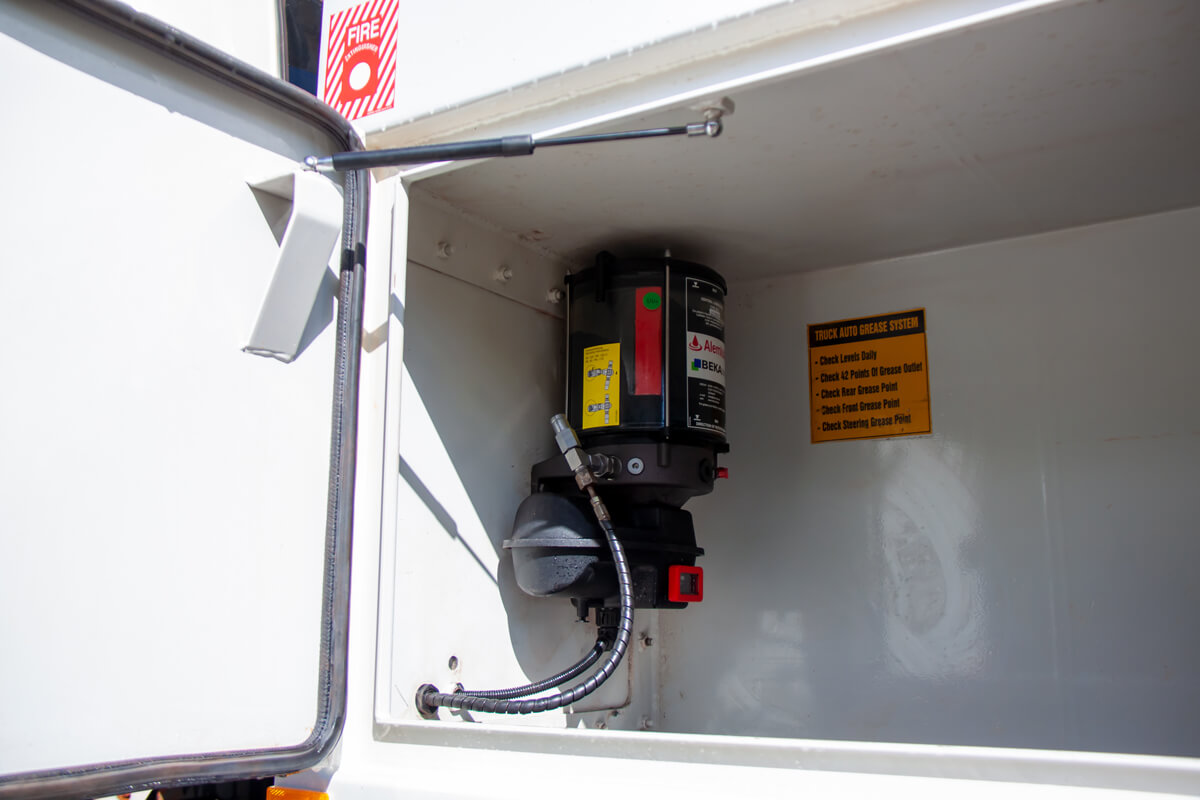

  • High pressure grease system
  • Safety signage
  • All pumps are fully enclosed inside RHS pump cabinet
  • Hose reels are mounted RHS front
  • All systems are air operated
  • Dual element amber rotating beacon and 6 service lights
  • Polymer lined water and coolant tanks
  • Polymer lined waste oil tank

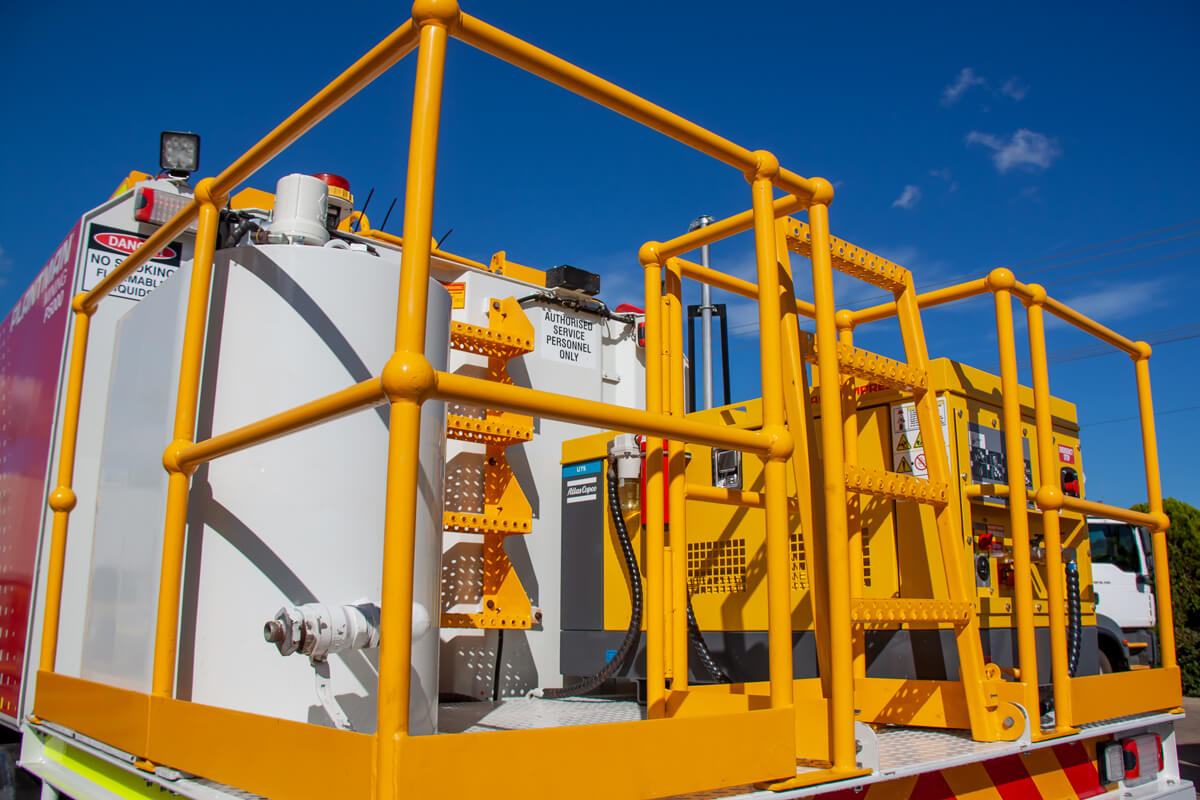

  • Top safety rails and steps
  • Enclosed steel pipe reticulation lines
  • Lockable start isolators to truck and air compressor
  • 2″ double diaphragm diesel delivery pump

Specifications:

  • 221KW turbocharged and inter-cooled 4 cycle diesel engine
  • Exhaust and hydraulic retarder
  • Euro IV compliant
  • Upright exhaust
  • Allison MD World Series 6 speed automatic transmission
  • Air-conditioned high roof cabin
  • ROPS canopy
  • ISRI suspension seat
  • Meritor front and rear axle set
  • Spring front and rear suspension
  • Non-asbestos brake linings
  • Air dryer
  • Spring applied emergency and parking brake
  • 11R x 22.5 Michelin drive tyres
  • 295/80R x 22.5 Michelin steer tyres
  • Rear-mounted spare wheel
  • Wheel brace and jack
  • Tropical tinted rear and side windows
  • Two-way radio wiring and power supply 12 and 24V
  • Rust and corrosion prevention system
  • Service meter

Safety Features

  • ROPS to AS 2294 – ISO 3471
  • 2 x 9kg Fire extinguishers
  • Auxiliary lighting
  • Reverse alarm
  • Roof-mounted dual-element amber rotating beacon
  • Lockable isolator
  • Jumpstart receptacle
  • Safety signage
Read More
Product Specifications
Axles 6x4
Capacity 5000L
Make ISUZU
Type Service Truck
