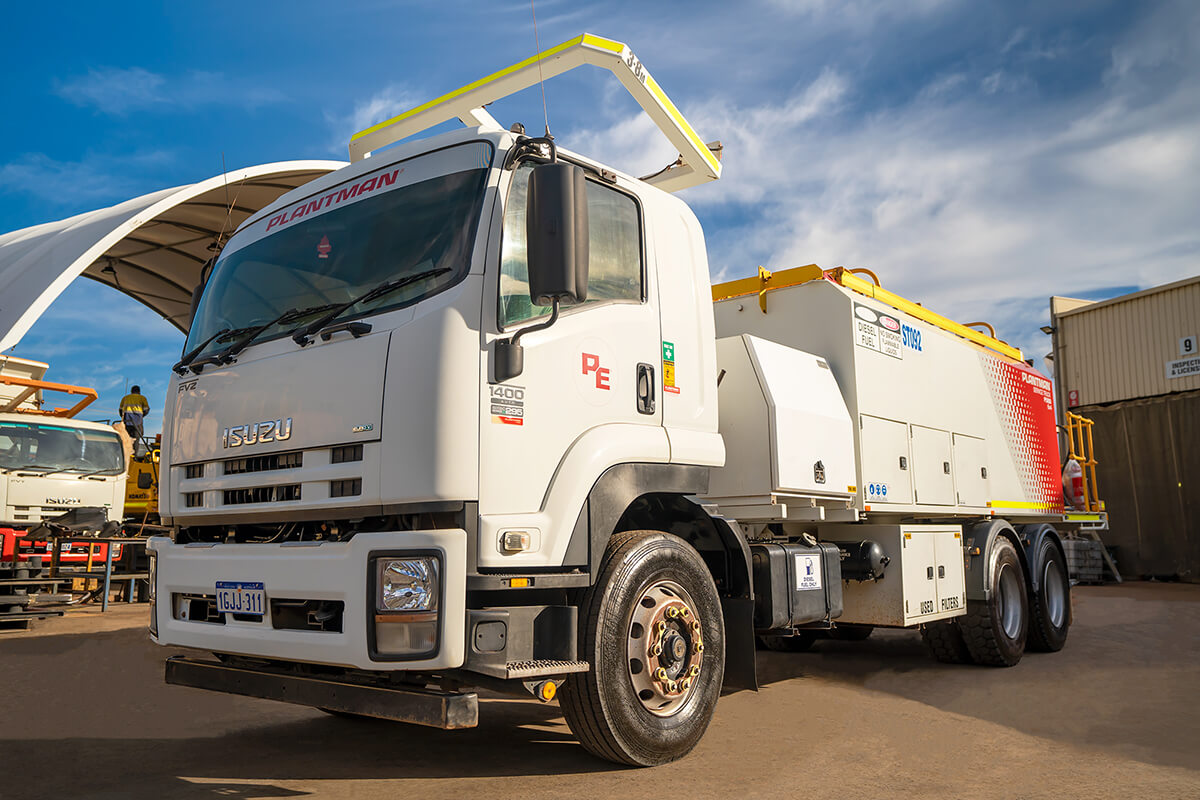

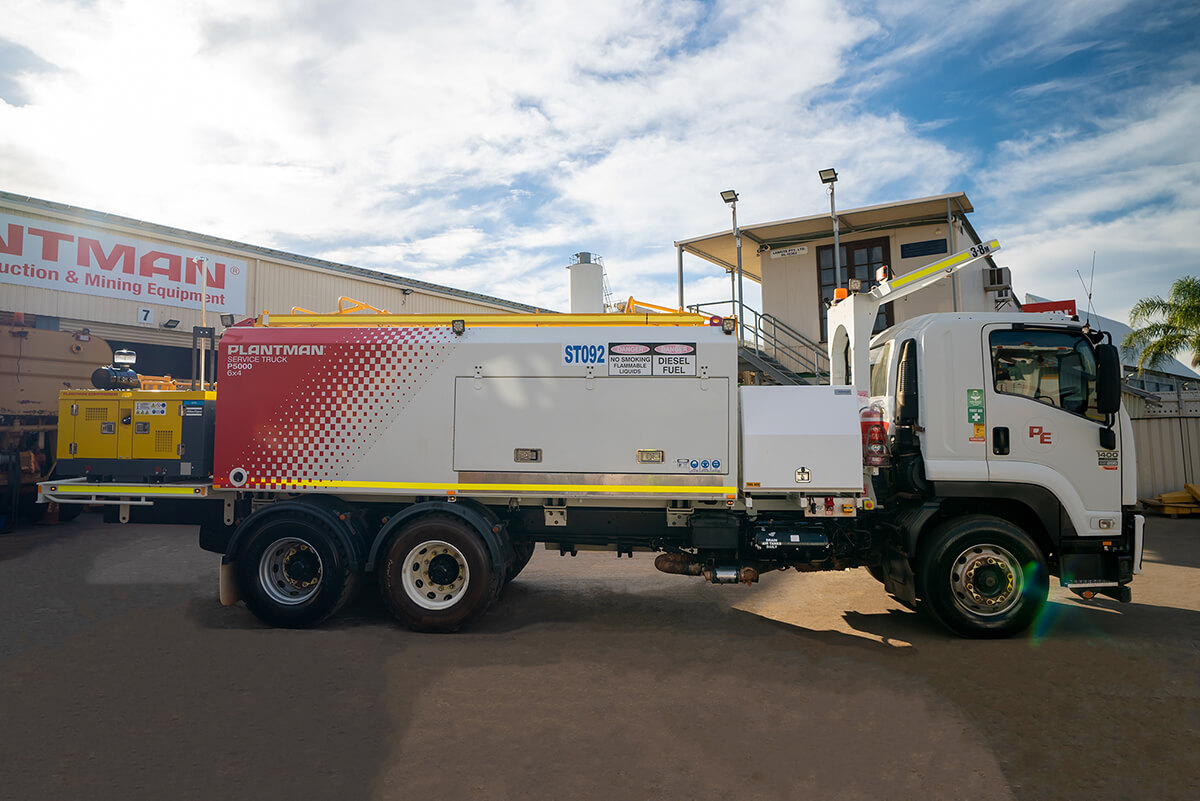

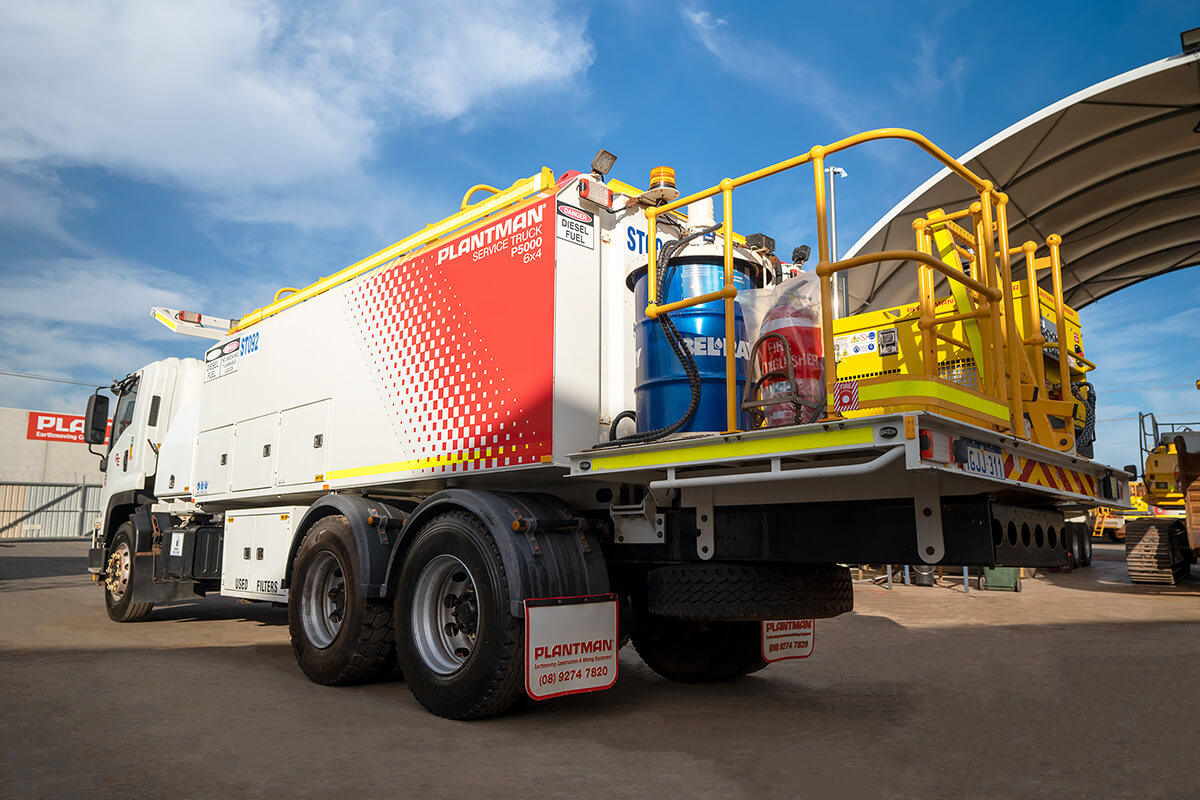

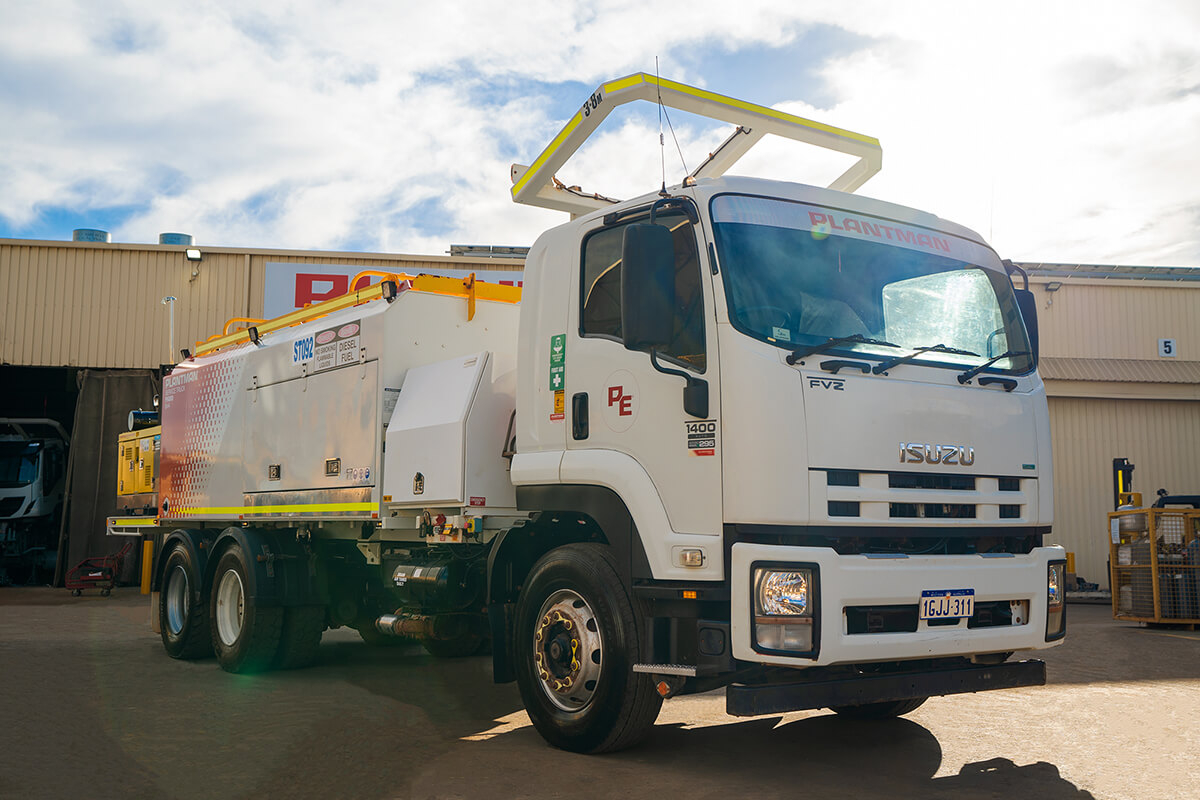

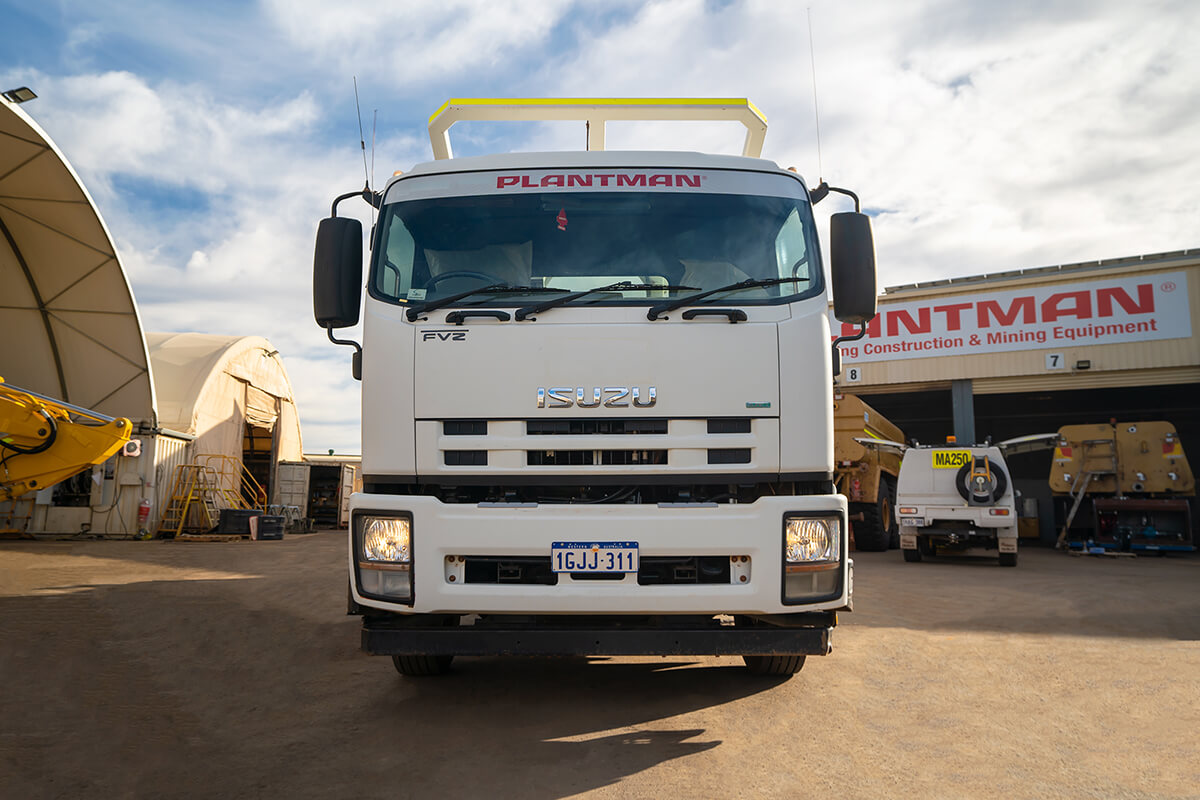

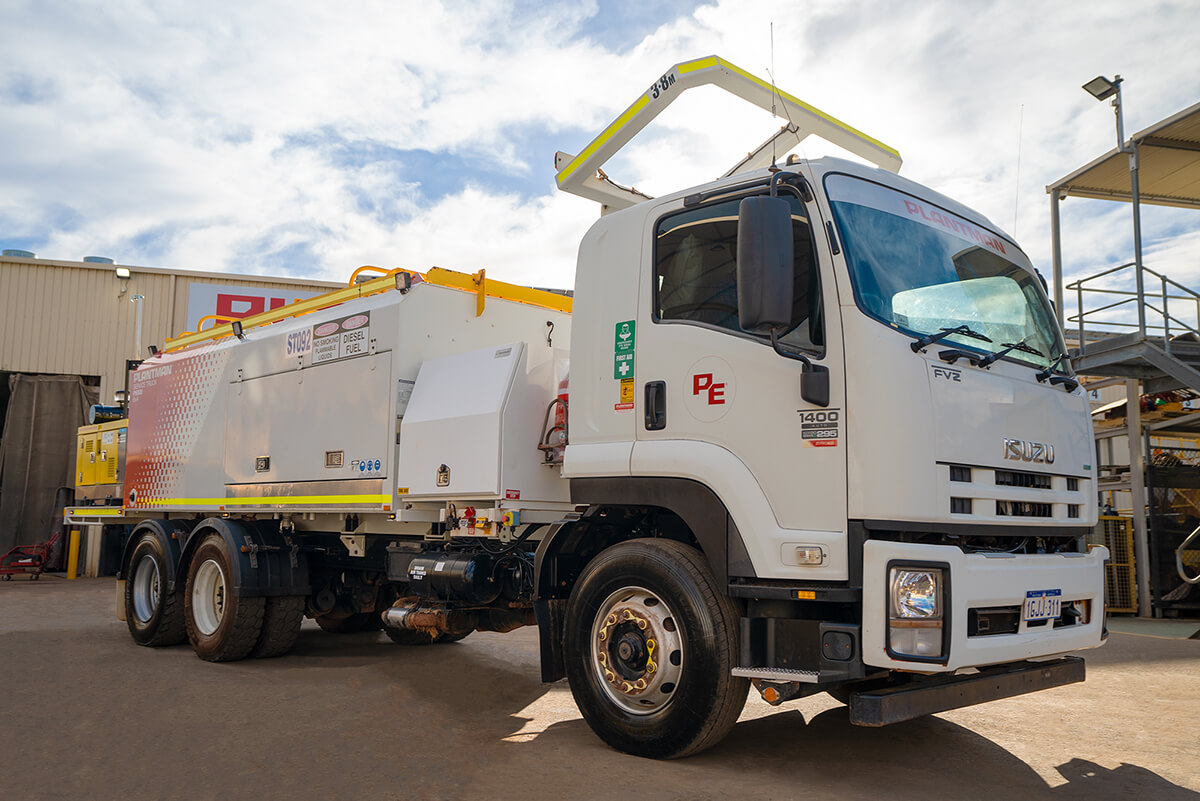

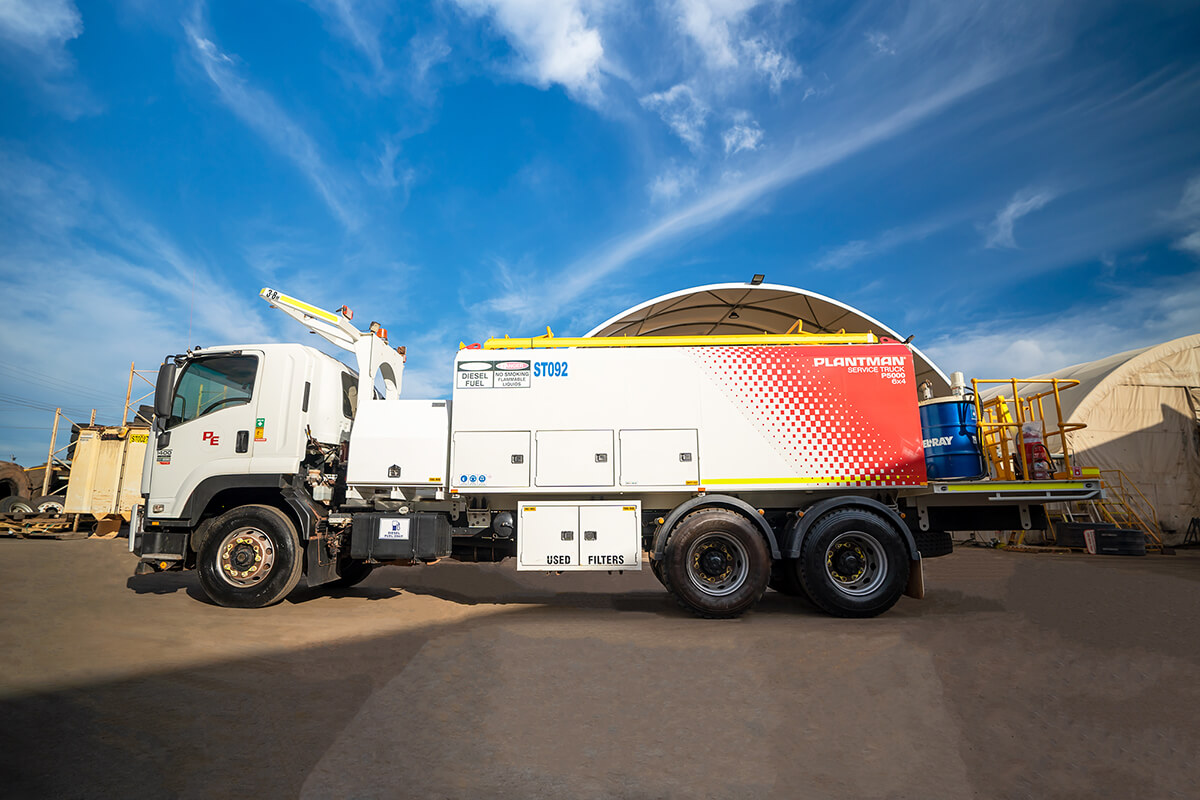

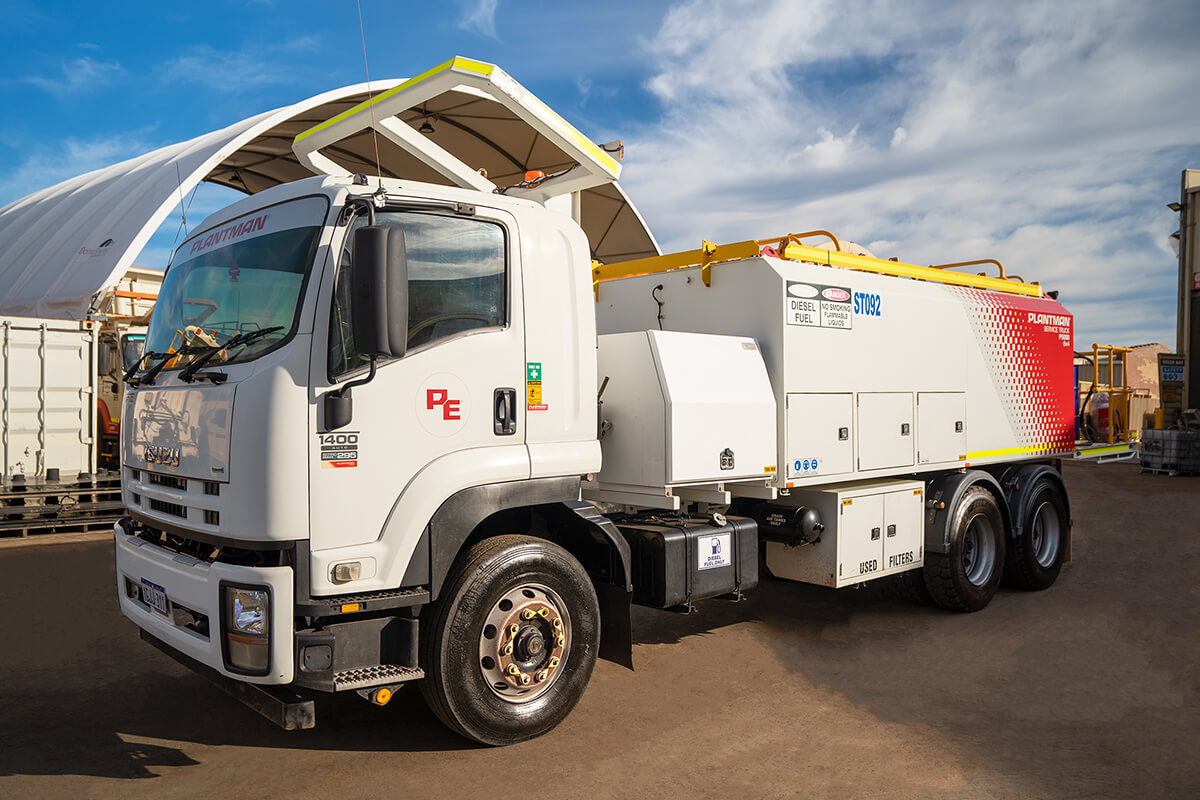

ISUZU FVZ1400 6×4 Service Truck P5000 | ST092

AVAILABILITY:    CHECK AVAILABILITY

CALL FOR AN IMMEDIATE QUOTE

Enquire Now
Product Summary
Download Specs

PLANTMAN P5000 SERVICE MODULE

  • Heavy duty chassis mounted – Steel 8 compartment service module:
Tank #Tank TypeTank Capacity
No 1Diesel reel, hose, Wiggins fast fill hand piece, Diesel reel, hose, Light Vehicle hand piece5,000 litres
No 2Oil reel, hose, hand piece, fast and top fill750 litres
No 3Oil reel, hose, hand piece, fast and top fill750 litres
No 4Oil reel, hose, hand piece, fast and top fill750 litres
No 5Oil reel, hose, hand piece, fast and top fill750 litres
No 6Water reel, hose, hand piece, fast and top fill500 litres
No 7Waste reel, hose, hand piece, fast and gravity drain500 litres
No 8Coolant tank reel, hose, hand piece, fast and top fill400 litres

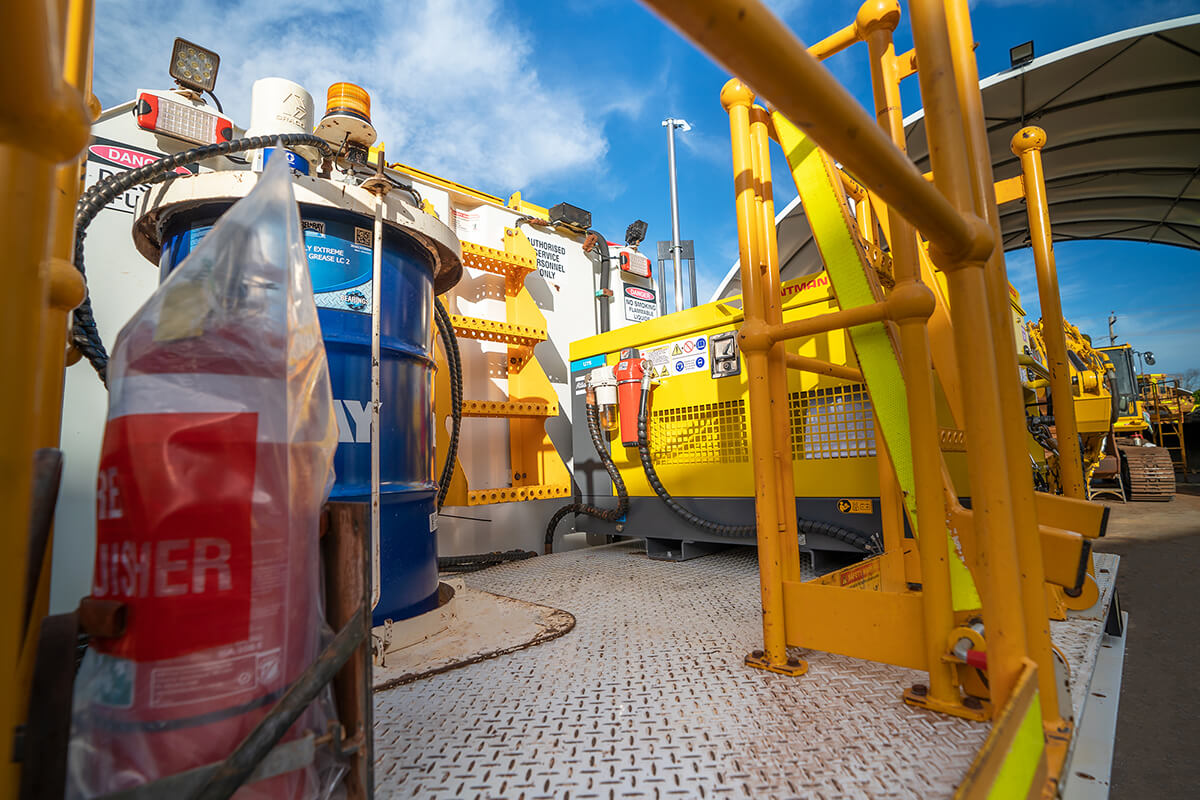

  • Bulk grease tank 2 pumps, reels, hoses, hand piece 200 kgs
  • High pressure grease system
  • Safety signage
  • All pumps are fully enclosed inside RHS pump cabinet

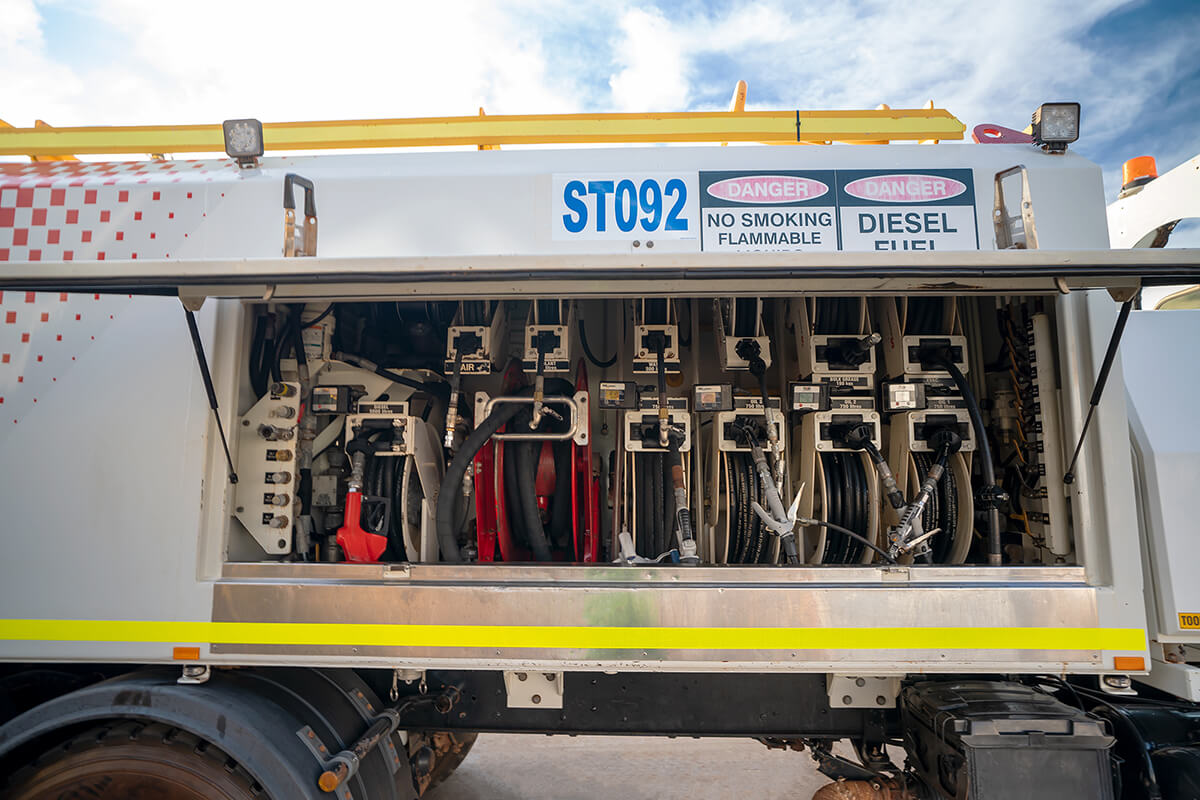

  • Hose reels are mounted RHS front
  • All systems are air operated
  • Polymer lined water and coolant tanks
  • Polymer lined waste oil tank

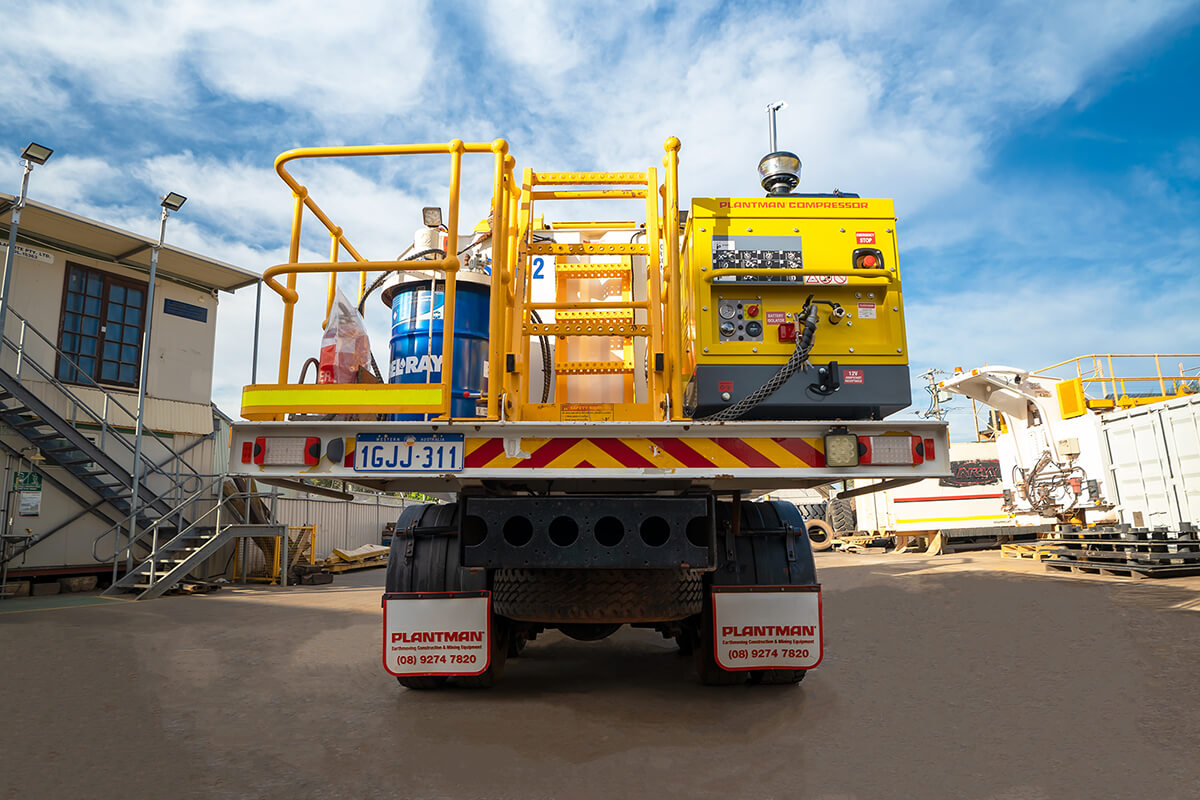

  • Top safety rails and steps
  • Enclosed steel pipe reticulation lines2″ double diaphragm diesel delivery pump

Plantman P5000 – Isuzu FVZ 1400 Service Truck Specifications:

Specification:

  • 206KW turbo charged and inter cooled 4 cycle diesel engine
  • Allison MD World Series 6 speed automatic transmission
  • ROPS to AS2294Air conditioned high roof cabin
  • ISRI drivers suspension seat
  • Passenger seat with retractable seat belts
  • AM/FM radio with compact disc player
  • Fabric seats with canvas seat covers
  • Electric windows
  • Remote control door locks
  • East West mirrors and spot mirrors
  • Spring applied emergency and parking brake
  • 11R 22.5 tyres
  • Dual spare wheels
  • Wheel brace and jack
  • Standard tint laminated windscreen
  • Tropical tinted rear and side windows
  • Safety signage
  • Two way radio
  • 2 x 9kg Fire extinguishers
  • Auxiliary lighting
  • Reverse alarm
  • Roof mounted amber rotating beacon
  • Lockable isolator
  • Jump start receptacle
Read More
Product Specifications
Axles 6x4
Capacity 5000L
Make ISUZU
Type Service Truck
