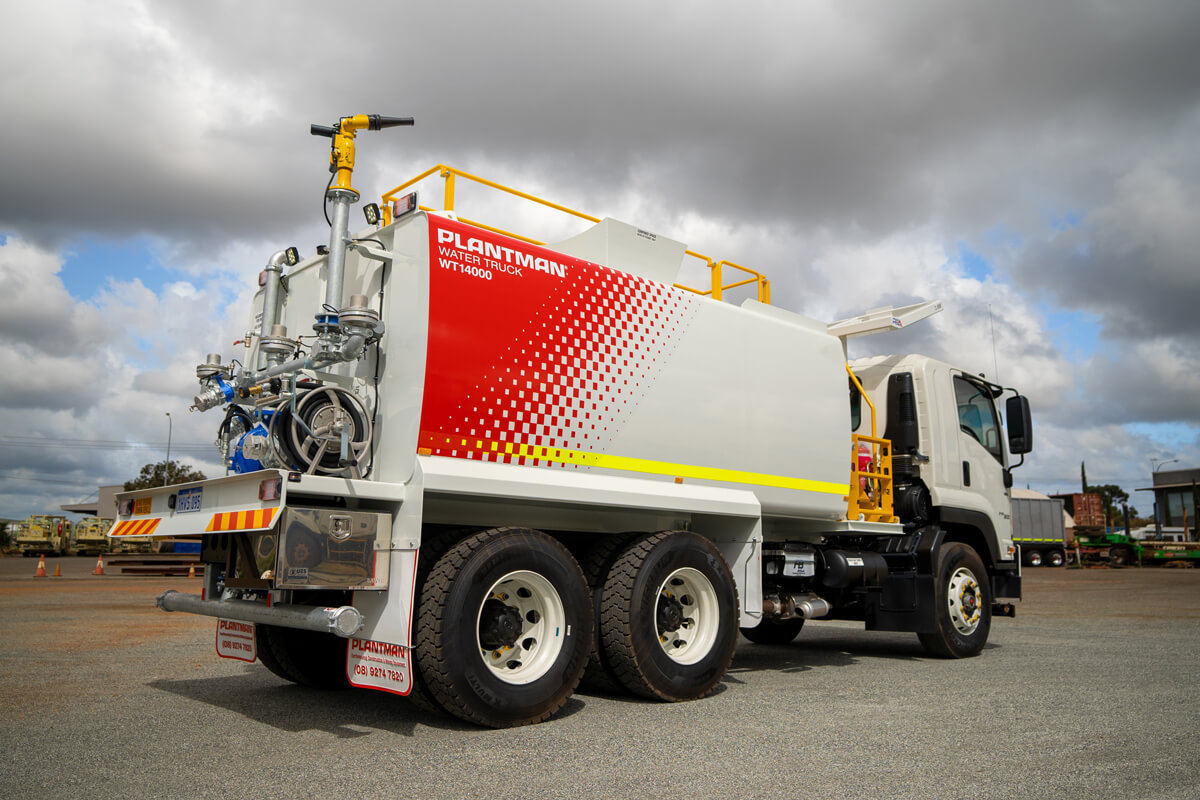

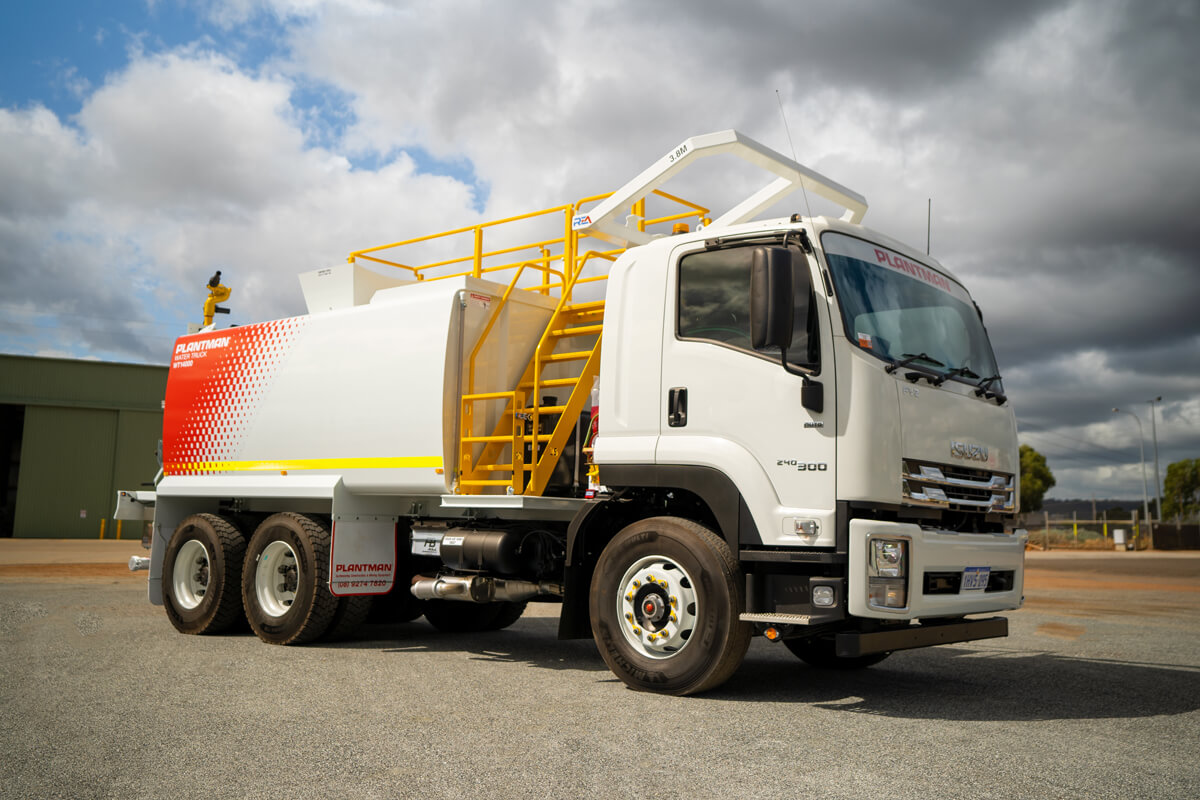

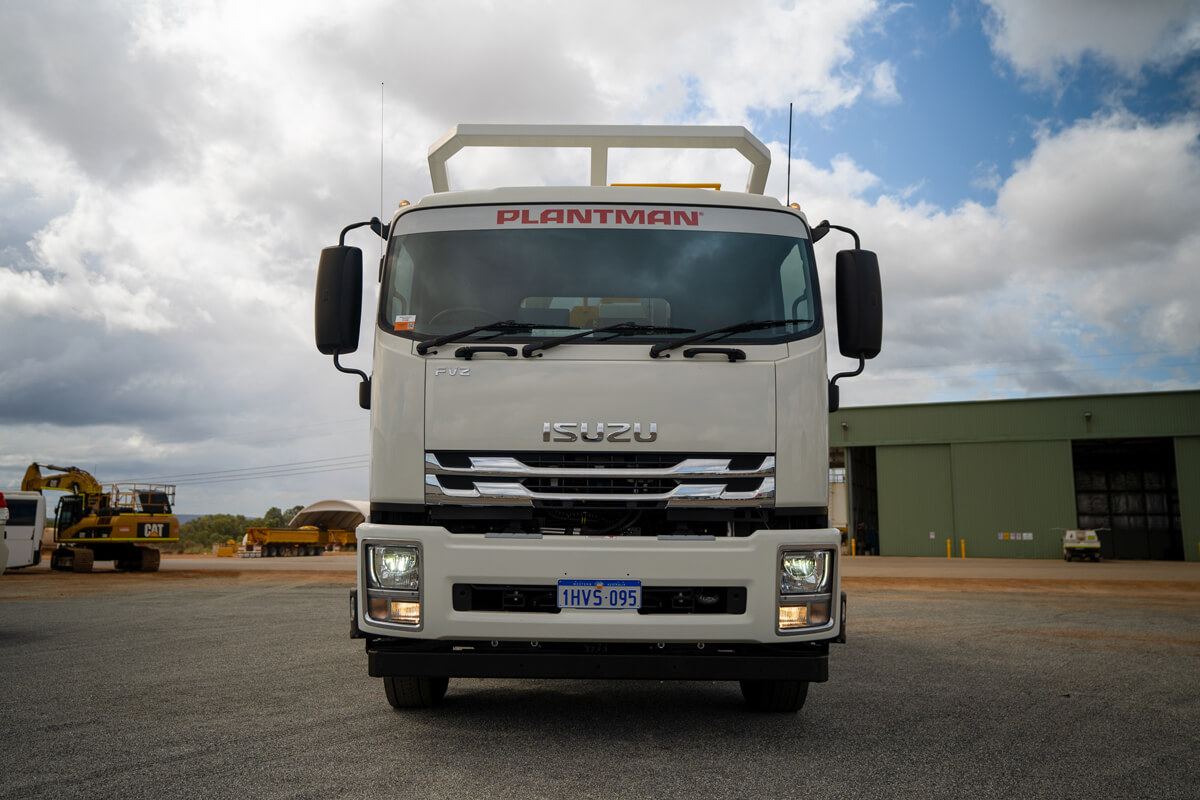

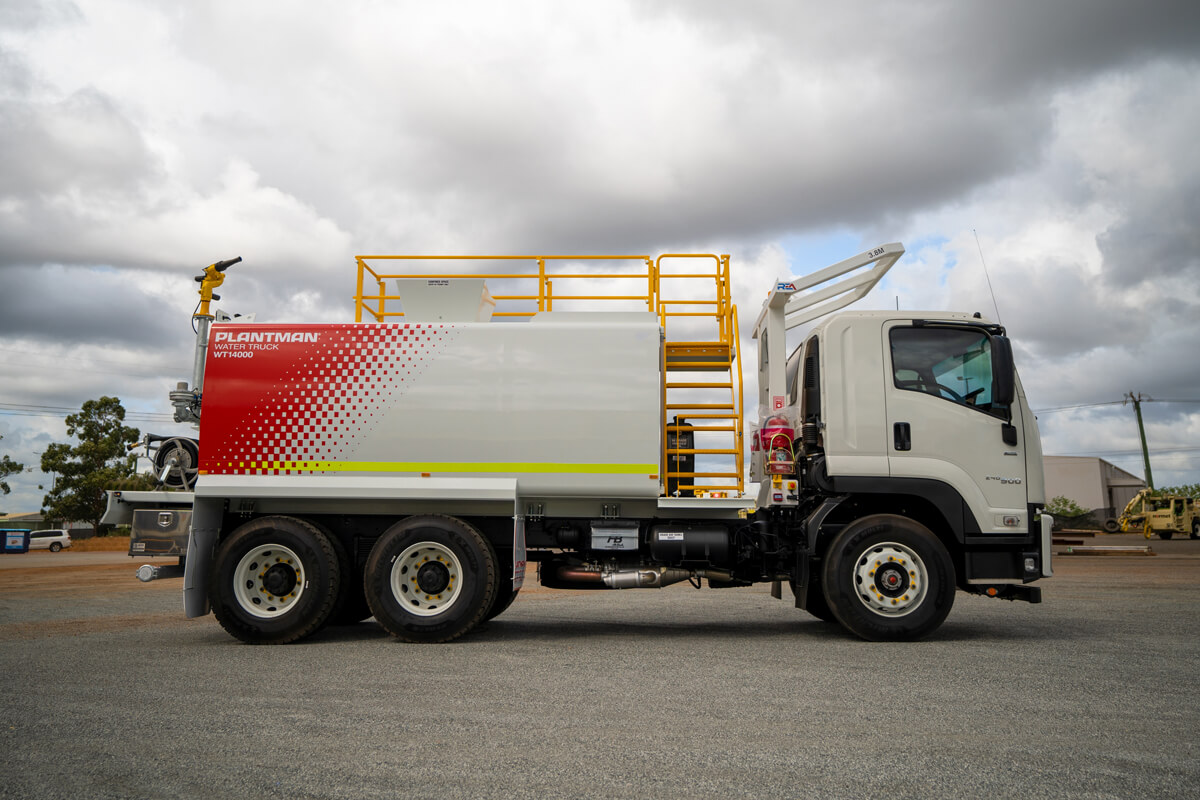

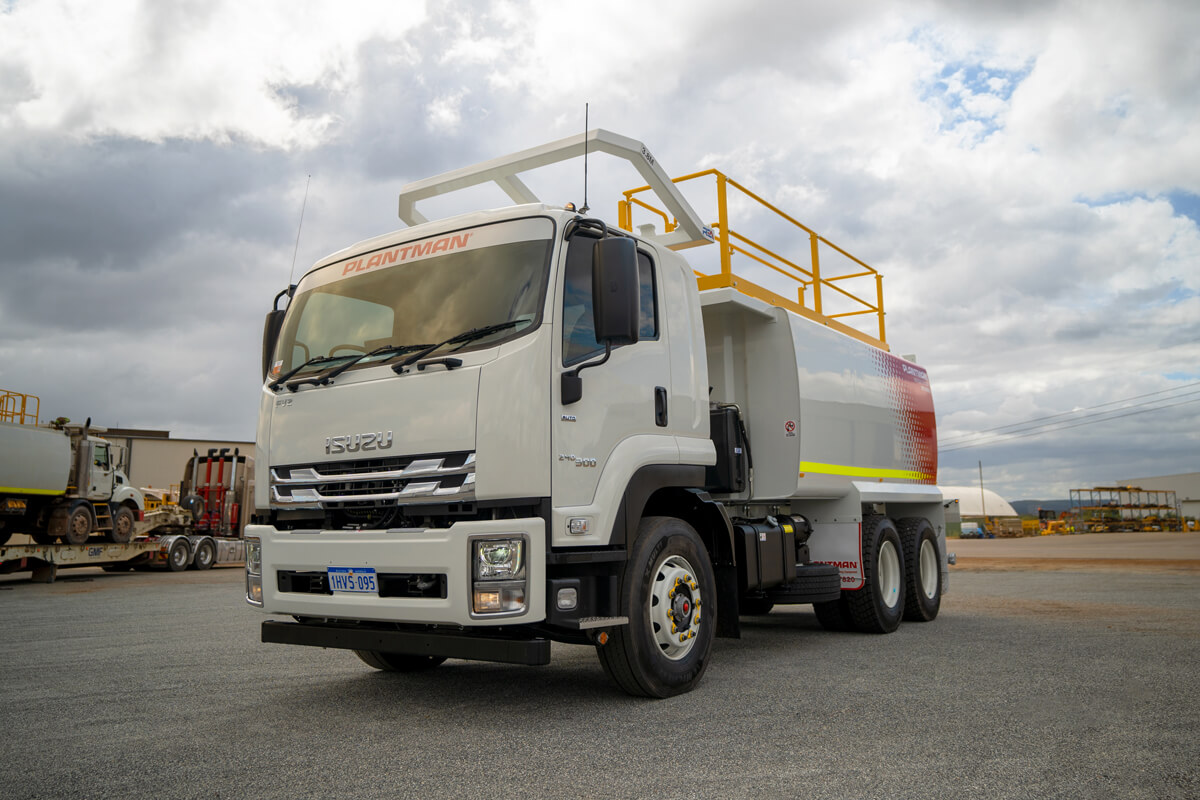

ISUZU FVZ240-300 6×4 WATER TRUCK 14,000L | WT123

AVAILABILITY:    CHECK AVAILABILITY

CALL FOR AN IMMEDIATE QUOTE

Enquire Now
Product Summary
Download Specs

New Heavy-duty chassis-mounted steel, Plantman WT14000 compartment service module:

Tank#Tank TypeTank Capacity
No 1Water Tank14,000 litres

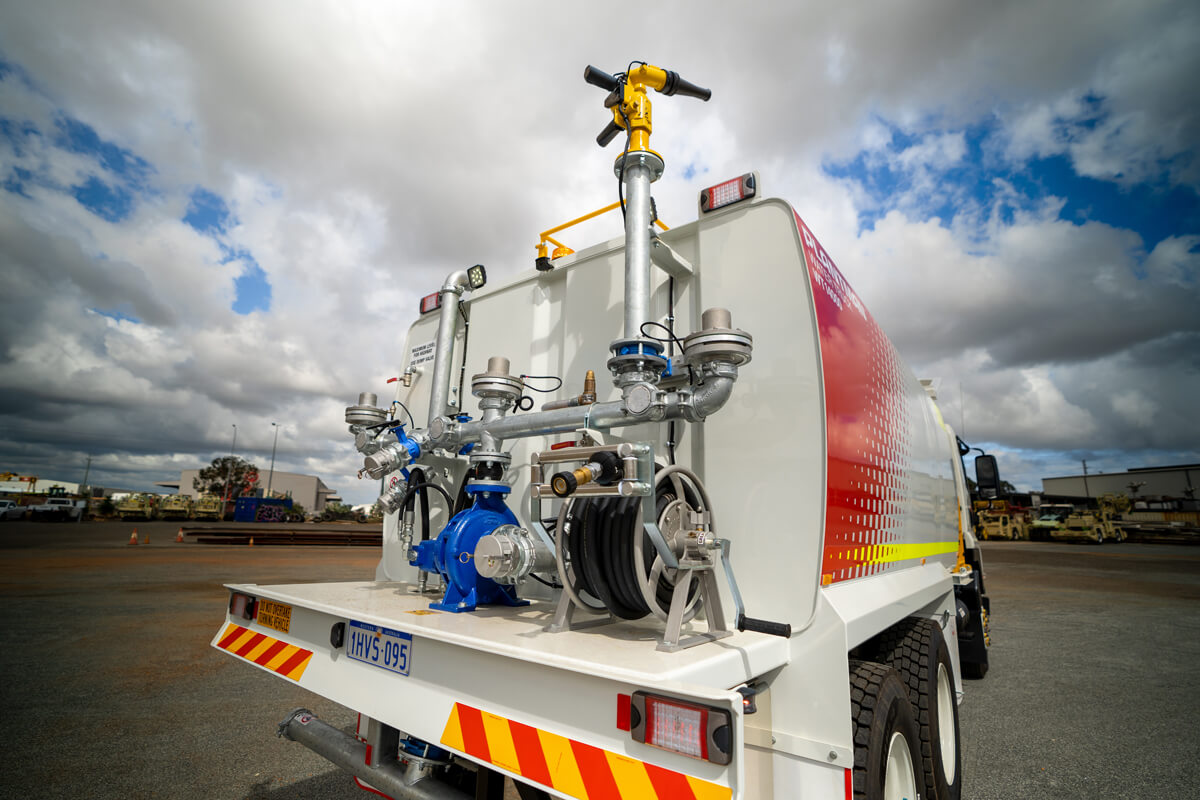

  • Stalker water pump size hydraulically driven by hydraulic motor
  • Behind cab hydraulic PTO 200L tank
  • In-cab control box with air switches

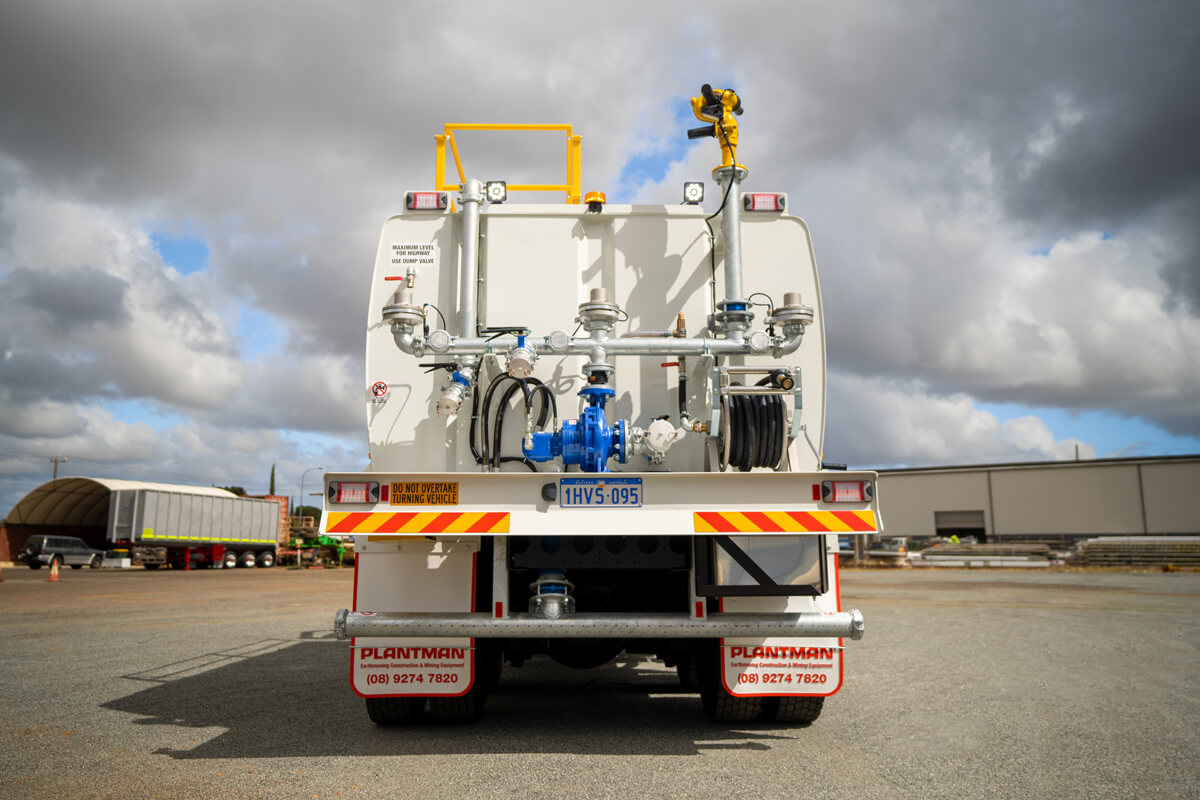

  • Rear – Left, right, center sprays heads
  • Dribble bar gravity fed
  • 2 Front bumper mounted left & right spray heads, & piping, additional butterfly valves
  • Rear mounted Elkhart Brass water cannon kit with extension harness
  • Manual fire fighting 15M, hose reel
  • Top funnel fill
  • Discharge outlet with manual valve for water transfer duties
  • Rear fill point at chassis level with ball valve, cam lock fitting and cap
  • Safety hand railing with stairway to BHP spec
  • Plantman wiring harness
  • Flashing light

Plantman WT14000 – ISUZU FVZ240-300 6×4 Water Truck WT14000 Specifications:

  • Automatic Transmission, PTO
  • Spring Suspension
  • A/C Cabin
  • Canvas Seat covers
  • Certified ROPS
  • Jack / Wheel Nut Indicators / Safety Triangle / Wheel Chocks
  • Tropical tinted rear and side windows
  • Fit client supplied TAIT TM9355-H7 site specific two way radio including mounting of aerial and hand piece & running electrical wiring
  • Headlights on with Ignition
  • Lockable Battery & Starter Isolators
  • Anderson Jump Start Receptacle
  • High Mount Flag
  • Flashing light
  • 1 x E-Stop in truck cabin, 1 x E-Stop at ground level on module
  • 5 x LED Night Lights on module, internal strip lights
  • Rear Facing High Lights
  • 2 x 9kg Fire Extinguishers
  • Safety & Operating Decals
  • Plantman wiring harness
Read More
Product Specifications
Axles 6x4
Capacity 14000L
Make ISUZU
Type Water Truck
