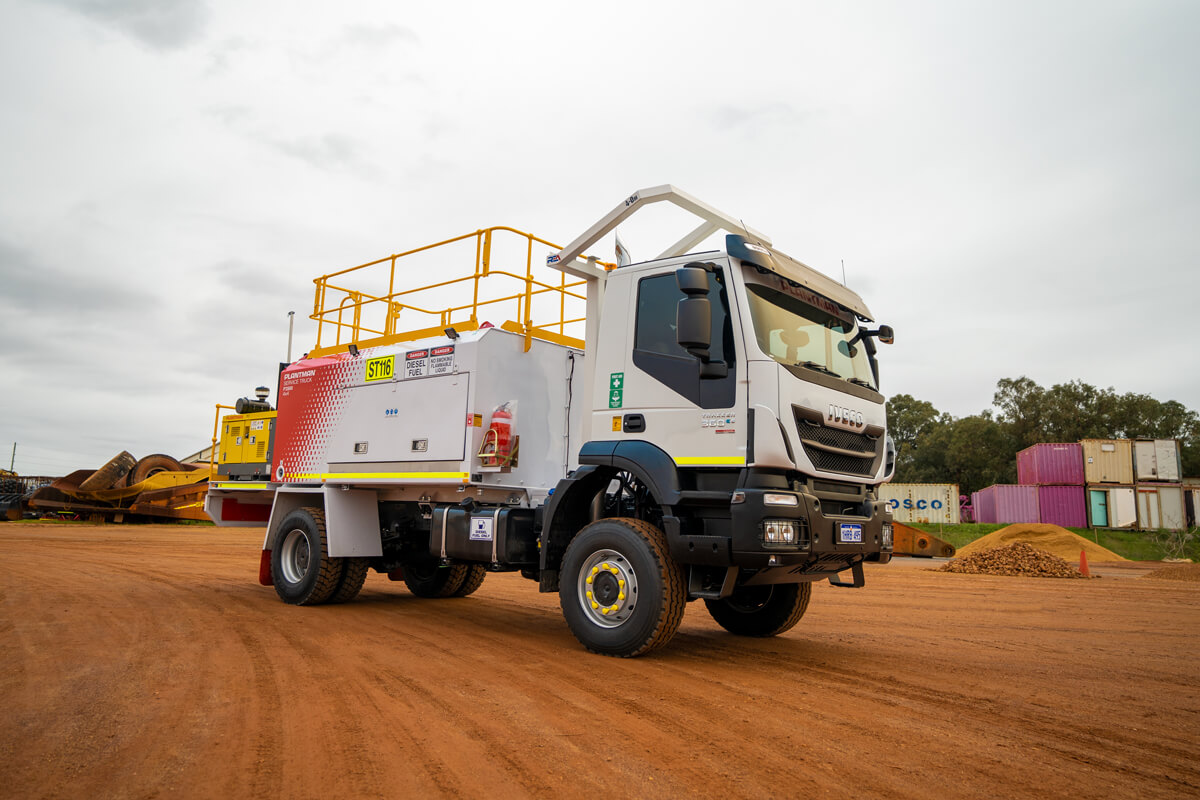

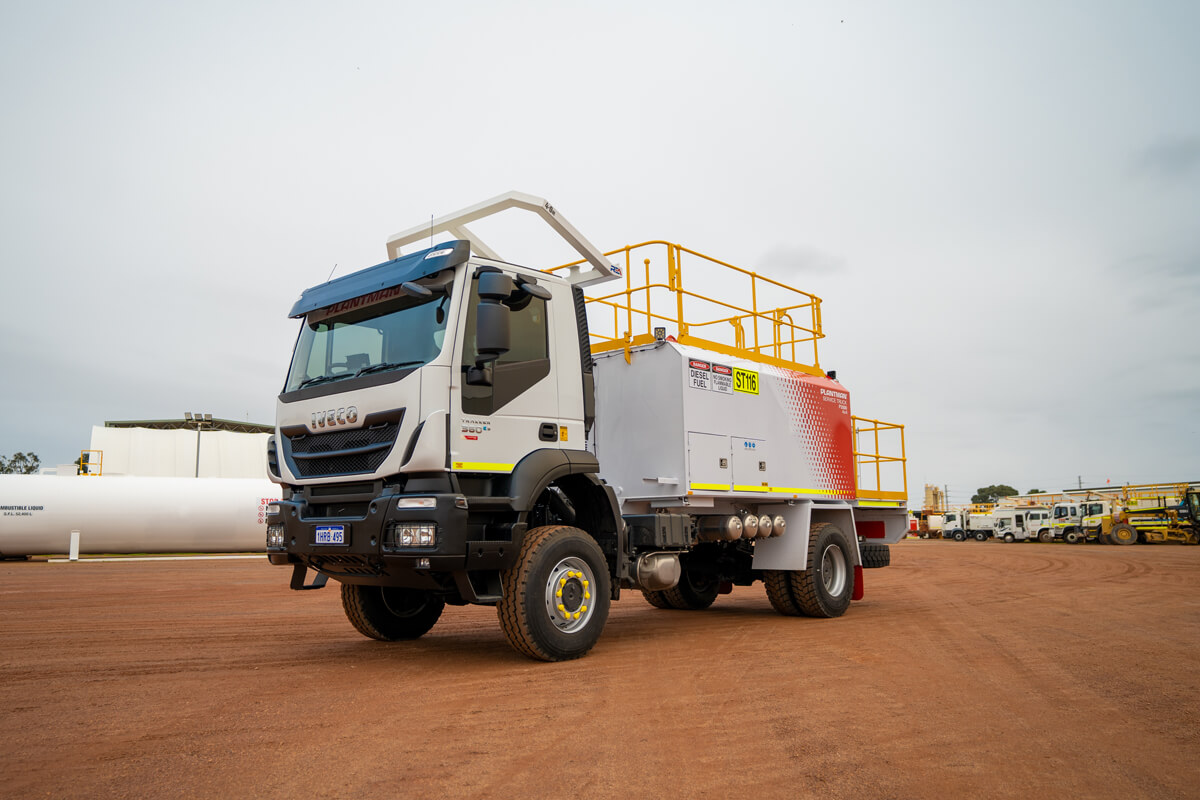

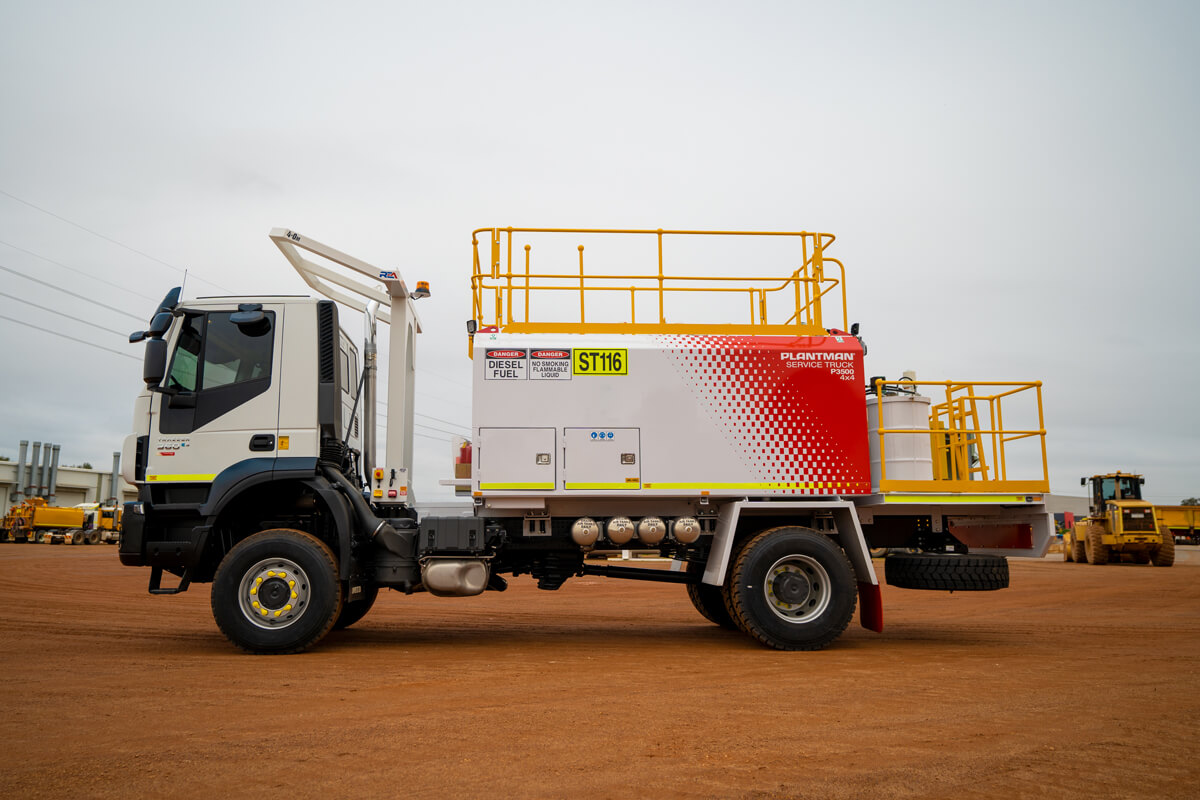

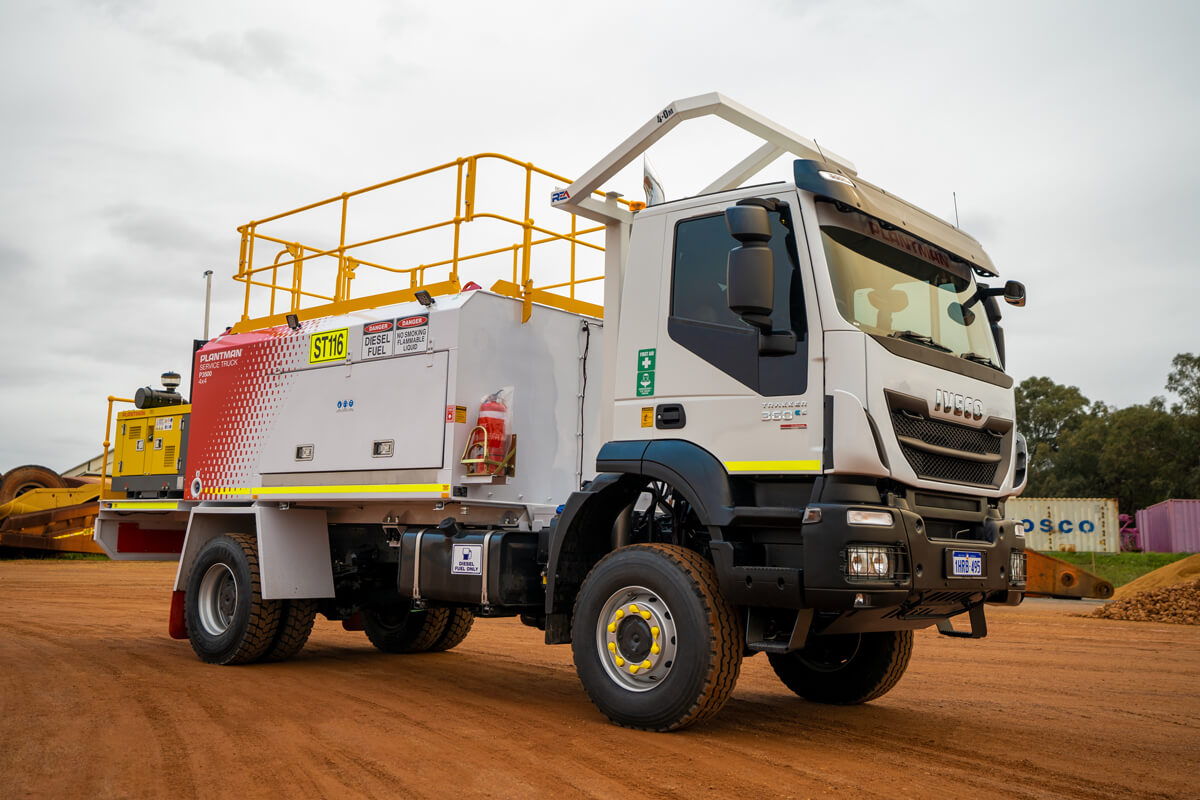

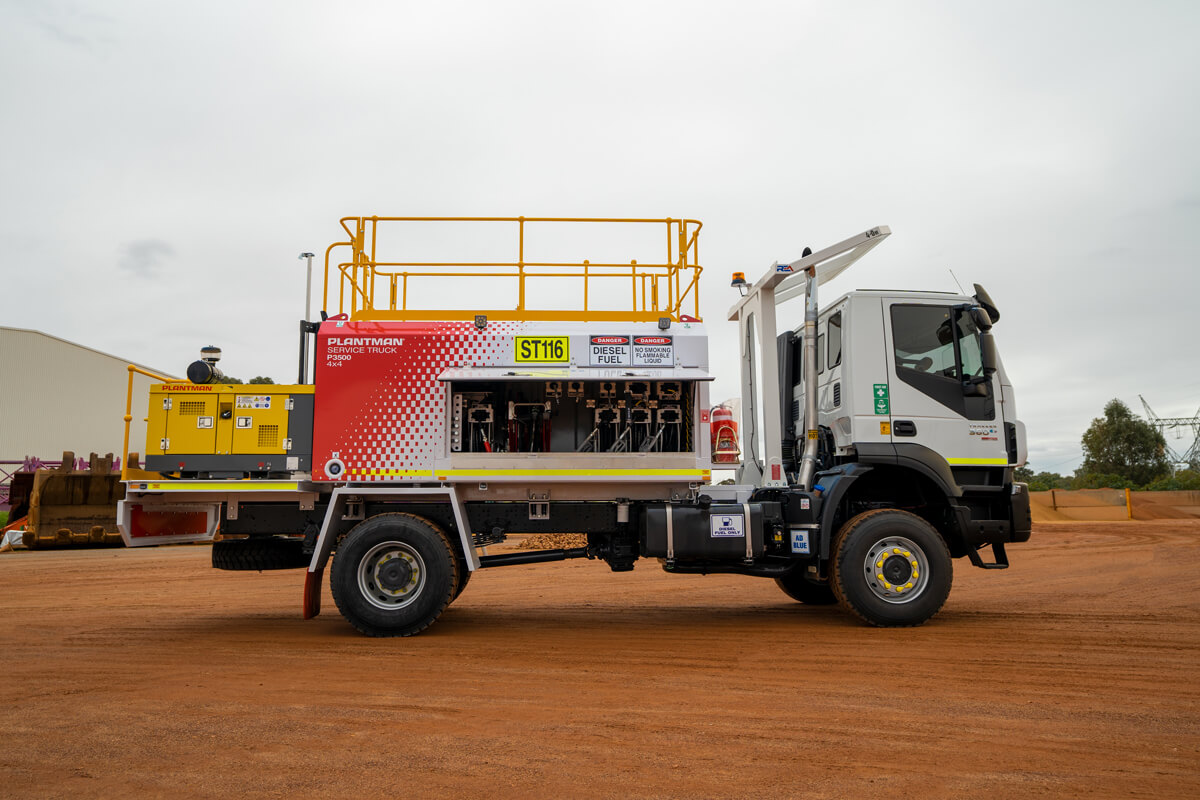

IVECO TRAKKER 4×4 SERVICE TRUCK P3500 | ST116

AVAILABILITY:    IMMEDIATELY AVAILABLE FOR RENTAL

CALL FOR AN IMMEDIATE QUOTE

Enquire Now
Product Summary
Download Specs

Plantman P3500 Service Module Specifications:

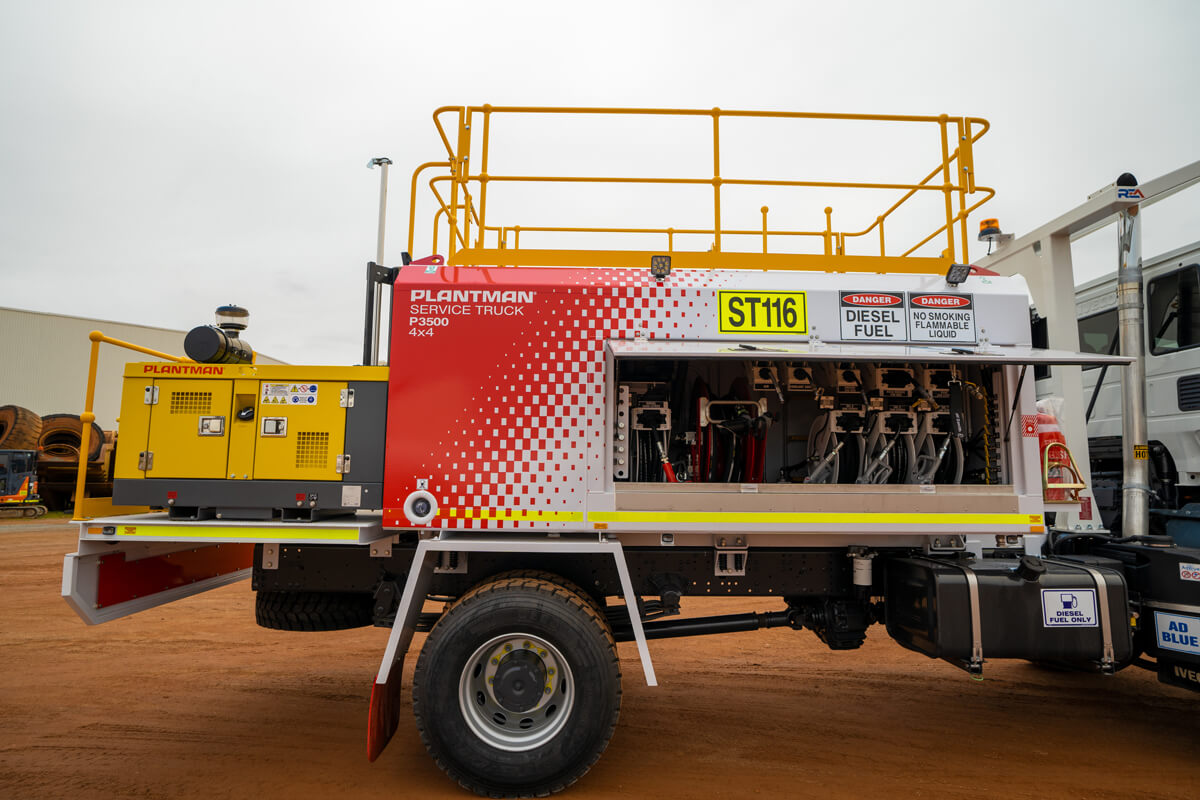

New Heavy-duty chassis-mounted steel, Plantman P3500 compartment service module:

Tank#Tank TypeTank Capacity
No 1Bulk diesel with Wiggins fast-fill gun, hose and auto rewind reel3,500 litres
L/V Diesel auto shut off gun, hose and spring retractable reel
No 2Oil with spring retractable reel & 15m hose with dripless dispenser500 litres
No 3Oil with spring retractable reel & 15m hose with dripless dispenser500 litres
No 4Oil with Spring Retractable reel & 15m hose with dripless dispenser500 litres
No 5Water or Coolant with spring retractable reel & 15m hose500 litres
No 6Waste with spring retractable reel & 15m hose with dripless dispenser500 litres
  • 180kg Grease drum kit (replaceable drum) with HP pump, spring retractable reel & 15m hose dirty oil filter sump in LHS toolbox

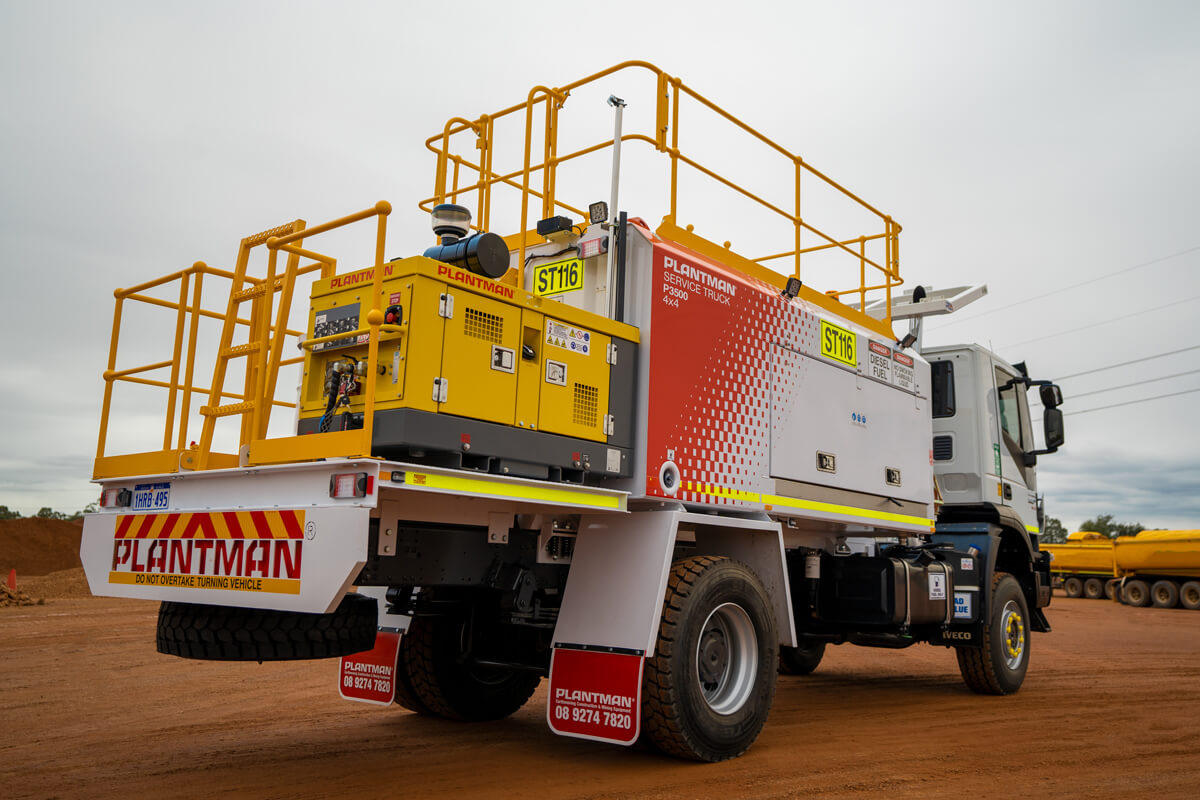

Atlas Copco Air Compressor U75 Specifications:

  • Extended exhaust stack and bracket
  • Air dryer and air lubricator
  • External air cleaner and filter
  • Safety decal kit
  • Lockable battery isolator
  • Emergency Stop

Plantman P3500 – IVECO TRAKKER 4×4 Service Truck P3500 Specifications:

  • Offroad GVM- 18 tonne
  • 360hp Turbo Diesel Engine Euro 5
  • Air Conditioned Cabin
  • ZF Automatic Transmission
  • 40L Ad Blue Tank
  • 300L Truck Diesel tank
  • Certified ROPS
  • Tinted Side and Rear windows
  • Canvas Seat Covers
  • Fire Extinguishers (9kg x 1 external, 2kg x 1 in cab)
  • Spare Tyre Assembly, Wheel Nut Indicator, Jack, Brace and Wheel Chocks
  • Headlights on with ignition
  • Rear Facing High Lights
  • 5 x External Module roof mounted LED Worklights
  • 2 x Internal LED Strip Lights
  • High Mount Flag with Light in Top
  • ROPS mounted amber rotating beacon (optional LED)
  • 1 x Lockable Battery Isolator – Truck
  • 1 x Lockable Battery Isolator – Compressor
  • Jump Start Receptacle – Truck
  • 1 x E-Stop in cabin
  • 1 x E-Stop on front of module
  • 1 x E-Stop on Compressor
  • UHF GME TX4500 Two Way & Aerial
  • Wiggins Fast Fill Coupling for diesel tank fill
  • All pumps are fully enclosed inside pump cabinet

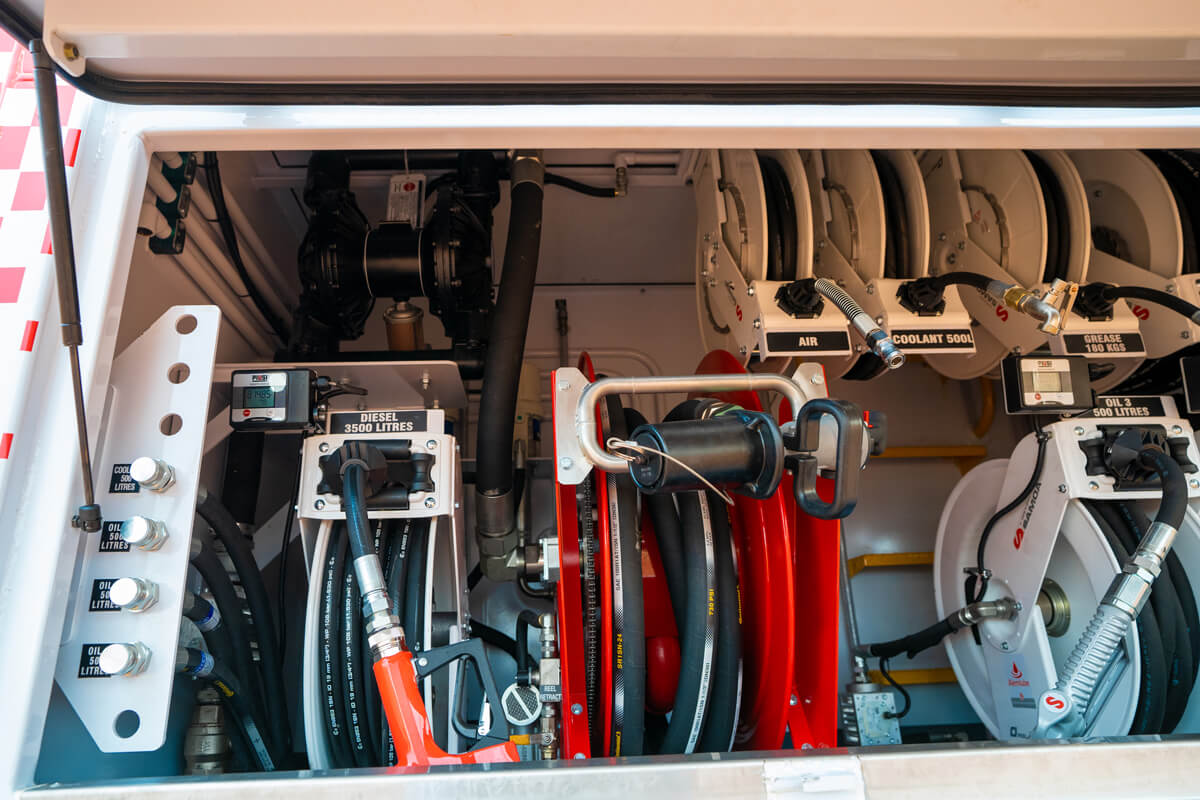

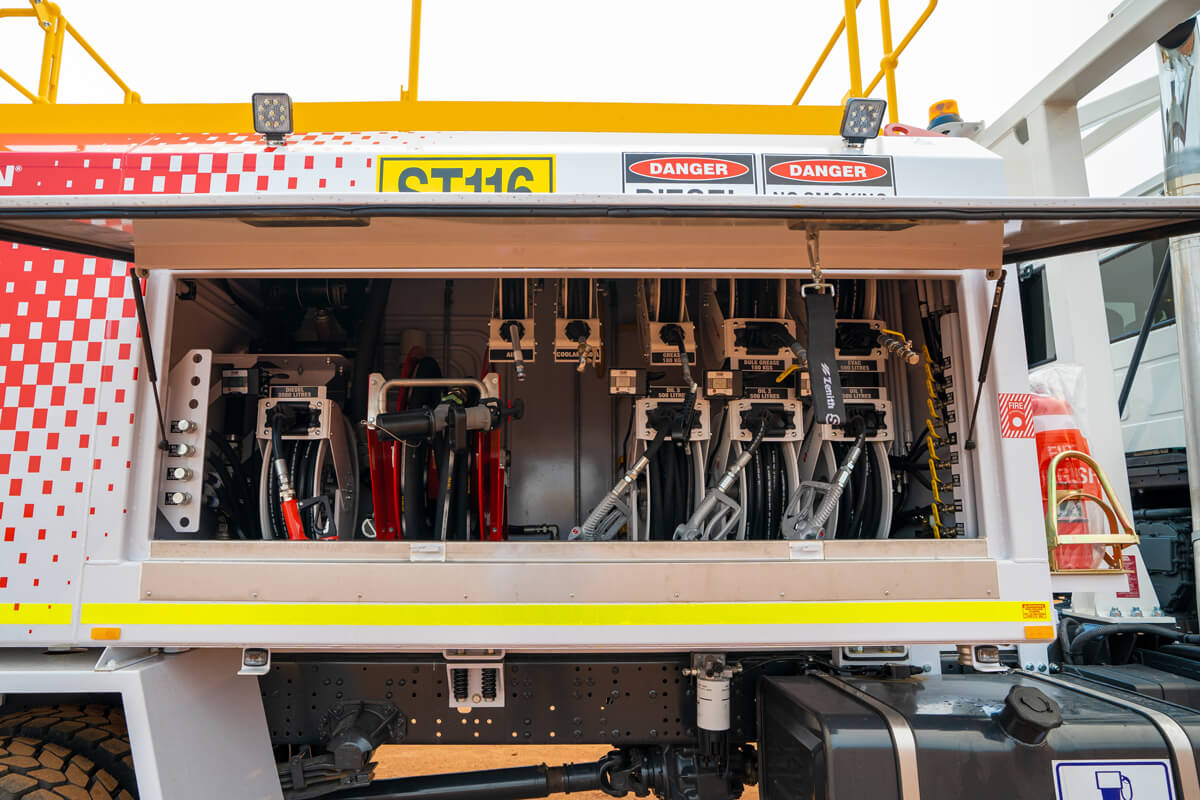

  • All systems are air operated Reels are accessed from ground level at the RHS front of the service module
Read More
Product Specifications
Axles 4x4
Capacity 3500L
Make IVECO
Type Service Truck
