JEC TH10,000 Tyre Handler

AVAILABILITY:    CHECK AVAILABILITY

CALL FOR AN IMMEDIATE QUOTE

Enquire Now
Product Summary
Download Specs

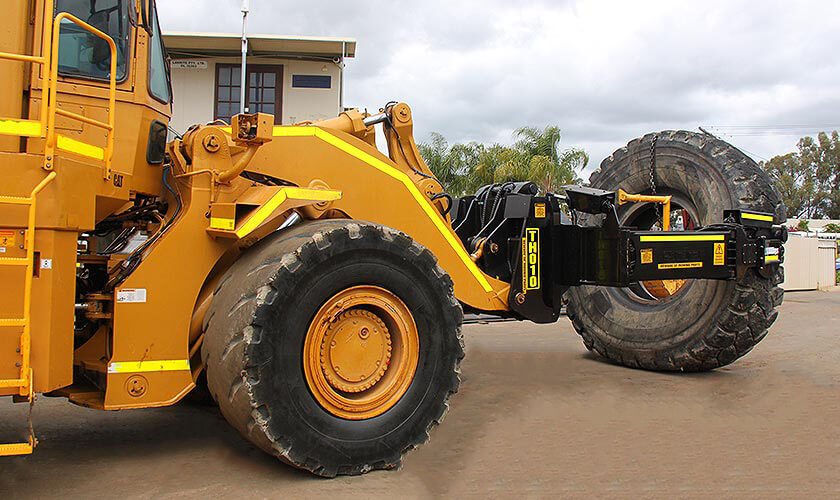

The Austin Dual-Arm JEC Tyre Hander range has been engineered to provide cost-effective tyre handling solutions across the entire tyre and rim spectrum. The Dual-Arm Tyre Handler provides a safer, more efficient way to perform tyre maintenance on earthmoving equipment on location.

They incorporate standard features such as body and pad rotation, combined with the availability of side shift and quick hitch for convenience. They also have the ability to add on accessories such as crane jibs and fork frames.

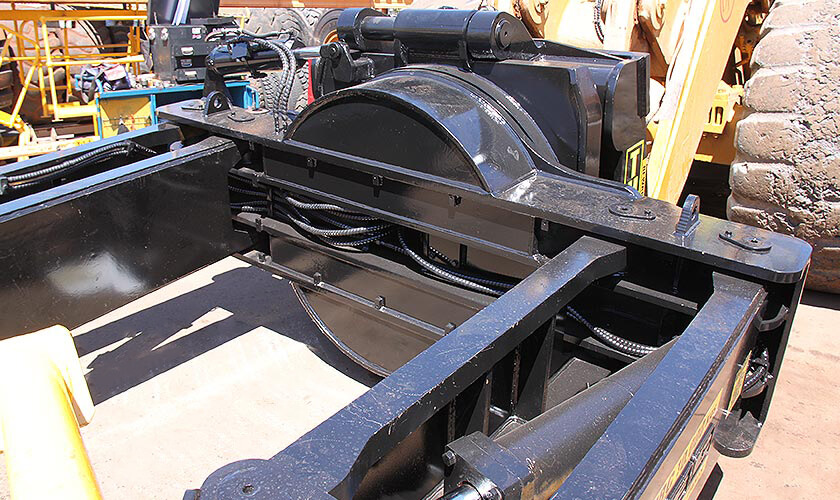

Austin Dual-Arm JEC TH10,000 Tyre Handler Specifications

  • 10,000kg capacity
  • 4500mm max. pad open (nominal)
  • 670mm min.pad closed (nominal)
  • Parallelogram clamp style
  • Weight of unit (approx) 7800kg
  • Quick hitch standard connection

Features:

  • Body rotation 30 degrees
  • Pad rotation 120 degrees
  • Sideshift 200mm
Read More
Product Specifications
Capacity 10,000kg
Make JEC
Model TH10,000
Type Attachment
