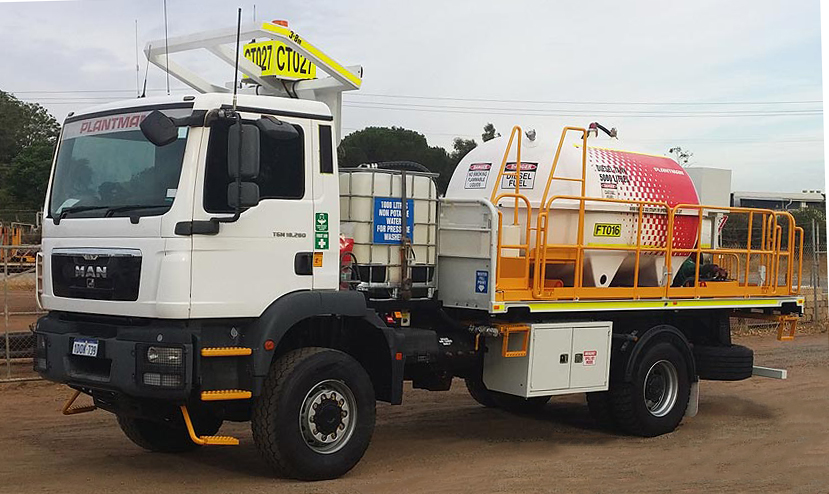

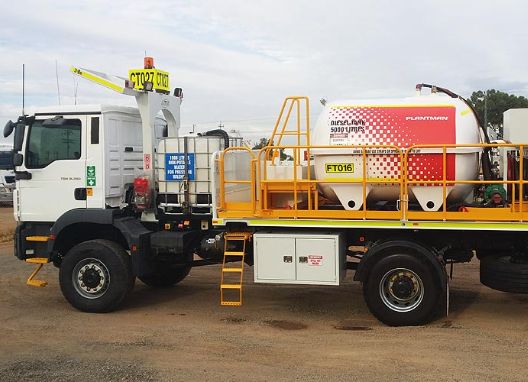

MAN TGM 18.280 4×4, 5,000L Diesel Service Truck | CT027

AVAILABILITY:    CHECK AVAILABILITY

CALL FOR AN IMMEDIATE QUOTE

Enquire Now
Product Summary
Download Specs

MAN TGM 18.280 4×4, 5,000L Diesel Skid Mounted Service Truck Specifications:

Specifications:

  • 280 hp Turbo charged and inter cooled 4 cycle diesel engine with exhaust retarder
  • EURO IV compliant
  • Alloy SRS approved bulbar
  • Pre cleaner stack and bowl
  • Automated manual synchromesh transmission
  • Air conditioned high roof cabin
  • ROPS to AS 2294 Serial #3869
  • ISRI suspension seat
  • Passenger seat with retractable seat belts
  • Fabric seats with canvas seat covers
  • AM/FM radio
  • East West mirrors and spot mirrors
  • Spring front and rear suspension
  • Non asbestos brake linings
  • Air dryer
  • Spring applied emergency and parking brake
  • Headlights on with ignition
  • Continental radial flotation tyres
  • Wheel chocks
  • Spare wheel
  • Jack and wheel brace
  • Standard tint laminated windscreen
  • Tropical tinted rear and side windows
  • Safety signage
  • High visibility striping 75mm
  • Two way radio power supply
  • 2 x 9kg Fire extinguishers
  • Auxiliary lighting
  • Reverse alarm
  • Roof mounted amber beacon
  • Whip aerial
  • Lockable isolator
  • Start Isolator
  • Jump start receptacle
  • Passed road worthy for Western Australia
  • Tray Specifications:
  • Heavy duty steel tray 5.2 m x 2.5m complete with 5mm checker plate floor
  • Cab protection rack 1m high
  • Channel combing
  • Mudguards and mud flap
  • Drop sides
  • Side and rear step access
  • Full sub frame 75x75x6 for crane
  • Steps to front with grab handle to cab rack and removable grab handle to combing
  • Crane Specifications:
  • Hiab 088-B2 Duo Crane
  • Hydraulic outreach to 7.6 meters
  • Out Reach/lifting capacity: (ADS)
  • 2700 kg @ 2.9m
  • 2000 kg @ 3.8m
  • 1380 kg @ 5.4m
  • 1020 kg @ 7.3m
  • Space 3000 overload protection system
  • Emergency stops located on crane controls (both sides)

Safety Features

  • Safety signage
  • High visibility striping 75mm
  • 2 x 9kg Fire extinguishers
  • Auxiliary lighting
  • Reverse alarm
  • Roof-mounted amber beacon
  • Lockable isolator
  • Start Isolator
  • Jumpstart receptacle

Tray Specifications

  • Heavy-duty steel tray 5.2 m x 2.5m complete with 5mm checker plate floor
  • Cab protection rack 1m high
  • Channel combing
  • Mudguards and mud flap
  • Drop sides
  • Side and rear step access
  • Full subframe 75x75x6 for crane
  • Steps to the front with grab handle to cab rack and removable grab handle to combing
Read More
Product Specifications
Axles 4x4
Capacity 5000L
Make MAN
Type Skid Mounted Module
