MAN TGM 18.340 6×6 Service Truck P5000 | ST070

AVAILABILITY:    CHECK AVAILABILITY

CALL FOR AN IMMEDIATE QUOTE

Enquire Now
Product Summary
Download Specs

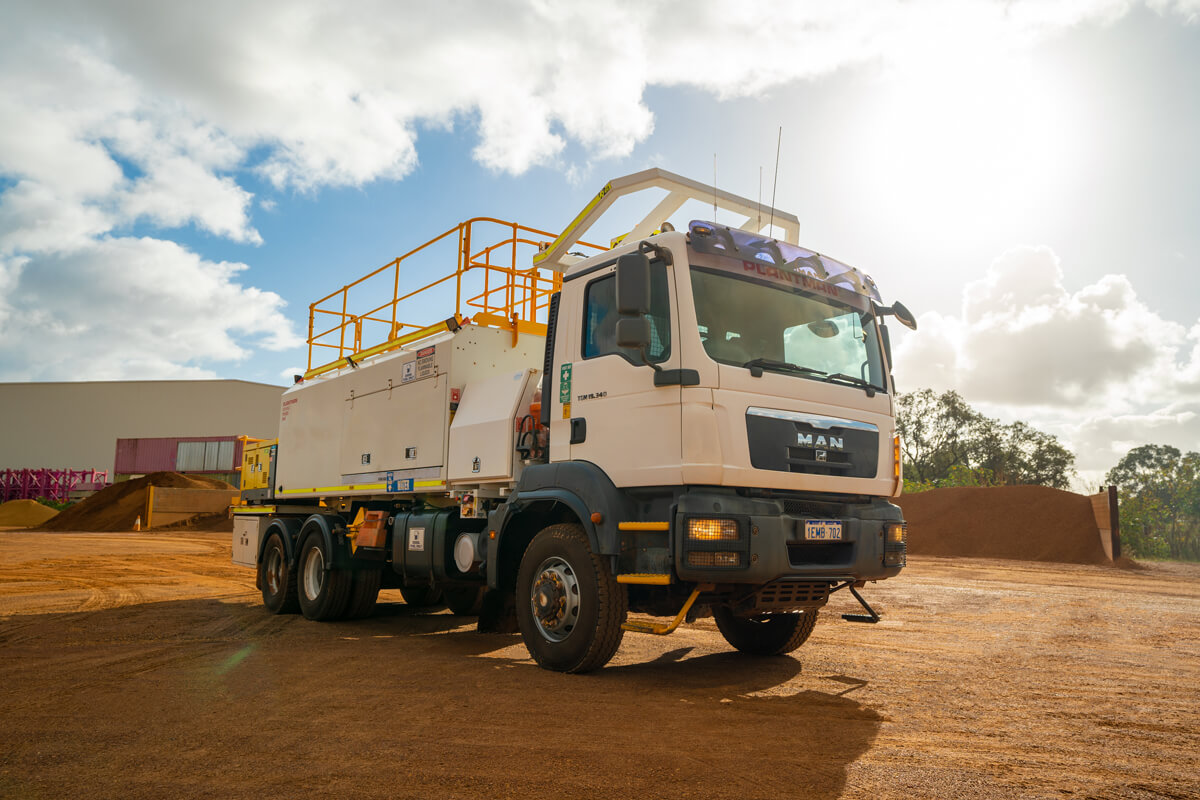

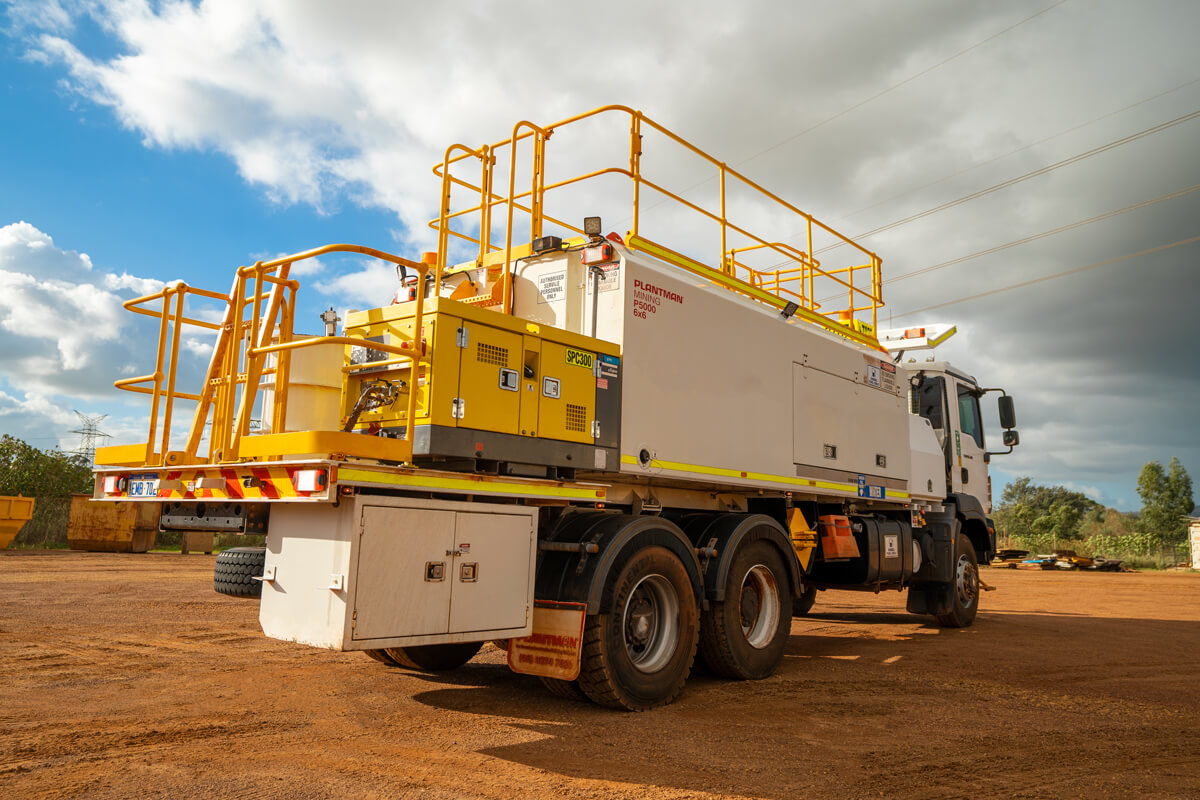

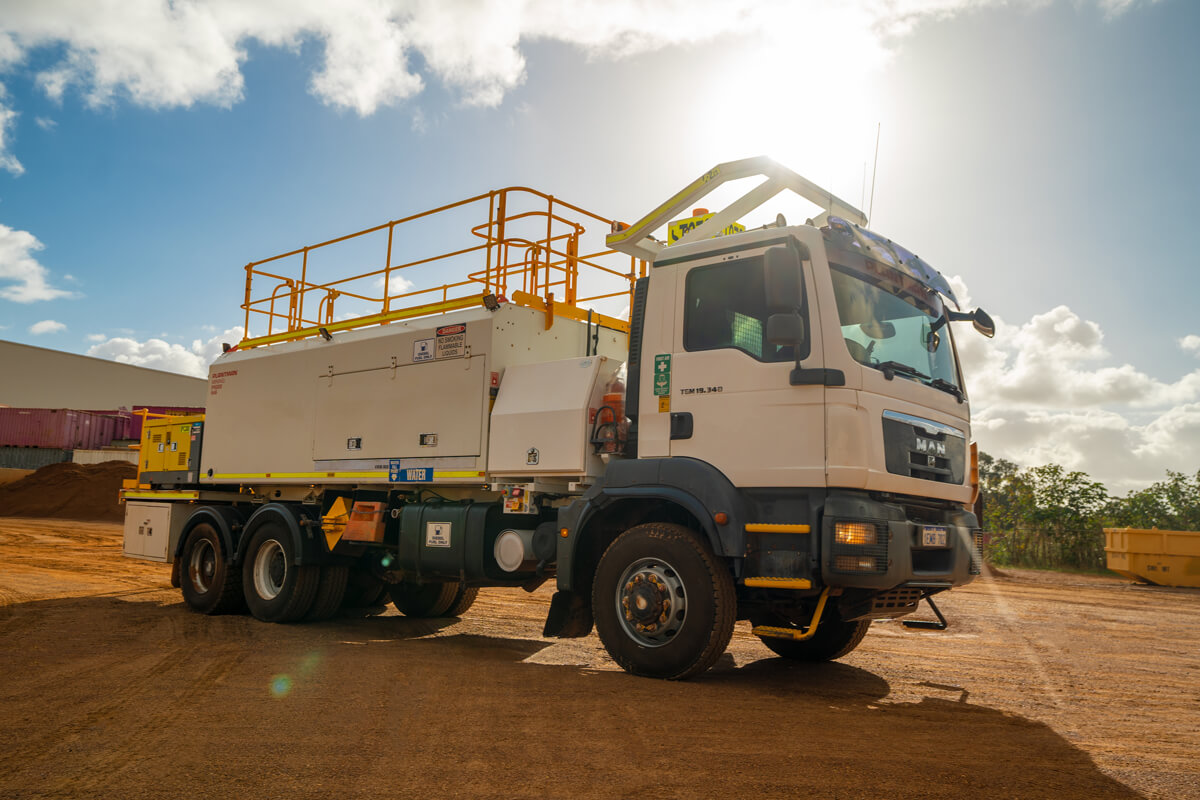

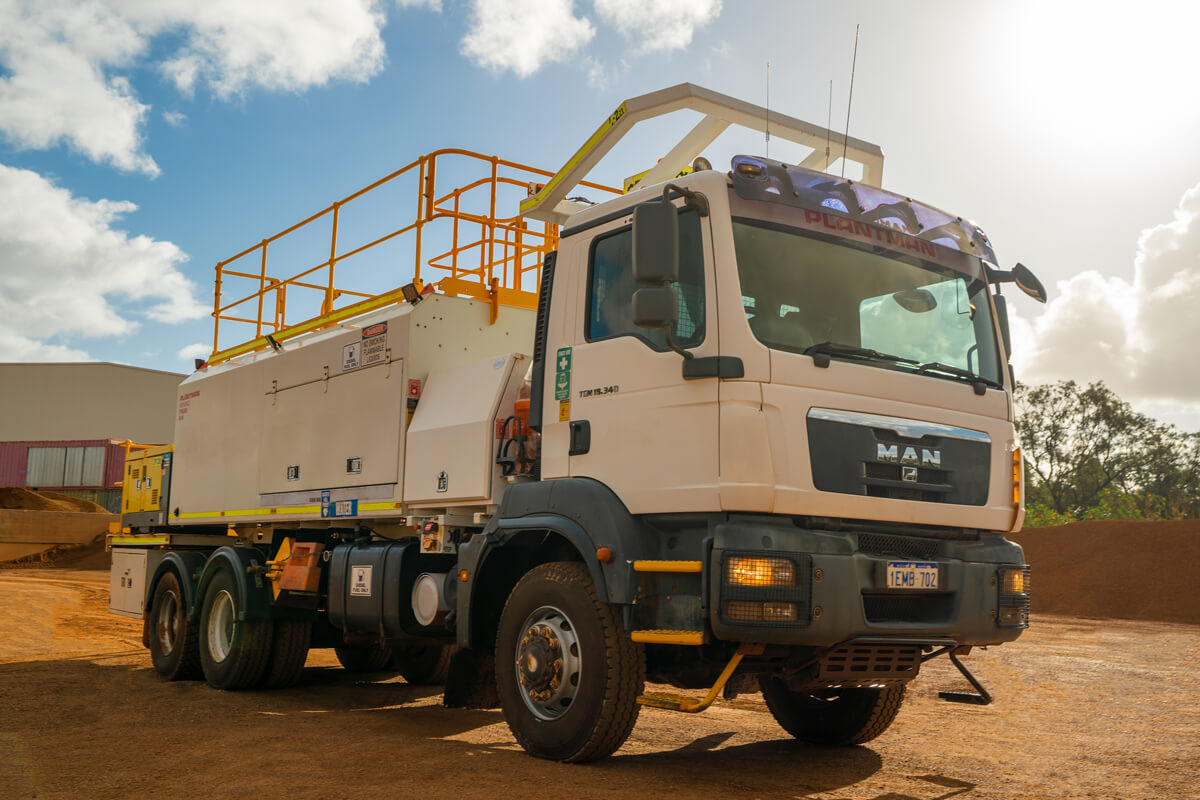

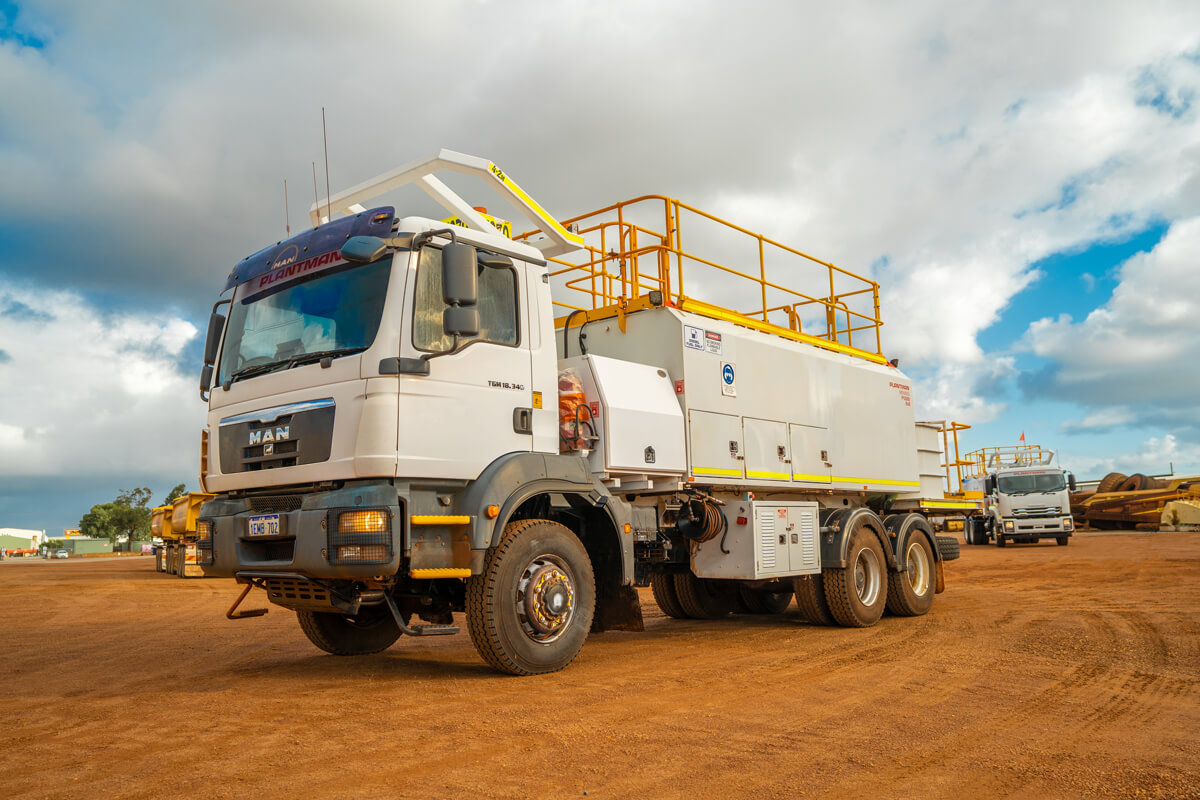

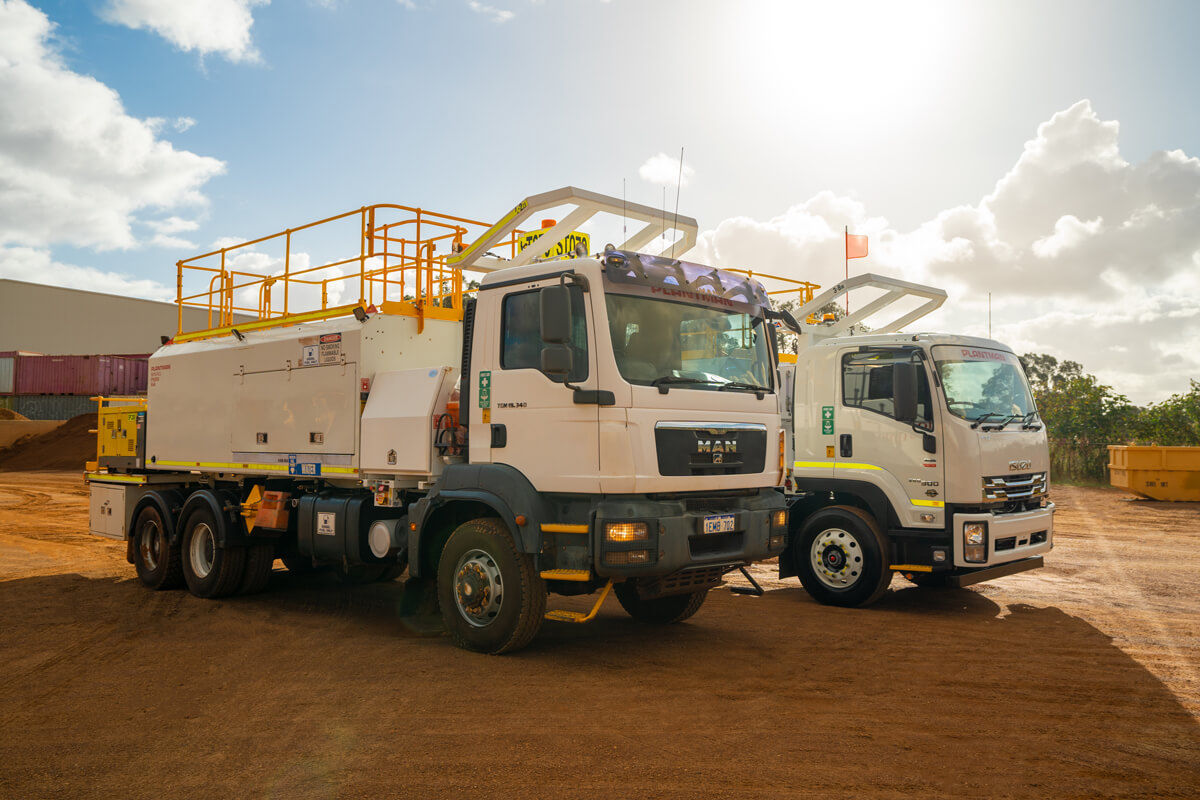

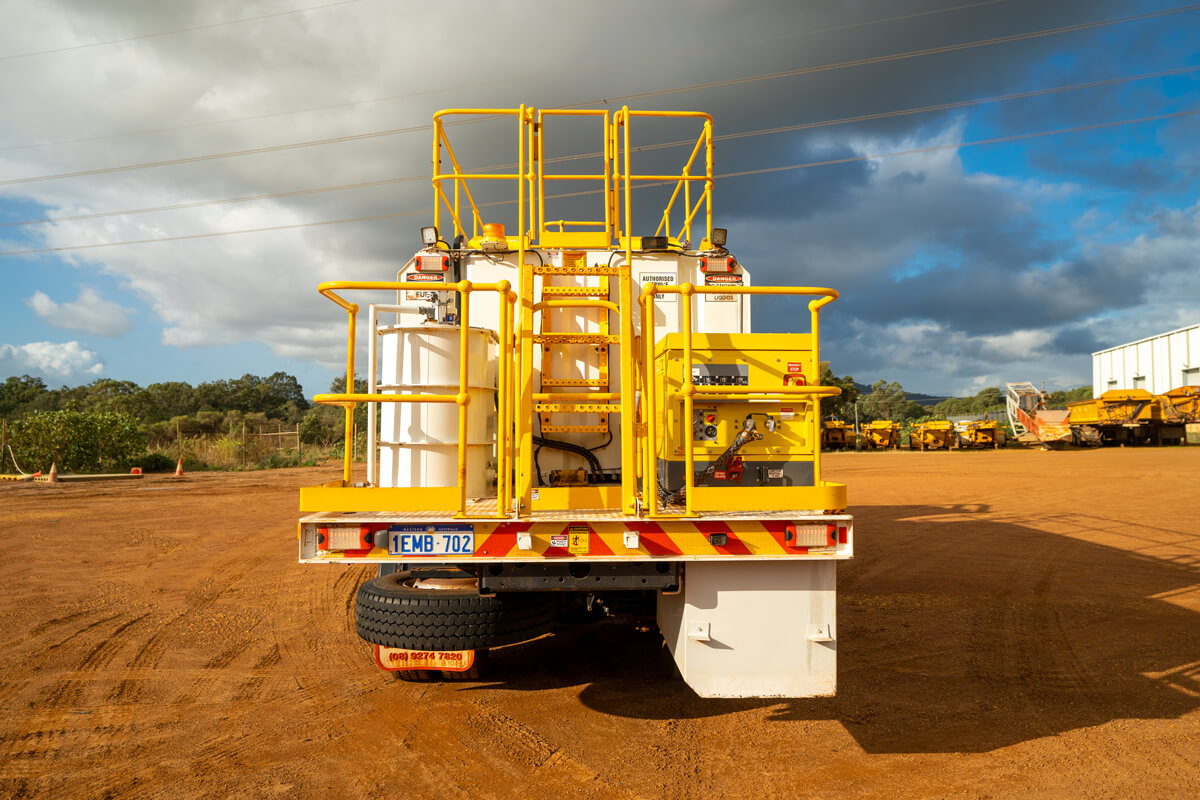

Plantman P5000 – MAN 18.340 6×6 Service Truck

PLANTMAN P5000 SERVICE MODULE

Heavy duty chassis mounted – Steel compartment service module:

Tank #Tank TypeTank Capacity
No 1 Dieselreel, hose, Wiggins hand piece5,000 litre
Dieselreel, hose, Light Vehicle hand piece
No 2 Oilreel, hose, hand piece, fast and top fill750 litre
No 3 Oilreel, hose, hand piece, fast and top fill750 litre
No 4 Oilreel, hose, hand piece, fast and top fill750 litre
No 5 Oilreel, hose, hand piece, fast and top fill750 litre
No 6 Waterreel, hose, hand piece, fast and top fill500 litre
No 7 Wastereel, hose, hand piece, fast and gravity drain 500 litre
No 8 Coolant tank reel, hose, hand piece, fast and top fill 500 litre
Bulk grease tank2 pumps, reels, hoses, hand piece500 kg
  • High pressure grease system
  • Safety signage
  • All pumps are fully enclosed inside RHS pump cabinet
  • Hose reels are mounted RHS front
  • All systems are air operated
  • Dual element amber rotating beacon and 6 service lights
  • Polymer lined water and coolant tanks
  • Polymer lined waste oil tank
  • Top safety rails and steps
  • Enclosed steel pipe reticulation lines
  • Lockable start isolators to truck and air compressor
  • 2″ double diaphragm diesel delivery pump

Specifications:

  • 340 hp Turbo charged & inter cooled 4 cycle diesel engine with exhaust retarder
  • EURO IV compliant
  • Alloy SRS approved bulbar
  • Pre cleaner stack and bowl
  • Automated manual synchromesh transmission
  • Air conditioned high roof cabin, ROPS canopy AS 2294 & ISO 3471, Serial #3663
  • ISRI suspension seat, passenger seat with retractable seat belts, fabric seats with canvas seat covers
  • AM/FM radio
  • East West mirrors & spot mirrors
  • Spring front & rear suspension
  • Non asbestos brake linings
  • Air dryer
  • Spring applied emergency & parking brake
  • Headlights on with ignition
  • Continental radial flotation tyres, wheel chocks, spare wheel, jack & wheel brace
  • Standard tint laminated windscreen, tropical tinted rear and side windows
  • Safety signage
  • High visibility striping 75mm
  • Two way radio power supply
  • 2 x 9kg fire extinguishers
  • Auxiliary lighting
  • Reverse alarm
  • Roof mounted amber beacon
  • Whip aerial
  • Lockable isolator
  • Start Isolator
  • Jump start receptacle
  • Passed road worthy for Western Australia

AIRMAN PDS75S COMPRESSOR

Specifications:

  • 75CFM diesel driven air compressor
  • Automatic shutdown and warning system
  • Key start lock
  • Donaldson air cleaner system
  • Receiver dryer
  • Automatic lubricator
Read More
Product Specifications
Axles 6x6
Capacity 5000L
Make MAN
Type Service Truck
