CT088 – MAN TGM 15.290 CREW CAB 4×4 SERVICE TRUCK P3500

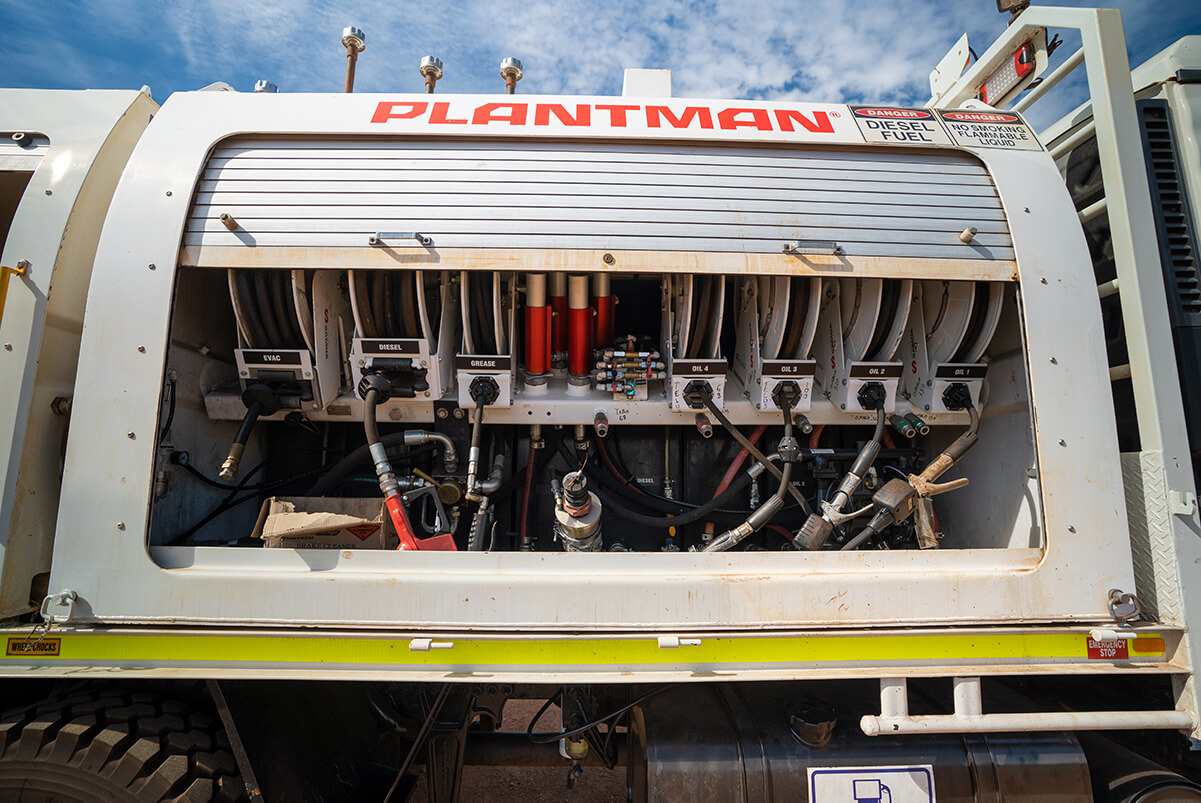

PLANTMAN P3500 SERVICE MODULE

Heavy duty chassis mounted – Steel 4 compartment service module:

Tank # Tank Type Tank Capacity
No 1 Oil reel, hose, hand piece, fast and top fill 4000 Litre
No 2  Oil reel, hose, hand piece, fast and top fill 500 Litre
No 3  Oil reel, hose, hand piece, fast and top fill 500 Litre
No 4  Oil reel, hose, hand piece, fast and top fill 500 Litre

Bulk grease tank 2 pumps, reels, hoses, hand piece 200 kgs

Specifications:

  • Road Licence No. 1DQY 657
  • TGM 15.290 4 X 4 Crew Cab Truck
  • ZF Automatic Transmission
  • Internal ROPS

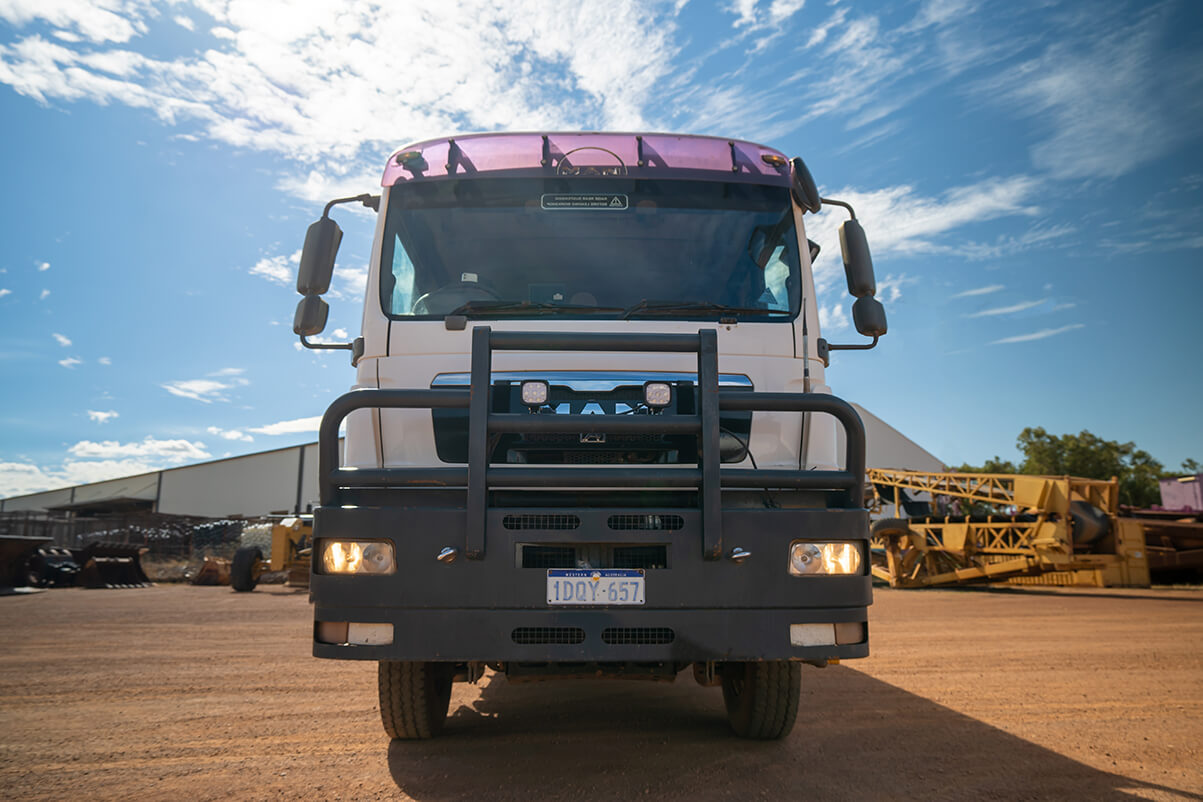

  • Steel Bull Bar
  • Spot Lights290 hp Turbo charged and inter cooled 4 cycle diesel engine with exhaust retarder
  • Crew Cabin with 4 rear seats and 2 front seats
  • Air-conditioned high roof cabin to front with rear airconditioned cabin
  • Canvas Seat Covers
  • AM/FM CD radio
  • East West mirrors and spot mirrors
  • Spring front and rear spring suspension
  • Wheel chocks, wheel nut indicators, jack and wheel brace
  • 1 x Spare Tyre / Rim
  • Standard tint laminated windscreen, tropical tinted rear and side windows
  • Safety signage
  • UHF Radio2 x 9kg fire extinguishers
  • First aid kit with eyewash located in cabin
  • 20Lt Hand Wash
  • Reverse Alarm
  • Reverse Camera
  • Amber Beacon
  • Whip Aerial
  • Emergency Stops x 2 outside, 1 x in cabin
  • Headlights on with ignition
  • Battery & Starter Isolators
  • Jump start receptacle
  • Auxiliary lighting to tray 5 Meter All Steel Tray
  • Safety rails and fold down tray sides
  • Rear access ladder to tray with 3 points of contact
  • 2 x Toolbox storage
  • 2 x steel GET boxes
  • Trailer ball
  • Tow Hitch and Ring Feeder
  • Meets Western Australian mining regulations

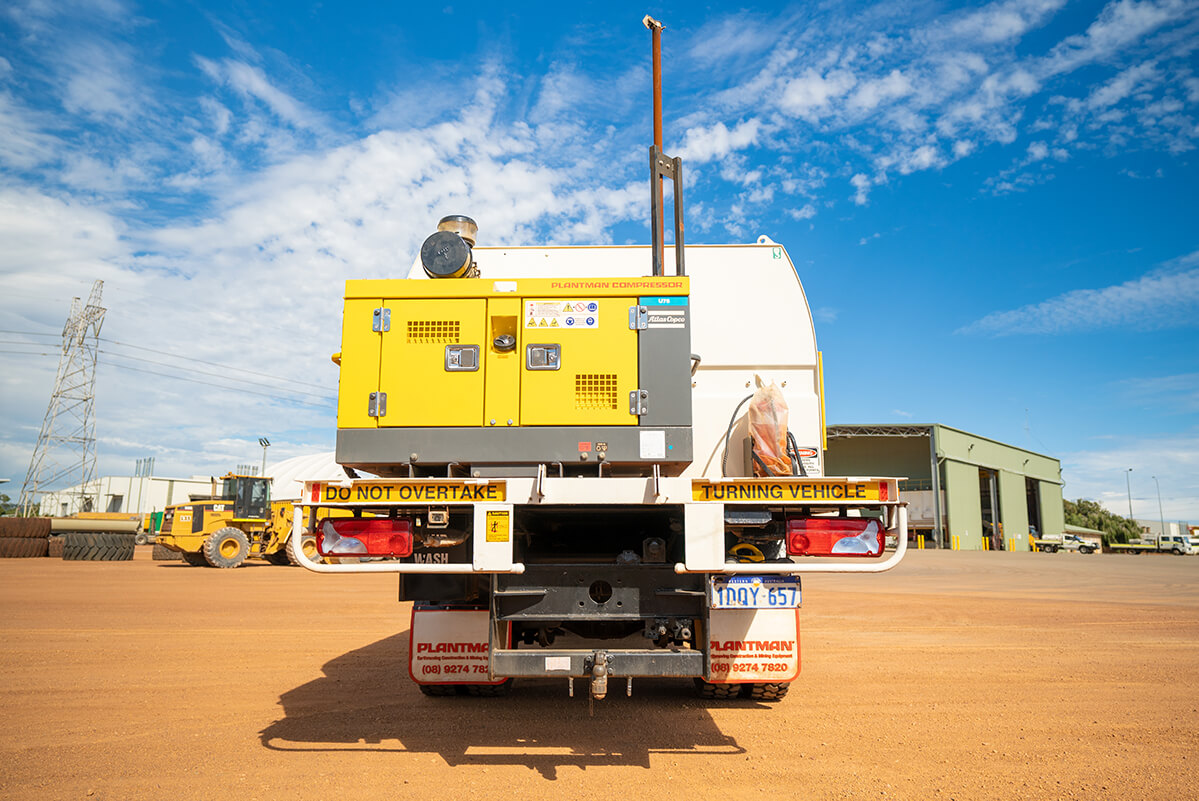

Atlas Copco air compressor U75 Specifications:

  • Extended exhaust stack and bracket
  • Air dryer and air lubricator
  • External air cleaner and filter
  • Safety decal kit
  • Lockable battery isolator
  • Emergency
Read More
Product Specifications
Axles 4x4
Capacity 4000L
Make MAN
Type Service Truck
