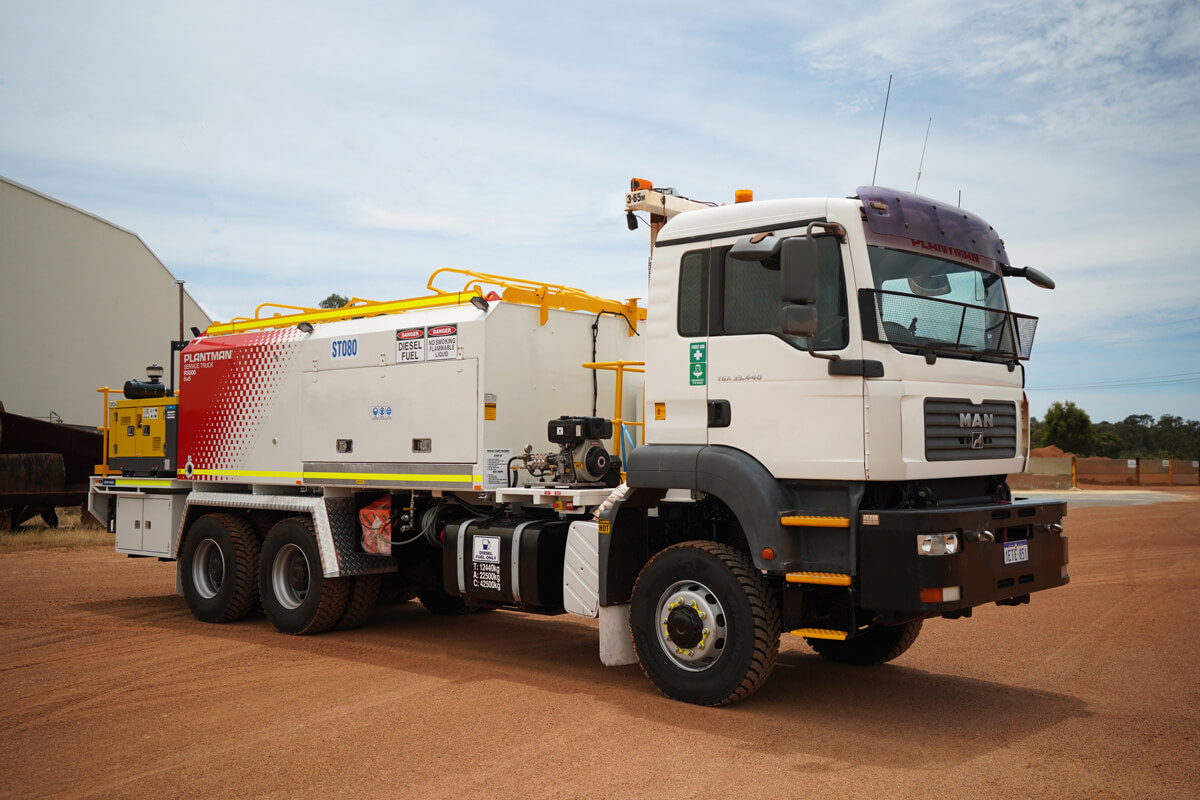

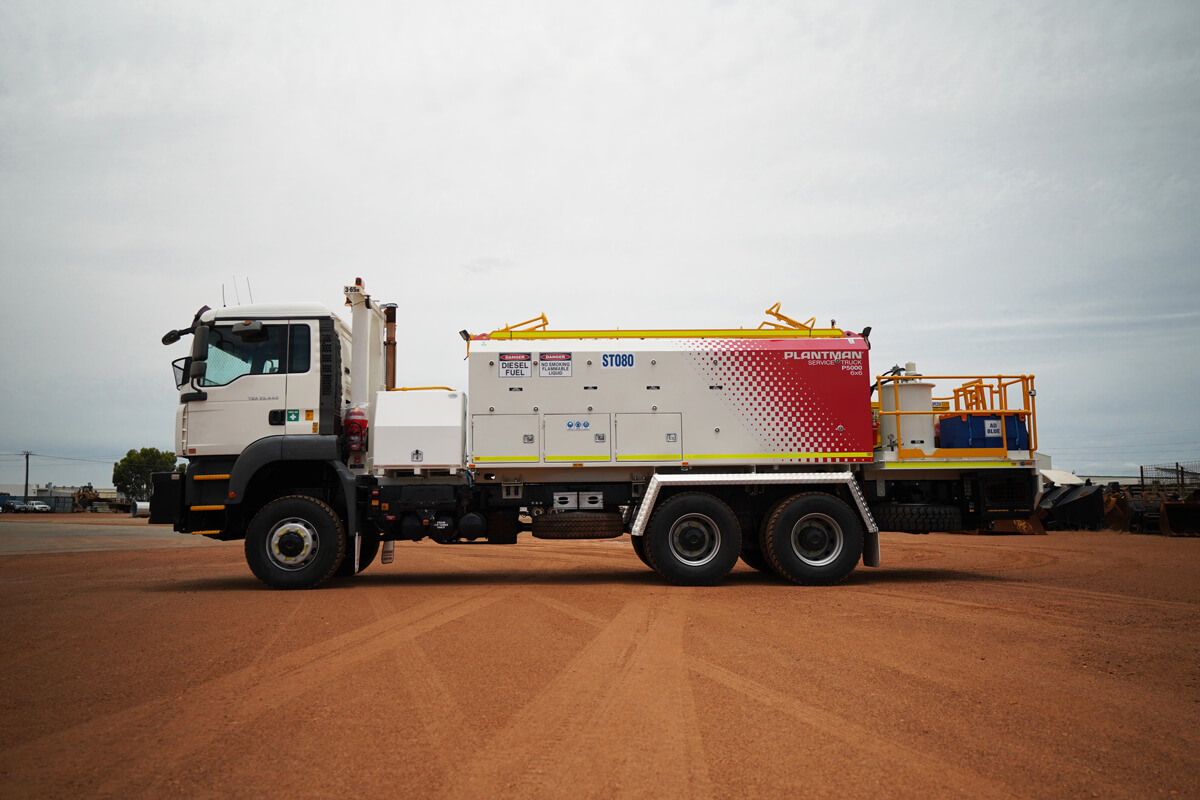

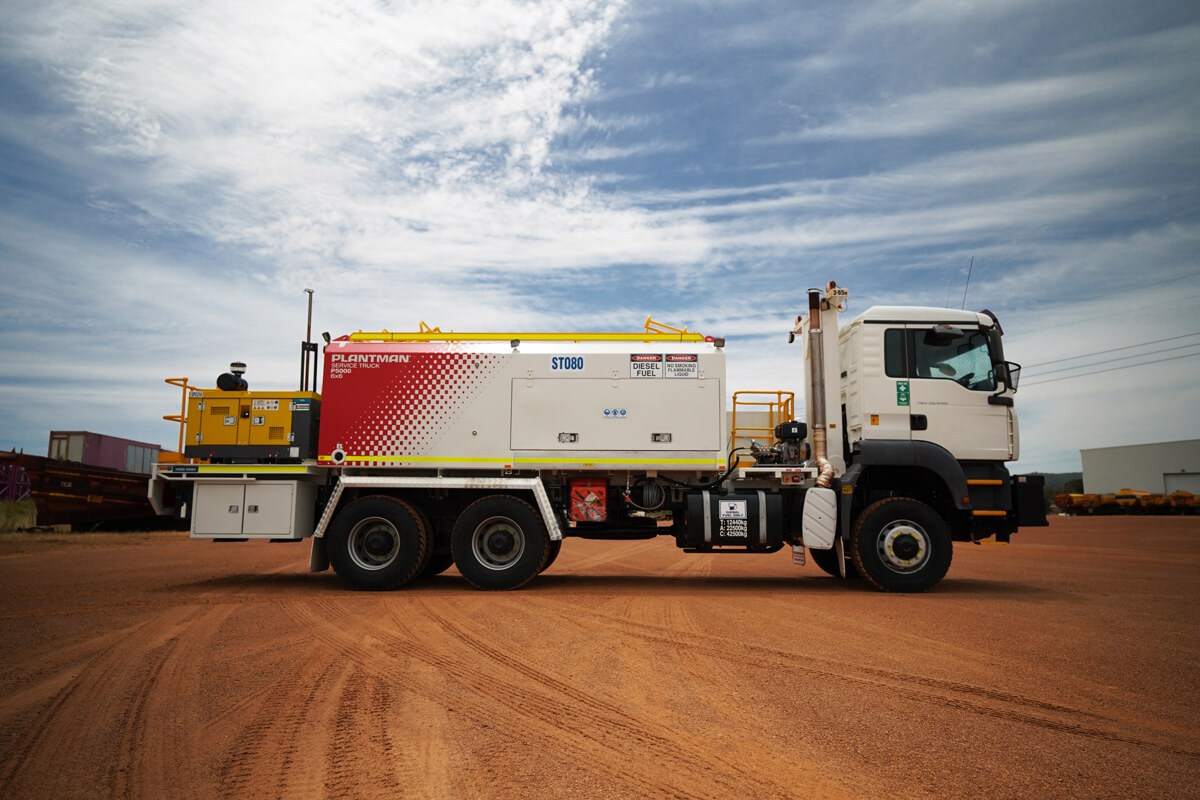

MAN TGS 33.440 6×6 Service Truck P5000 | ST080

AVAILABILITY:    IMMEDIATELY AVAILABLE FOR RENTAL

CALL FOR AN IMMEDIATE QUOTE

Enquire Now
Product Summary
Download Specs

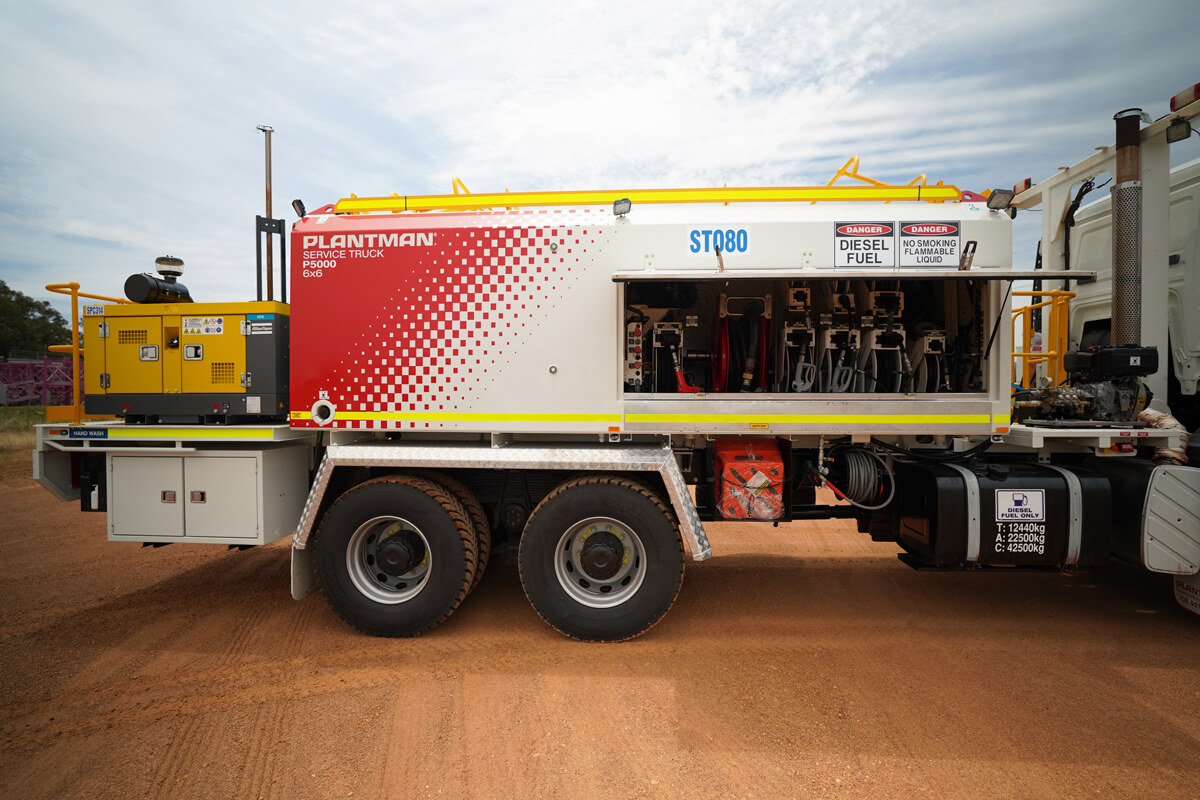

PLANTMAN P5000 SERVICE MODULE

Specifications:

Tank #Tank TypeTank Capacity
No 1Diesel reel, hose, Wiggins fast fill hand piece5,000 litres
Diesel reel, hose, Light Vehicle hand piece
No 2Oil reel, hose, hand piece, fast and top fill750 litres
No 3Oil reel, hose, hand piece, fast and top fill750 litres
No 4Oil reel, hose, hand piece, fast and top fill750 litres
No 5Oil reel, hose, hand piece, fast and top fill750 litres
No 6Water reel, hose, hand piece, fast and top fill500 litres
No 7Waste Oil reel, hose, hand piece, fast and top fill500 litres
No 8Coolant Tank reel, hose, hand piece, fast and top fill500 litres
  • Bulk grease Tank 2 pumps, reels, hoses, hand piece 400 kg
  • Dual element amber rotating beacon and 6 service lights

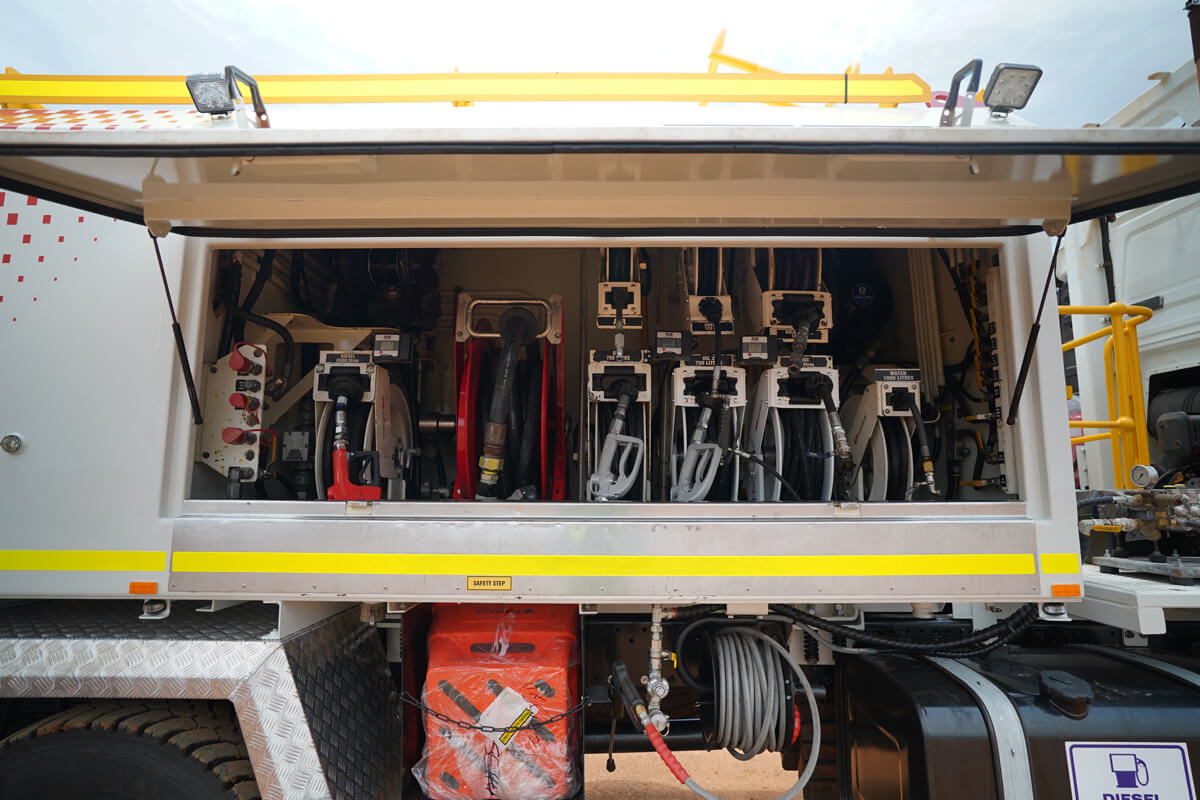

  • Hose reels are mounted RHS front
  • High pressure grease system
  • Safety signage
  • Polymer lined water, coolant & waste oil tanks

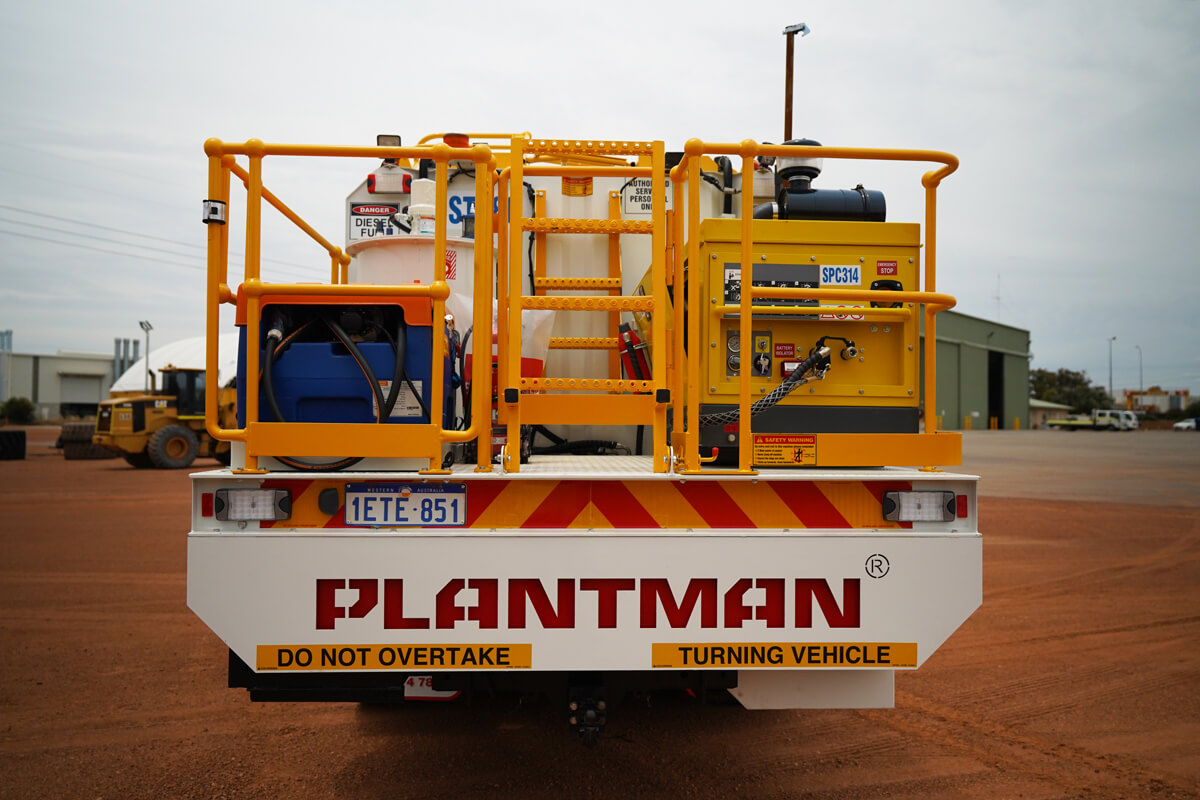

  • Top safety rails and steps
  • Enclosed steel pipe reticulation lines

Plantman P5000 MAN TGS 33.440 6×6 Service Truck Specifications:

Specifications:

  • Turbo charged and inter cooled 4 cycle diesel engine
  • Engine Exhaust Brake Retarder
  • ADR80/00 compliant
  • ROPS canopy
  • Pre cleaner
  • Allison automatic transmission
  • Engine Power take off
  • Air-conditioned cabin
  • Suspension seat
  • AM/FM radio
  • Canvas seat covers
  • East West mirrors
  • Spring applied emergency and parking brake
  • 1 x Chassis mounted spare wheel
  • Wheel Chocks & Bracket
  • Tropical tinted windows
  • Safety signage
  • Safety signage with DG3 stripping and fleet number
  • Two-way radio wiring and power supply 12
  • 1 x 9kg Fire extinguishers
  • High Mounted Reverse alarm
  • Red lockable battery isolator
  • Jump start receptacle with Cap
  • Yellow lockable starter isolator
  • Ground level emergency Stops
  • Cabin emergency stop
  • Passed road worthy for Western Australia

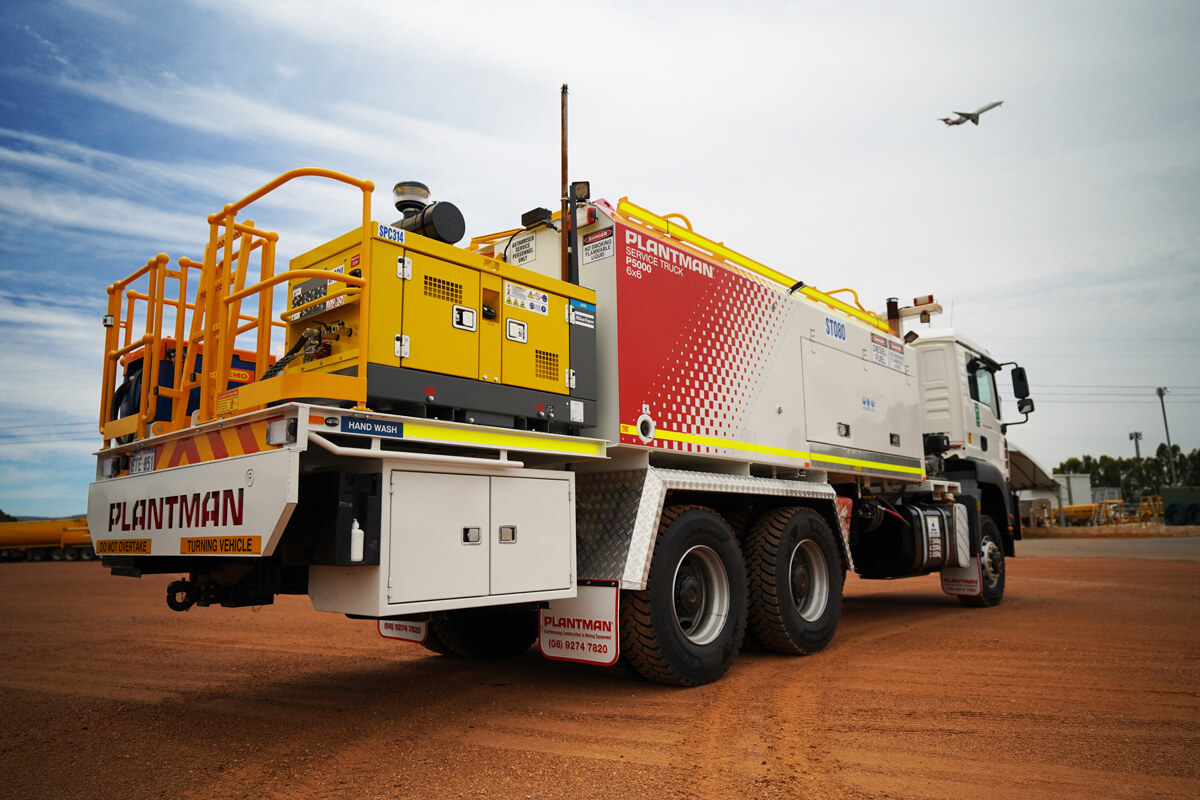

ATLAS COPCO AIR COMPRESSOR U75

Specifications:

  • 75CFM diesel driven air compressor
  • Automatic shutdown and warning system
  • Key start lock
  • Donaldson air cleaner system
  • Receiver dryer
  • Automatic lubricator
Read More
Product Specifications
Axles 6x6
Capacity 5000L
Make MAN
Type Service Truck
