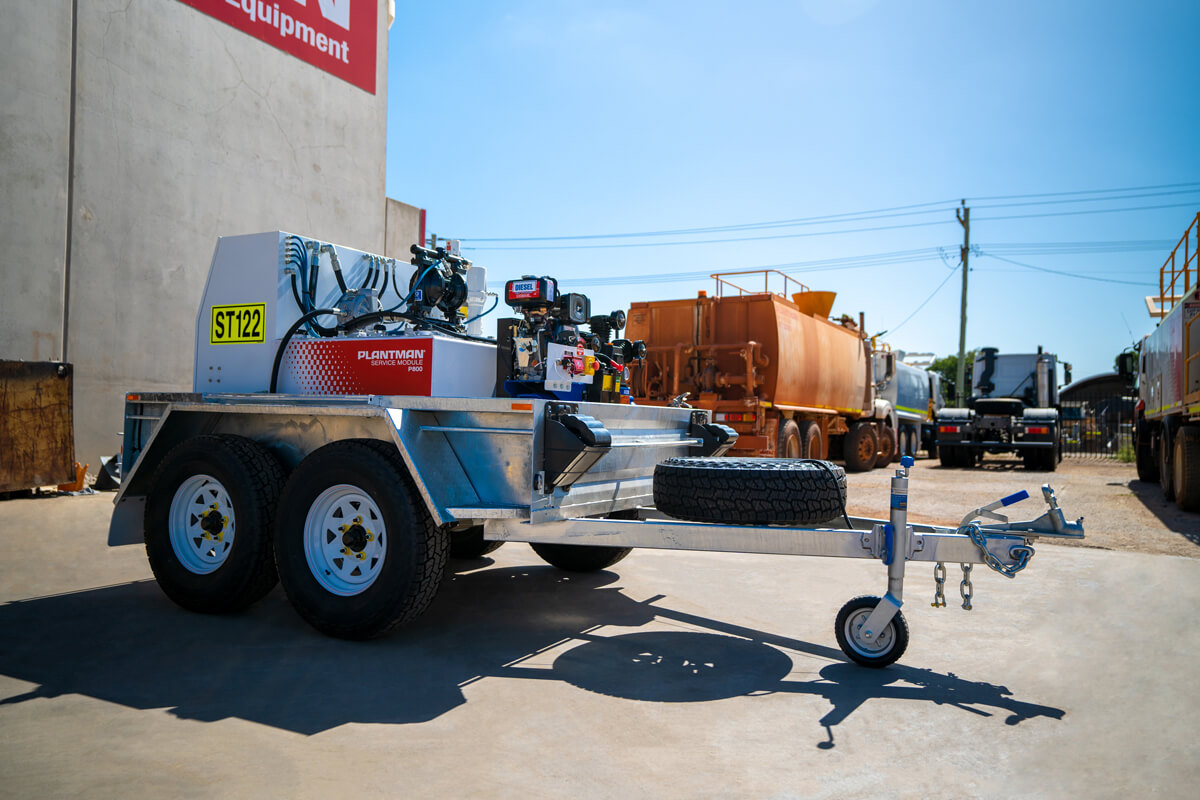

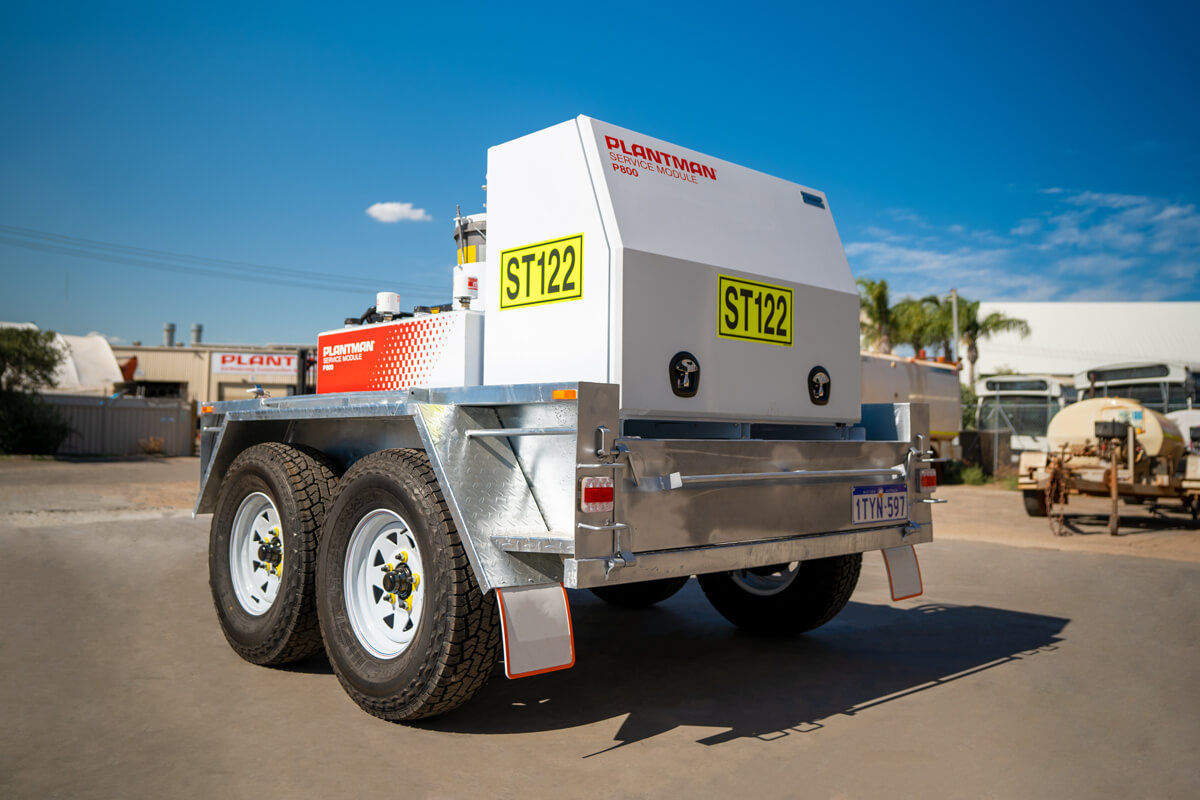

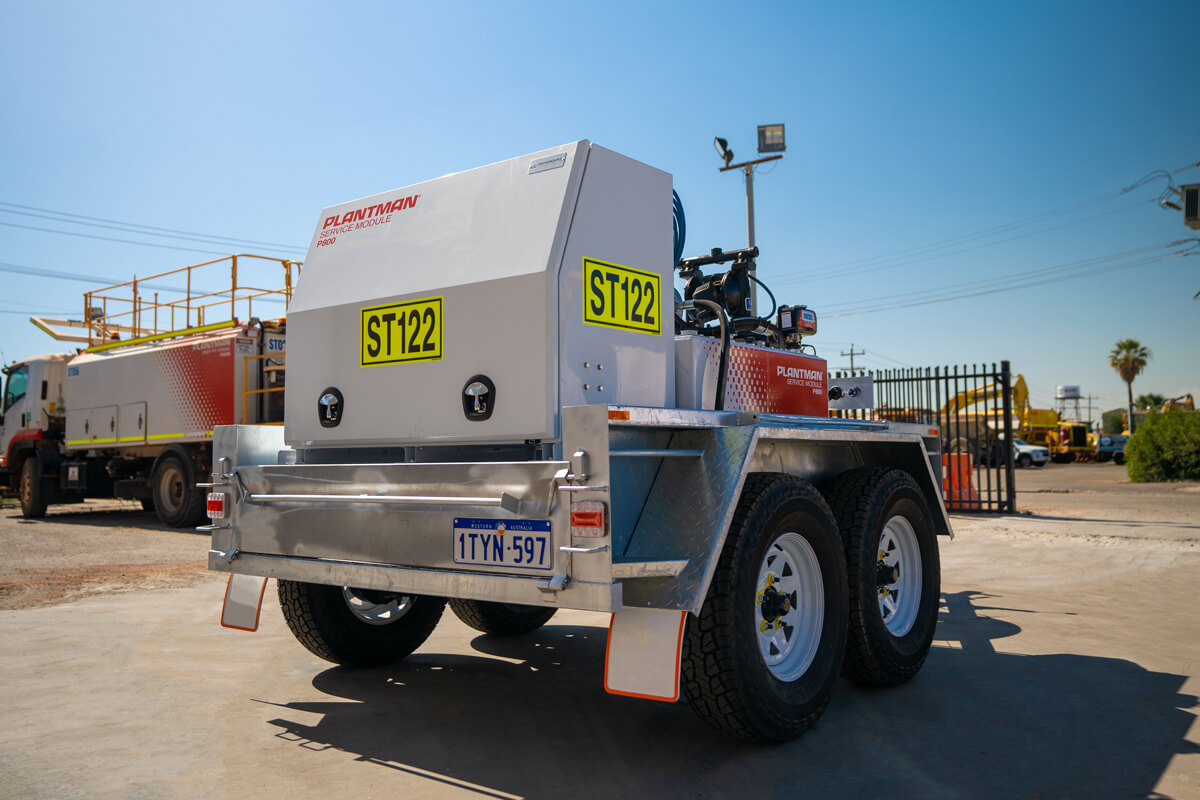

P800 Service Trailer | ST122

AVAILABILITY:    IMMEDIATELY AVAILABLE FOR RENTAL

CALL FOR AN IMMEDIATE QUOTE

Enquire Now
Product Summary
Download Specs

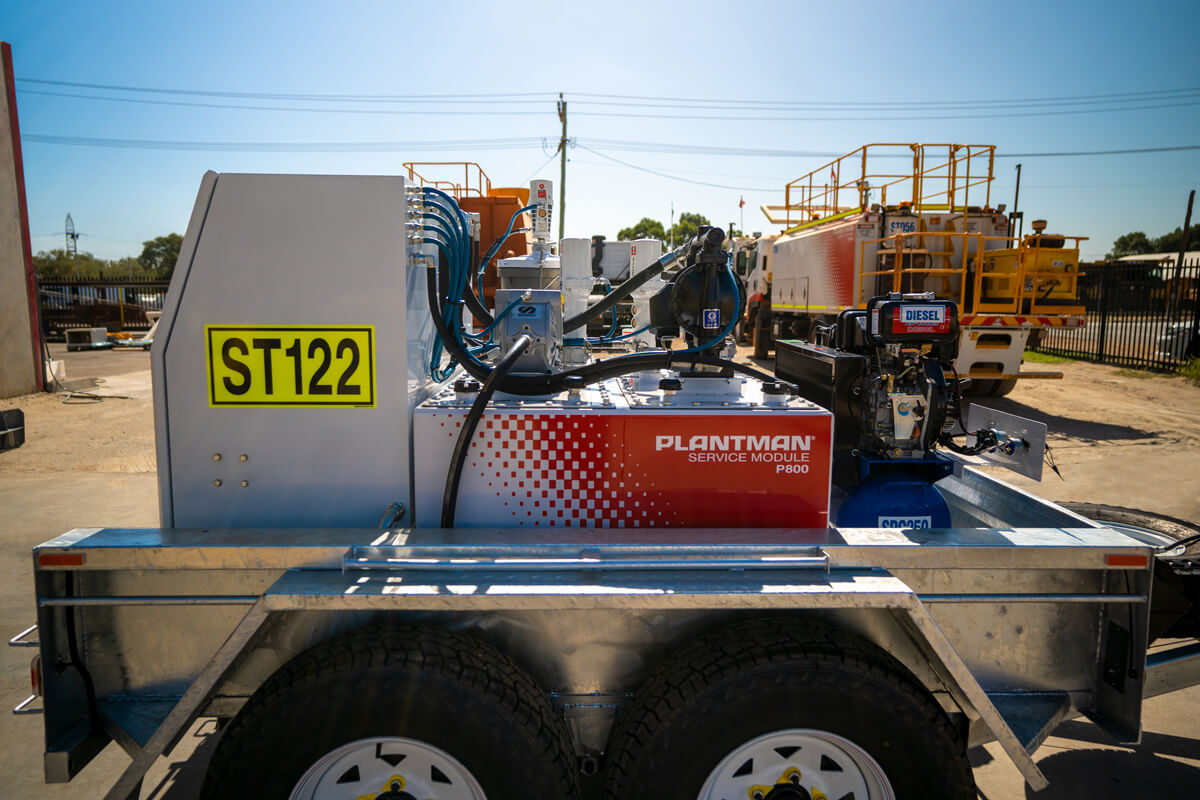

P800 Service Module Specifications:

Tank#Tank TypeTank Capacity
No 1Oil 15 m x ½” Spring Retractable Reel, Hose & Dripless Hand Piec200 litres
No 2Oil reel, hose, handpiece, fast and top fill200 litres
No 3Oil reel, hose, handpiece, fast and top fill200 litres
No 4Water reel, hose, handpiece, fast and top fill200 litres

*GVM: Gross Vehicle Mass

P800 Service Trailer Specifications:

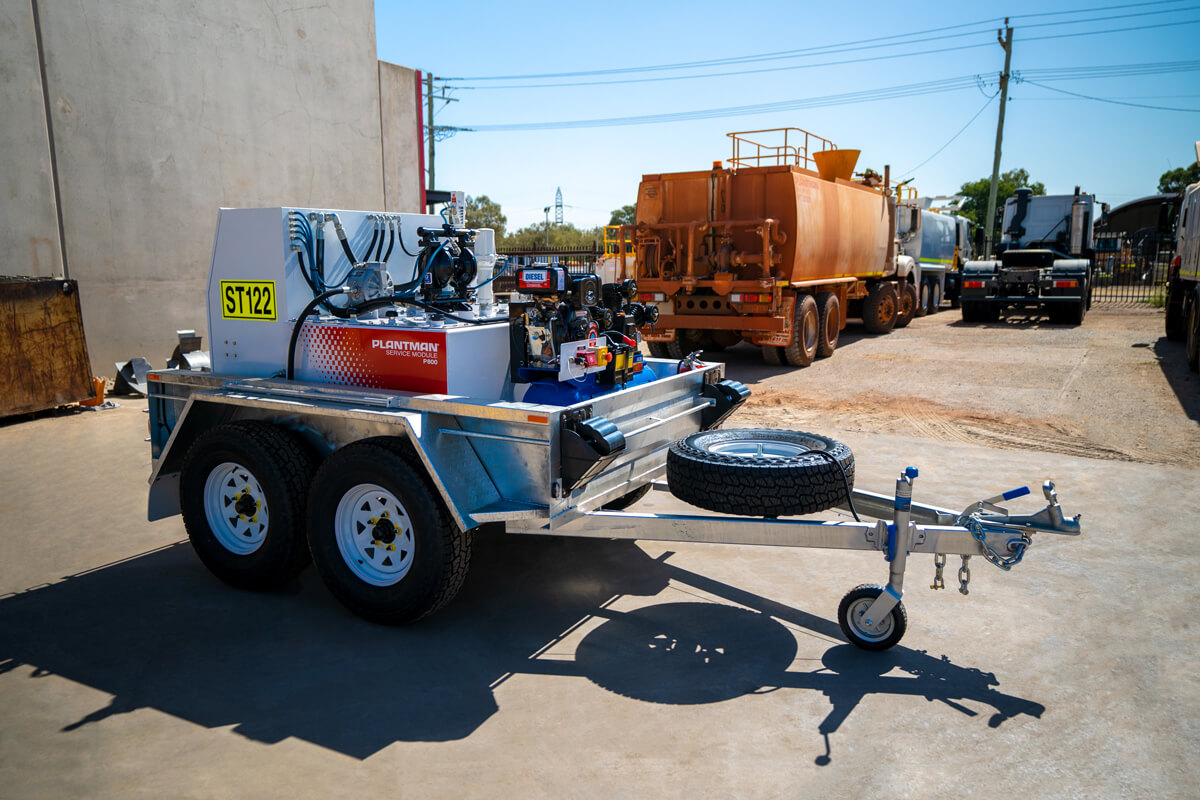

  • Dual Axle 8 x 5 Trailer
  • Diaphragm Pump for Waste Oil & Coolant
  • Stub Pump’s for New Oils
  • Tank Fill from top of tanks via camlocks, with tank level gauges for new fluid tanks
  • All pumps pneumatically operated via Air manifold

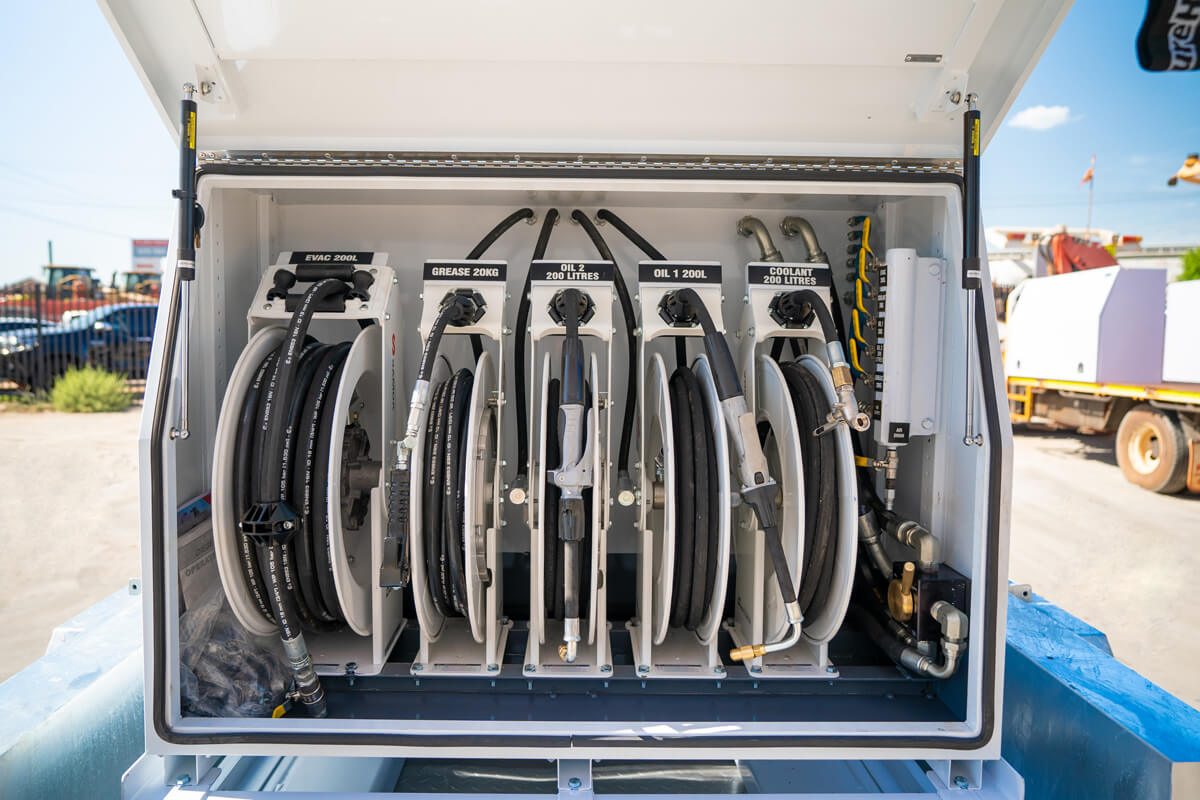

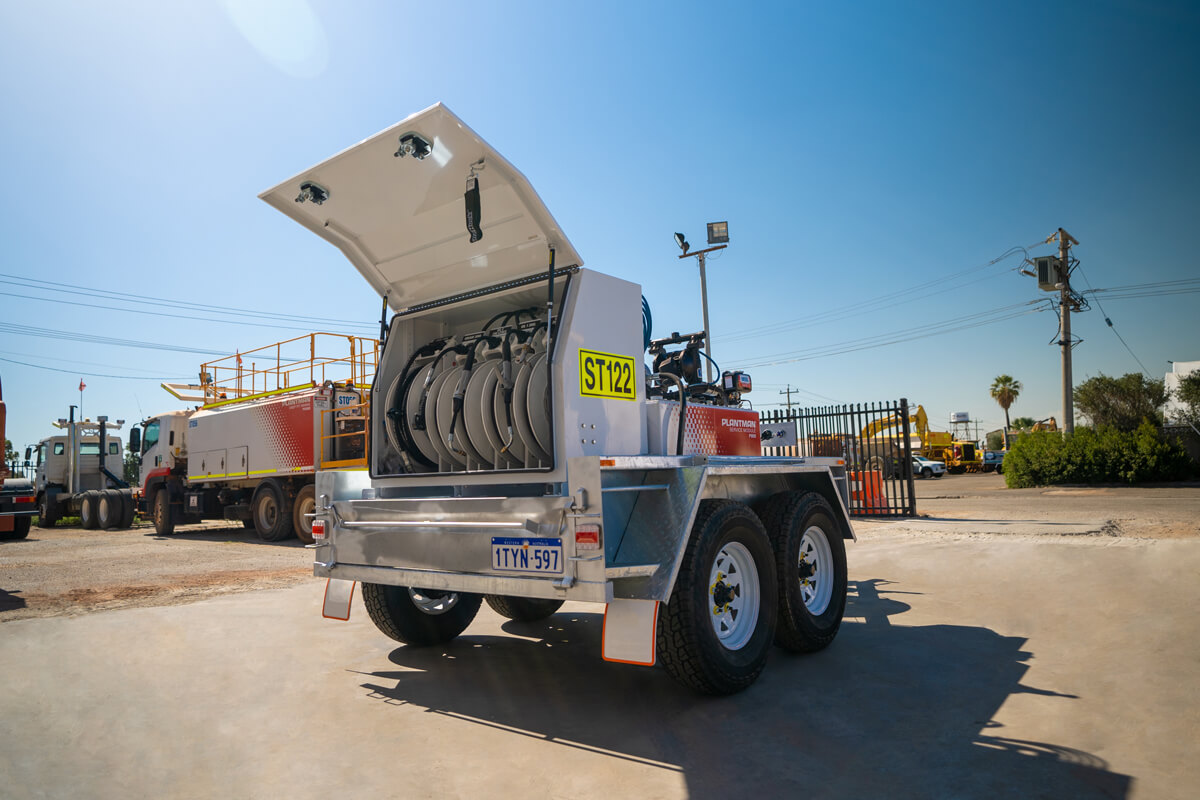

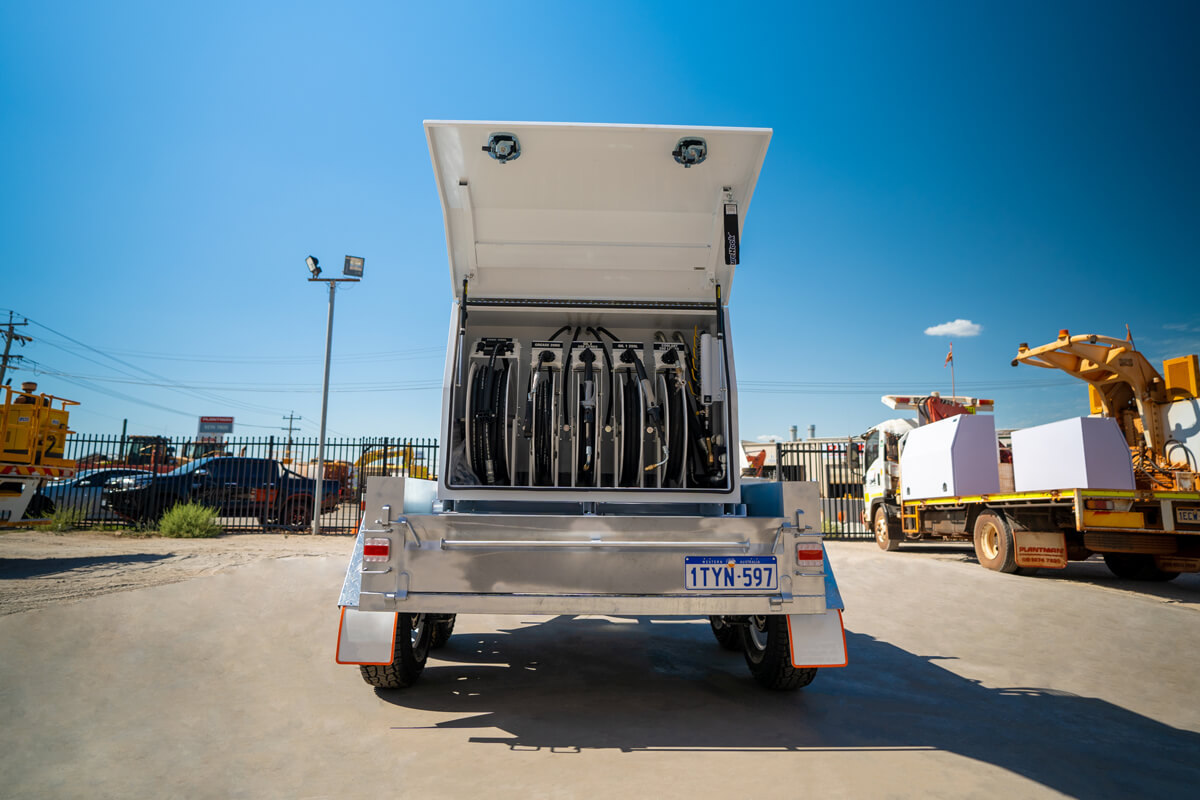

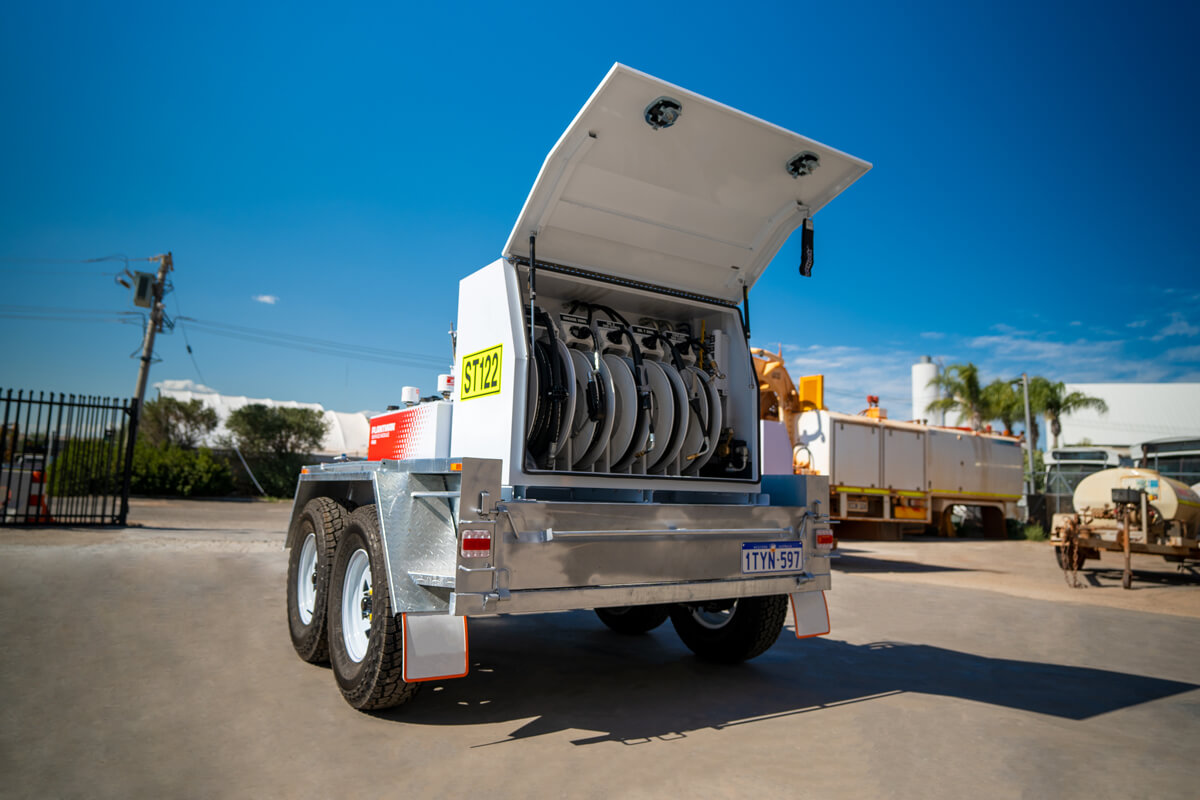

  • Pumps & Reels located in Gullwing Door Type Storage Box`
  • Rear LED Lights – Trailer Plug – Number Plate Light
  • Wheel Chocks – Wheel Nut Indicators – Spare Tyre
  • Painted in two pac white
  • 2.0 kg Fire Extinguisher (mounted)

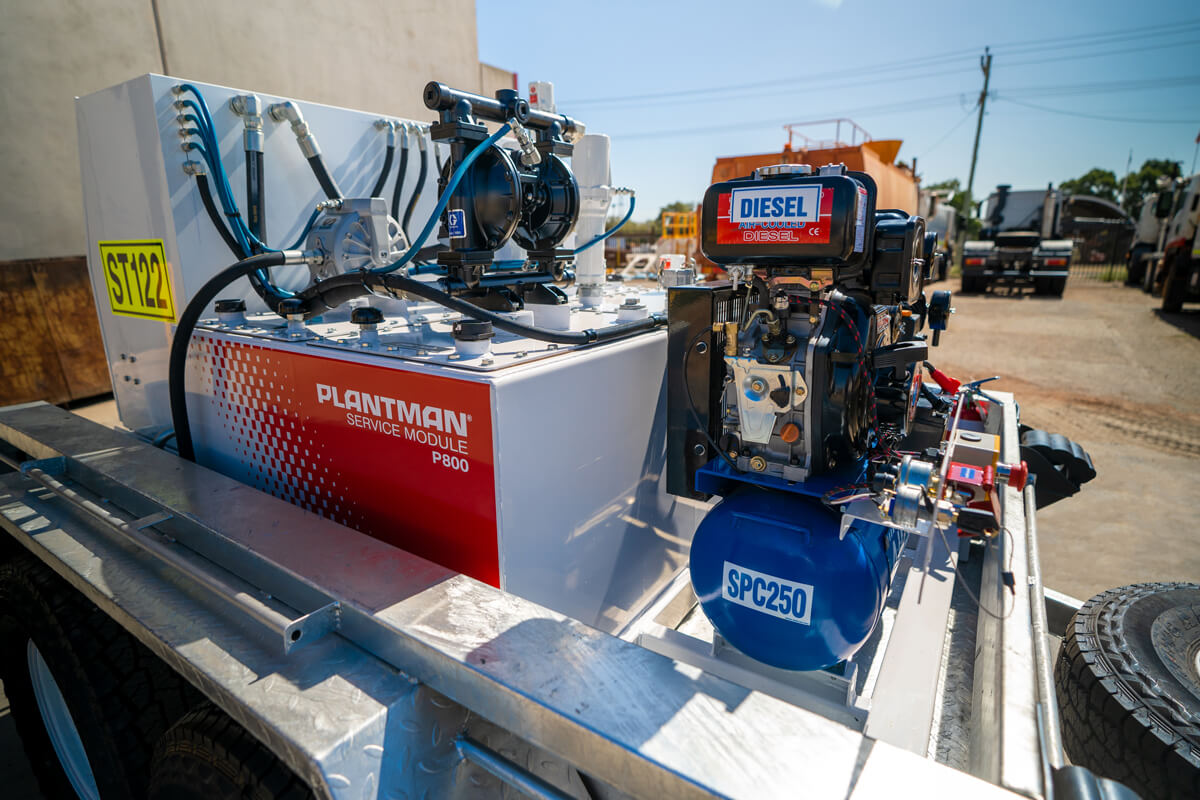

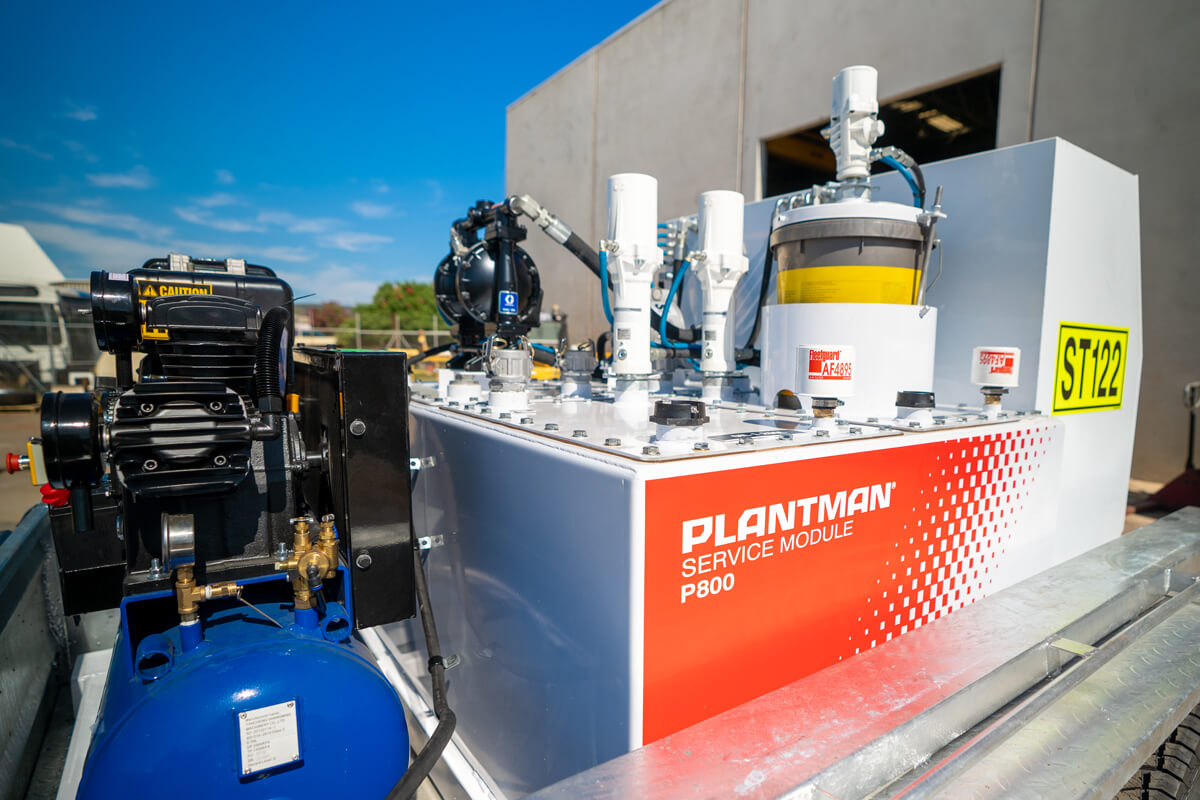

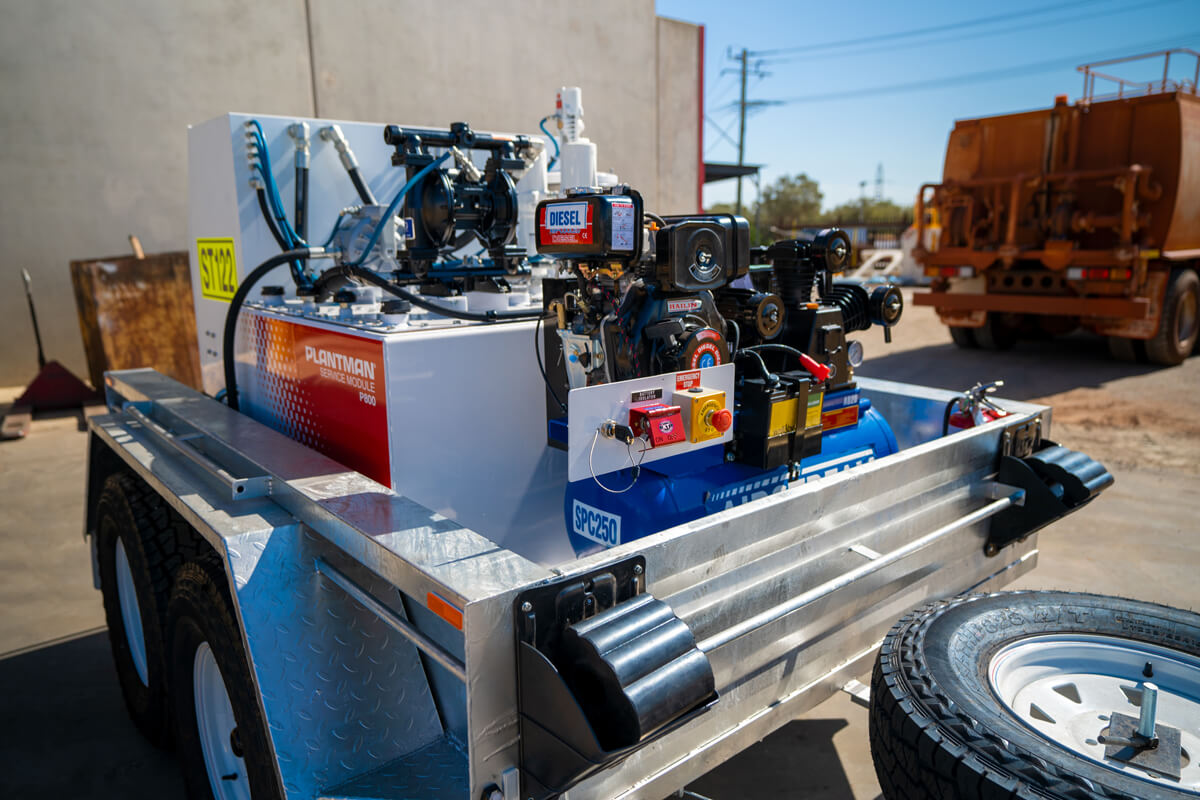

  • Diesel Piston Compressor 20cfm, electric start/stop, battery & Safety valve certification
  • Emergency Stop on Compressor
  • 20kg HP Grease Kit (replaceable drum style) with Spring Retract Reel
  • Operating and Safety Signage Decals
  • Tested and Commissioned
  • WA Road Licensed

Applications:

  • Open Cut Mining
  • Civil Construction
  • Drill Support Truck

Features:

  • Zero spillage concept
  • Robust construction
  • Hazard reduction design
  • User friendly operation
  • Low running cost
Read More
Product Specifications
Volume 800L
Type Service Trailer
Model P800
