Tandem Axle Tag Trailer | TR010

AVAILABILITY:    CHECK AVAILABILITY

CALL FOR AN IMMEDIATE QUOTE

Enquire Now
Product Summary
Download Specs

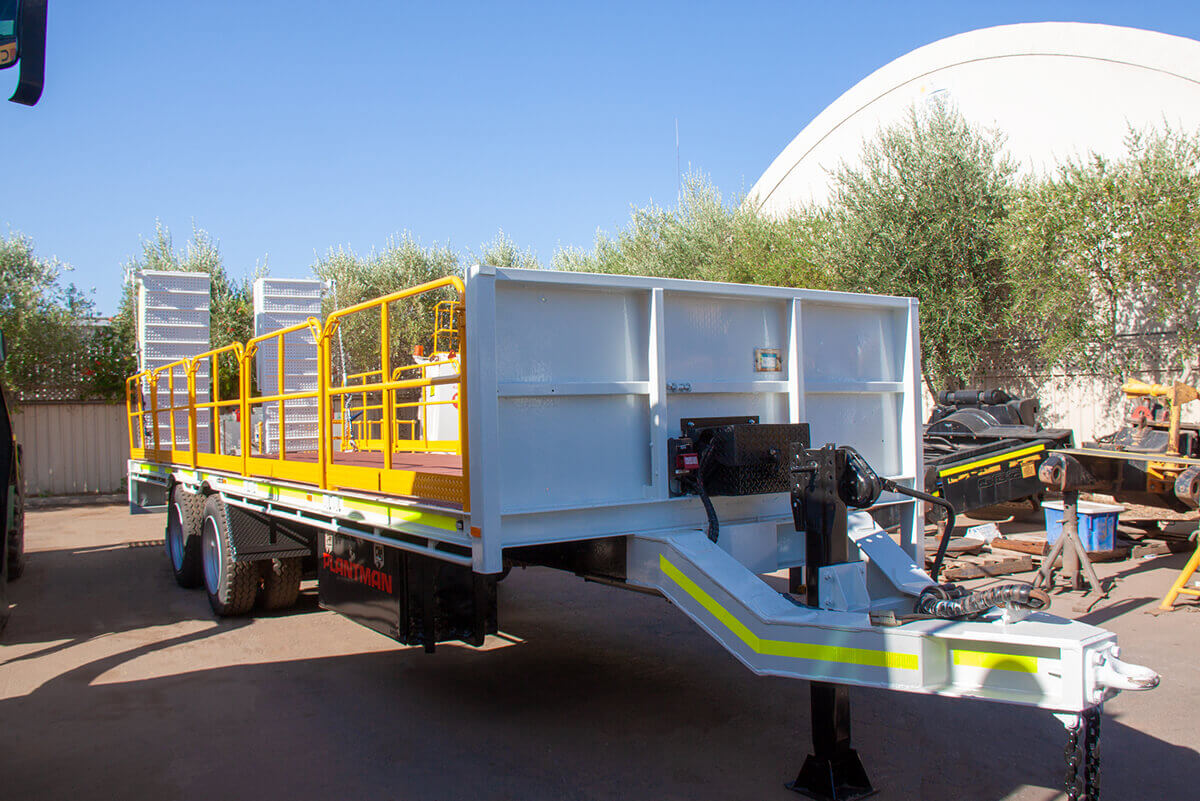

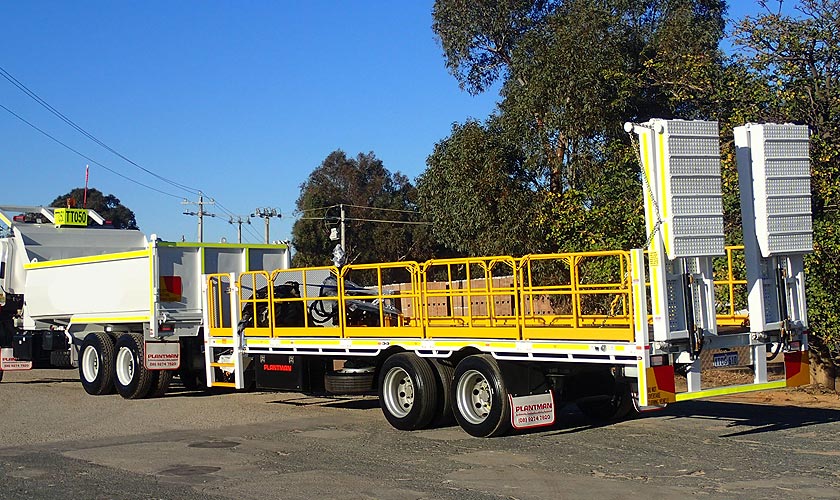

Plantman Tandem Axle Tag Trailer Specification:

  • Overall length (from centre of tow hitch to rear of hydraulic cylinders on the ramps) 10500mm x 2490mm wide
  • Flat floor length of 8500mm long x 2490 wide

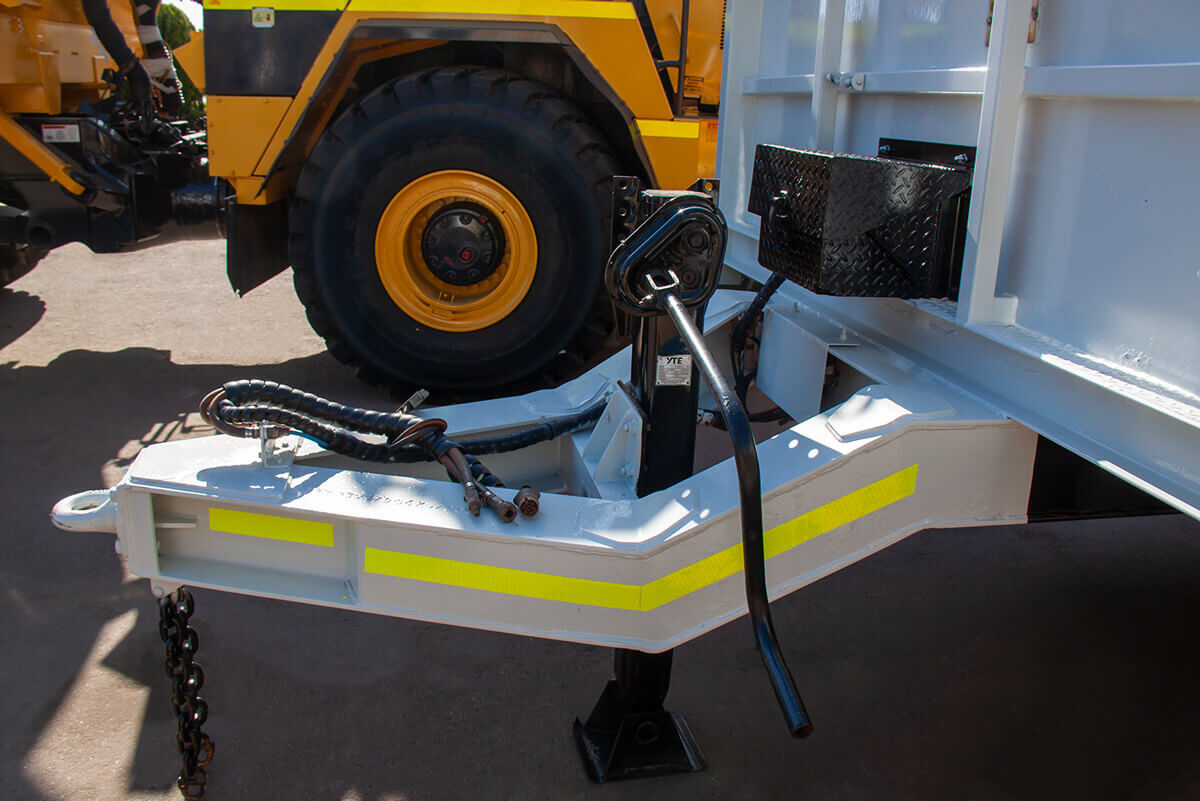

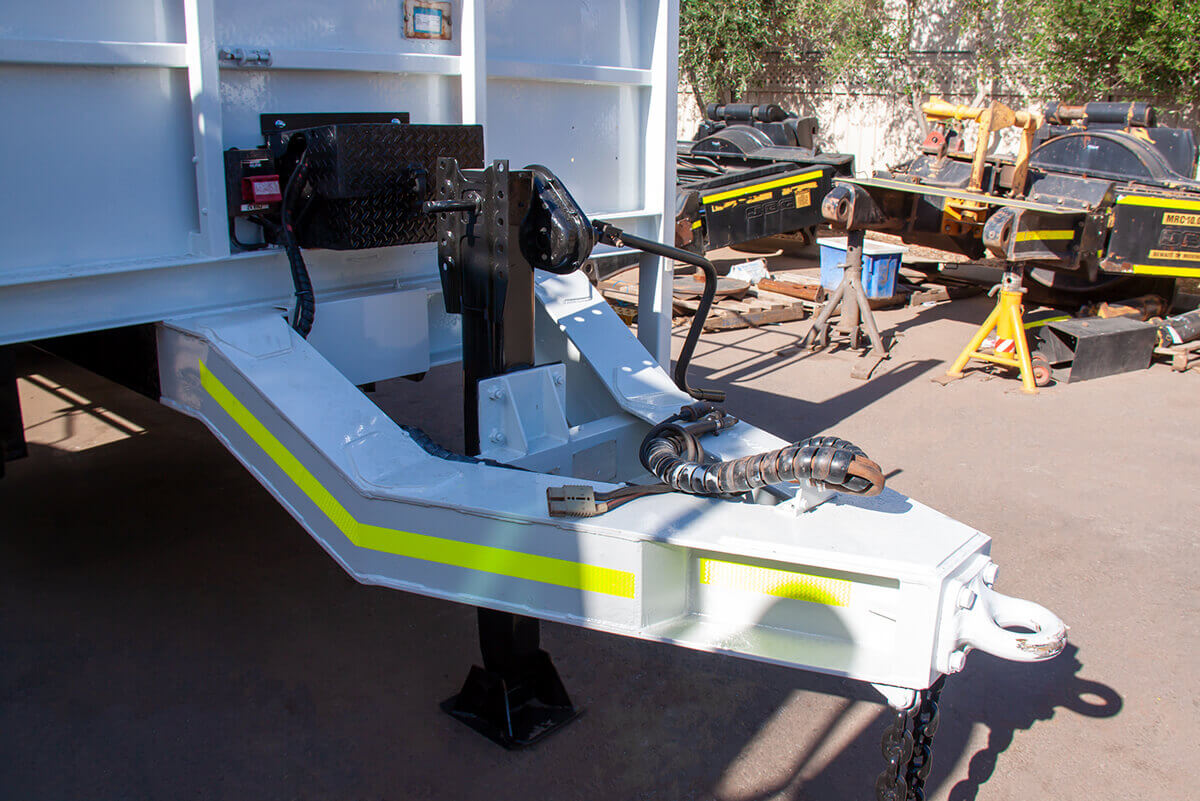

  • 1 x heavy duty drawbar length of 1600mm

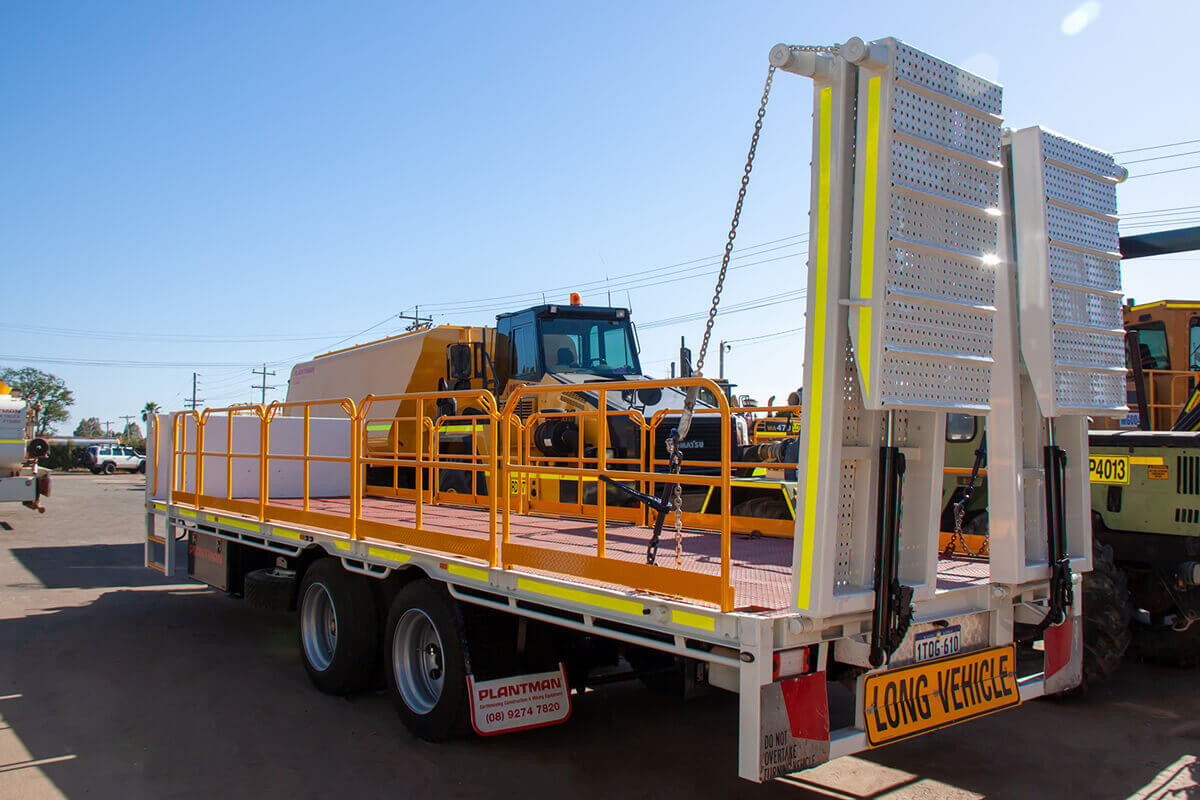

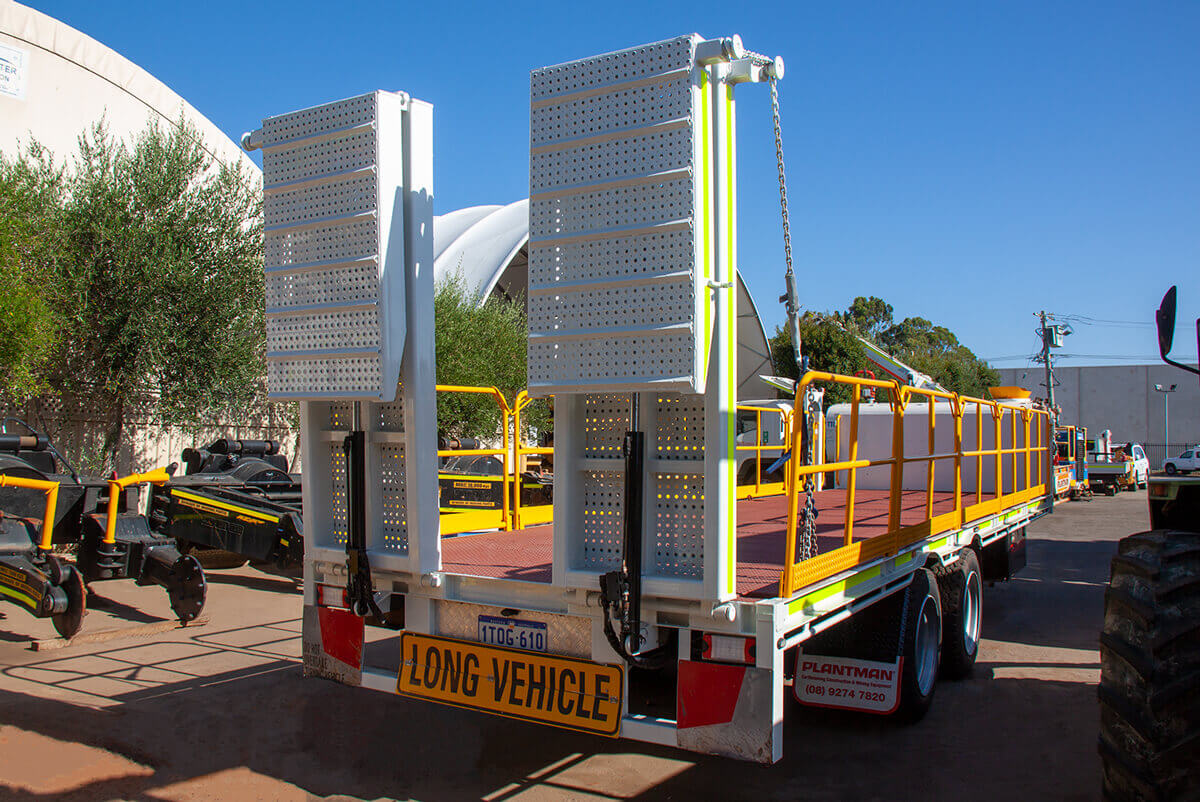

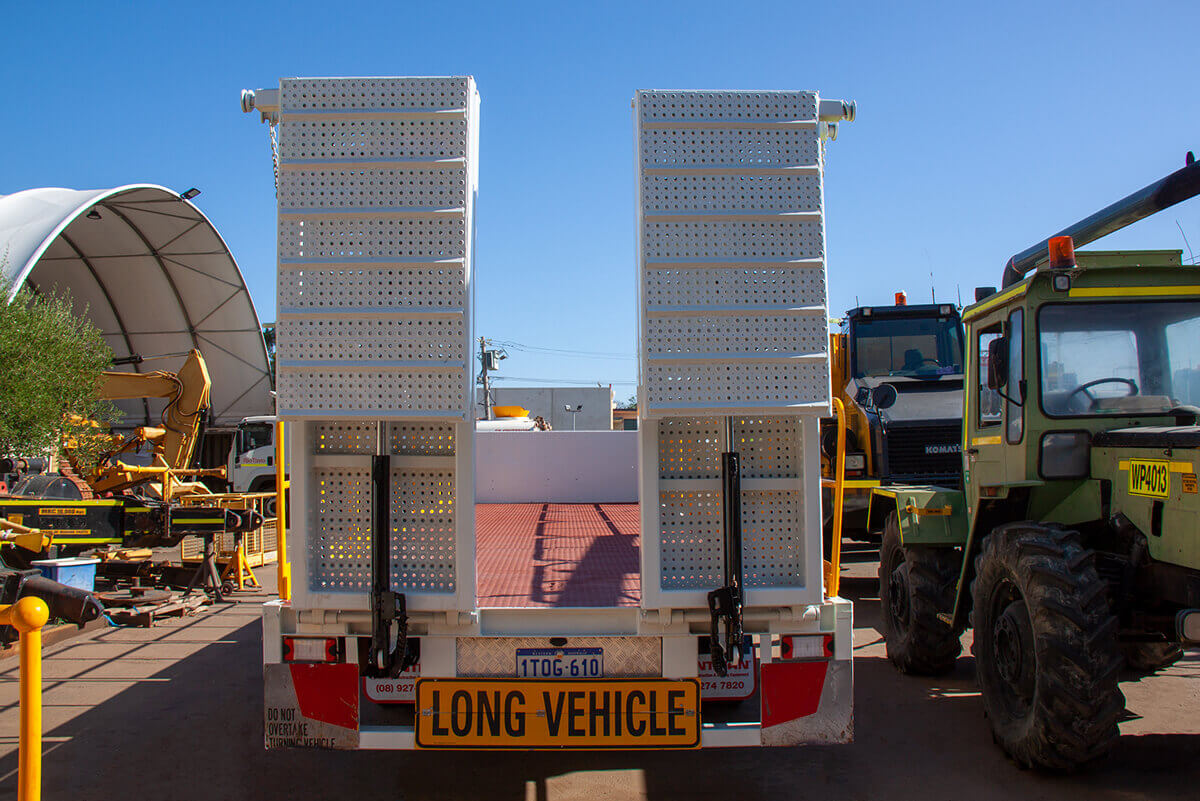

  • Heavy-duty trailer ramps
  • Secondary securing bars for the ramps
  • Complete set of hydraulics to operate ramps that include 2 x double acting cylinders complete with safety check valves, 24volt double-acting power pack with control valve mounted to trailer that is charged off the truck
  • Set of batteries charged through an Anderson plug from the truck

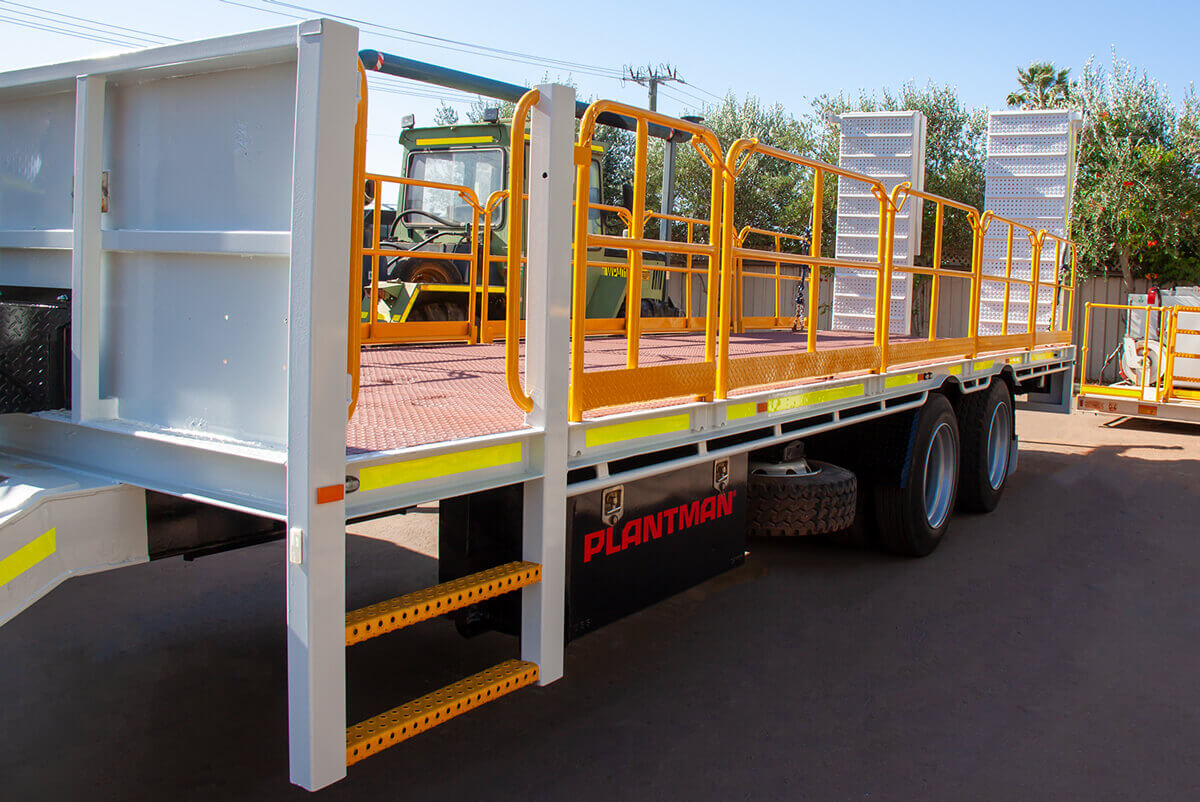

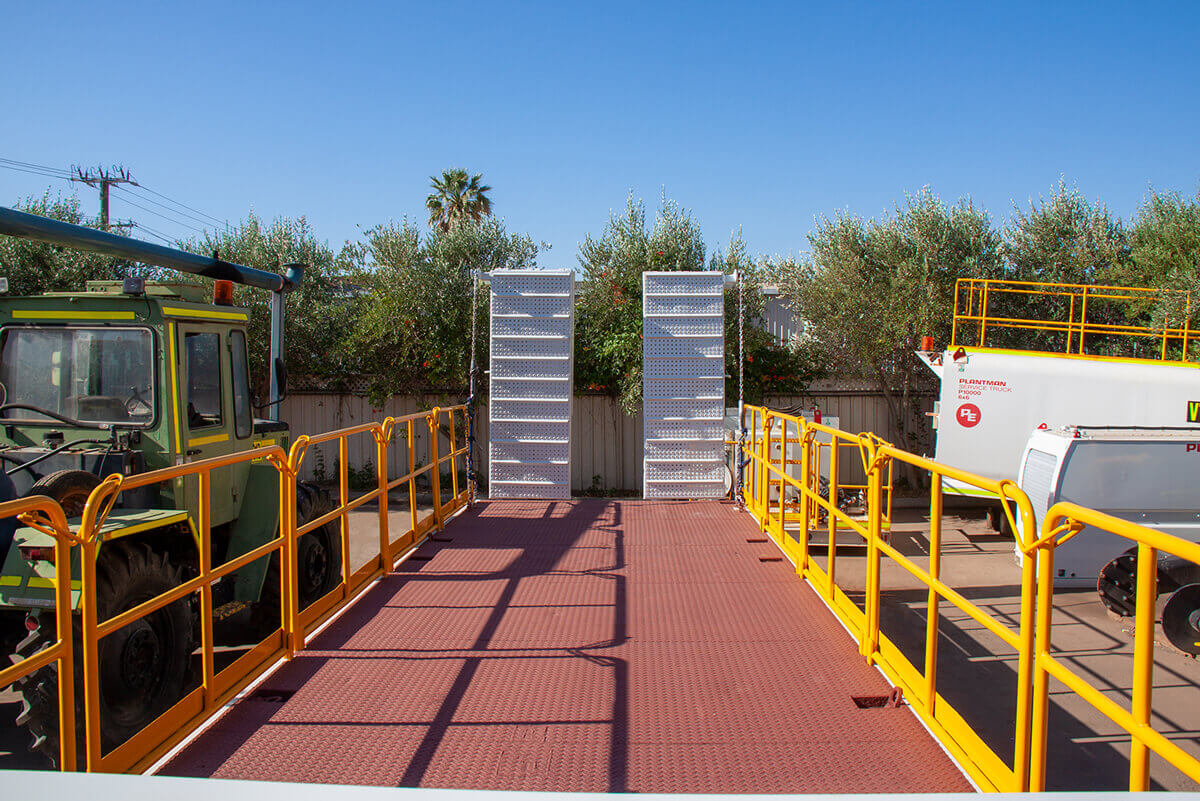

  • Tray floor is constructed from 75 x 40 channel with 3mm checker plate, 125×50 channel coamings, and 32mm heavy wall tie rails

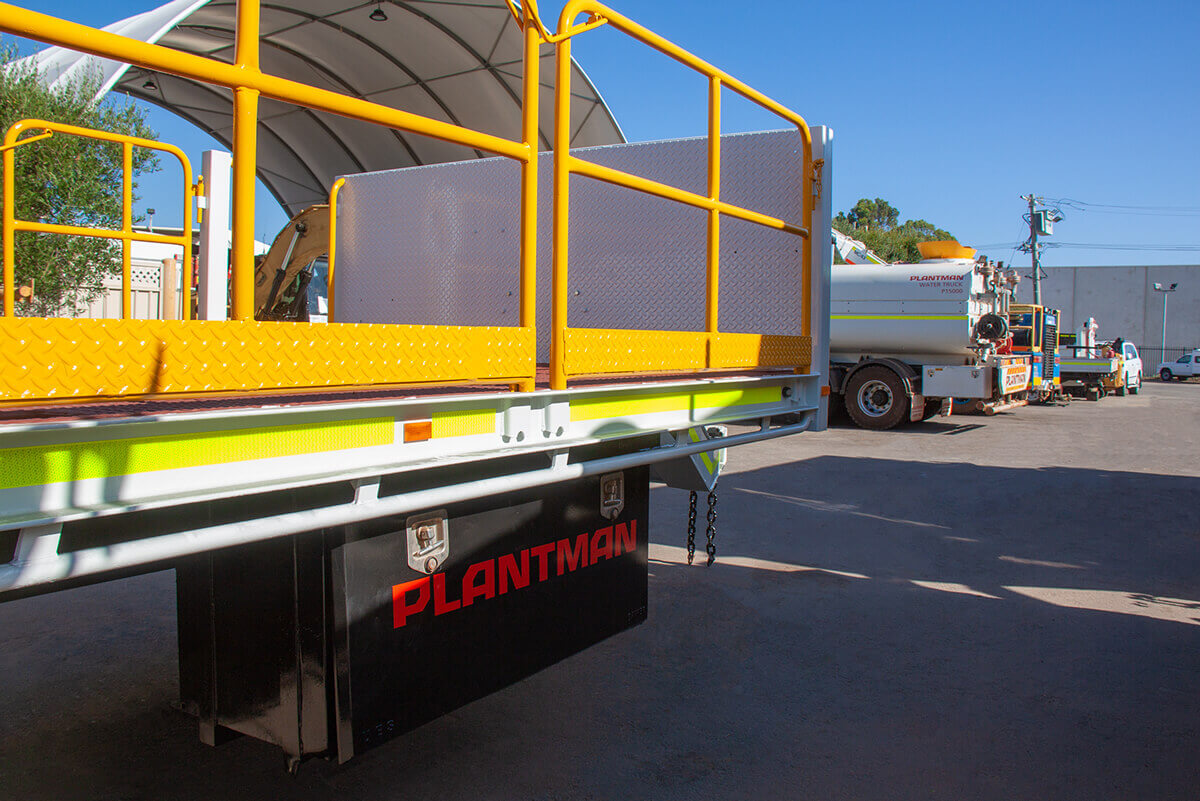

  • 32mm heavy wall tie rails down each side of the trailer
  • 8 x 4 tonne recessed tie-down rings for tying off equipment
  • 9 x 255 R70 22.5 low profile tubeless wheels and tires includes spare
  • Spare wheel holder
  • 9 x Steel spider rims include spare
  • 4 x Spacer bands
  • 2 x GTS 10 stud 225 PCD axles
  • 1 x Tandem axle underslung spring suspension kit
  • 1 x Tandem axle Westinghouse brake kit
  • Single-speed heavy duty wind down leg
Read More
Product Specifications
Capacity 10.5m
