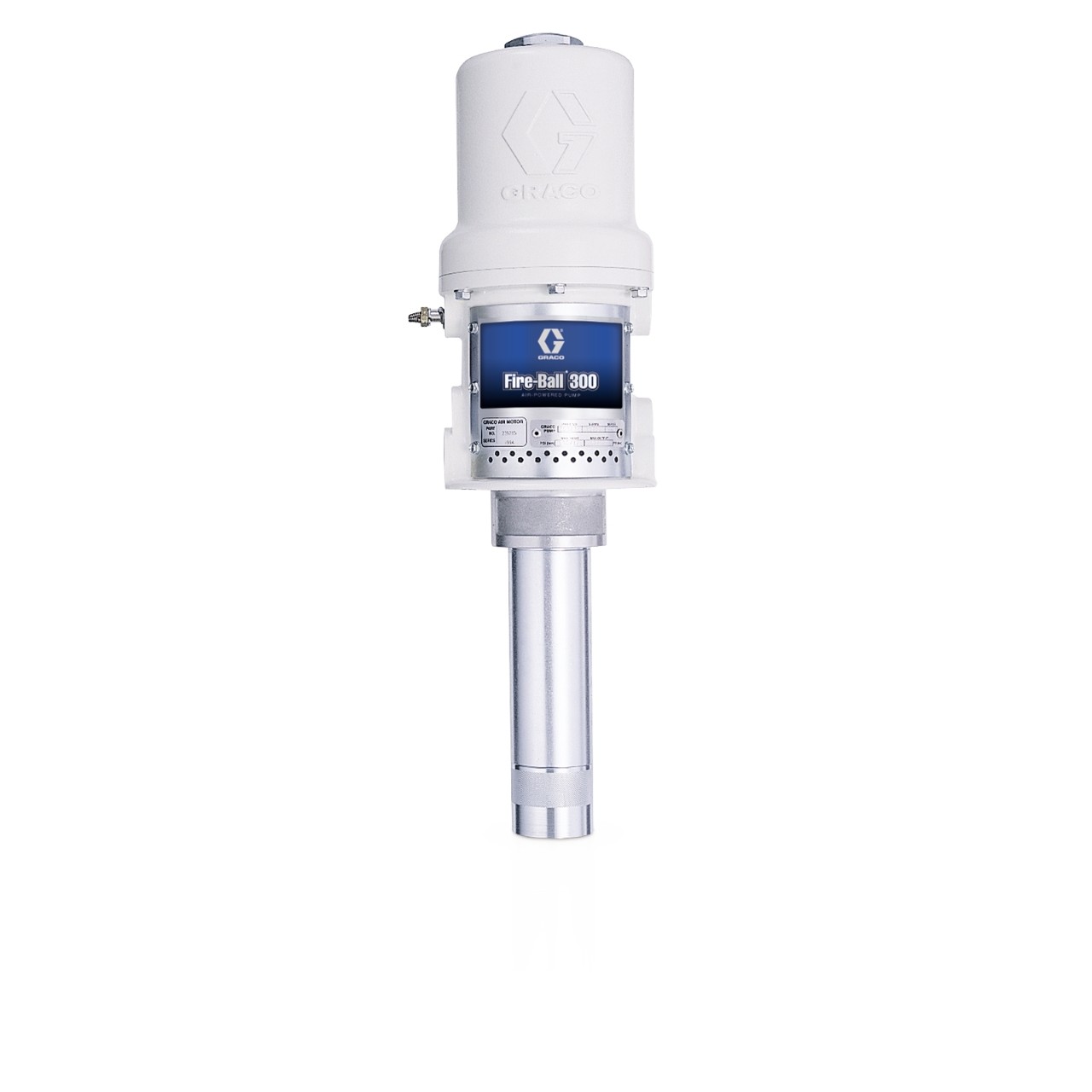

GRACO FIRE-BALL 300 STUBBY OIL PUMP
$3,073.40
The Graco Fire-Ball 300 5:1 has been the benchmark in industrial oil pumps for decades. Renowned for its rugged design and long service life, this pump is trusted in heavy-duty environments where uptime and reliability are critical. With fewer moving parts and premium engineering, the Fire-Ball delivers consistent performance, reduced maintenance, and superior productivity.
Ideal for high-pressure, medium-volume oil transfer applications, the Fire-Ball 300 is perfectly suited to automotive dealerships, fast lube centres, fleet maintenance facilities, and service workshops.
Key Features & Benefits
- Reliable Oil Flow – A 76.2 mm (3″) differential air motor combined with a double-acting pump design ensures accurate, continuous fluid delivery.
- Heavy-Duty Durability – Thick cast aluminium air motor housing provides strength and long-lasting performance in demanding environments.
- Low Maintenance Costs – Fewer moving parts mean fewer breakdowns, reduced downtime, and lower repair expenses.
- Extended Seal Life – Precision in-line pump design aligns the air and fluid pistons, maximising seal longevity.
- Proven Reliability – Proprietary Graco manufacturing minimises displacement rod wear for long-term operation.
- Superior Sealing – Non-metallic poppet valves maintain positive sealing, even in dirty air conditions, extending pump life without repair.
- Reduced Icing – Large air porting design optimises compressed air efficiency, enabling continuous operation and minimising icing.
- Corrosion-Resistant Build – Key components treated with liquid salt nitriding, nickel plating, stainless steel, and chrome for maximum protection.
| Air Inlet Size (in) | 3/8 |
| Air Inlet Size (mm) | 9.525 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Air Motor Effective Diameter (in) | 3 |
| Application | Industrial |
| Compatible Material | Oil |
| Cycles Per Gallon | 30 |
| Fluid Inlet Size (in) | 1-1/2 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | ½ |
| Fluid Outlet Size (mm) | 12.7 |
| Fluid Outlet Thread Type | NPT |
| For Use With | Petroleum and synthetic-based oils (motor, gear and ATF) |
| Maximum Air Inlet Pressure (bar) | 12.41 |
| Maximum Air Inlet Pressure (kPa) | 1241 |
| Maximum Air Inlet Pressure (psi) | 180 |
| Maximum Continuous Cycle Rate (cpm) | 70 |
| Maximum Intermittent Cycle Rate (cpm) | 70 |
| Maximum Working Pressure (MPa) | 6.2 |
| Maximum Working Pressure (bar) | 62 |
| Maximum Working Pressure (kPa) | 6200 |
| Model | Fire-Ball |
| Power Type | Pneumatic |
| Pump Ratio | 5:1 |
| Series | 300 |
| Sound Power Level (dB(A)) | 85.6 |
| Sound Pressure Level (dB(A)) | 77.8 |
| Type | Pneumatic Piston Pump |
| Weight (kg) | 0.7718 |
| Wetted Material | Steel, Polyurethane, Aluminium, Buna-N |
Product Information
- Air Inlet Size (in)
- 3/8
- Air Inlet Size (mm)
- 9.525
- Air Inlet Thread Gender
- Female
- Air Inlet Thread Type
- NPT
- Air Motor Effective Diameter (in)
- 3
- Application
- Industrial
- Reliable Oil Flow – A 76.2 mm (3″) differential air motor combined with a double-acting pump design ensures accurate, continuous fluid delivery.
- Heavy-Duty Durability – Thick cast aluminium air motor housing provides strength and long-lasting performance in demanding environments.
- Low Maintenance Costs – Fewer moving parts mean fewer breakdowns, reduced downtime, and lower repair expenses.
- Extended Seal Life – Precision in-line pump design aligns the air and fluid pistons, maximising seal longevity.
- Proven Reliability – Proprietary Graco manufacturing minimises displacement rod wear for long-term operation.
- Superior Sealing – Non-metallic poppet valves maintain positive sealing, even in dirty air conditions, extending pump life without repair.
- Reduced Icing – Large air porting design optimises compressed air efficiency, enabling continuous operation and minimising icing.
- Corrosion-Resistant Build – Key components treated with liquid salt nitriding, nickel plating, stainless steel, and chrome for maximum protection.
