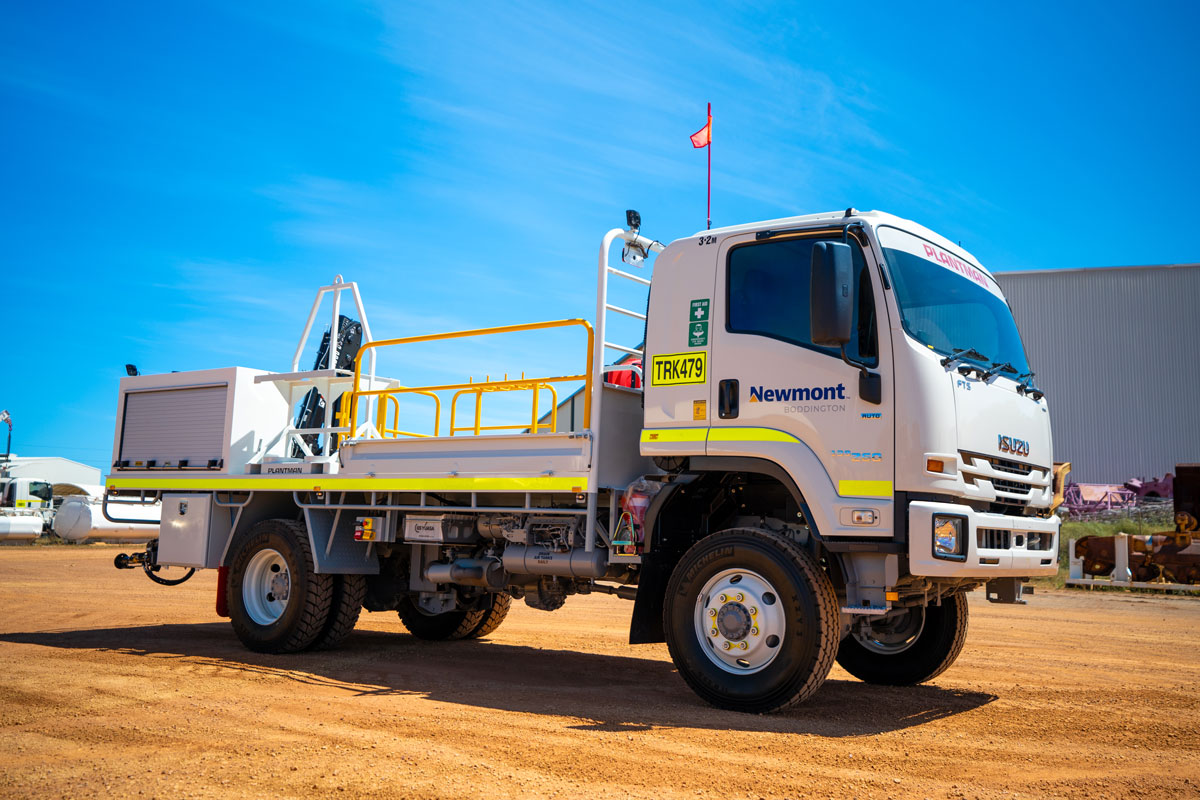

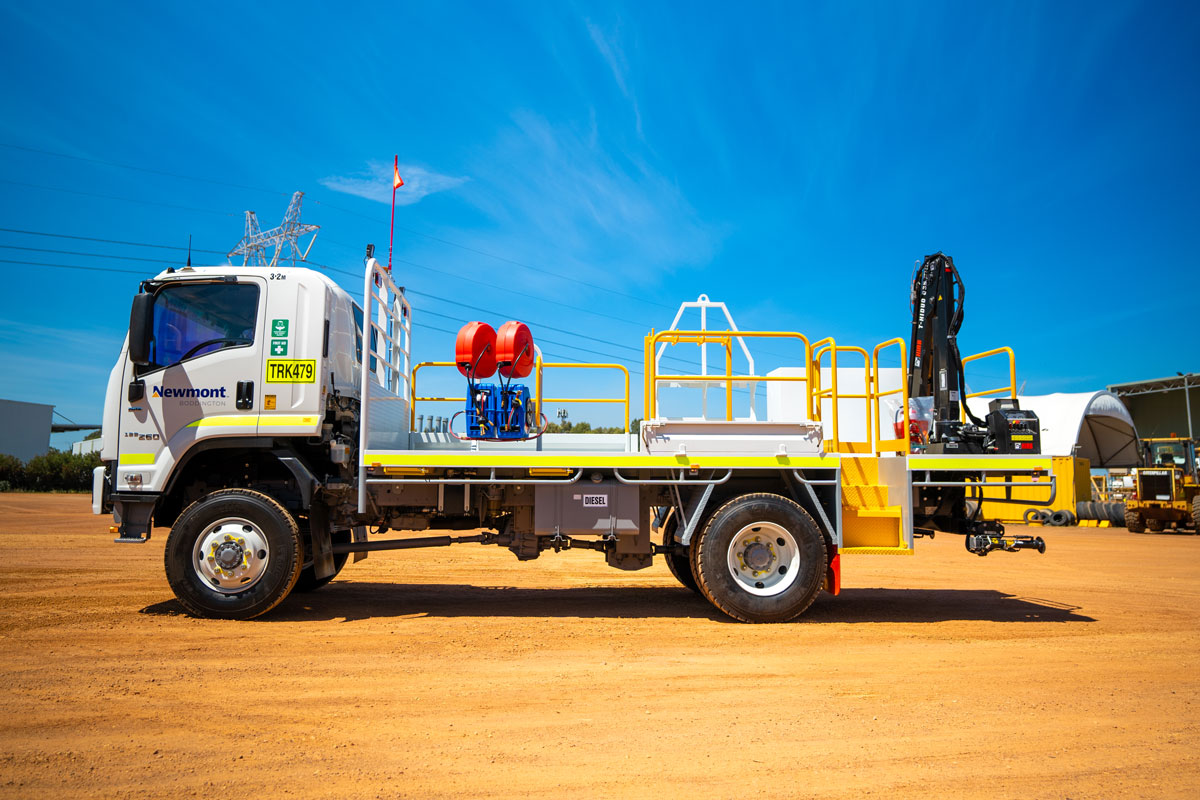

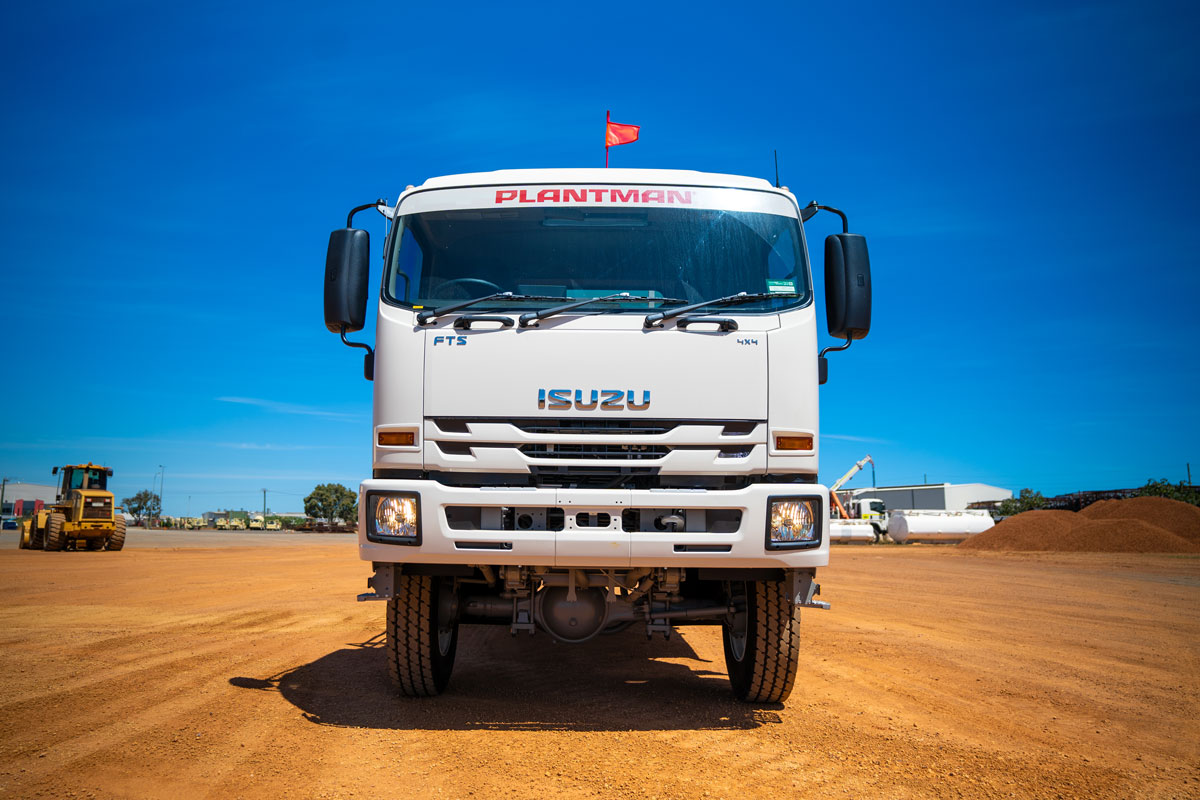

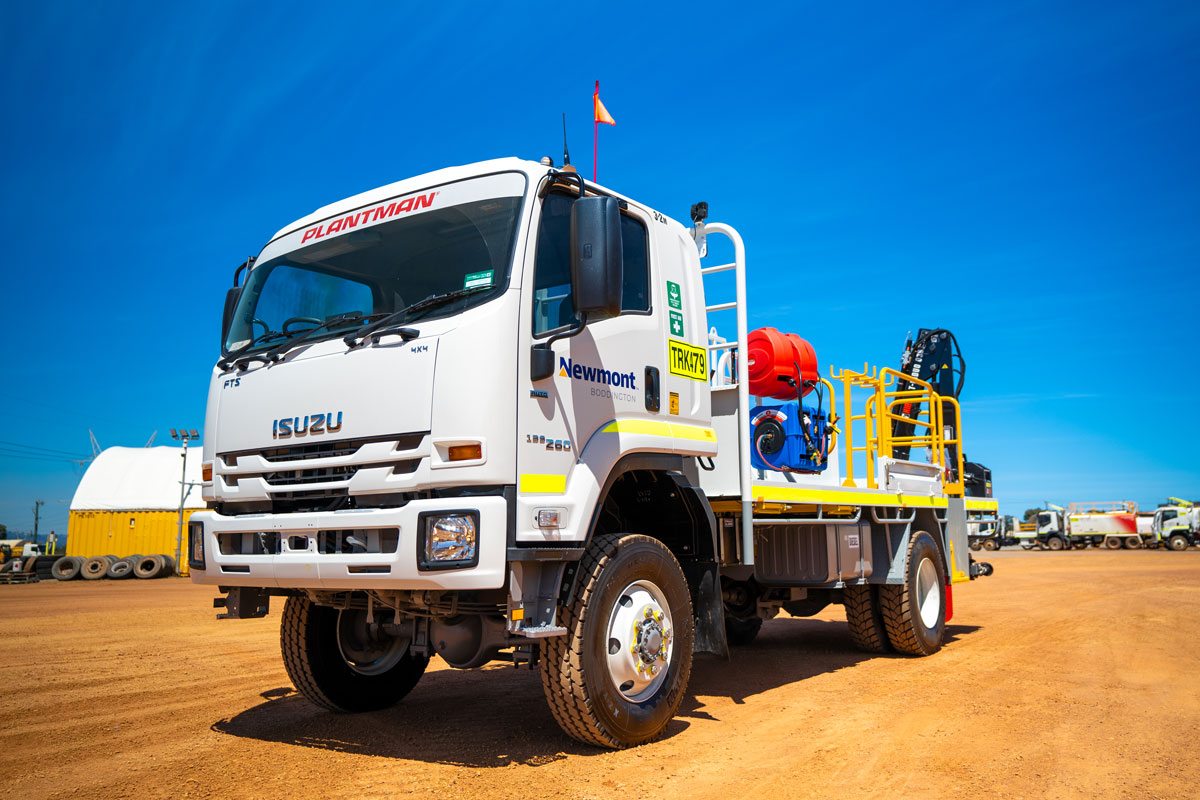

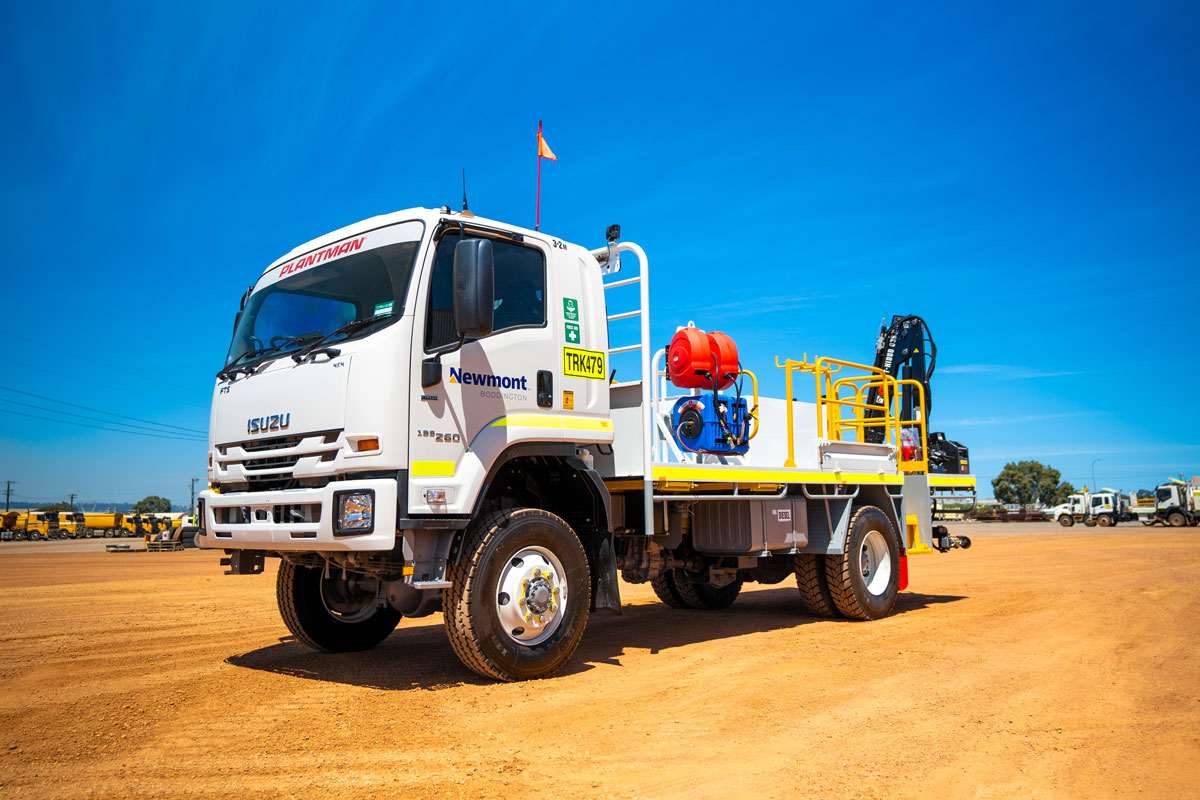

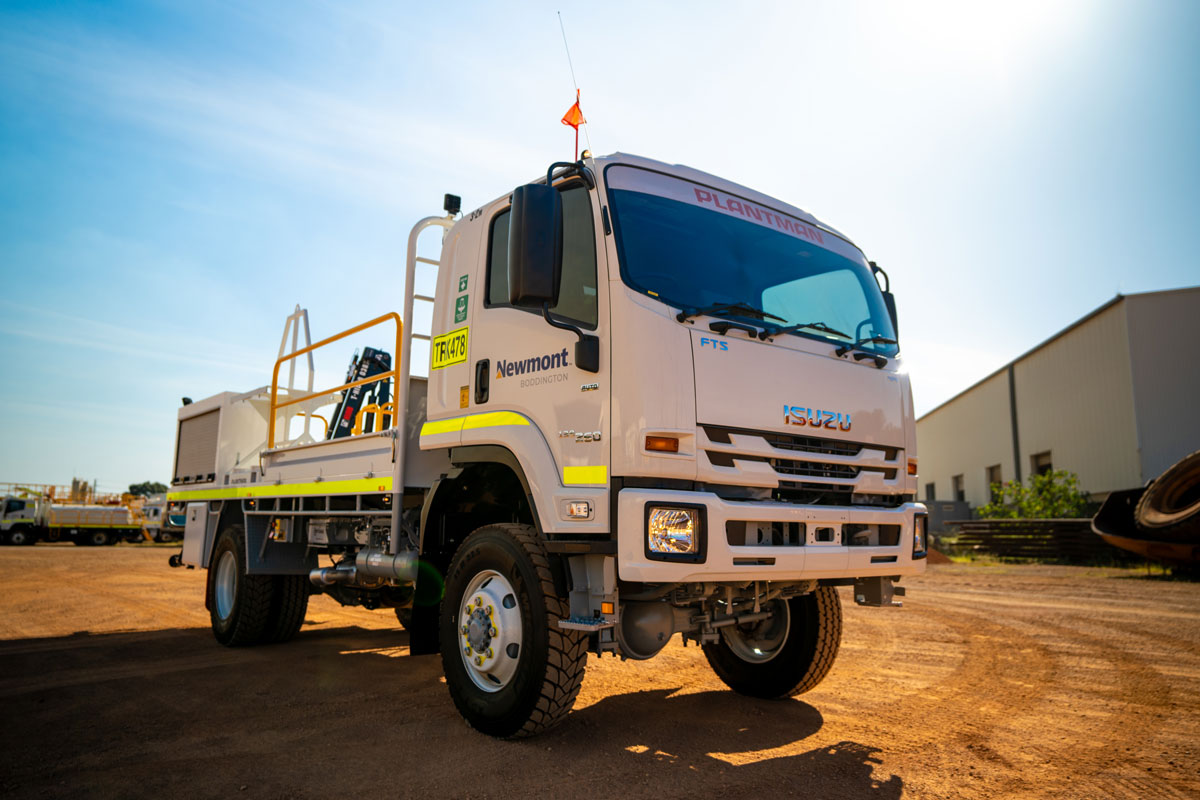

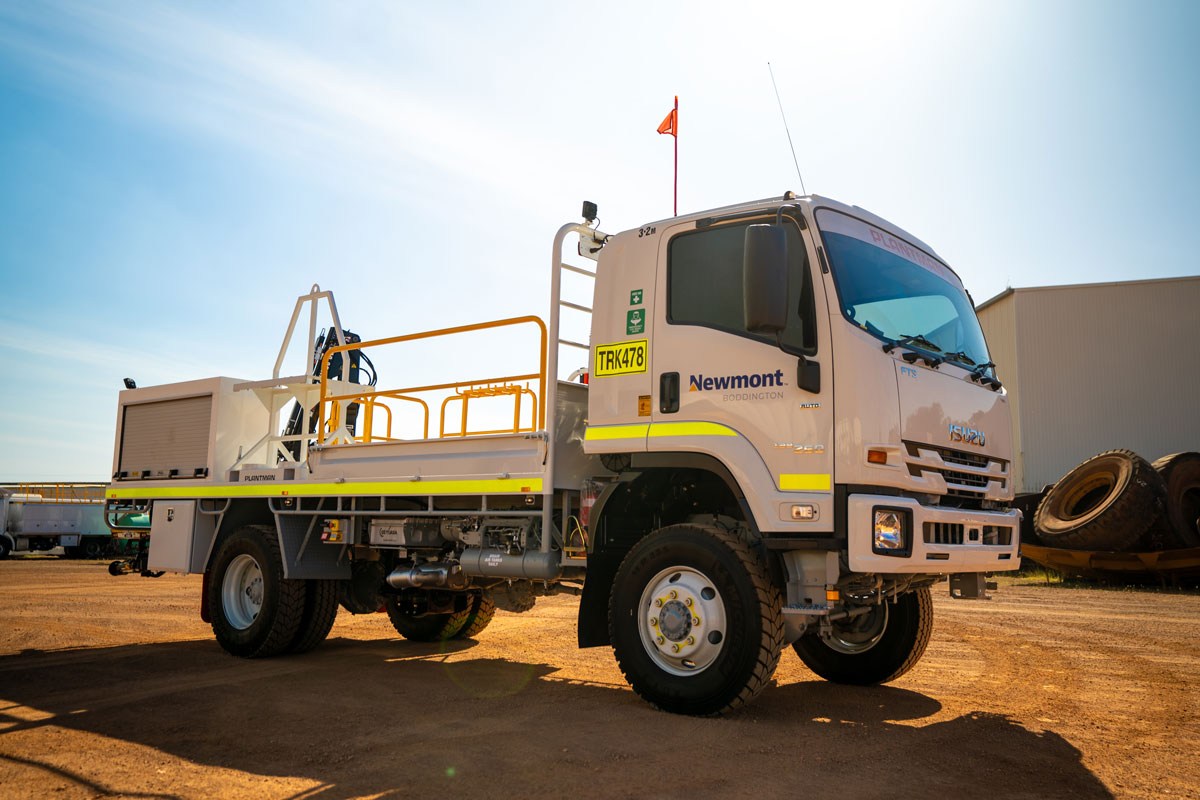

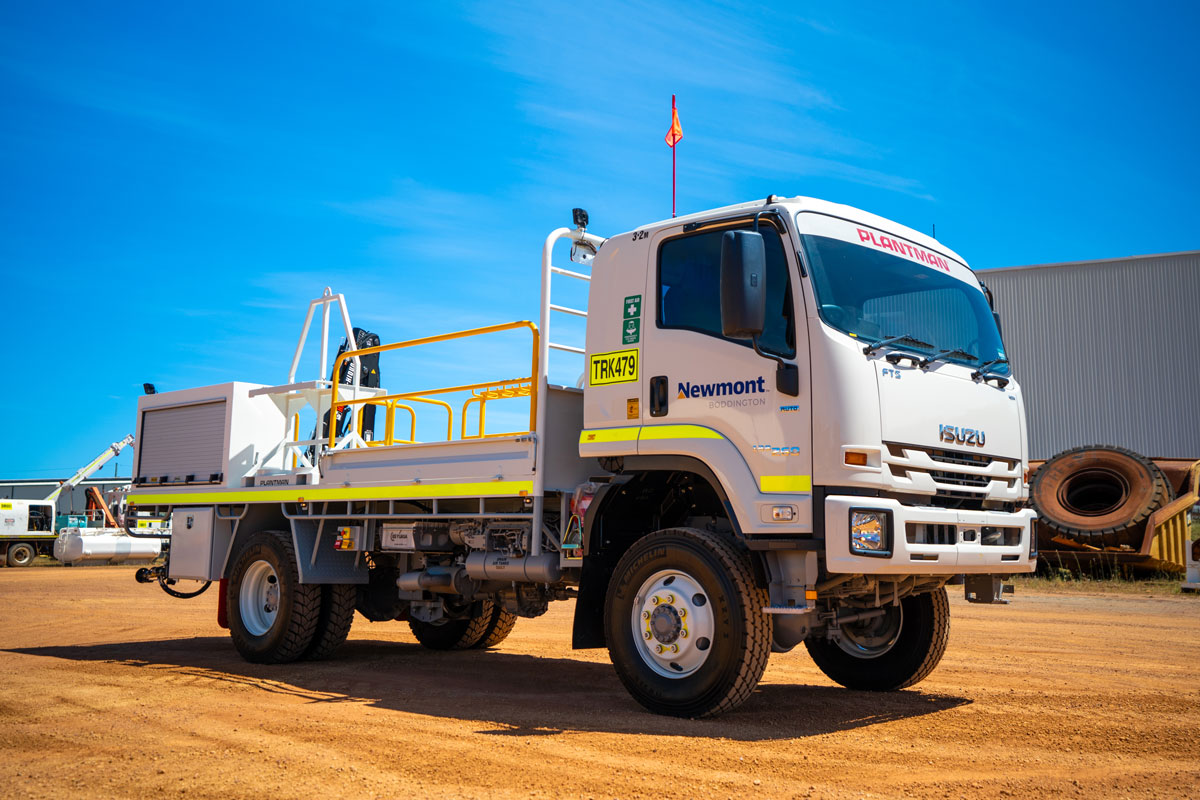

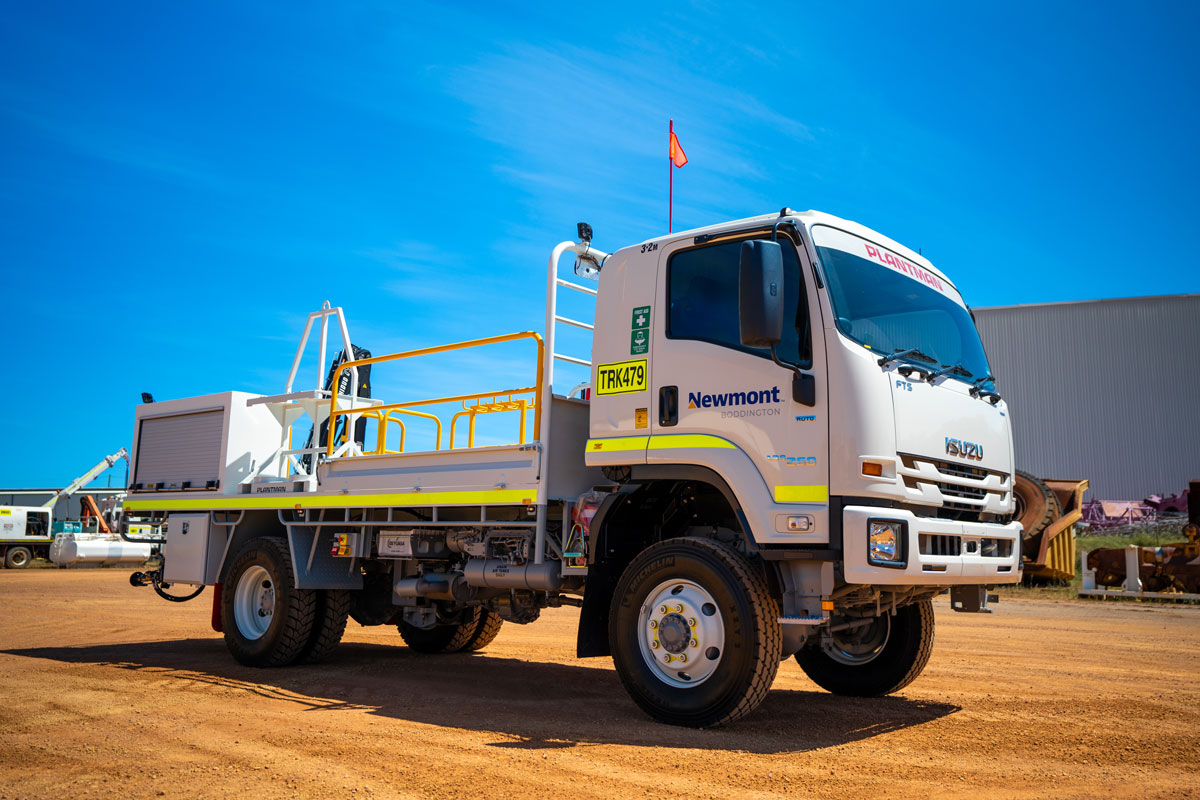

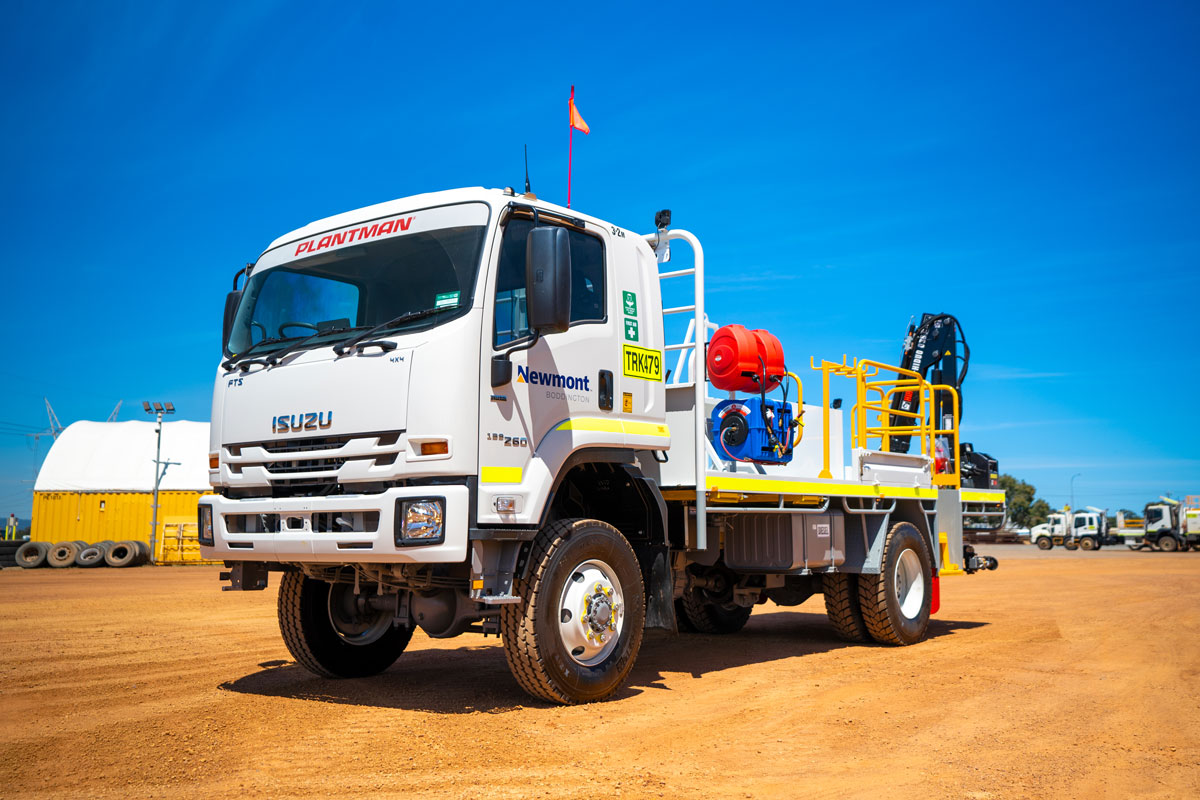

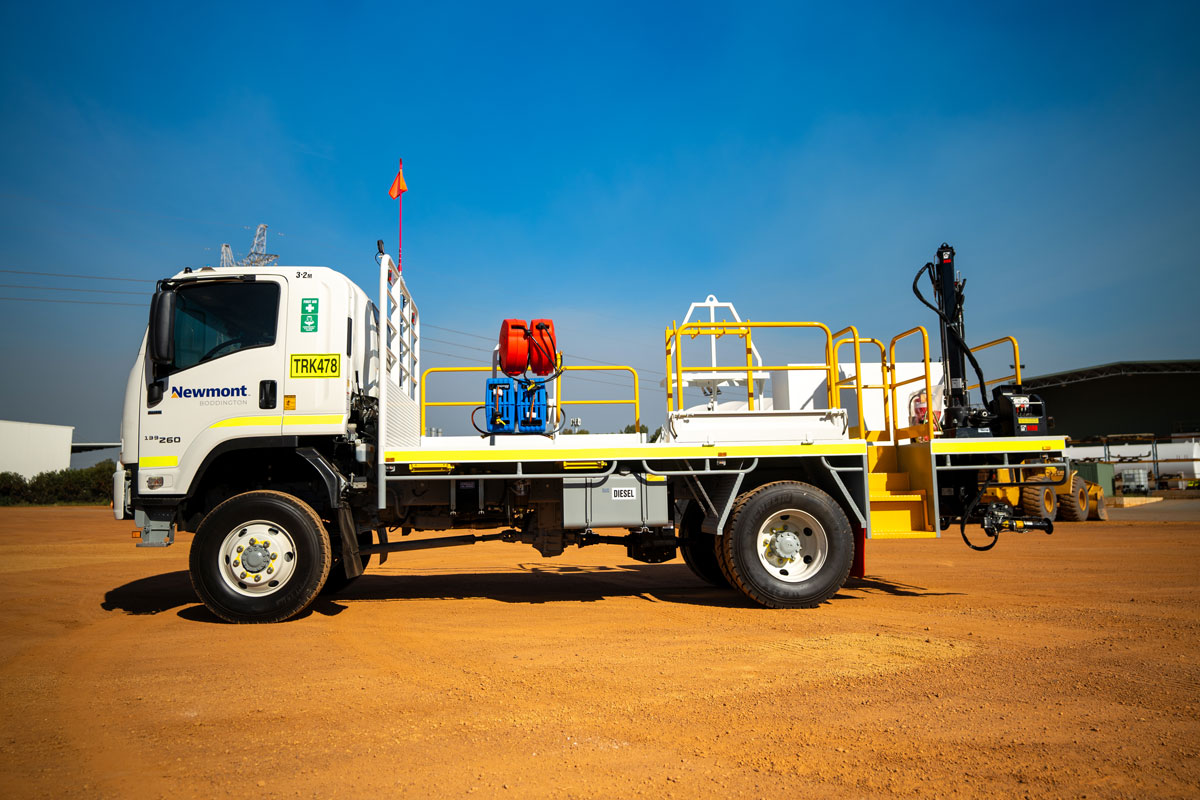

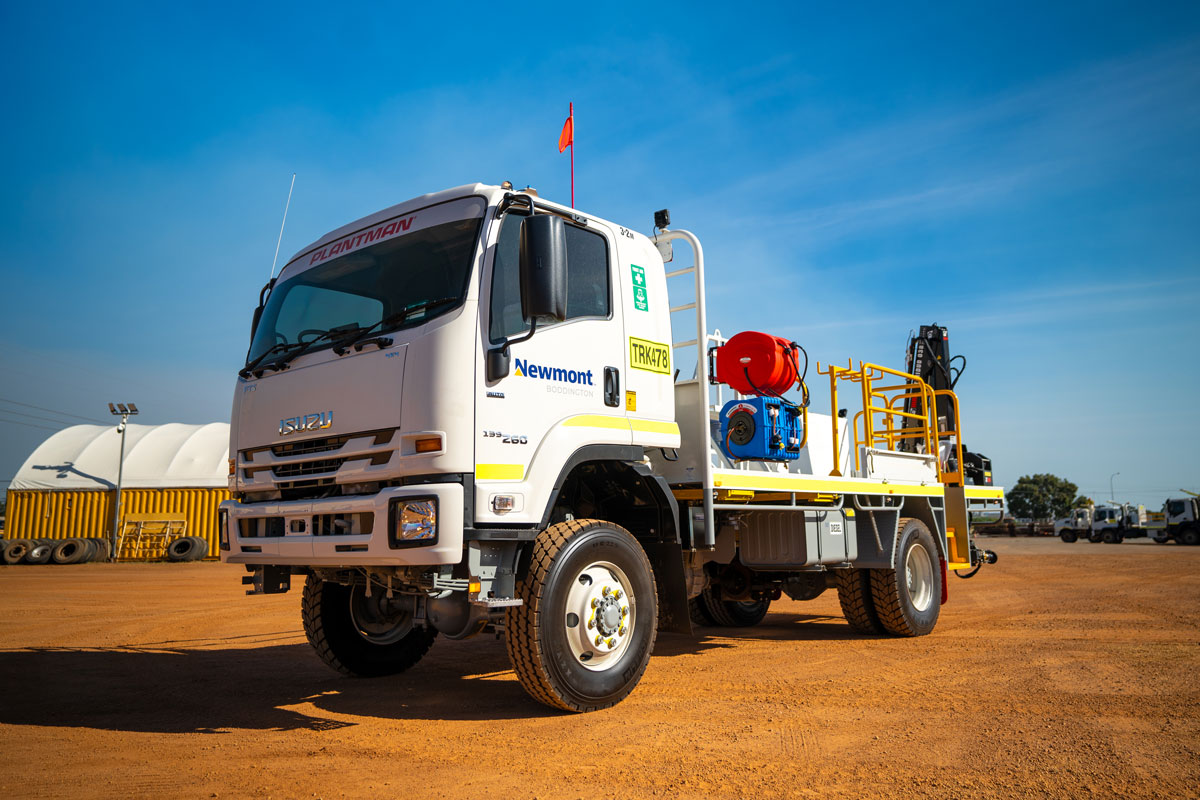

2023 ISUZU FTS139-260 4×4 FABRICATION TRUCK

NEWMONT BODDINGTON

INDUSTRY: MINING

LOCATION: PILBARA

TYPE: FABRICATION TRUCK

AVAILABILITY:   CHECK AVAILABILITY

CALL FOR AN IMMEDIATE QUOTE

Enquire Now

Product Summary
Download Specs
  • New ISUZU FTS139-260 4 x 4 Single Cab Chassis
  • Automatic Transmission with Telma Driveline Retarder
  • Spare Tyre assembly – supply on a pallet
  • Wheel Nut Indicators, Jack, Brace, Wheel Chocks
  • OE ISRI 6860 air suspension Driver and passenger seats with Canvas Seat Covers
  • Tropical tint side and rear windows
  • 2 x 4.5kg Fire Extinguishers and 1 x 2kg in cab mount
  • Epinamel Anti-corrosion coating to chassis and axle housings
  • NBG Company Decals on doors and Fleet Numbers (doors & rear headboard)
  • DG3 Tape on the sides of trays and front of the truck
  • Safety & Operating Decal Kit
  • WA Roadworthy Passed (Not being registered)
  • Braided harness with denso to all connector plugs & electrical boxes
  • Two Way site radios/aerials are to be supplied by NBG and tuned with Plantman to mount
  • Headlights on with ignition
  • Rear Facing High & Low Mount LED Lighting
  • Reverse Alarm (Sqwauker) with External Speaker
  • Reverse Camera / Screen-in dash OE
  • 2 x E-Stop (cabin and front of tray)
  • LED Beacon on tray headboard
  • Internal LED Strip Lighting in Toolbox 2 x External LED Work Lights on the headboard and 2 x top of the toolbox
  • Lockable Battery Isolator – Lockable Starter Isolator – Jump Start Receptacle- CAT type
  • Buggy Whip Aerial / Flag
  • Built to WA Mining Specifications

Flat Tray Specifications:

  • Steel Checker Plate Tray with Walk in Step and Spring Retractable Gate
  • Slide out underslung toolbox for wire feeders
  • The headboard on the tray with mounting at the top for Beacon, rear high lights, work lights etc
  • Lead rack with hooks (4)

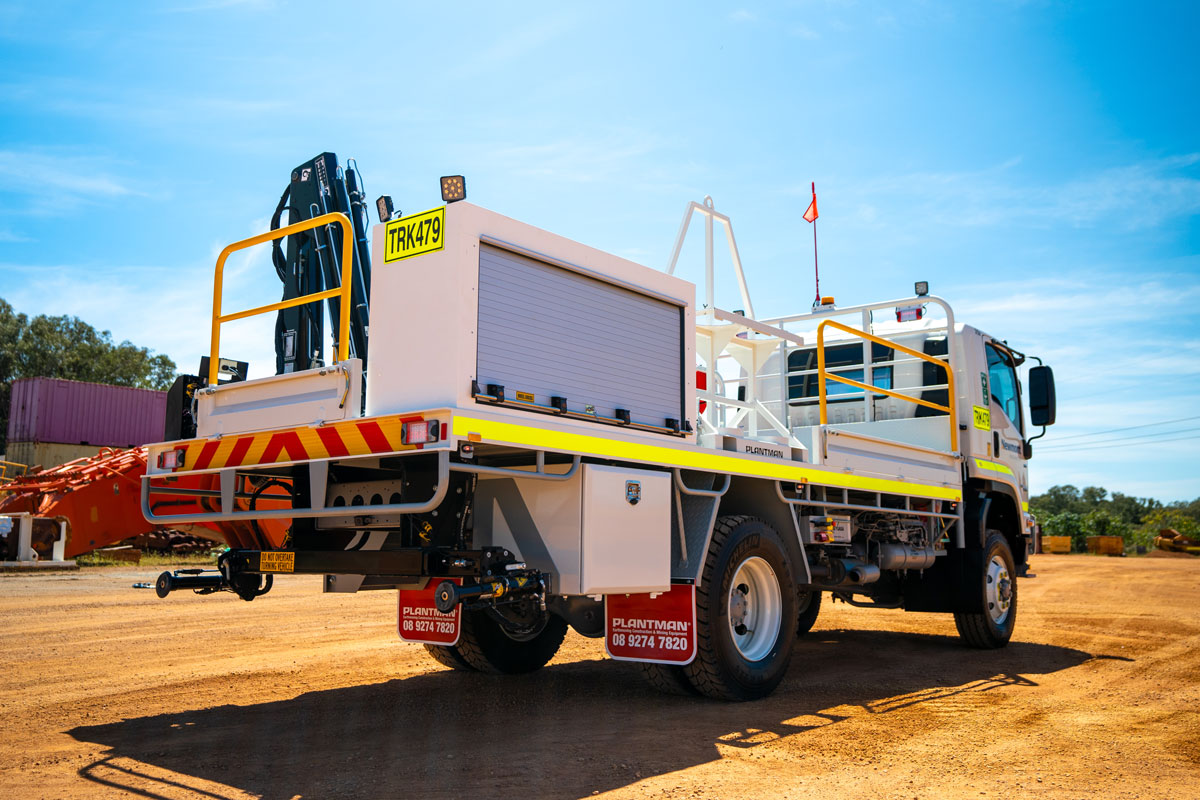

  • Toolbox with Roller door RH mounted on a tray – 1800mm L x 600mm x 930mm
  • Spring Retractable Hose Reels all 15m (4) Air x 2 – Oxy Acetylene – LPG Gas Torch
  • Removable handrails and drop sides where required
  • Skid Mounted Gas Rack with Fork Tynes for LPG – Acetylene – Argoshield – Oxy
  • 2 x Slide Ladders to be mounted LHS in front of welders for panel access.

Hiab Crane Specications:

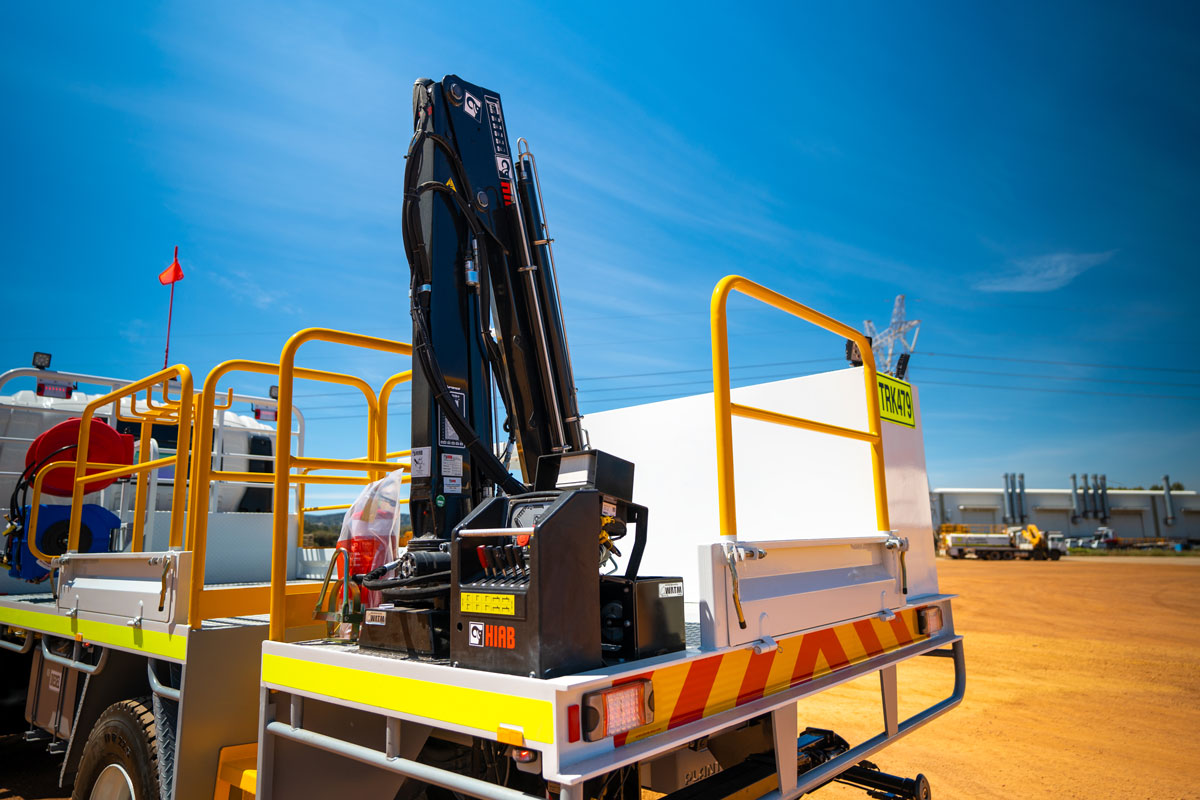

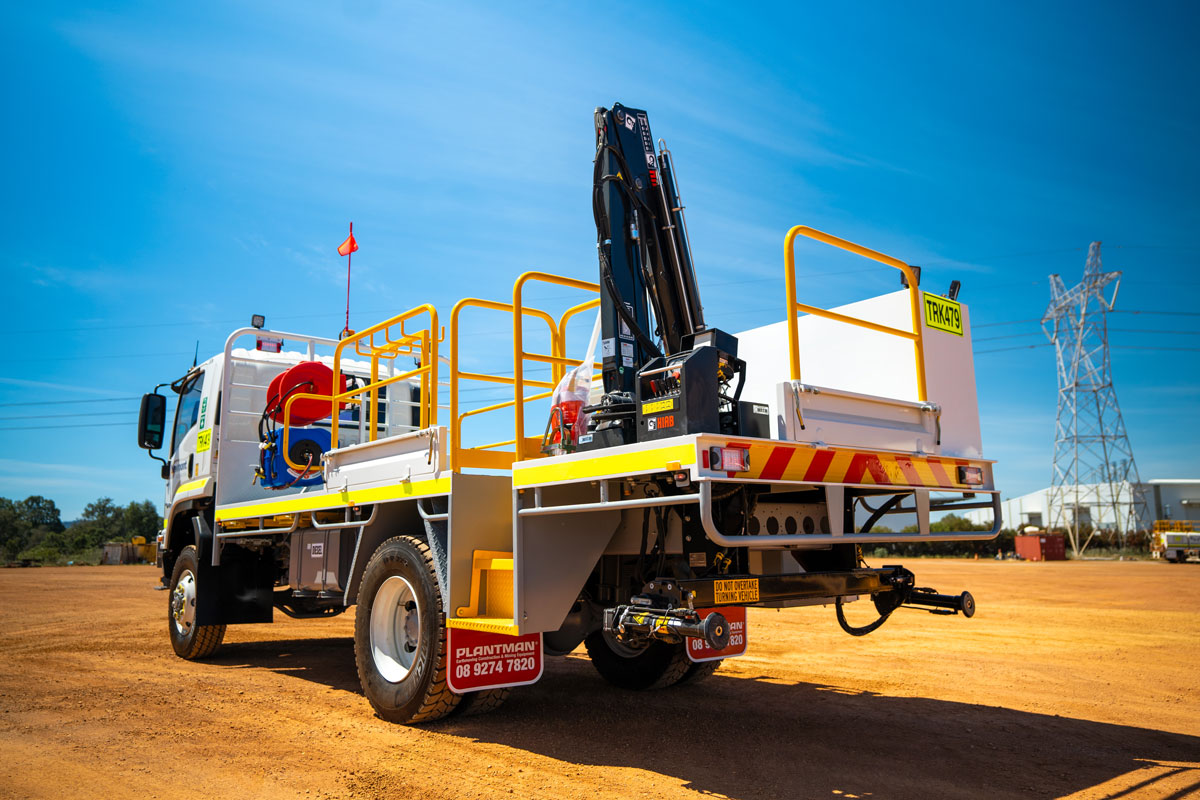

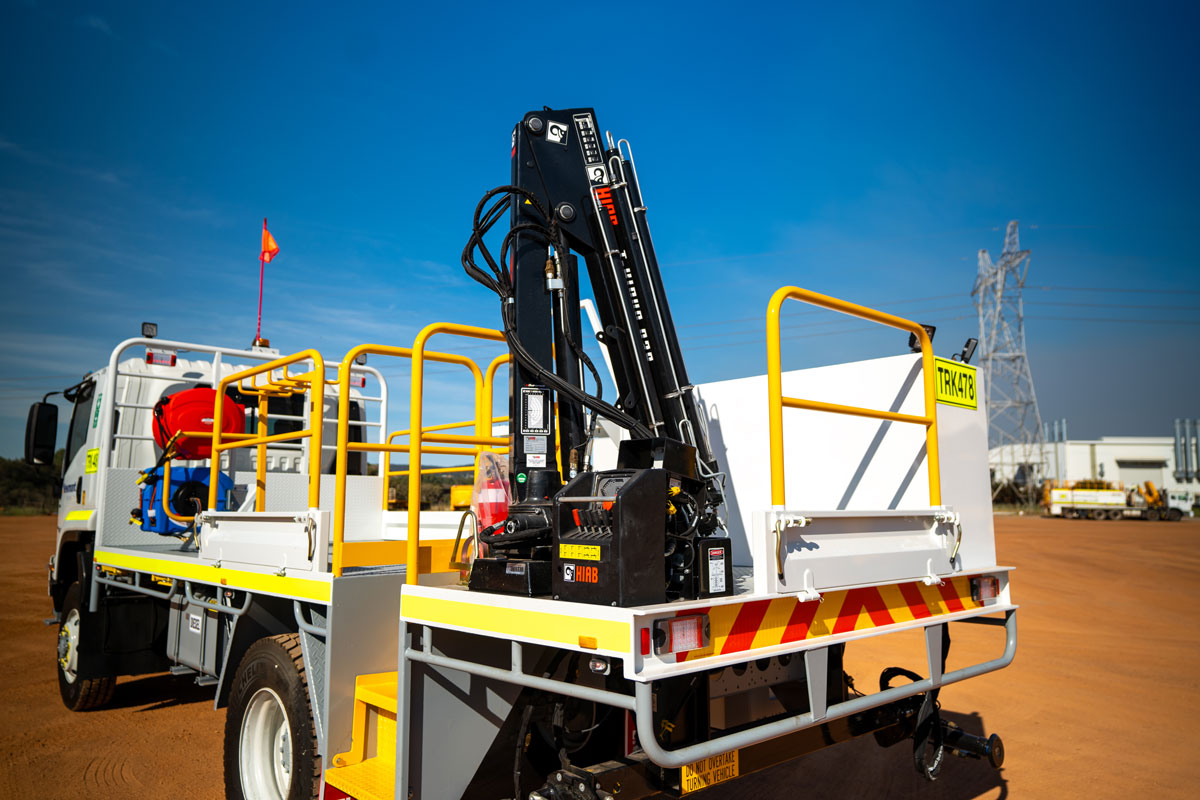

  • Rear tray deck mounted HIAB 038-4 Hydraulic Truck Crane with Rear Stabiliser Legs
  • Cordless Remote Control – Staging Lights – Cranesafe Green Sticker
Read More
Product Specifications
Axles4x4
MakeISUZU
TypeFabrication Truck
