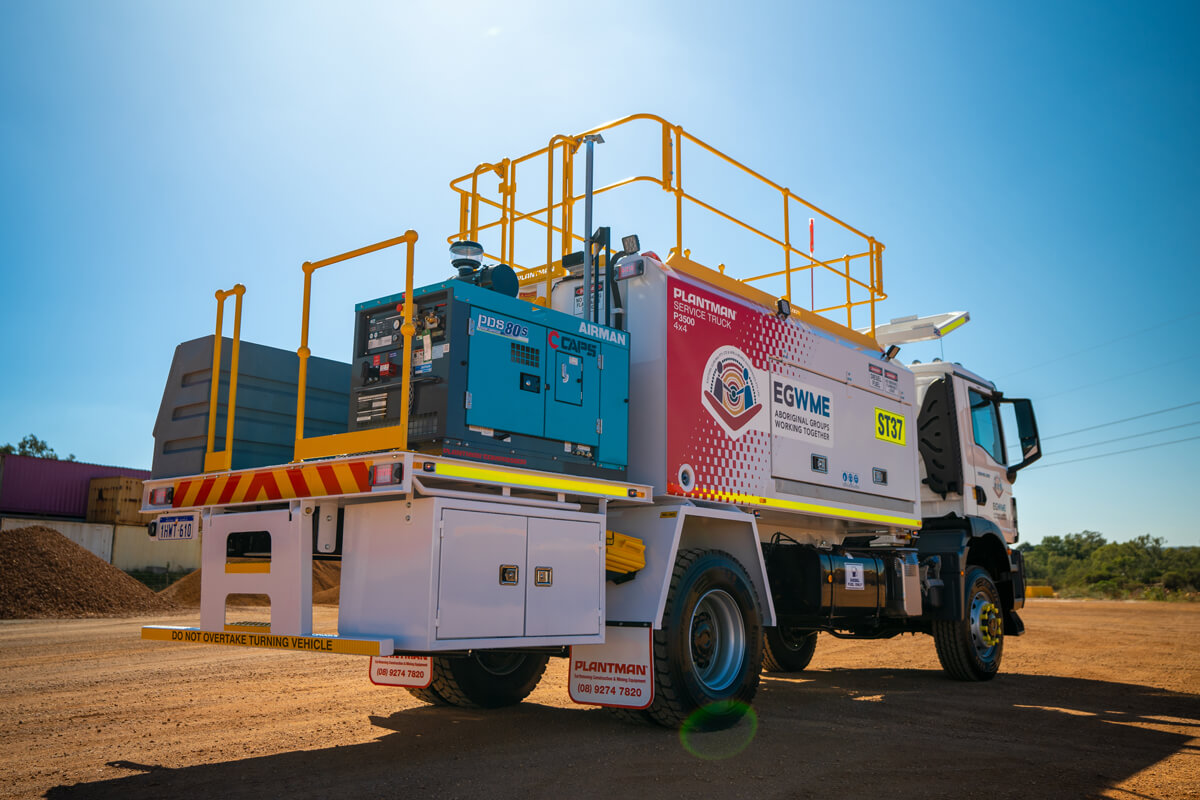

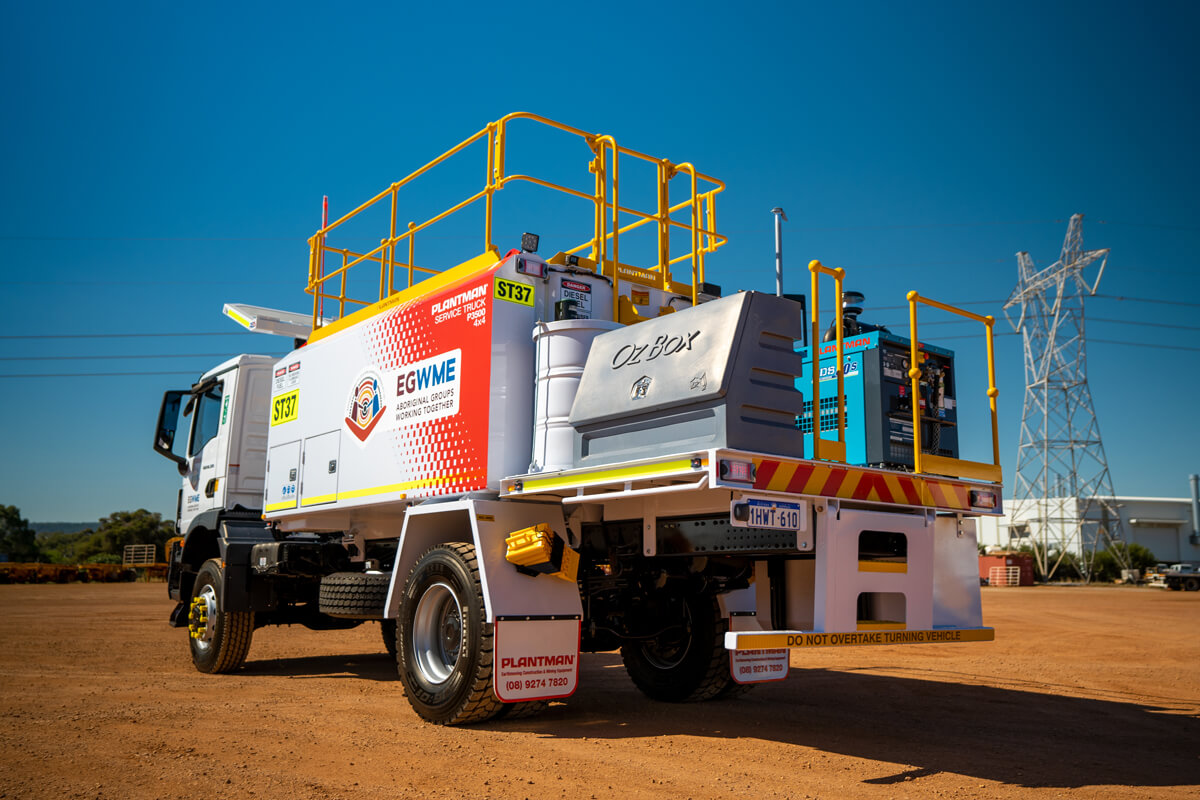

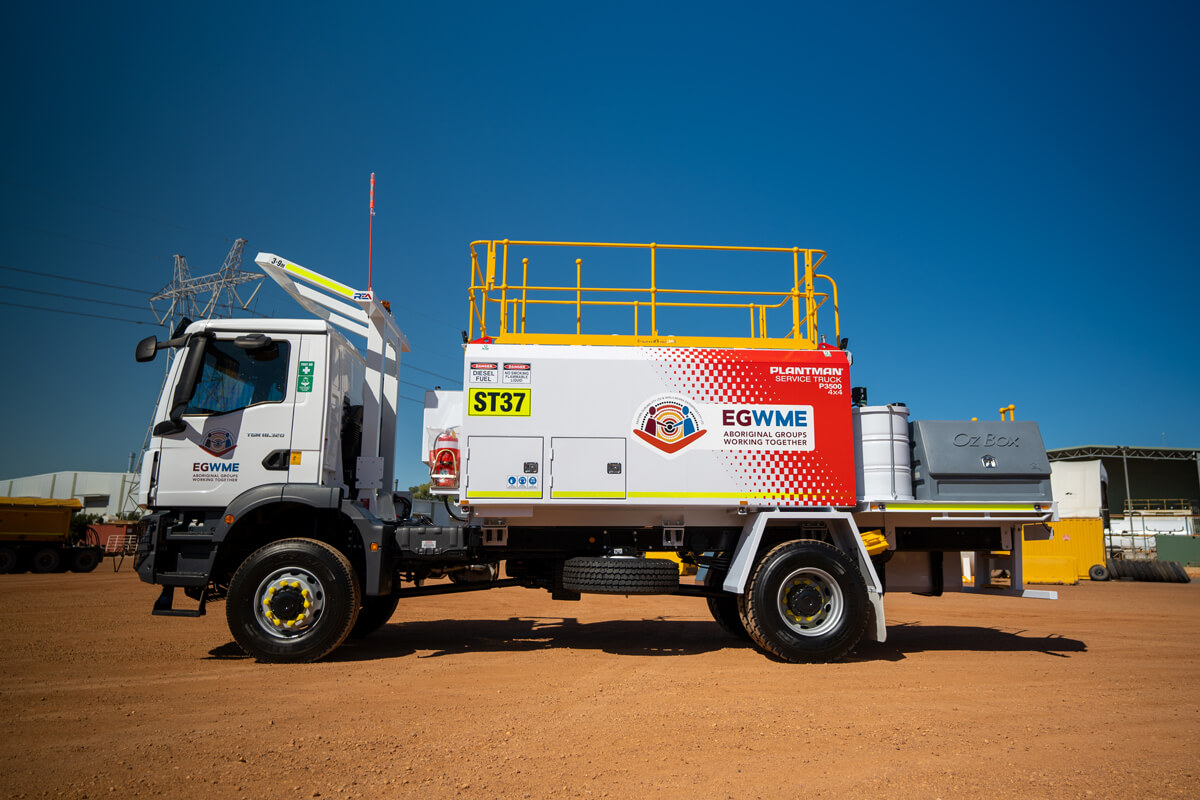

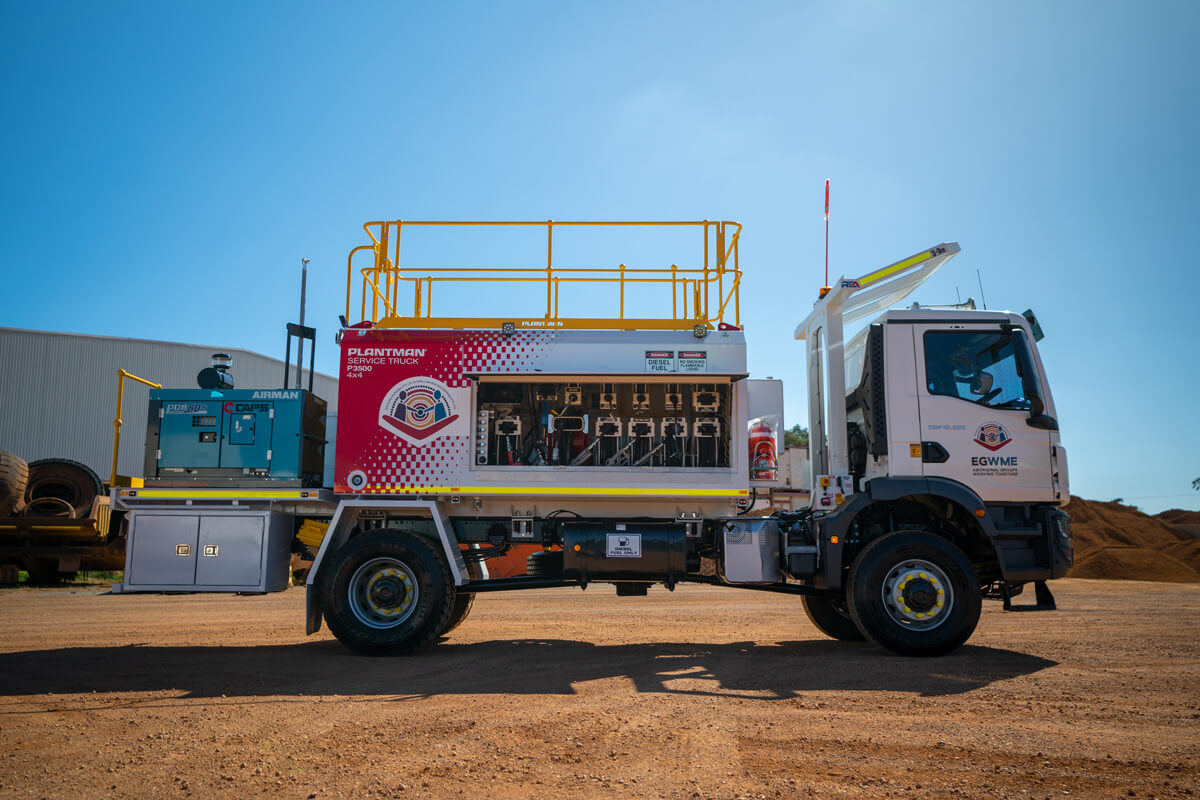

New Heavy-duty chassis-mounted steel, Plantman P3500 compartment service module:
| Tank# | Tank Type | Tank Capacity |
| No 1 | Bulk Diesel with Wiggins Fast Fill Gun, Hose and Auto Rewind Reel | 1,800 Litres |
| L/V Diesel Auto Shut-Off Gun, Hose and Spring Retract Reel | ||
| No 2 | Oil 50w with Spring Retract Reel & 15m Hose with Dispenser | 700 Litres |
| No 3 | Oil 30w with Spring Retract Reel & 15m Hose with Dispenser | 700 Litres |
| No 4 | Oil Eng with Spring Retract Reel & 15m Hose with Dispenser | 900 Litres |
| No 5 | Oil 60w with Spring Retract Reel & 15m Hose Dispenser | 500 Litres |
| No 6 | Coolant with Spring Retract Reel & 15m Hose | 500 Litres |
| No 7 | Water with Spring Retract Reel & 1″x 15m Hose | 500 Litres |
| No 8 | Waste with Spring Retract Reel & 1 1/2 x 15m Hose and with Four Way Valve for Evac | 900 Litres |
- Ad Blue – Auto Shut Off Gun, Hose and Spring Retract Reel – 200 Litres
- Spring Retract air hose reel
- 180kg Grease Drum Kit with HP Pump, Spring Retractable Reel & 15m x 3/8″ Hose
- All Air Operated Pumps (Water 1′ / Waste 1 1/2″) with Ground Level Central Fill Station & Top Fill
- Diesel Flow meter with Digital Dispensing Display
- Rear tray with Ladder access to roof with fold down hand rails
- Rear Tray mounted storage boxes-accessible from rear LHS
Airman 80CFM Air Compressor Specifications:
- Lubricator
- Donaldson Type Air Filter
- Whip Sock,
- High Outlet Exhaust
- Battery Isolator
- J/S Receptacle
- E-Stop
- P/Vessel
- S/Valve Certifications
Plantman P3500 – MAN TG3 18-320 4×4 Service Truck P3500 Specifications:
- New 2023 MAN TG3 18-320 Cab Chassis fitted with ROPS
- Engine MAN D 0836LFL88 Euro 5 SCR with Ad Blue
- Automated ZF ASTRONIC 12 AS 1210 OD gearbox, 12 forward speeds, 2 reverse
- Braking MAN BrakeMatic electronic brake system (EBS) regulated the pressure in the brake cylinders of the
- individual wheels with ABS Dual circuit, full air, S-Cam drum brakes with air dryer.
- Suspension Front & Rear – parabolic springs with stabilizers.
- Fuel Capacity Steel 300 litre fuel tank
- Canvas Seat Covers, North West Tropical Tinted side and rear windows
- Spare Wheel Assembly, Wheel Chocks, wheel nut indicators, safety triangle kit, Jack and Brace
- GME TX3500 2 Way Radio & Aerial
- Headlights on with ignition – Rear High & Low Mount LED Lighting
- Reverse Alarm with External Speaker – Reverse Camera & Screen
- LED Beacon on ROPS – Internal LED Strip Lighting in Module – External Work Lights x 5
- Lockable Battery Isolator – Lockable Starter isolator – Cat type Jump Start Receptacle
- 2 x E- Stop (cabin and front of module)
- 9kg Fire Extinguisher Mounting bracket on front of module
- Company, Fleet Number, Safety & Operating Decals
- WA Roadworthy completed ready for licensing
- Built to WA Mine Specifications
