Plantman P1500 Service Trailer Specifications:

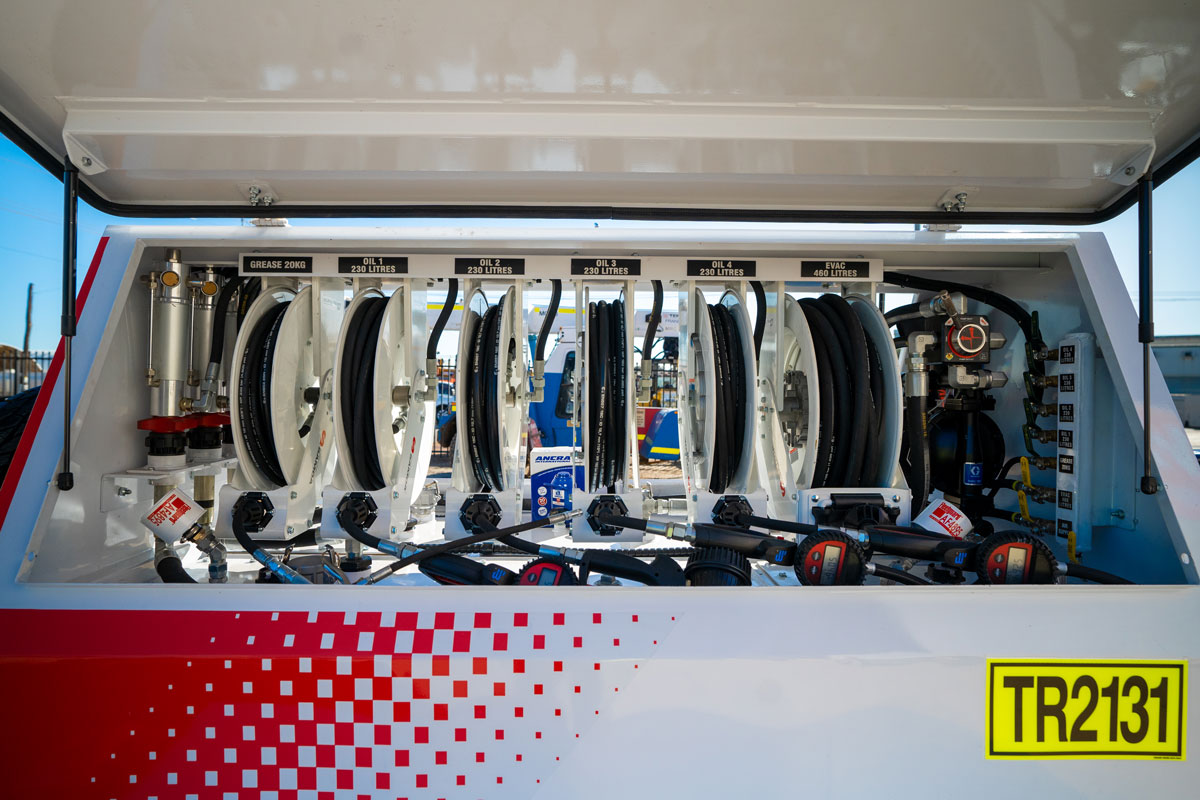

- Heavy duty trailer – Steel Compartment Service Module:
| Tank # | Tank Type | Tank Capacity |
| No 1 | Oil 15m x ½” Spring Retract Reel, Hose & Dripless Hand Piece | 230 litre |
| No 2 | Oil 15m x ½” Spring Retract Reel, Hose & Dripless Hand Piece | 230 litre |
| No 3 | Oil 15m x ½” Spring Retract Reel, Hose & Dripless Hand Piece | 230 litre |
| No 4 | Oil 15m x ½” Spring Retract Reel, Hose & Dripless Hand Piece | 230 litre |
| No 5 | Waste Oil 15m x ¾” Spring Retract Reel, Hose & 4 Way Valve to Evac | 460 litre |
- 20kg HP Grease Kit (replaceable drum style) with Spring Retract Reel
P1500 Service Trailer Specifications:
- New Heavy Duty chassis-mounted Service Trailer module
- Tandem Axle Trailer, Dual Gull Winged Doors with PAD / LEG TYPE Jockey Support
- Electric Drum Brakes, L/Cruiser Hub pattern, 5 Stud Rims / 245 x 70/16 Tyres
- Ring Pull Coupling hitch suit pintle hook with manual hydraulically operated park brake
- Spare Tyre, Rim, Jack, Brace & Wheel Nut Indicators
- 7 Pin Plug with Rear LED Tail Lights
- Diaphragm Pump for Waste Tank – Oil Stub Pumps for Oil Tanks
- All pumps pneumatically operated Air manifold with a couple point
- Tank Level Gauges
- Tank Fill from Ground Level into cam locks
- Diesel Piston Compressor 20CFM with electric Start-Cat Ignition barrel/key / E -Stop / Battery / MDR’S
- External checker plate stone guard in front of the compressor
- Wheel Chocks (mounted) and 2.0 kg Fire Extinguisher (mounted)
- Operating and Safety Signage Decals, DG3 Tape on sides
- WA Roadworthy Passed (ORC additional)
Applications:
- Open Cut Mining
- Civil Construction
- Drill Support Truck
Features:
- Zero spillage concept
- Robust construction
- Hazard reduction design
- User-friendly operation
- Low running cost
