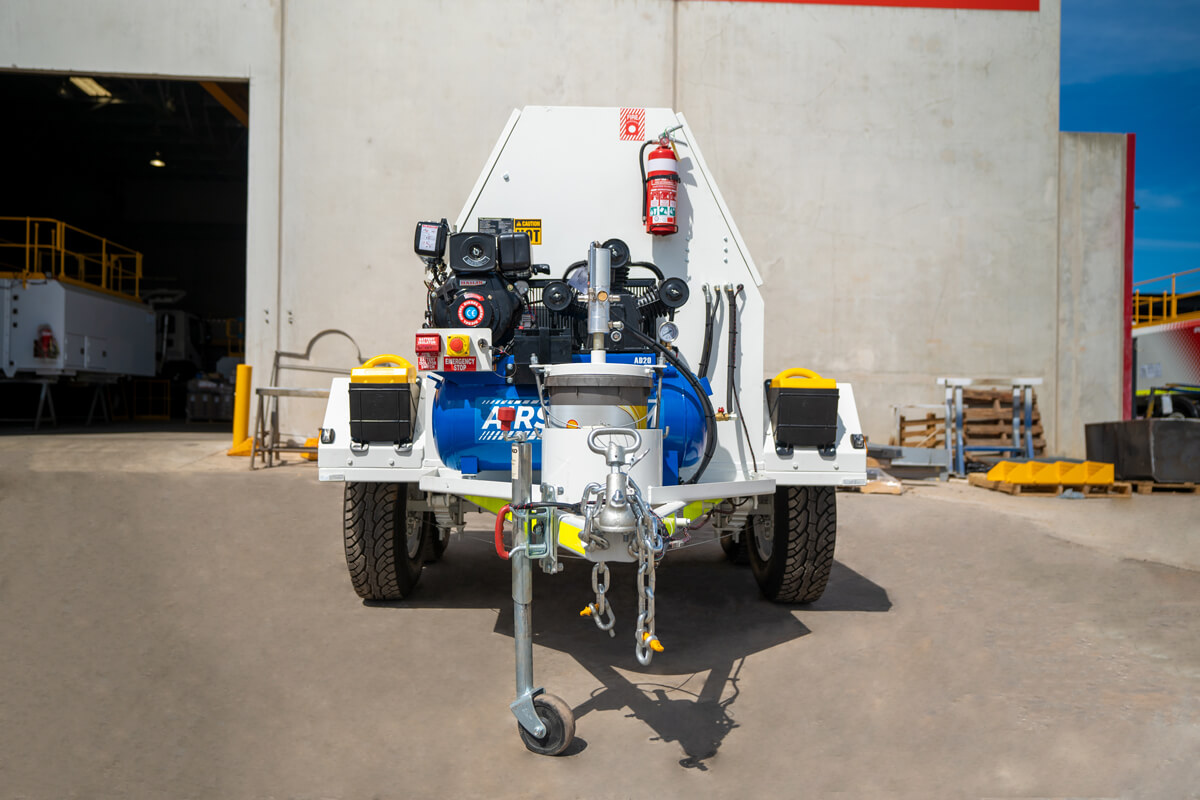

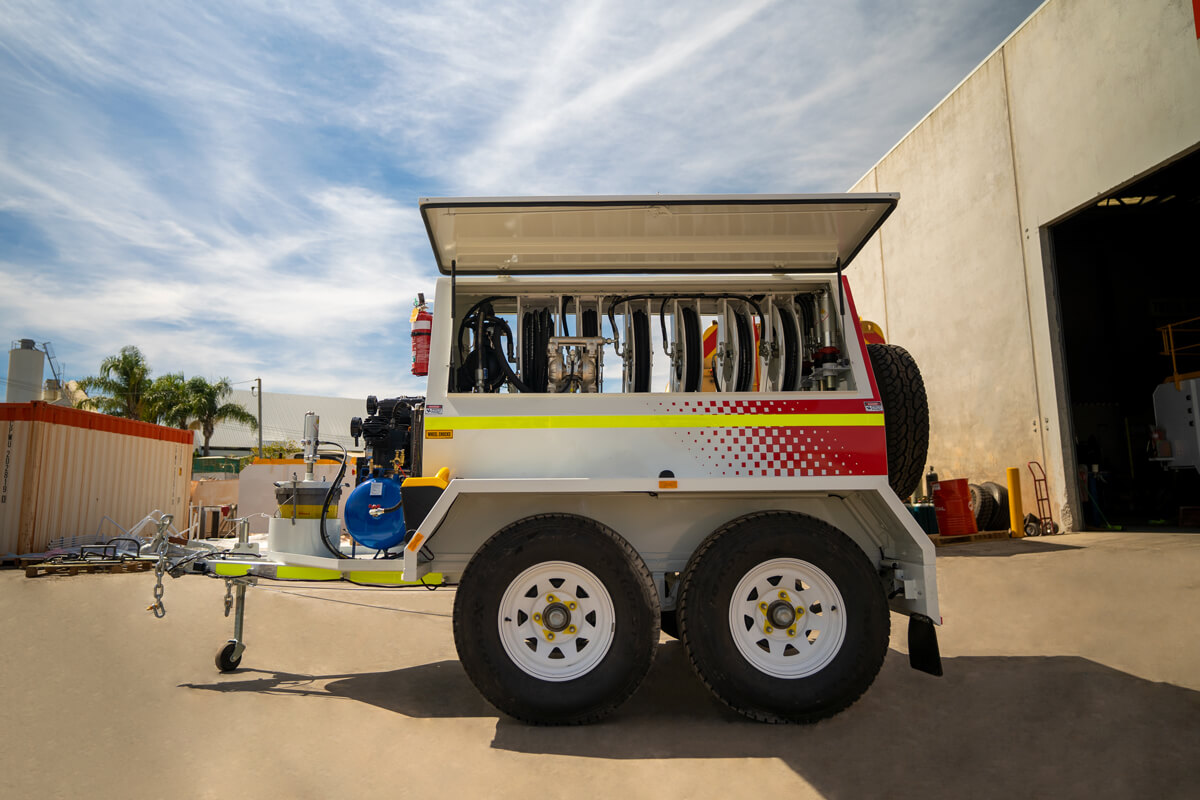

Plantman P1500 Service Trailer Specifications:
- Heavy duty trailer – Steel Compartment Service Module:
| Tank # | Tank Type | Tank Capacity |
| No 1 | Oil 15m x ½” Spring Retract Reel, Hose & Dripless Hand Piece | 230 litre |
| No 2 | Oil 15m x ½” Spring Retract Reel, Hose & Dripless Hand Piece | 230 litre |
| No 3 | Oil 15m x ½” Spring Retract Reel, Hose & Dripless Hand Piece | 230 litre |
| No 4 | Oil 15m x ½” Spring Retract Reel, Hose & Dripless Hand Piece | 230 litre |
| No 5 | Waste Oil 15m x ¾” Spring Retract Reel, Hose & 4 Way Valve to Evac | 460 litre |
- HP Grease Kit (replaceable drum style) with Spring Retract Reel 20 kg
P1500 Service Trailer Specifications:
- New Heavy Duty chassis mounted Plantman P1500 Service Trailer
- Tandem Axle Trailer, Dual Gull Winged Doors with Jockey Wheel
- Electric Drum Brakes L/Cruiser Hub pattern 5 Stud Rims / 245 x 70
- Standard Cable Overrun hydraulically operated park brake
- Spare Tyre, Rim, Jack, Brace & Wheel Nut Indicators
- Tow Bar suit 50 mm Ball / 7 Pin Plug with Rear LED Tail Lights
- Graco Diaphragm Pump for Waste Tank – Oil Stub Pumps for Oil Tanks
- All pumps pneumatically operated Air manifold with couple point
- Tank Fill from Ground Level into camlocks
- Wheel Chocks (mounted) and 2.0 kg Fire Extinguisher (mounted)
- Diesel Piston Compressor 20cfm, electric start/stop (Caterpillar key / Barrel), battery & isolator
- Certified relief valve
- Emergency Stop on Compressor
- 5 x Tank Level Gauges
- Operating and Safety Signage Decals, DG3 Tape on side
Applications:
- Open Cut Mining
- Civil Construction
- Drill Support Truck
Features:
- Zero spillage concept
- Robust construction
- Hazard reduction design
- User friendly operation
- Low running cost
