P2500 SERVICE TRUCK FUEL & LUBRICATION

Price on Application

AVAILABILITY:    IMMEDIATELY AVAILABLE FOR SALES

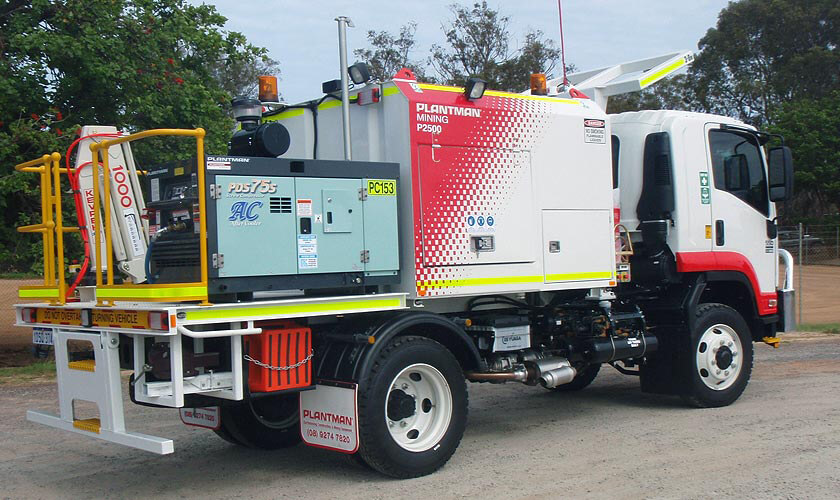

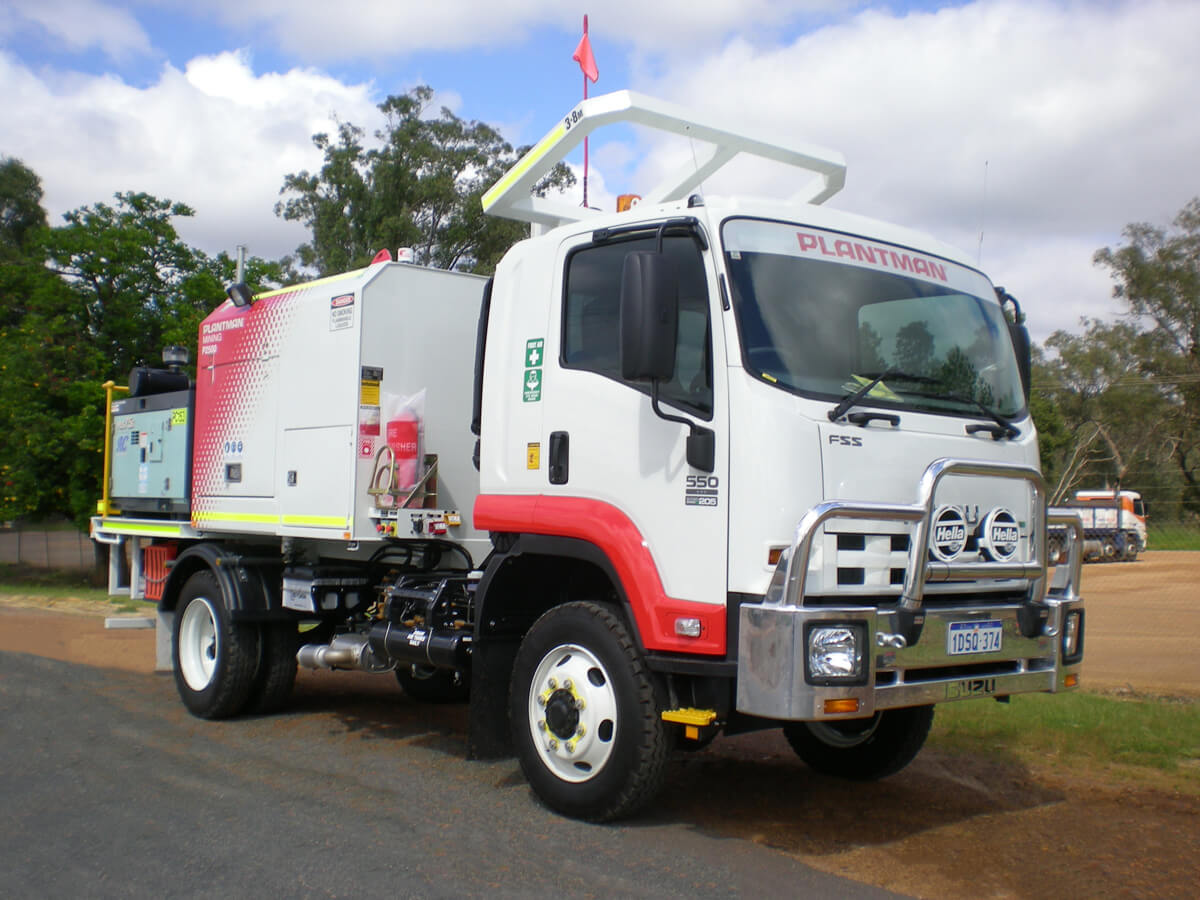

Plantman Equipment P2500 Service / Lube Truck

Volume (L): 5,000
G.V.M (Kg)*: 10,400
Axles: 4×2

*GVM: Gross Vehicle Mass

Standard P2500 Tank Configuration

The P2500 tank configuration can be highly customised. Talk to Plantman about your specific requirements.

Tank # Tank Type Tank Capacity
No 1 Diesel 2,500 Litre
No 2 Oil 500 Litre
No 3 Oil 500 Litre
No 4 Water/Coolant 500 Litre
No 5 Waste 500 Litre

Note – Tanks 4 and 5 are polymer lined

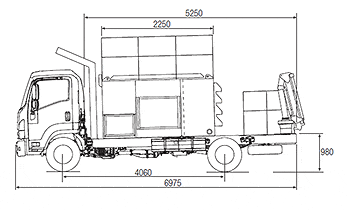

P2500 Service Truck Technical Diagram

Plantman P2500 Service Truck Technical Diagram 1
Plantman P2500 Service Truck Technical Diagram 2

Chassis Types for the Plantman P2500
