New Heavy-duty chassis-mounted steel, Plantman P3500 compartment service module:
| Tank# | Tank Type | Tank Capacity |
| No 1 | Bulk diesel with Wiggins fast-fill gun, hose, and auto rewind reel | 3,500 litres |
| L/V Diesel auto shut off gun, hose, and spring retractable reel | ||
| No 2 | Oil with spring retractable reel & 15m hose with dripless dispenser | 500 litres |
| No 3 | Oil with retractable reel & 15m hose with dripless dispenser | 500 litres |
| No 4 | Water or Coolant with spring retractable eel & 15m hose | 500 litres |
| No 5 | Waste with spring retractable reel & 15m hose and with 4-way valve for evac | 500 litres |
- 180kg Grease drum kit (replaceable drum) with HP pump, spring retractable reel & 15m hose
Atlas Copco Air Compressor U75 Specifications:
- Extended exhaust stack and bracket
- Air dryer and air lubricator
- External air cleaner and filter
- Safety decal kit
- Lockable battery isolator
- Emergency Stop

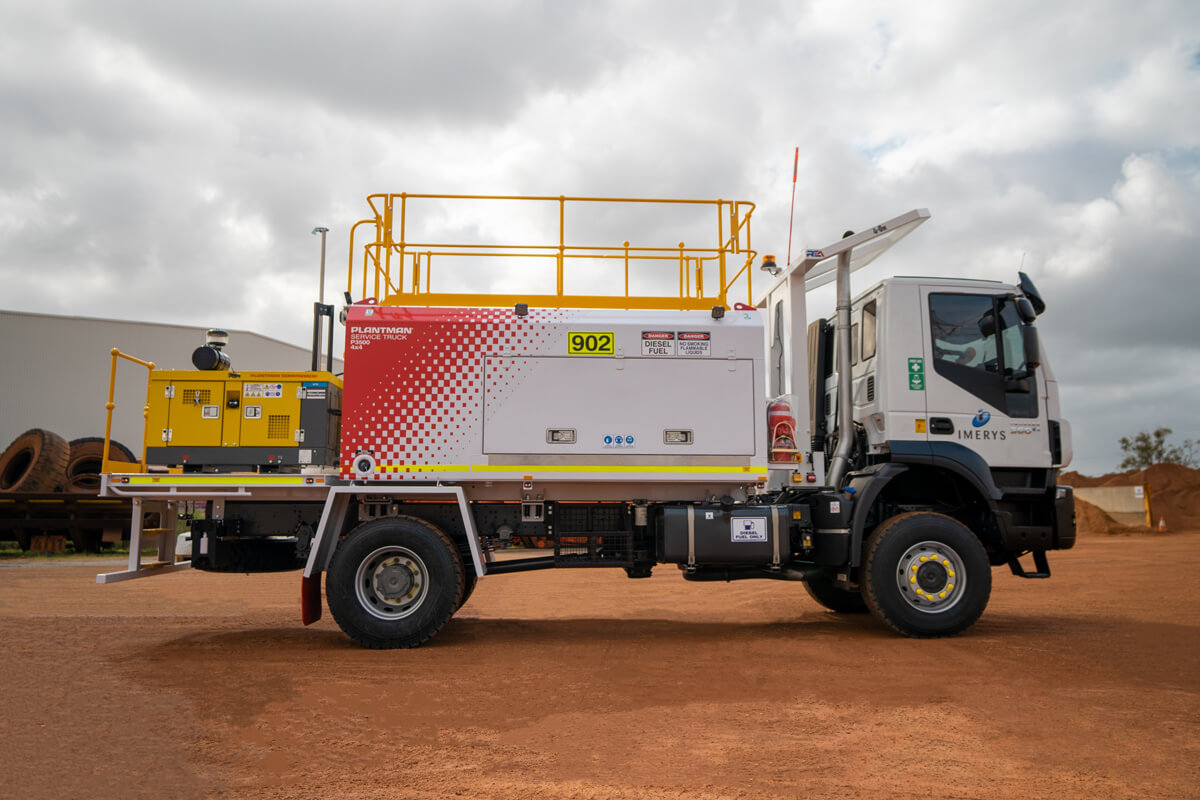

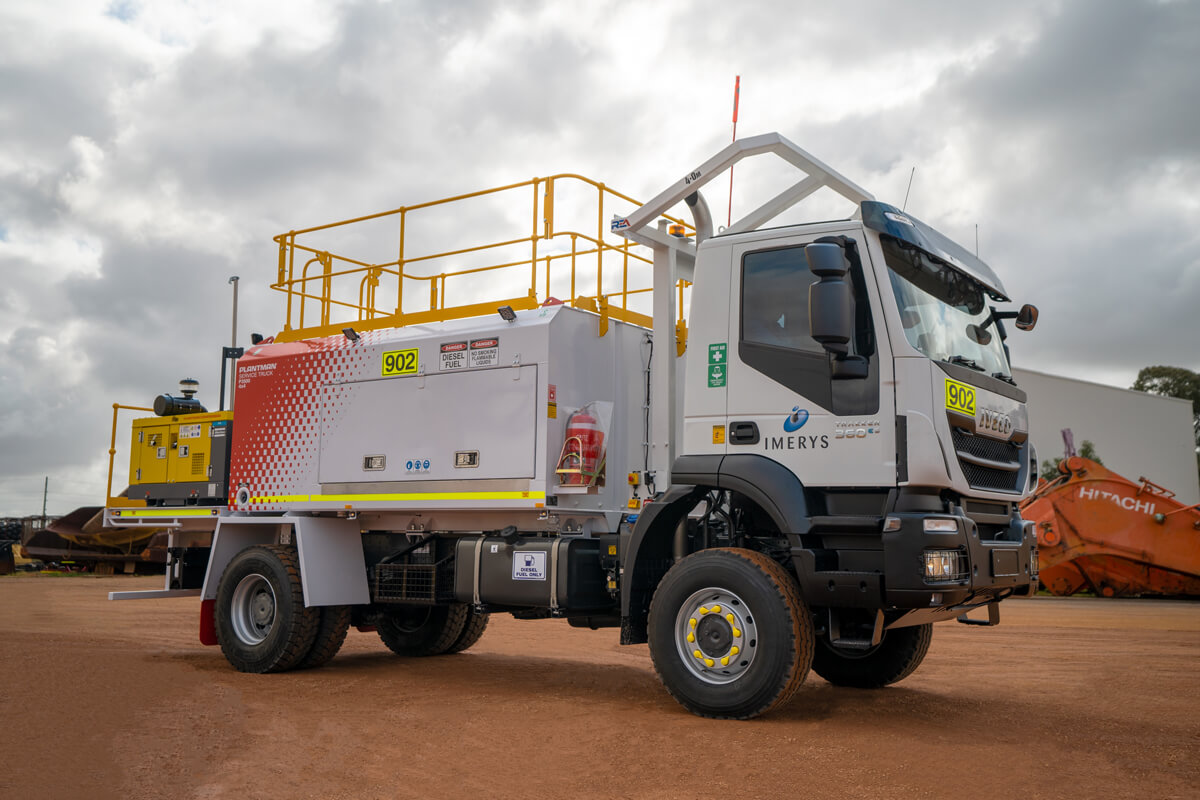

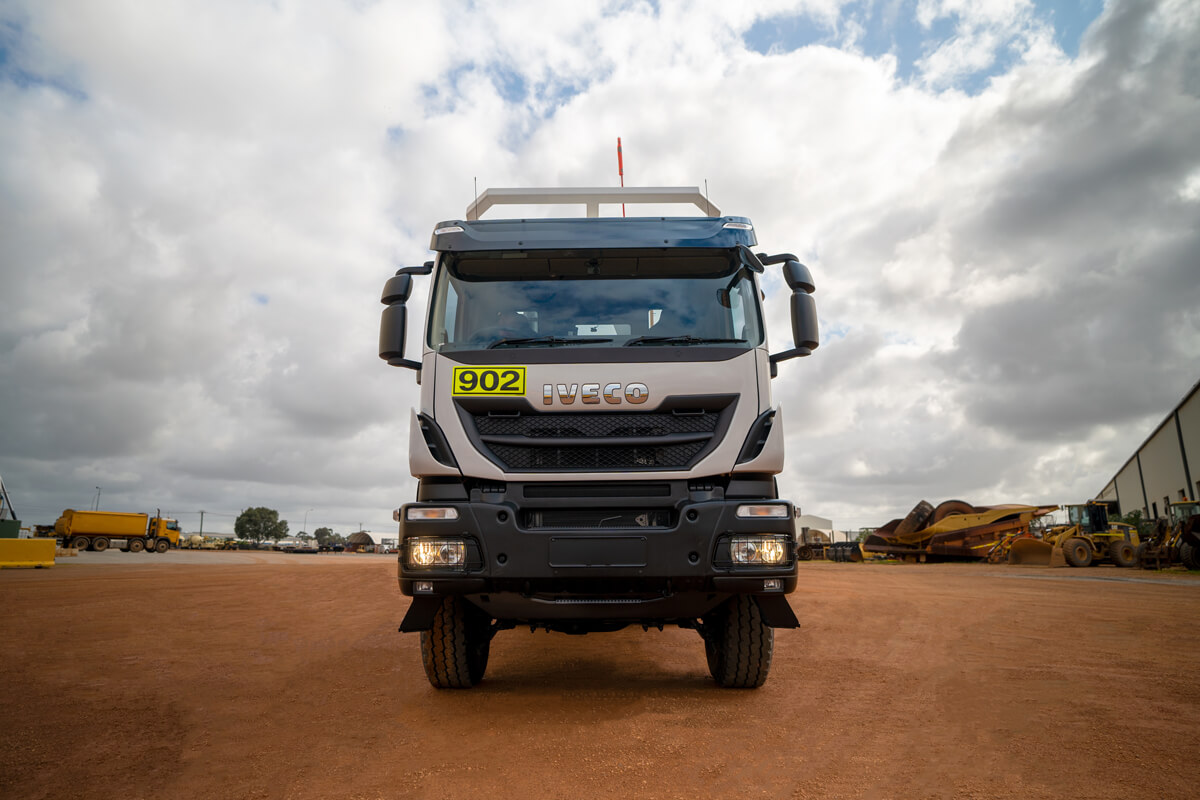

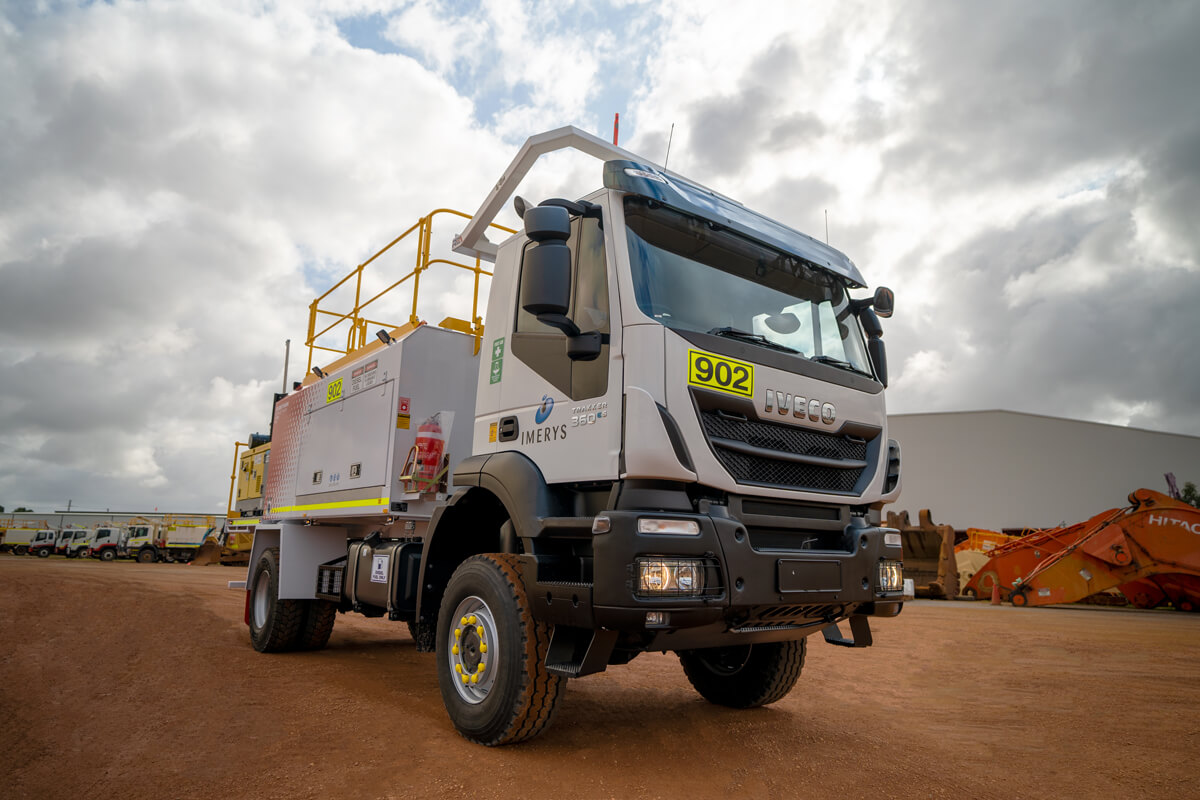

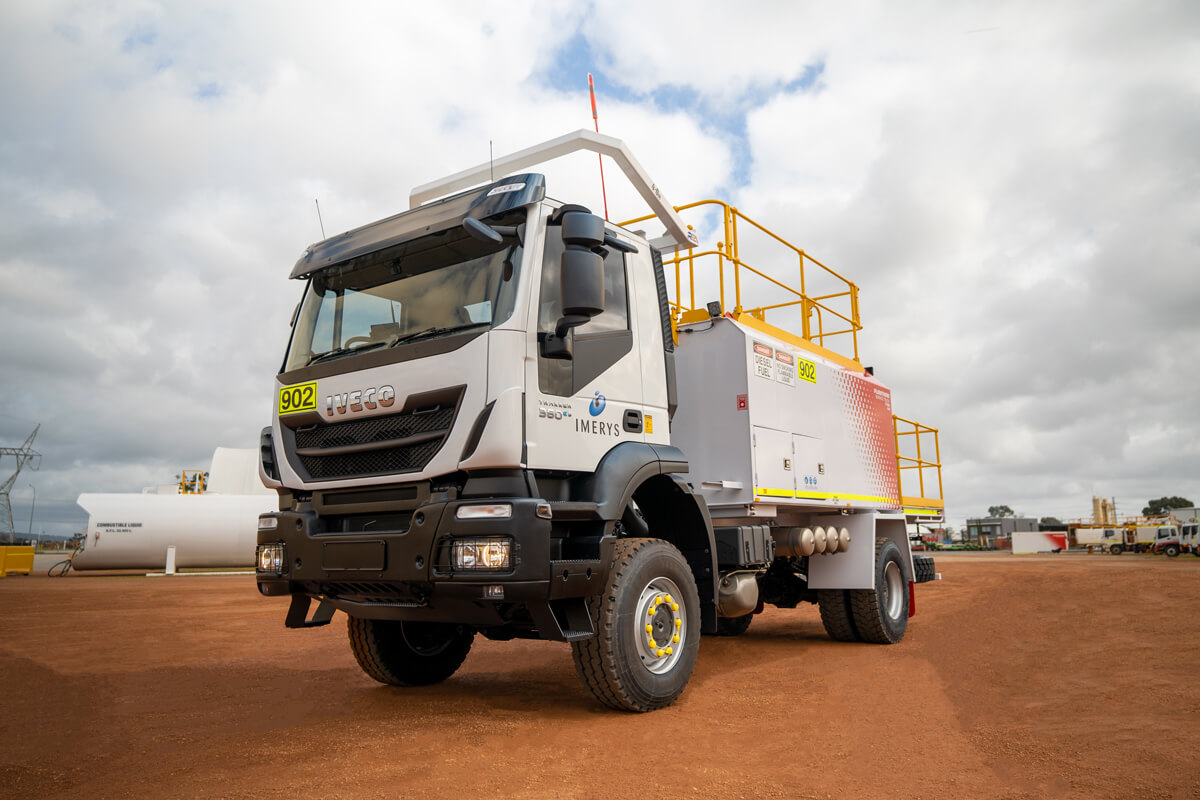

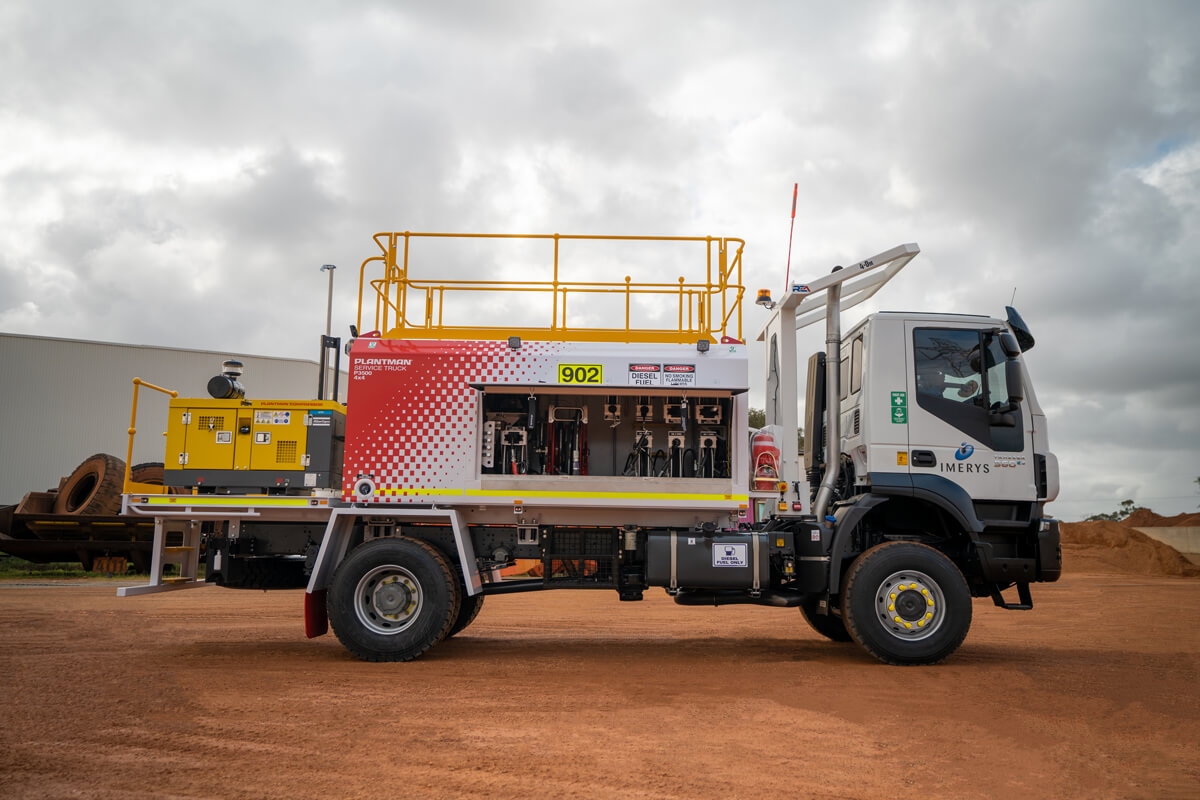

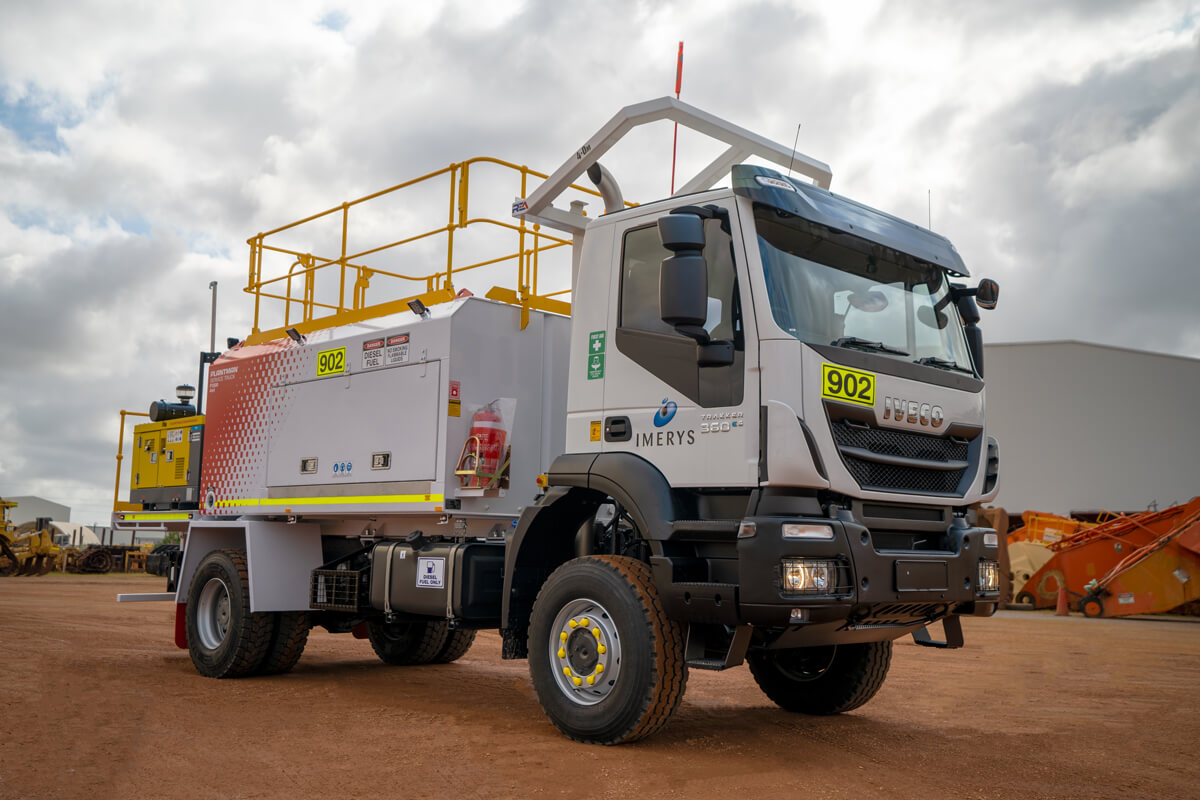

Plantman P3500 – IVECO TRAKKER 4×4 Service Truck P3500 Specifications:
- Rear Mounted Ad Blue tank with 24v electric pump, 8m hose, Spring Retractable Reel and Manual Nozzle – 200 Litres
- Remote Mounted Digital Displays for oil’s and diesel
- Wiggins Fast Fill Coupling for diesel tank fill
- All pumps are fully enclosed inside pump cabinet
- All systems are air operated Polymer lined water / coolant tank

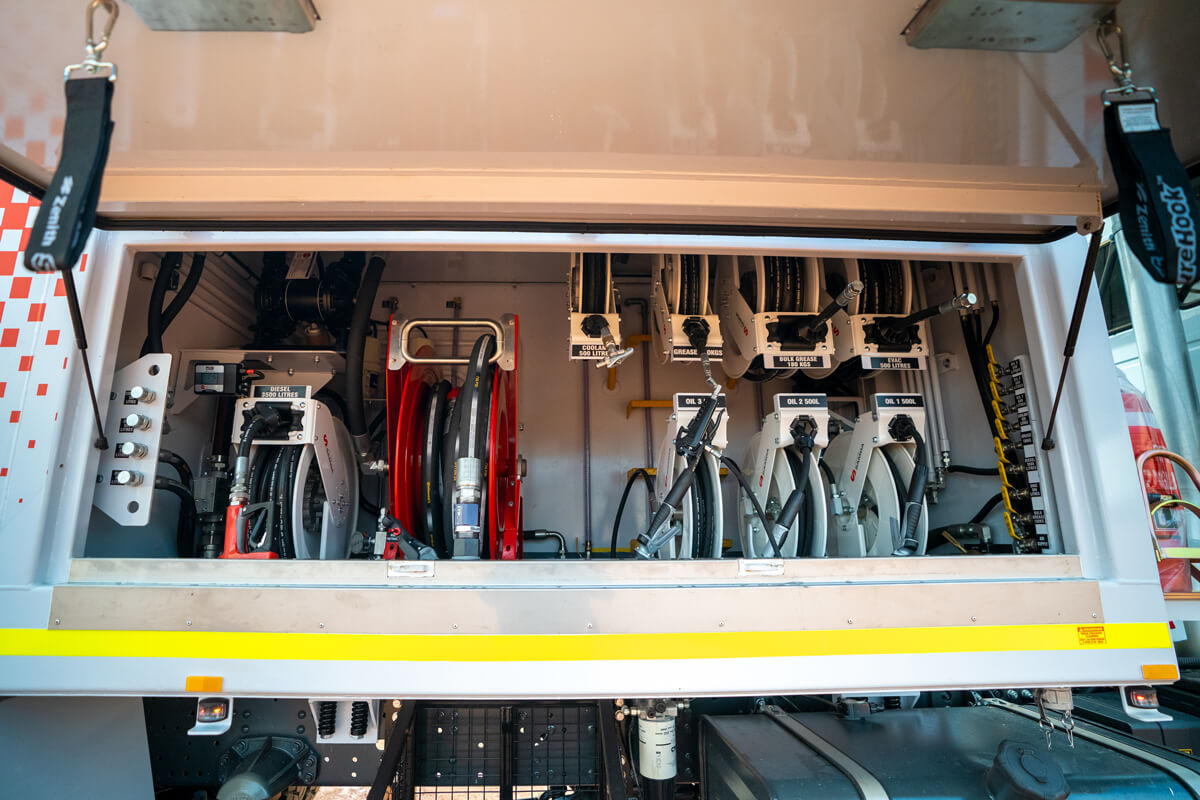

- Reels are accessed from ground level at the RHS front of the service module
- New Atlas Copco U110 Diesel Screw Compressor with certified safety valve

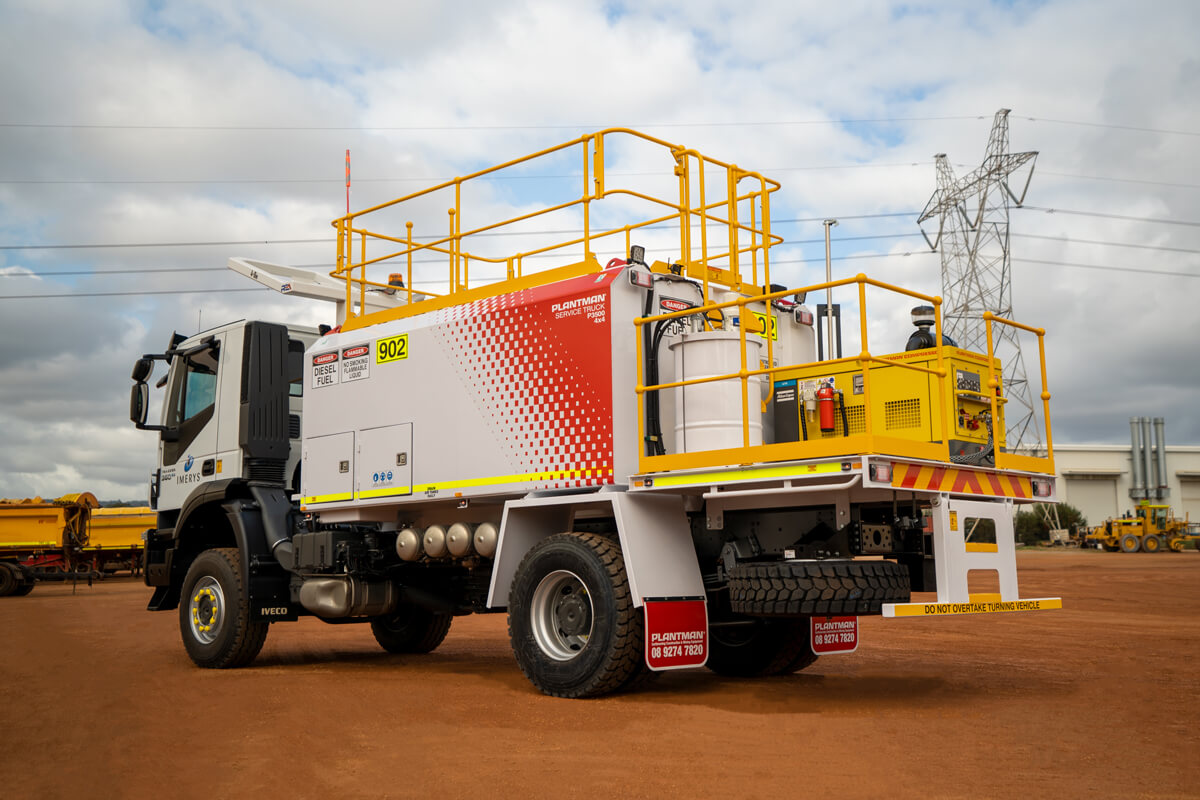

- Rear Tray for compressor and grease with Ladder access to the tray from ground level and the module roof with fold
- down handrails.
- Storage Space in Module on LHS 1 x Toolbox , 1 x Dirty Filter Sump with Lockable Doors
- Headlights on with ignition
- Rear Facing High Lights
- 5 x External Module roof mounted LED Worklights
- 2 x Internal LED Strip Lights
- High Mount Flag with Light in Top
- ROPS mounted amber rotating beacon
- Headlights on with Ignition
- 1 x Lockable Battery Isolator – Truck
- 1 x Lockable Battery Isolator – Compressor
- Jump Start Receptacle – Truck
- 1 x E-Stop in cabin
- 1 x E-Stop on front of module
- 1 x E-Stop on Compressor
- 2 x 9kg Fire extinguishers & Brackets & 2kg In Cabin
- High Vis Tape to side of service module
- Safety Signage & Operating Decals
